Product Model

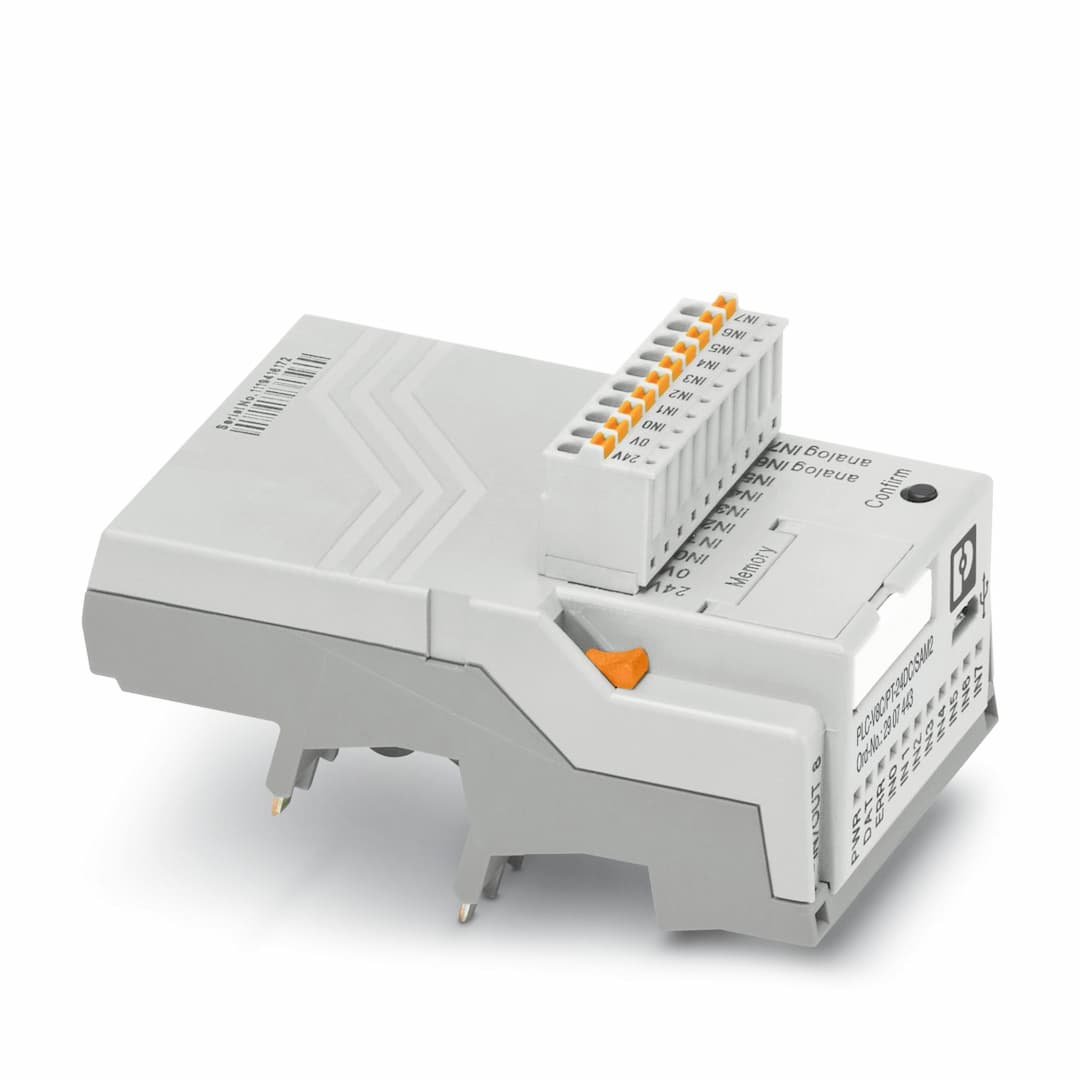

PLC-V8C/PT-24DC/SAM2
Selling Points
- 116 Integrated I/Os: Handle digital and analog inputs with ease.
- 2Real-Time Clock: Accurate timing with ±2 seconds/day accuracy.
- 3Push-In Connections: Easy and secure wiring with 9 mm stripping length.
- 4Micro USB Interface: Convenient programming and memory module connection.
- 5Compact Design: Dimensions: 50 mm x 111 mm x 87 mm, perfect for space-saving installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Base unit |
Product family | PLC logic | Operating mode | 100% operating factor |
Article revision | 05 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 50 V | Rated surge voltage | 0.8 kV |
Realtime clock | yes | Buffer period | 96 h (Capacitor) |
Accuracy realtime clock | ±2 s/d | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 26.4 V DC | Typical input current at U | 40 mA |
Maximum input current at U | 160 mA | Protective circuit | Reverse polarity protection
Surge protection |
Number of inputs | ≤ 8 (2 configurable as analog) | Description of the input | EN 61131-2, type 3 |
Input voltage | 24 V DC | Signal level "0" signal | < 5 V |
Signal level "1" signal | > 11 V | Input current "0" signal | < 1 mA |
Input current "1" signal | 2.5 mA | Status display | LED (yellow) |
Number of inputs | ≤ 2 (IN6 and IN7 are configurable as analog) | Input voltage range | 0 V ... 10 V |
Input resistance | > 3.5 kΩ | Number of inputs | ≤ 8 |
Description of the input | technical data depends on the PLC-INTERFACE terminal block used | Input voltage | 19 V DC |
Typical current consumption | 4 mA | Input resistance | < 100 mΩ |
Number of outputs | ≤ 8 | Nominal output voltage | 24 V DC |
Nominal current | 9 mA | Connection method | Push-in connection |
Stripping length | 9 mm | Number of connections | 1 |
Number of positions | 10 | Note | Device supply and 8 x inputs |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) |
Conductor cross section AWG | 26 ... 16 | Connection method | Micro USB type B |
Number of connections | 1 | Connection method | S-PORT (socket) |
Number of connections | 1 | Number of positions | 12 |
Note | For connecting the memory module | Status display | LED (green) |
Width | 50 mm | Height | 48.5 mm
111 mm (with relay) |
Depth | 82.5 mm
87 mm (with relay) | Color | gray (RAL 7042) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 50 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Max. permissible relative humidity (operation) | 95 % |
Certificate | CE-compliant | Identification | Class I, Div. 2, Groups A, B, C, D T4 |
Identification | Class I, Zone 2, Ex ec IIC Gc T4 X | Identification | Class I, Zone 2, AEx ec IIC T4 |
Standards/regulations | EN IEC 60664-1 | Mounting type | Plug-in mounting |
Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks | Mounting position | any |
Specifications may be subject to change without notice
