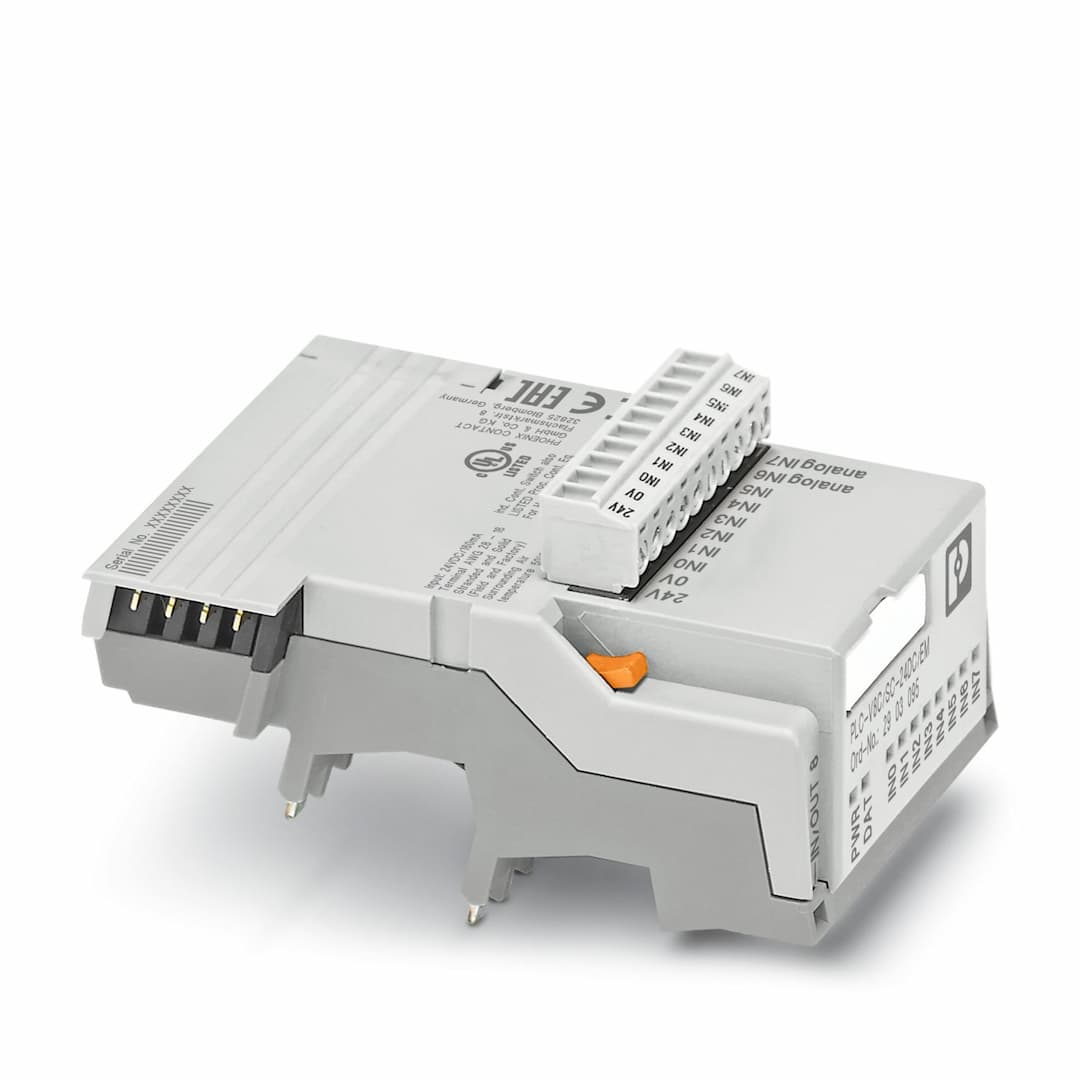

Product Model
PLC-V8C/SC-24DC/EM
Selling Points
- 116 I/Os for Enhanced Control: Expand your PLC system with 16 digital and analog inputs/outputs.
- 224V DC Power Supply: Reliable operation with a 24V DC power supply and a voltage range of 19.2V to 26.4V DC.
- 3Robust Connectivity: Screw connection with COMBICON connectors and stripping length of 7 mm for secure connections.
- 4EMC Class A Compliance: Meets EMC class A standards for safe and reliable operation in industrial environments.
- 5Compact Design: Dimensions of 50 mm x 44 mm x 82.5 mm, suitable for DIN-rail mounting and compact installations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Extension module | Product family | PLC logic |
Operating mode | 100% operating factor | Article revision | 07 |
Insulation | Basic insulation | Overvoltage category | III |
Pollution degree | 2 | Rated insulation voltage | 50 V |
Rated surge voltage | 0.8 kV | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 26.4 V DC | Maximum input current at U | 65 mA |
Protective circuit | Reverse polarity protection
Surge protection | Number of inputs | 8 (2 configurable as analog) |
Description of the input | EN 61131-2, type 3 | Input voltage | 24 V DC |
Signal level "0" signal | < 5 V | Signal level "1" signal | > 11 V |
Input current "0" signal | < 1 mA | Input current "1" signal | typ. 2.5 mA |
Status display | LED (yellow) | Number of inputs | 2 (IN6 and IN7 are configurable as analog) |
Input voltage range | 0 V ... 10 V | Input resistance | > 3.5 kΩ |
Number of inputs | ≤ 8 | Description of the input | technical data depends on the PLC-INTERFACE terminal block used |
Input voltage | 19 V DC | Typical current consumption | 4 mA |
Input resistance | < 100 mΩ | Number of outputs | ≤ 8 |
Nominal output voltage | 24 V DC | Nominal current | 9 mA |
Connection method | Screw connection | Stripping length | 7 mm |
Screw thread | M2 | Number of connections | 1 |
Number of positions | 10 | Note | Device supply and 8 x inputs |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) |
Conductor cross section AWG | 28 ... 16 | Connection method | Insulation displacement connection |
Number of connections | 1 | Number of positions | 4 |
Status display | LED (green) | Width | 50 mm |
Height | 44 mm
106 mm (with relay) | Depth | 82.5 mm
87 mm (with relay) |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Max. permissible relative humidity (operation) | 95 % | Certificate | CE-compliant |
Identification | Class I, Div. 2, Groups A, B, C, D T4 | Identification | Class I, Zone 2, Ex ec IIC Gc T4 X |
Identification | Class I, Zone 2, AEx ec IIC T4 | Standards/regulations | EN IEC 60664-1 |
Mounting type | Plug-in mounting | Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks |
Mounting position | any |
Specifications may be subject to change without notice
