Product Model

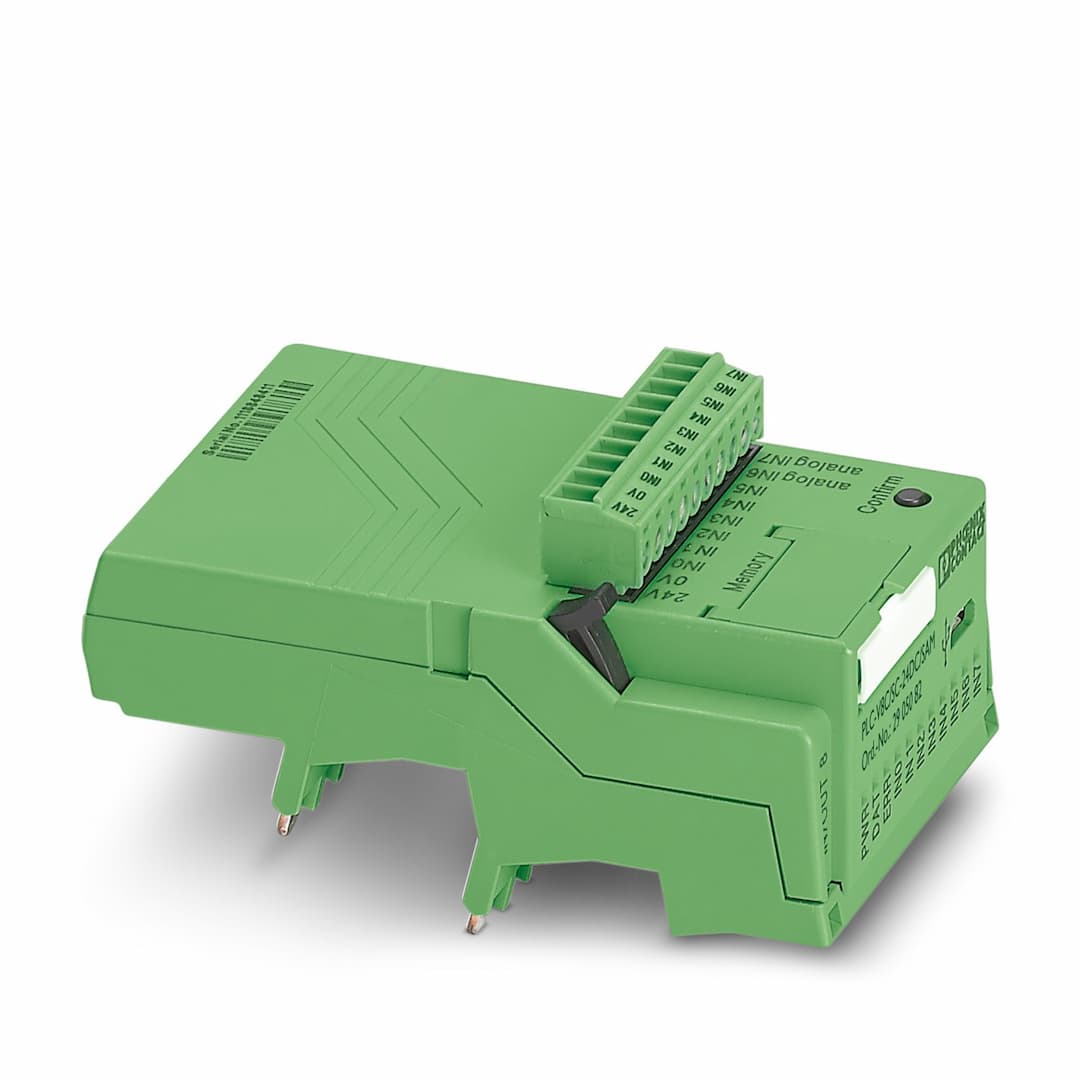

PLC-V8C/SC-24DC/SAM
Selling Points
- 116 Inputs/Outputs: Supports up to 16 I/Os, including analog and digital inputs.
- 224 V DC Supply: Operates on a stable 24 V DC power supply.
- 3Real-Time Clock: Includes a real-time clock with ±2 s/d accuracy.
- 4Plug-in Mounting: Easy plug-in mounting onto 8 x PLC-INTERFACE terminal blocks.
- 5CE Compliant: Meets CE standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | EMC note | EMC: class A product, see manufacturer's declaration in the download area |
Product type | Base unit | Product family | PLC logic |
Operating mode | 100% operating factor | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 50 V | Rated surge voltage | 0.8 kV |
Realtime clock | yes | Buffer period | 24 h (Capacitor) |
Accuracy realtime clock | ±2 s/d | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 26.4 V DC | Maximum input current at U | 120 mA |
Protective circuit | Reverse polarity protection
Surge protection | Number of inputs | 8 (2 configurable as analog) |
Description of the input | EN 61131-2, type 3 | Input voltage | 24 V DC |
Signal level "0" signal | < 5 V | Signal level "1" signal | > 11 V |
Input current "0" signal | < 1 mA | Input current "1" signal | 2.5 mA |
Status display | LED (yellow) | Number of inputs | 2 (IN6 and IN7 are configurable as analog) |
Input voltage range | 0 V ... 10 V | Input resistance | > 3.5 kΩ |
Number of inputs | ≤ 8 | Description of the input | technical data depends on the PLC-INTERFACE terminal block used |
Input voltage | 19 V DC | Typical current consumption | 4 mA |
Input resistance | < 100 mΩ | Number of outputs | ≤ 8 |
Nominal output voltage | 24 V DC | Nominal current | 9 mA |
Connection method | Screw connection | Stripping length | 7 mm |
Screw thread | M2 | Number of connections | 1 |
Number of positions | 10 | Note | Device supply and 8 x inputs |
Conductor cross section rigid | 0.14 mm² ... 1.5 mm² | Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) |
Conductor cross section AWG | 28 ... 16 | Connection method | Micro USB type B |
Number of connections | 1 | Connection method | S-PORT (socket) |
Number of connections | 1 | Number of positions | 12 |
Note | For connecting the memory module | Status display | LED (green) |
Width | 50 mm | Height | 44 mm
106 mm (with relay) |
Depth | 82.5 mm
87 mm (with relay) | Color | green (RAL 6021) |
Degree of protection | IP20 | Ambient temperature (operation) | -20 °C ... 45 °C |
Ambient temperature (storage/transport) | -20 °C ... 70 °C | Max. permissible relative humidity (operation) | 95 % |
Certificate | CE-compliant | Standards/regulations | DIN EN 50178 |
Mounting type | Plug-in mounting | Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks |
Mounting position | any |
