Product Model

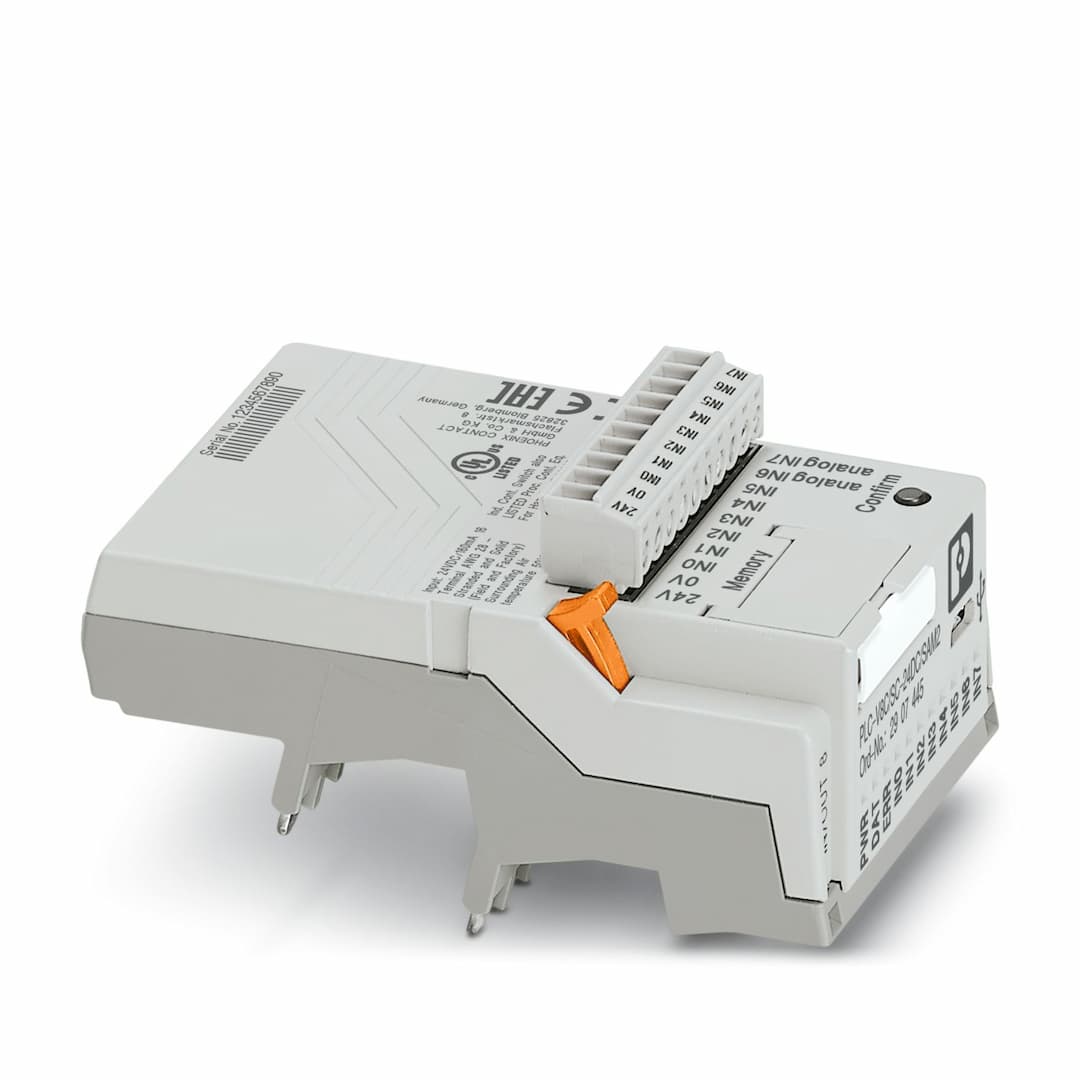

PLC-V8C/SC-24DC/SAM2
Selling Points
- 1Generation 2 PLC Logic Module: Latest technology in PLC control.
- 216 I/Os: Handles multiple inputs and outputs efficiently.
- 3Real-Time Clock: Ensures precise timing and scheduling.
- 4Expandable Memory: Accommodates memory modules and Bluetooth adapters.
- 5Basic Insulation and Surge Protection: Ensures reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Notes on operation | For proper use, the specifications of the installation directive (see Downloads) must be observed. For applications or use with third-party products, the specifications, and the safety and warning instructions of the respective third-party manufacturer must also be met. | Product type | Base unit |
Product family | PLC logic | Operating mode | 100% operating factor |
Article revision | 05 | Insulation | Basic insulation |
Overvoltage category | III | Pollution degree | 2 |
Rated insulation voltage | 50 V | Rated surge voltage | 0.8 kV |
Realtime clock | yes | Buffer period | 96 h (Capacitor) |
Accuracy realtime clock | ±2 s/d | Supply voltage | 24 V DC |
Supply voltage range | 19.2 V DC ... 26.4 V DC | Typical input current at U | 40 mA |
Maximum input current at U | 160 mA | Protective circuit | Reverse polarity protection
Surge protection |
Number of inputs | ≤ 8 (2 configurable as analog) | Description of the input | EN 61131-2, type 3 |
Input voltage | 24 V DC | Signal level "0" signal | < 5 V |
Signal level "1" signal | > 11 V | Input current "0" signal | < 1 mA |
Input current "1" signal | 2.5 mA | Status display | LED (yellow) |
Number of inputs | ≤ 2 (IN6 and IN7 are configurable as analog) | Input voltage range | 0 V ... 10 V |
Input resistance | > 3.5 kΩ | Number of inputs | ≤ 8 |
Description of the input | technical data depends on the PLC-INTERFACE terminal block used | Input voltage | 19 V DC |
Typical current consumption | 4 mA | Input resistance | < 100 mΩ |
Number of outputs | ≤ 8 | Nominal output voltage | 24 V DC |
Nominal current | 9 mA | Connection method | Screw connection |
Stripping length | 7 mm | Screw thread | M2 |
Number of connections | 1 | Number of positions | 10 |
Note | Device supply and 8 x inputs | Conductor cross section rigid | 0.14 mm² ... 1.5 mm² |
Conductor cross section flexible | 0.14 mm² ... 1.5 mm²
0.25 mm² ... 0.5 mm² (Ferrule with plastic sleeve)
0.25 mm² ... 1.5 mm² (Ferrule without plastic sleeve) | Conductor cross section AWG | 28 ... 16 |
Connection method | Micro USB type B | Number of connections | 1 |
Connection method | S-PORT (socket) | Number of connections | 1 |
Number of positions | 12 | Note | For connecting the memory module |
Status display | LED (green) | Width | 50 mm |
Height | 44 mm
106 mm (with relay) | Depth | 82.5 mm
87 mm (with relay) |
Color | gray (RAL 7042) | Degree of protection | IP20 |
Ambient temperature (operation) | -20 °C ... 50 °C | Ambient temperature (storage/transport) | -20 °C ... 70 °C |
Max. permissible relative humidity (operation) | 95 % | Certificate | CE-compliant |
Identification | Class I, Div. 2, Groups A, B, C, D T4 | Identification | Class I, Zone 2, Ex ec IIC Gc T4 X |
Identification | Class I, Zone 2, AEx ec IIC T4 | Standards/regulations | EN IEC 60664-1 |
Mounting type | Plug-in mounting | Assembly note | can be plugged onto 8 x PLC-INTERFACE terminal blocks |
Mounting position | any |
Specifications may be subject to change without notice
