Product Model

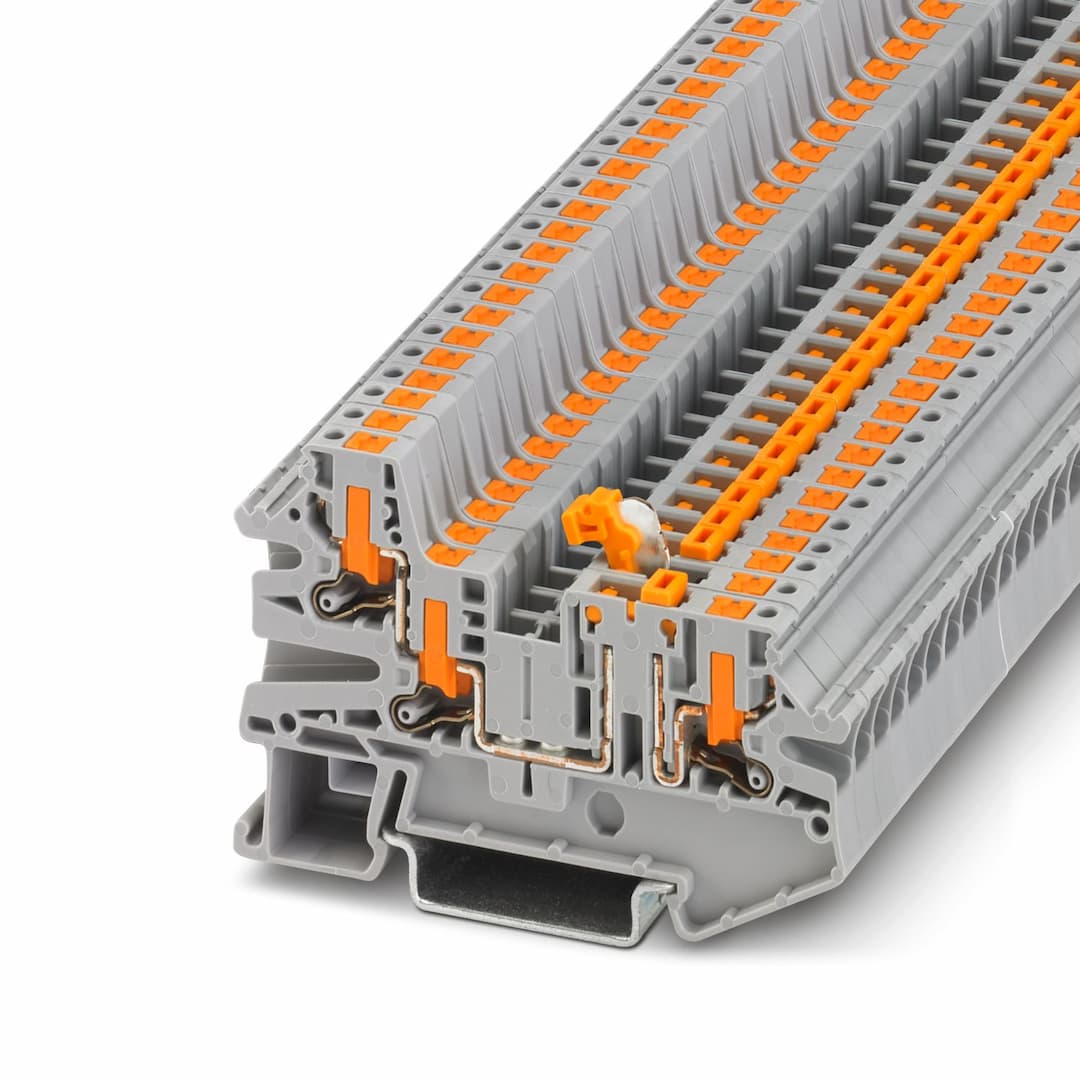

PTV 2,5-TWIN-MT
Selling Points
- 1Rated for 8 kV surge voltage, ensuring robust electrical protection.
- 2Ideal for confined spaces with a width of 5.2 mm and length of 60 mm.
- 3Easy and tool-free wiring of conductors with ferrules or solid conductors.
- 4Insulating material group I and flammability rating according to UL 94 V0 for long-lasting performance.
- 5Suitable for plant engineering, process industry, and railway applications with a nominal current of 24 A.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Disconnect terminal block | Product family | PTV |
Number of connections | 3 | Number of rows | 1 |
Potentials | 1 | Article revision | 02 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 6 kV | Maximum power dissipation for nominal condition | 0.77 W |
Number of connections per level | 3 | Nominal cross section | 2.5 mm² |
Stripping length | 8 mm ... 10 mm | Internal cylindrical gage | A3 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.14 mm² ... 4 mm² |
Cross section AWG | 26 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² |
Nominal current | 20 A | Maximum load current | 20 A (with 4 mm² conductor cross section, rigid) |
Nominal voltage | 400 V | Nominal cross section | 2.5 mm² |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 2.5 mm² | Width | 5.2 mm |
End cover width | 2.2 mm | Height | 72.5 mm |
Depth | 45.7 mm | Depth on NS 35/7,5 | 47.2 mm |
Depth on NS 35/15 | 54.7 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Result | Test passed | Requirement temperature-rise test | Increase in temperature ≤ 45 K |
Result | Test passed | Short-time withstand current 2.5 mm² | 0.3 kA |
Result | Test passed | Test voltage setpoint | 1.89 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | DIN rail/fixing support | NS 35 |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 0.14 mm² / 0.2 kg
2.5 mm² / 0.7 kg
4 mm² / 0.9 kg |
Result | Test passed | Temperature cycles | 192 |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Pulse shape | Semi-sinusoidal |
Acceleration | 30g | Shock duration | 18 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
