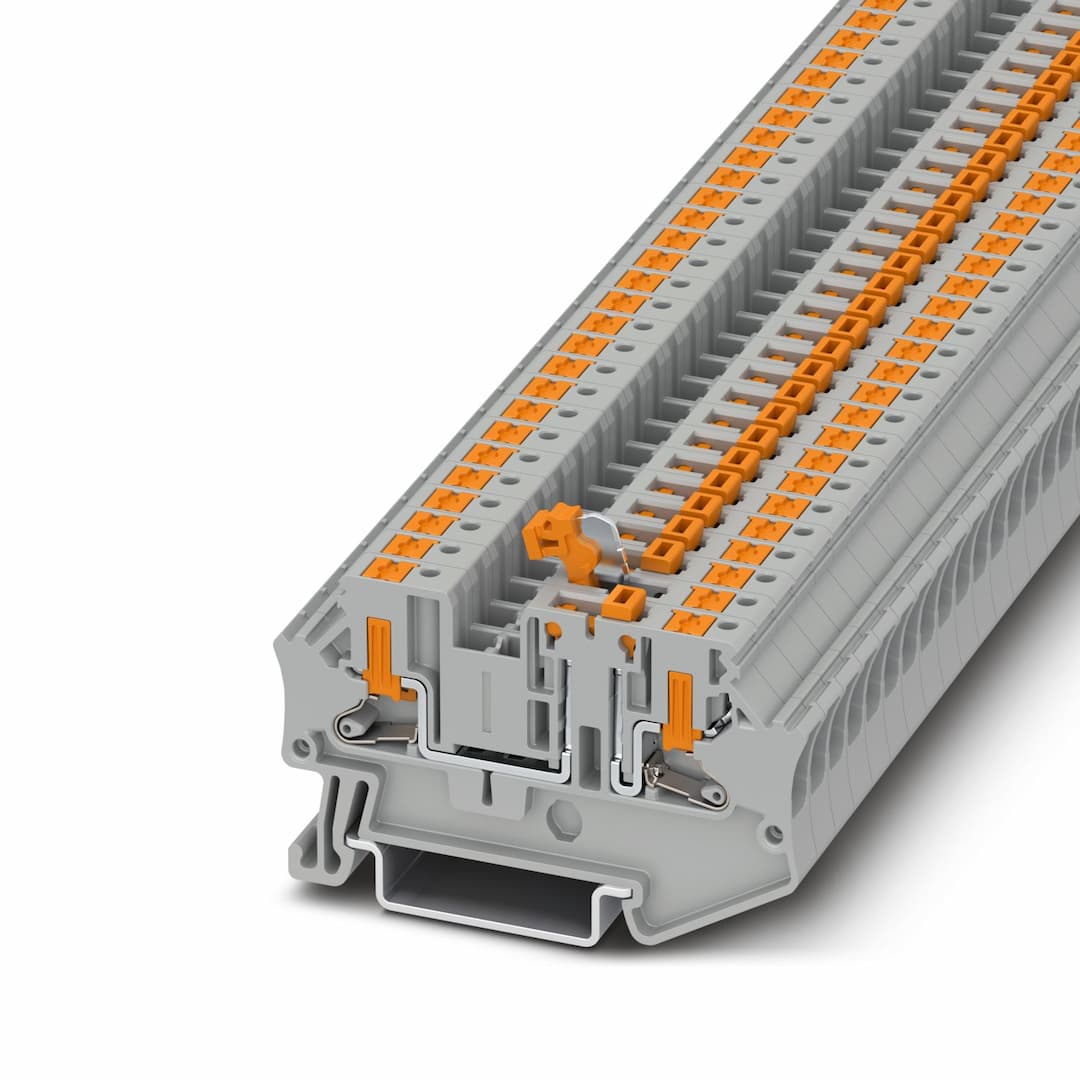

Product Model
PTV 4-MT
Selling Points
- 1Compact Design: Enables wiring in confined spaces.
- 2Secure Connections: Push-in connection ensures reliable and secure terminal block connections.
- 3High Surge Voltage: Rated surge voltage of 6 kV for robust electrical performance.
- 4Durable Insulation: Overvoltage category III and degree of pollution 3 for enhanced durability.
- 5Compliance Testing: Passed smoke gas toxicity, specific optical density of smoke, and surface flammability tests according to NFPA 130 standards.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Disconnect terminal block | Product family | PTV |
Area of application | Railway industry
Machine building
Plant engineering | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 03 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 6 kV |
Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 2 |
Nominal cross section | 4 mm² | Stripping length | 9 mm ... 11 mm |
Internal cylindrical gage | A4 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.2 mm² ... 6 mm² | Cross section AWG | 24 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 24 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.2 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² ... 4 mm² |
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² ... 2.5 mm² | 2 conductors with the same cross section, flexible, with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Nominal current | 20 A | Maximum load current | 20 A (with a 2.5 mm² conductor cross section) |
Nominal voltage | 500 V | Nominal cross section | 4 mm² |
Conductor cross section rigid | 0.75 mm² ... 6 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 4 mm² | Width | 6.2 mm |
End cover width | 2.2 mm | Height | 63.3 mm |
Depth | 36.9 mm | Depth on NS 35/7,5 | 36.8 mm |
Depth on NS 35/15 | 44.3 mm | Color | gray (RAL 7042) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Result | Test passed | Short-time withstand current 2.5 mm² | 0.3 kA |
Result | Test passed | Test voltage setpoint | 1.89 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | DIN rail/fixing support | NS 35 |
Result | Test passed | Rotation speed | 10 rpm |
Revolutions | 135 | Conductor cross section/weight | 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg |
Result | Test passed | Temperature cycles | 192 |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Pulse shape | Half-sine |
Acceleration | 30g | Shock duration | 18 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/7,5
NS 35/15 |
