Selling Points
- 1Tool-free wiring with ferrules or solid conductors.
- 2Rated for 8 kV, ensuring reliable performance under stress.
- 3Constructed from PA insulating material, resistant to environmental factors.
- 4Width of 6.2 mm, height of 35.3 mm, suitable for confined spaces.
- 5Meets fire protection standards for rail vehicles (DIN EN 45545-2).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|

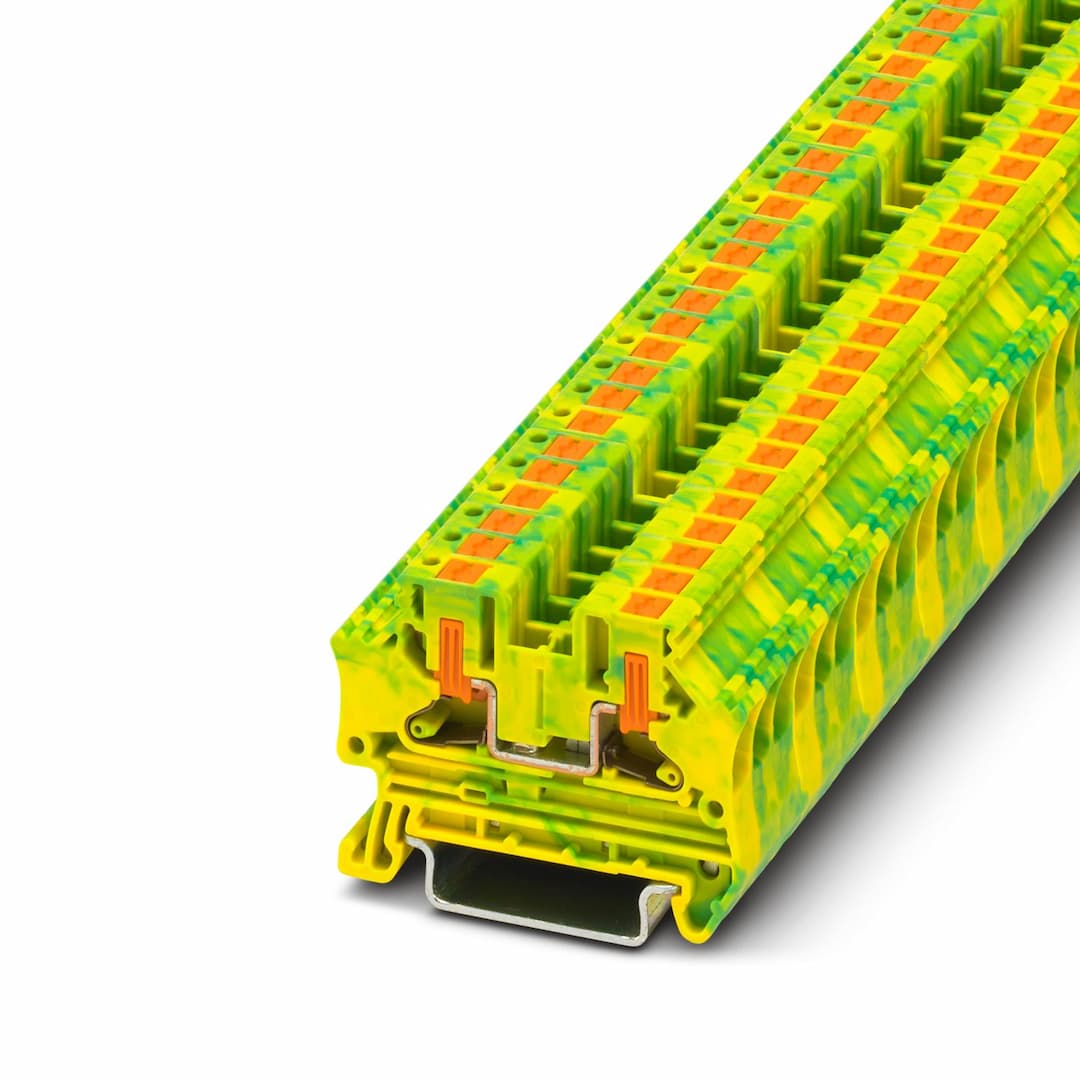

Product type | Ground terminal block | Product family | PTV |
Area of application | Railway industry
Machine building
Plant engineering
Process industry | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 05 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 1.02 W | Grounding foot | Yes |
Number of connections per level | 2 | Nominal cross section | 4 mm² |
Stripping length | 9 mm ... 11 mm | Internal cylindrical gage | A4 |
Connection in acc. with standard | IEC 60947-7-2 | Conductor cross section rigid | 0.2 mm² ... 6 mm² |
Cross section AWG | 24 ... 10 (converted acc. to IEC) | Conductor cross section flexible | 0.2 mm² ... 6 mm² |
Conductor cross section, flexible [AWG] | 24 ... 10 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.2 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² ... 4 mm² | Nominal cross section | 4 mm² |
Conductor cross section rigid | 0.75 mm² ... 6 mm² | Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 4 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 4 mm² | Identification | II 2 G Ex eb IIC Gb |
Operating temperature range | -60 °C ... 110 °C | Ex-certified accessories | 1088746 D-PTV 2,5/4
1212587 SF-SL 0,6X3,5-100 S-VDE
3022276 CLIPFIX 35-5 |
output | (Permanent) | Nominal cross section | 4 mm² |
Rated cross section AWG | 12 | Connection capacity rigid | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 | Connection capacity flexible | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 | Width | 6.2 mm |
End cover width | 2.2 mm | Height | 50.8 mm |
Depth | 35.3 mm | Depth on NS 35/7,5 | 36.8 mm |
Depth on NS 35/15 | 44.3 mm | Color | green-yellow |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 27,5 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Open side panel | Yes | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Pulse shape | Half-sine |
Acceleration | 30g | Shock duration | 18 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-2 |
Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
