Phoenix ContactFeed-through terminal blocks, multi-conductor terminal blocks, and multi-level terminal blocks
Product Model

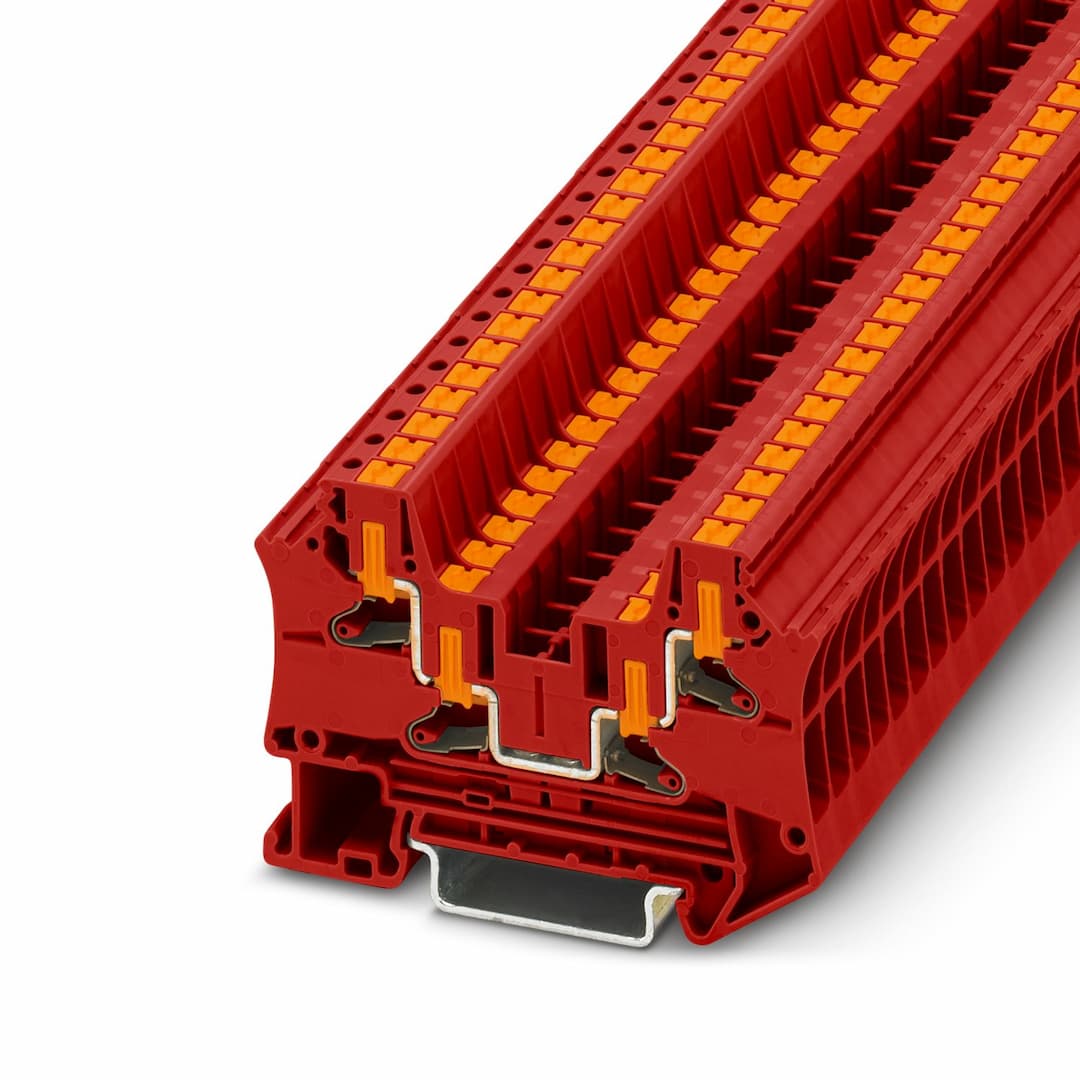

PTV 4-QUATTRO RD
Selling Points
- 1Lateral conductor entry ensures easy and clear wiring.
- 2Enables wiring in confined spaces with its compact design.
- 3Characterized by the system features of the CLIPLINE complete system.
- 4Nominal voltage of 1000 V and nominal current of 32 A.
- 5Passed various tests including surge voltage, power-frequency withstand voltage, and mechanical stability tests.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note | The max. load current must not be exceeded by the total current of all connected conductors. | Product type | Multi-conductor terminal block |
Product family | PTV | Area of application | Railway industry
Machine building
Plant engineering
Process industry |
Number of connections | 4 | Number of rows | 1 |
Potentials | 1 | Article revision | 02 |
Overvoltage category | III | Degree of pollution | 3 |
Maximum power dissipation for nominal condition | 1.02 W | Number of connections per level | 4 |
Nominal cross section | 4 mm² | Stripping length | 9 mm ... 11 mm |
Internal cylindrical gage | A4 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.2 mm² ... 6 mm² | Cross section AWG | 24 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.2 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 24 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.2 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.2 mm² ... 4 mm² |
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² ... 2.5 mm² | Nominal current | 32 A |
Maximum load current | 38 A (with 6 mm² conductor cross section, rigid) | Nominal voltage | 1000 V |
Nominal cross section | 4 mm² | Conductor cross section rigid | 0.75 mm² ... 6 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 4 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 1.5 mm² ... 4 mm² |
Identification | II 2 G Ex eb IIC Gb | Operating temperature range | -60 °C ... 110 °C |
Ex-certified accessories | 1088748 D-PTV 2,5/4-QUATTRO
1083618 DS-PTV 2,5/4
3047196 ATP-UT-QUATTRO
1212587 SF-SL 0,6X3,5-100 S-VDE
3022276 CLIPFIX 35-5 | List of bridges | Plug-in bridge / FBS 2-6 / 3030336
Plug-in bridge / FBS 3-6 / 3030242
Plug-in bridge / FBS 4-6 / 3030255
Plug-in bridge / FBS 5-6 / 3030349
Plug-in bridge / FBS 10-6 / 3030271
Plug-in bridge / FBS 20-6 / 3030365
Plug-in bridge / FBS 50-6 / 3032224 |
Bridge data | 27 A / 4 mm² | Ex temperature increase | 40 K (27,6 A / 4 mm²) |
Rated voltage | 550 V | for bridging with bridge | 550 V |
- At bridging between non-adjacent terminal blocks | 550 V | - At cut-to-length bridging | 275 V |
- At cut-to-length bridging with cover | 275 V | - At cut-to-length bridging with partition plate | 550 V |
Rated insulation voltage | 500 V | output | (Permanent) |
Rated current | 27 A (4 mm²) | Maximum load current | 31 A (6 mm²) |
Contact resistance | 0.7 mΩ | Nominal cross section | 4 mm² |
Rated cross section AWG | 12 | Connection capacity rigid | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 | Connection capacity flexible | 0.2 mm² ... 6 mm² |
Connection capacity AWG | 24 ... 10 | Width | 6.2 mm |
End cover width | 2.2 mm | Height | 69.2 mm |
Depth | 45.7 mm | Depth on NS 35/7,5 | 47.2 mm |
Depth on NS 35/15 | 54.7 mm | Color | red (RAL 3001) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
Result | Test passed | Short-time withstand current 4 mm² | 0.48 kA |
Result | Test passed | Test voltage setpoint | 2.2 kV |
Result | Test passed | Open side panel | Yes |
Result | Test passed | Result | Test passed |
Rotation speed | 10 rpm | Revolutions | 135 |
Conductor cross section/weight | 0.2 mm² / 0.2 kg
4 mm² / 0.9 kg
6 mm² / 1.4 kg | Result | Test passed |
Temperature cycles | 192 | Result | Test passed |
Time of exposure | 30 s | Result | Test passed |
Specification | DIN EN 50155 (VDE 0115-200):2018-05 | Spectrum | Service life test category 2, bogie-mounted |
Frequency | f | ASD level | 6.12 (m/s²)²/Hz |
Acceleration | 3.12g | Test duration per axis | 5 h |
Test directions | X-, Y- and Z-axis | Result | Test passed |
Pulse shape | Half-sine | Acceleration | 30g |
Shock duration | 18 ms | Number of shocks per direction | 3 |
Test directions | X-, Y- and Z-axis (pos. and neg.) | Result | Test passed |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1 | Mounting type | NS 35/7,5
NS 35/15 |
Specifications may be subject to change without notice
