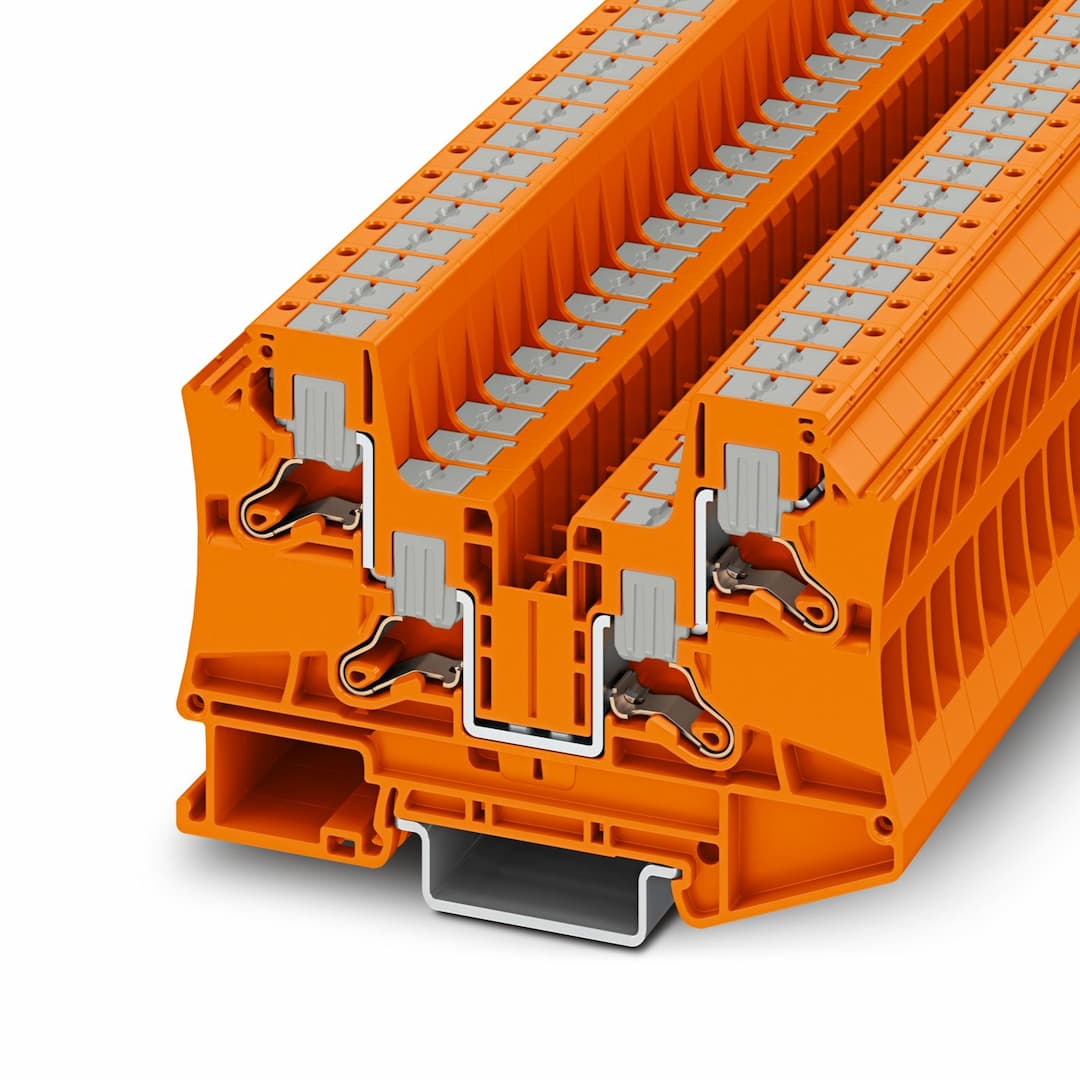

Phoenix Contact PTV 6-QUATTRO OG

Selling Points

  • 1Enables quick and easy setup without the need for tools, reducing installation time and maintenance efforts.
  • 2Allows simultaneous connection of up to four conductors, enhancing flexibility and reducing space requirements within panel enclosures.
  • 3Includes integrated test points for easy functionality checks and maintenance without disrupting the existing setup.
  • 4Made with high-quality materials to resist environmental factors in industrial settings, ensuring longevity and reliability.
  • 5Suitable for use with a wide variety of conductor types and sizes, making it a versatile choice for various electrical distribution and automation systems.
Product Details
PTV 6-QUATTRO OG
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Note
The max. load current must not be exceeded by the total current of all connected conductors.
Product type
Feed-through terminal block
Product family
PTV
Area of application
Railway industry Machine building Plant engineering Process industry
Number of positions
1
Number of connections
4
Number of rows
1
Article revision
02
Overvoltage category
III
Degree of pollution
3
Rated surge voltage
8 kV
Maximum power dissipation for nominal condition
1.31 W
Number of connections per level
4
Nominal cross section
6 mm²
Stripping length
10 mm ... 12 mm
Internal cylindrical gage
A5
Connection in acc. with standard
IEC 60947-7-1
Conductor cross section rigid
0.5 mm² ... 10 mm²
Cross section AWG
20 ... 8 (converted acc. to IEC)
Conductor cross section flexible
0.5 mm² ... 10 mm²
Conductor cross section, flexible [AWG]
20 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
0.5 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
0.5 mm² ... 6 mm²
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve)
0.5 mm² ... 4 mm²
Nominal current
41 A
Maximum load current
52 A (with 10 mm² conductor cross section, rigid)
Nominal voltage
1000 V
Nominal cross section
6 mm²
Conductor cross section rigid
1.5 mm² ... 10 mm²
Conductor cross section, rigid [AWG]
16 ... 8 (converted acc. to IEC)
Conductor cross-section flexible (ferrule without plastic sleeve)
4 mm² ... 6 mm²
Flexible conductor cross section (ferrule with plastic sleeve)
2.5 mm² ... 6 mm²
Identification
 II 2 G  Ex eb IIC Gb
Operating temperature range
-60 °C ... 110 °C
Ex-certified accessories
1180930 D-PTV 6-QUATTRO 1182214 DS-PTV 6 3022276 CLIPFIX 35-5 1212602 SZS 0,6X3,5 VDE
List of bridges
Plug-in bridge / FBS 2-8 / 3030284 Plug-in bridge / FBS 3-8 / 3030297 Plug-in bridge / FBS 4-8 / 3030307 Plug-in bridge / FBS 5-8 / 3030310 Plug-in bridge / FBS 6-8 / 3032470 Plug-in bridge / FBS 10-8 / 3030323
Bridge data
36 A / 6 mm²
Ex temperature increase
40 K (35 A/6 mm²)
Rated voltage
550 V
for bridging with bridge
550 V
- At bridging between non-adjacent terminal blocks
352 V
- At bridging between non-adjacent terminal blocks via PE terminal block
352 V
- At cut-to-length bridging
220 V
- At cut-to-length bridging with cover
275 V
Rated insulation voltage
500 V
output
(Permanent)
Rated current
35 A (6 mm²)
Maximum load current
45 A (10 mm²)
Contact resistance
0.7 mΩ
Nominal cross section
6 mm²
Rated cross section AWG
10
Connection capacity rigid
0.5 mm² ... 10 mm²
Connection capacity AWG
20 ... 8
Connection capacity flexible
0.5 mm² ... 10 mm²
Connection capacity AWG
20 ... 8
Width
8.2 mm
End cover width
2.2 mm
Height
84.7 mm
Depth
57.6 mm
Depth on NS 35/7,5
59.1 mm
Depth on NS 35/15
66.6 mm
Color
orange (RAL 2003)
Flammability rating according to UL 94
V0
Insulating material group
I
Insulating material
PA 6.6
Static insulating material application in cold
-60 °C
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21))
125 °C
Relative insulation material temperature index (Elec., UL 746 B)
125 °C
Fire protection for rail vehicles (DIN EN 45545-2) R22
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R23
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R24
HL 1 - HL 3
Fire protection for rail vehicles (DIN EN 45545-2) R26
HL 1 - HL 3
Calorimetric heat release NFPA 130 (ASTM E 1354)
28 MJ/kg
Surface flammability NFPA 130 (ASTM E 162)
passed
Specific optical density of smoke NFPA 130 (ASTM E 662)
passed
Smoke gas toxicity NFPA 130 (SMP 800C)
passed
Result
Test passed
Requirement temperature-rise test
Increase in temperature ≤ 45 K
Result
Test passed
Short-time withstand current 6 mm²
0.72 kA
Result
Test passed
Test voltage setpoint
2.2 kV
Result
Test passed
Open side panel
Yes
Result
Test passed
DIN rail/fixing support
NS 35
Result
Test passed
Rotation speed
10 rpm
Revolutions
135
Conductor cross section/weight
0.5 mm² / 0.3 kg 6 mm² / 1.4 kg 10 mm² / 2 kg
Result
Test passed
Temperature cycles
192
Result
Test passed
Time of exposure
30 s
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2018-05
Spectrum
Service life test category 2, bogie-mounted
Frequency
f
ASD level
6.12 (m/s²)²/Hz
Acceleration
3.12g
Test duration per axis
5 h
Test directions
X-, Y- and Z-axis
Result
Test passed
Specification
DIN EN 50155 (VDE 0115-200):2018-05
Pulse shape
Half-sine
Acceleration
30g
Shock duration
18 ms
Number of shocks per direction
3
Test directions
X-, Y- and Z-axis (pos. and neg.)
Result
Test passed
Ambient temperature (operation)
-60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.)
Ambient temperature (storage/transport)
-25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C)
Ambient temperature (assembly)
-5 °C ... 70 °C
Ambient temperature (actuation)
-5 °C ... 70 °C
Permissible humidity (operation)
20 % ... 90 %
Permissible humidity (storage/transport)
30 % ... 70 %
Connection in acc. with standard
IEC 60947-7-1
Mounting type
NS 35/7,5 NS 35/15

Specifications may be subject to change without notice
