Product Model

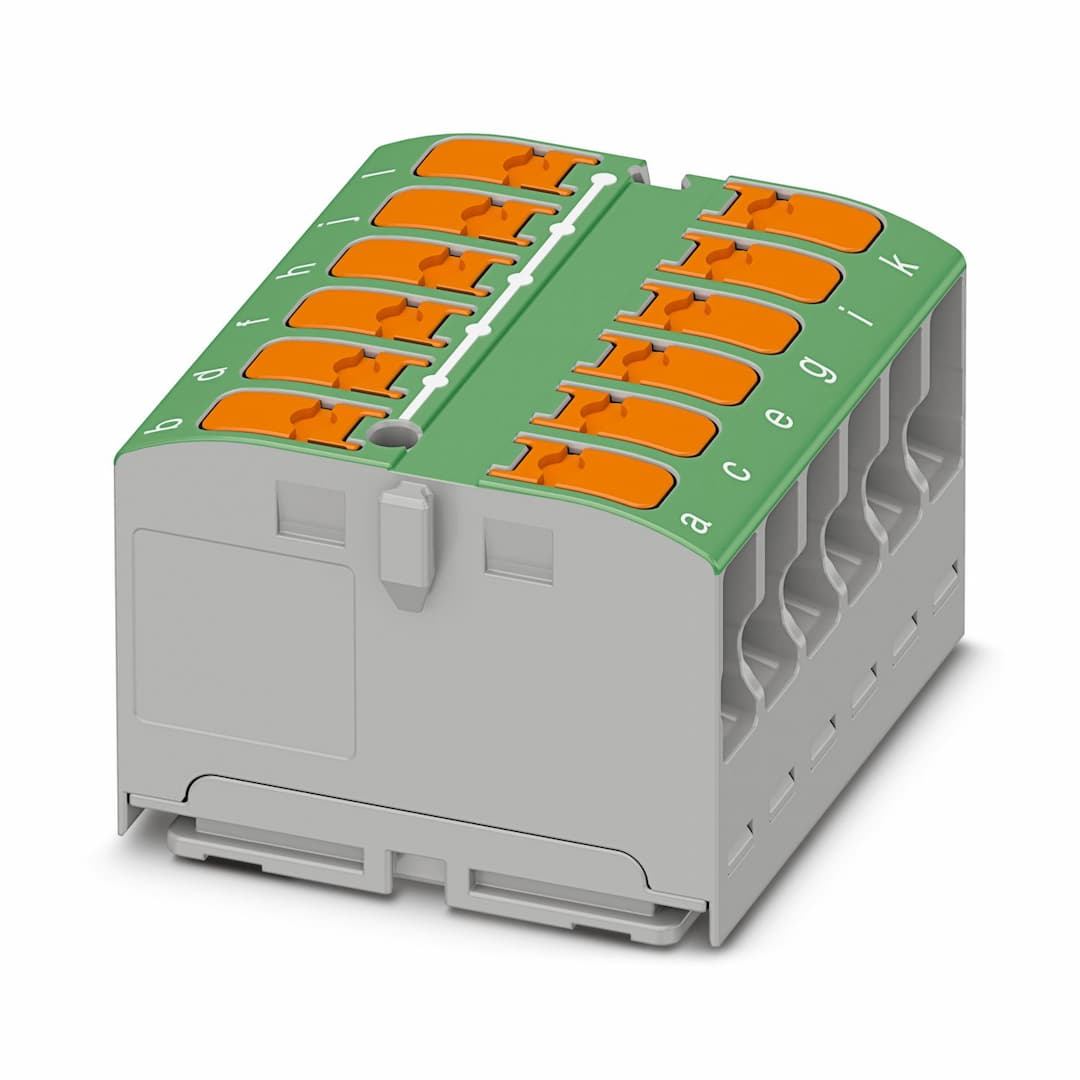

PTVFIX 12X2,5 GN
Selling Points
- 1Efficient Terminal Connections: The PTFIX 12X2,5 GN offers tool-free push-in connections, reducing installation time by up to 80%.
- 2High Current Rating: With a current rating of 24A, this distribution block is suitable for demanding electrical applications.
- 3Durable Design: Constructed with PA insulating material and rated for 6 kV surge voltage, ensuring reliable performance in harsh environments.
- 4Flexible Mounting Options: Compatible with DIN rail adapters for easy mounting, offering flexibility in installation configurations.
- 5Space-Saving Design: Transverse mounting on DIN rails saves up to 50% of space, optimizing electrical panel layouts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Distributor terminal block | Number of positions | 1 |
Number of connections | 12 | Number of rows | 1 |
Potentials | 1 | Article revision | 02 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 0.77 W |
Number of connections per level | 12 | Nominal cross section | 2.5 mm² |
Stripping length | 8 mm ... 10 mm | Internal cylindrical gage | A3
B3 |
Connection in acc. with standard | IEC 60998-2-2 | Conductor cross section rigid | 0.14 mm² ... 4 mm² |
Cross section AWG | 26 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² | Nominal current | 24 A |
Maximum load current | 32 A (with 4 mm² conductor cross-section) | Maximum total current | The maximum load current of the individual terminal point must not be exceeded. |
Nominal voltage | 450 V | Nominal cross section | 2.5 mm² |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross section, rigid [AWG] | 20 ... 12 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 2.5 mm² |
Width | 31.1 mm | Height | 28.6 mm |
Depth | 21.7 mm | Color | green (RAL 6021) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Open side panel | No | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60998-2-2 |
Mounting type | for snapping onto a DIN rail adapter
Direct mounting with flange
Free-hanging |
Specifications may be subject to change without notice
