Product Model

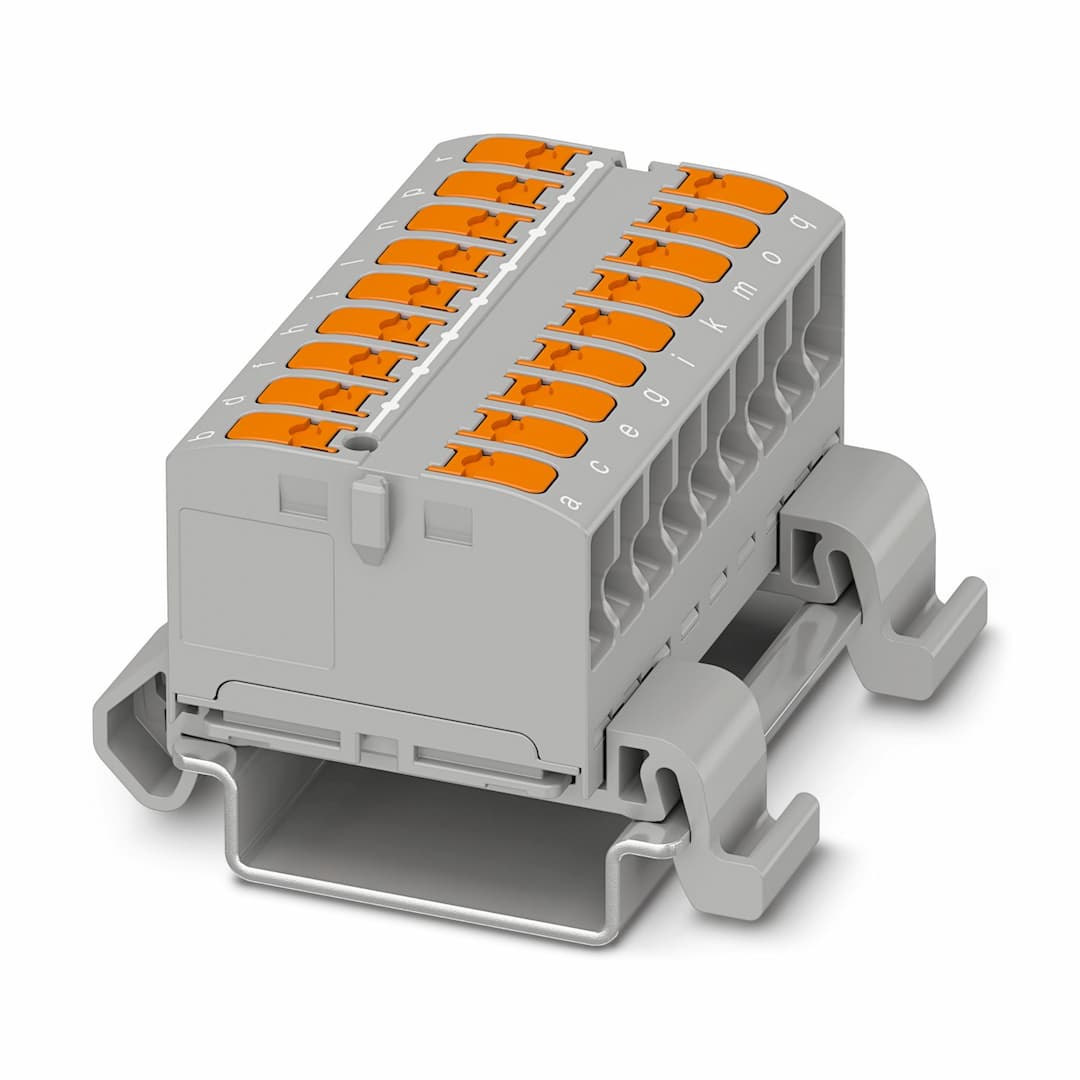

PTVFIX 18X2,5-NS35A GY
Selling Points
- 1Flexible Mounting Options: Compatible with DIN rail, direct mounting, and adhesive mounting for versatile installation.
- 2Time-Saving Connections: Tool-free push-in direct connection technology reduces wiring time by up to 80%.
- 3Clear Wiring Management: Eleven different color variants ensure clear and organized wiring.
- 4Space-Efficient Design: Transverse mounting on DIN rail saves up to 50% of space.
- 5High Safety Standards: Meets IEC 60947-7-1 standards and has a flammability rating of UL 94 V0.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Distributor terminal block | Number of positions | 1 |
Number of connections | 18 | Number of rows | 1 |
Potentials | 1 | Article revision | 02 |
Overvoltage category | III | Degree of pollution | 3 |
Rated surge voltage | 8 kV | Maximum power dissipation for nominal condition | 0.77 W |
Number of connections per level | 18 | Nominal cross section | 2.5 mm² |
Stripping length | 8 mm ... 10 mm | Internal cylindrical gage | A3
B3 |
Connection in acc. with standard | IEC 60947-7-1 | Conductor cross section rigid | 0.14 mm² ... 4 mm² |
Cross section AWG | 26 ... 12 (converted acc. to IEC) | Conductor cross section flexible | 0.14 mm² ... 4 mm² |
Conductor cross section, flexible [AWG] | 26 ... 12 (converted acc. to IEC) | Conductor cross-section flexible (ferrule without plastic sleeve) | 0.14 mm² ... 2.5 mm² |
Flexible conductor cross section (ferrule with plastic sleeve) | 0.14 mm² ... 2.5 mm² | Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 1.5 mm² |
Nominal current | 24 A | Maximum load current | 32 A (with 4 mm² conductor cross-section) |
Maximum total current | The maximum load current of the individual terminal point must not be exceeded. | Nominal voltage | 690 V |
Note | The IEC 60947-7-1 standard applies for the use of mounting accessories. | Nominal cross section | 2.5 mm² |
Connection in acc. with standard | IEC 60998-2-2 | Nominal voltage | 450 V (in accordance with IEC 60998-2-2) |
Conductor cross section rigid | 0.5 mm² ... 4 mm² | Conductor cross section, rigid [AWG] | 20 ... 12 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.75 mm² ... 2.5 mm² | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 2.5 mm² |
Width | 46.6 mm | Height | 45.7 mm |
Depth | 29.2 mm | Depth on NS 35/7,5 | 30.9 mm |
Color | gray (RAL 7042) | Flammability rating according to UL 94 | V0 |
Insulating material group | I | Insulating material | PA |
Static insulating material application in cold | -60 °C | Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Relative insulation material temperature index (Elec., UL 746 B) | 130 °C | Open side panel | No |
Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) | Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
Ambient temperature (assembly) | -5 °C ... 70 °C | Ambient temperature (actuation) | -5 °C ... 70 °C |
Permissible humidity (operation) | 20 % ... 90 % | Permissible humidity (storage/transport) | 30 % ... 70 % |
Connection in acc. with standard | IEC 60947-7-1
IEC 60998-2-2 | Mounting type | NS 35/7,5
NS 35/15 |
