Product Model

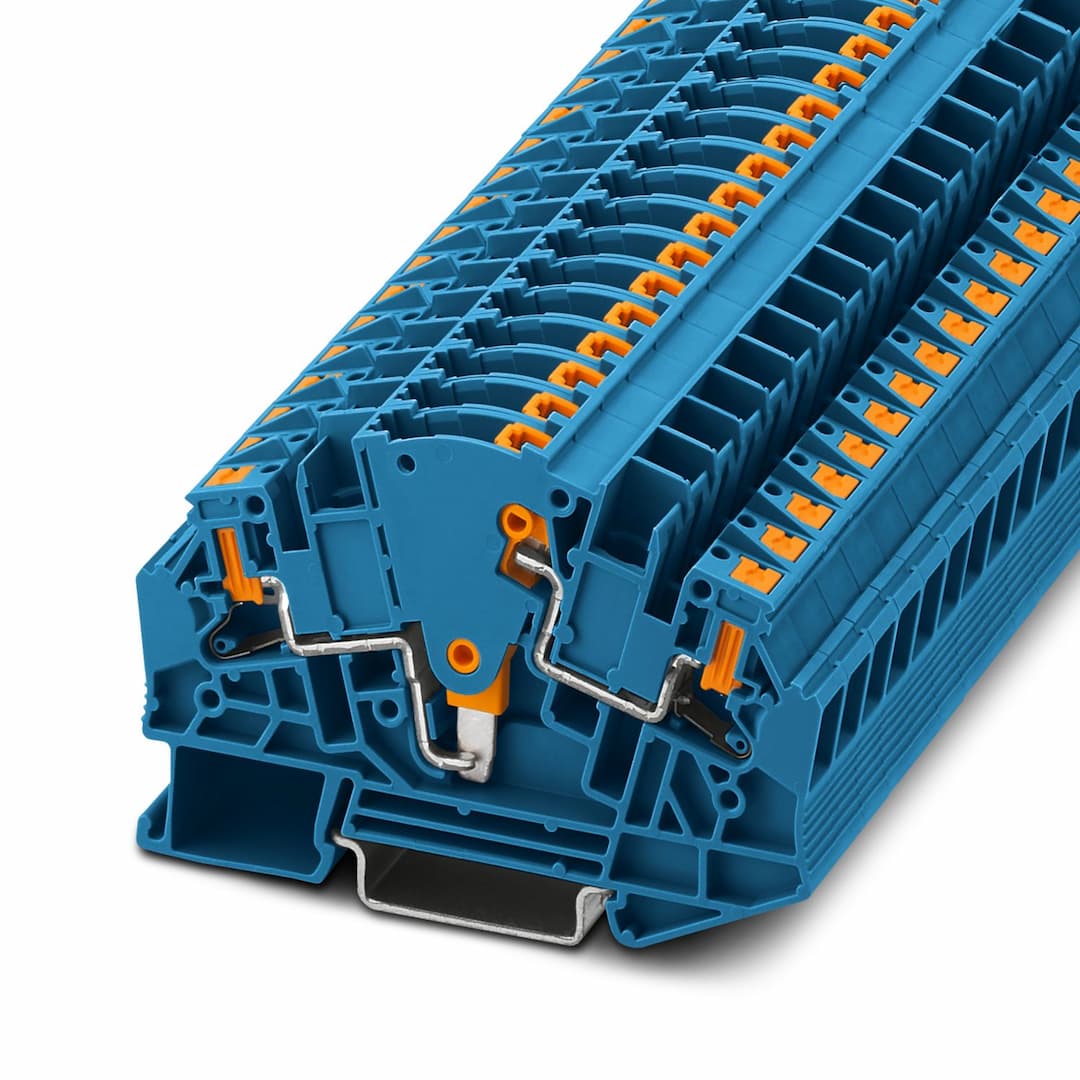

PTVME 6/S BU
Selling Points
- 1High Safety Rating: Meets UL 94 V0 flammability rating and has a rated surge voltage of 8 kV.
- 2Compact Design: Same width as screw terminal blocks, ensuring easy integration into various electrical systems.
- 3Quick Actuation: Features a screw-free disconnect slide for rapid and easy operation.
- 4Visible Switching State: Clearly visible and readily apparent switching state ensures easy monitoring of the terminal block's status.
- 5Comprehensive Testing: Passed numerous tests including surge voltage, power-frequency withstand voltage, and mechanical stability tests.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Test disconnect terminal block | Number of connections | 2 |
Number of rows | 1 | Potentials | 1 |
Article revision | 02 | Overvoltage category | III |
Degree of pollution | 3 | Rated surge voltage | 8 kV |
Maximum power dissipation for nominal condition | 1.31 W | Number of connections per level | 2 |
Nominal cross section | 6 mm² | Stripping length | 10 mm ... 12 mm |
Internal cylindrical gage | A4
B4 | Connection in acc. with standard | IEC 60947-7-1 |
Conductor cross section rigid | 0.5 mm² ... 6 mm² | Cross section AWG | 20 ... 10 (converted acc. to IEC) |
Conductor cross section flexible | 0.5 mm² ... 6 mm² | Conductor cross section, flexible [AWG] | 20 ... 10 (converted acc. to IEC) |
Conductor cross-section flexible (ferrule without plastic sleeve) | 0.5 mm² ... 6 mm² Connection only with corresponding crimp versions. | Flexible conductor cross section (ferrule with plastic sleeve) | 0.5 mm² ... 6 mm² Connection only with corresponding crimp versions. |
Conductor cross-section flexible (2 conductors with the same cross-section, with TWIN ferrule and plastic sleeve) | 0.5 mm² ... 2.5 mm² | Nominal current | 30 A (with 6 mm² conductor cross section) |
Maximum load current | 30 A (with 6 mm² conductor cross section) | Nominal voltage | 1000 V |
Nominal cross section | 6 mm² | Conductor cross section rigid | 0.75 mm² ... 6 mm² |
Conductor cross-section flexible (ferrule without plastic sleeve) | 1.5 mm² ... 6 mm² Connection only with corresponding crimp versions. | Flexible conductor cross section (ferrule with plastic sleeve) | 1 mm² ... 6 mm² Connection only with corresponding crimp versions. |
Width | 8.2 mm | End cover width | 2.2 mm |
Height | 82 mm | Depth on NS 35/7,5 | 54.5 mm |
Depth on NS 35/15 | 62 mm | Color | blue (RAL 5015) |
Flammability rating according to UL 94 | V0 | Insulating material group | I |
Insulating material | PA | Static insulating material application in cold | -60 °C |
Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 130 °C | Relative insulation material temperature index (Elec., UL 746 B) | 130 °C |
Fire protection for rail vehicles (DIN EN 45545-2) R22 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R23 | HL 1 - HL 3 |
Fire protection for rail vehicles (DIN EN 45545-2) R24 | HL 1 - HL 3 | Fire protection for rail vehicles (DIN EN 45545-2) R26 | HL 1 - HL 3 |
Calorimetric heat release NFPA 130 (ASTM E 1354) | 28 MJ/kg | Surface flammability NFPA 130 (ASTM E 162) | passed |
Specific optical density of smoke NFPA 130 (ASTM E 662) | passed | Smoke gas toxicity NFPA 130 (SMP 800C) | passed |
Test voltage setpoint | 9.8 kV | Result | Test passed |
Requirement temperature-rise test | Increase in temperature ≤ 45 K | Result | Test passed |
Short-time withstand current 4 mm² | 0.5 kA
0.15 kA
1.25 kA | Result | Test passed |
Test voltage setpoint | 2.2 kV | Result | Test passed |
Open side panel | Yes | Result | Test passed |
Rotation speed | 10 rpm | Revolutions | 135 |
Conductor cross section/weight | 0.5 mm² / 0.3 kg
6 mm² / 1.4 kg | Result | Test passed |
Result | Test passed | Time of exposure | 30 s |
Result | Test passed | Specification | DIN EN 50155 (VDE 0115-200):2018-05 |
Spectrum | Service life test category 2, bogie-mounted | Frequency | f |
ASD level | 6.12 (m/s²)²/Hz | Acceleration | 3.12g |
Test duration per axis | 5 h | Test directions | X-, Y- and Z-axis |
Result | Test passed | Pulse shape | Half-sine |
Acceleration | 30g | Shock duration | 18 ms |
Number of shocks per direction | 3 | Test directions | X-, Y- and Z-axis (pos. and neg.) |
Result | Test passed | Ambient temperature (operation) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
Ambient temperature (storage/transport) | -25 °C ... 60 °C (for a short time, not exceeding 24 h, -60 °C to +70 °C) | Ambient temperature (assembly) | -5 °C ... 70 °C |
Ambient temperature (actuation) | -5 °C ... 70 °C | Permissible humidity (operation) | 20 % ... 90 % |
Permissible humidity (storage/transport) | 30 % ... 70 % | Connection in acc. with standard | IEC 60947-7-1 |
Mounting type | NS 35/15
NS 35/7,5 |
Specifications may be subject to change without notice
