Product Model

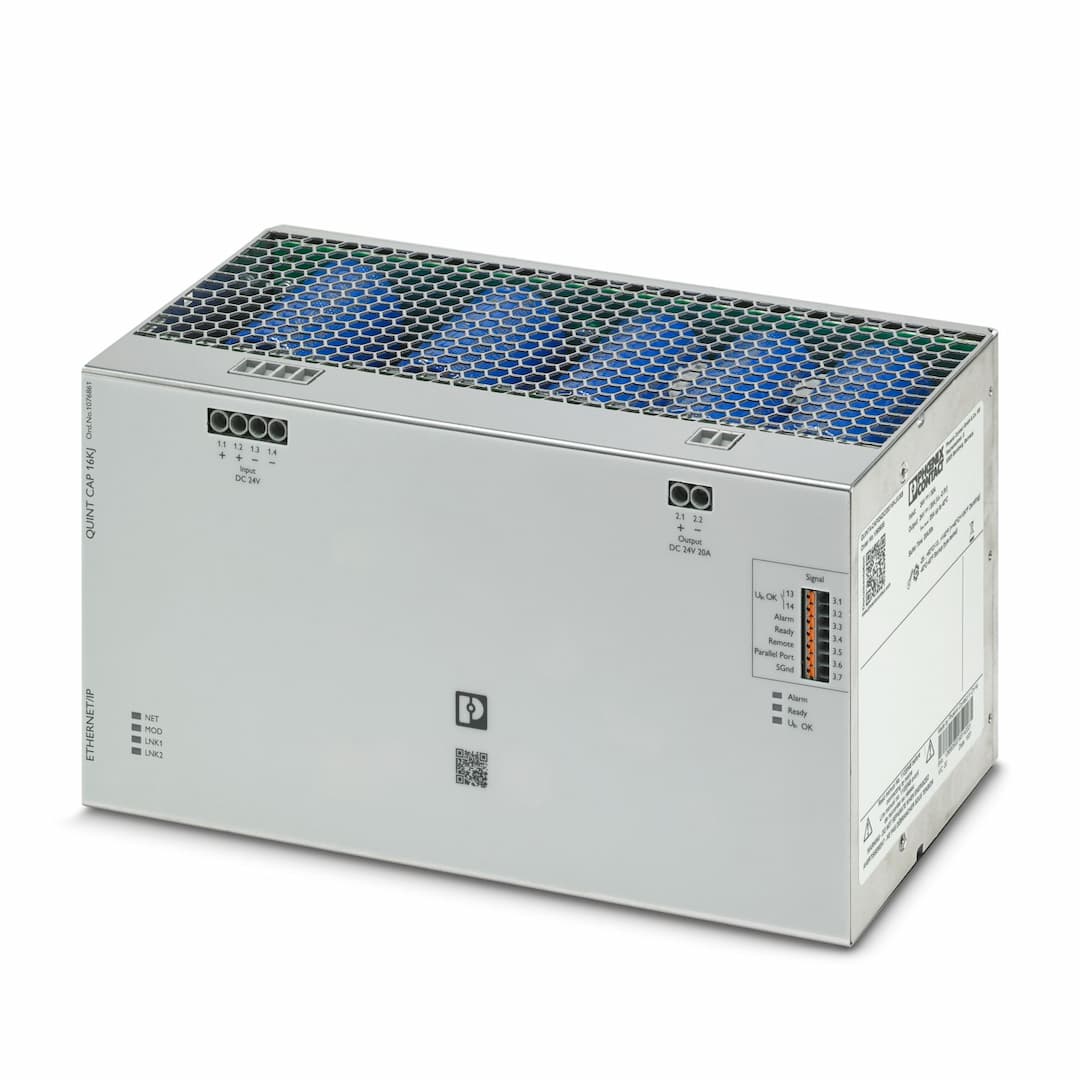

QUINT4-CAP/24DC/20/16KJ/EIP
Selling Points
- 1Utilizes double-layer capacitors for long-lasting and maintenance-free operation.
- 2Achieves efficiency rates over 98% with charged energy storage.
- 3Conveniently mounted on DIN rails for easy installation in industrial settings.
- 4Operates from -25°C to 60°C with derating at 1% per Kelvin.
- 5Supports EtherNet/IP, PROFINET, and EtherCAT for seamless integration with various controllers.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 24 V DC (SELV) | Input voltage range | 22.5 V DC ... 30 V DC |
Fixed backup threshold | < 22 V DC
> 30 V DC | Current consumption I | 20 A |
Current consumption I | 30 A | Current consumption I | 0.1 A (No-load) |
Current consumption I | 10 A (charging process) | Power consumption P | 599 W |
Power consumption P | 488 W | Power consumption P | 244 W |
Buffer time | 4 min (2.5 A)
30 s (20 A) | Charging time | approx. 6.3 min (2.5 A)
approx. 2.1 min (10 A) |
Recharging time | approx. 5.4 min (2.5 A)
approx. 1.4 min (10 A) | Inrush current | ≤ 7 A (≤ 4 ms) |
Switch-on time | 1 ms (buffer mode) | Internal input fuse | no |
Dielectric strength | max. 35 V DC (Reverse polarity protection) | Voltage drop, input/output | 0.5 V DC |
Efficiency | > 98 % (with charged energy storage device) | Connection in parallel | yes
max. 4 |
Connection in series | no | Output voltage | 24 V DC |
Output current I | 20 A | Static Boost (I | 25 A |
Output power P | 480 W | Output power P | 600 W |
Power dissipation No load (U | 5 W | Power dissipation Nominal load (U | 10 W |
Short-circuit-proof | yes (with input fuse) | Idling-proof | yes |
Output voltage | 24 V DC | Output current I | 20 A |
Static Boost (I | 25 A | Output power P | 480 W |
Output power P | 600 W | Power dissipation No load (U | 5 W |
Power dissipation Nominal load (U | 90 W | Short-circuit-proof | yes |
Idling-proof | yes | Capacity | 16 kJ |
Storage medium | Double-layer capacitor | Buffer time | 4 min (2.5 A)
30 s (20 A) |
Position | 1.x | Position marking | 1.1 (+), 1.2 (+), 1.3 (-), 1.4 (-) |
Connection method | Screw connection | rigid | 0.2 mm² ... 6 mm² |
flexible | 0.2 mm² ... 4 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
Stripping length | 8 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
Drive form screw head | Slotted L | rigid | 0.2 mm² ... 1.5 mm² |
flexible | 0.2 mm² ... 1.5 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Position | 2.x | Position marking | 2.1 (+), 2.2 (-) |
Connection method | Screw connection | rigid | 0.2 mm² ... 6 mm² |
flexible | 0.2 mm² ... 4 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
Stripping length | 8 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
Drive form screw head | Slotted L | rigid | 0.2 mm² ... 1.5 mm² |
flexible | 0.2 mm² ... 1.5 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Position | 3.x | Position marking | 3.1 (13), 3.2 (14), 3.3 (Alarm), 3.4 (Ready), 3.5 (Remote), 3.6 (Parallel Port), 3.7 (SGnd) |
Connection method | Push-in connection | rigid | 0.2 mm² ... 1 mm² |
flexible | 0.2 mm² ... 1.5 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 1 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² | rigid (AWG) | 24 ... 18 |
Stripping length | 8 mm | Interface | EtherNet/IP (Modbus/TCP) |
Number of interfaces | 2 | Connection method | RJ45 |
Position | 5.x | Supported protocols | EtherNet/IP
BootP
DHCP
DLR
Modbus/TCP |
Locking | Locking clip | Transmission physics | Twisted-Pair |
Features | Autonegotiation
Autocrossing
Autopolarity
Half- or full-duplex | Topology | Star
Line
Ring |
Transmission speed | 10 Mbps ... 100 Mbps | Transmission length | max. 100 m |
Cycle time | 30 ms (Default) | Access time | ≤ 2 s |
Chipset | Renesas R-IN32M3 | Electrical isolation | yes |
Connection labeling | 3.5 | Channel | DI (digital input) |
State (configurable) | Remote | State condition | Remote |
Low signal | Connection to SGnd with | High signal | Open |
Signal - state assignment | low - active | Reference potential | 3.7 (SGnd, identical to1.3, 1.4, 2.2) |
Connection labeling | 3.6 | Channel | DI / DO (digital input / digital output) |
Switching input description | Connection terminal block communication, parallel operation | State (configurable) | Parallel Mode |
State condition (configurable) | Not active: none | Switching voltage | < 1 V
24 V (U |
Current carrying capacity | 4 mA | Reference potential | Different device, parallel port IN/OUT |
Connection labeling | 3.3 | Channel | DO (digital output) |
Switching output | Transistor | State (configurable) | Group alarm |
State condition (configurable) | Alarm threshold | Output voltage | 26 V (U |
Output can be loaded | max. 20 mA | State - signal assignment | active - low |
Reference potential | 3.7 (SGnd, identical to1.3, 1.4, 2.2) | LED status indicator | red (Alarm) |
Connection labeling | 3.1, 3.2 | Channel | DO (digital output) |
Switching output | Electronic relays (OptoMOS) | State (configurable) | U |
State condition (configurable) | U | Output voltage | max. 30 V |
Output can be loaded | 300 mA | State - signal assignment | active - high |
LED status indicator | green (U | Connection labeling | 3.4 |
Channel | DO (digital output) | Switching output | Transistor |
State (configurable) | Ready | State condition (configurable) | State of charge = 100% or buffer mode |
Output voltage | 26 V (U | Output can be loaded | max. 20 mA |
State - signal assignment | active - high | Reference potential | 3.7 (SGnd, identical to1.3, 1.4, 2.2) |
LED status indicator | Green (state of charge - SOC) | Connection labeling | 3.7 |
Switching voltage | 0 V | Current carrying capacity | max. 60 mA |
Function | Signal ground | Reference potential | 3.3 Alarm, 3.4 Ready, 3.5 Remote |
Insulation voltage input, output / housing | 500 V | Product type | DC UPS with integrated capacitor |
Product family | QUINT capacity module | MTBF (IEC 61709, SN 29500) | 1351036 h (25 °C)
903325 h (40 °C)
470143 h (60 °C) |
Article revision | 02 | Protection class | III (Special application (SELV)) |
Overvoltage category | II | Degree of pollution | 2 |
Width | 244 mm | Height | 130 mm |
Depth | 125 mm | Installation distance right/left | 0 mm / 0 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C (> 40 °C Derating: 1 %/K) | Ambient temperature (storage/transport) | -40 °C ... 60 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % |
Shock | 30g, 18 ms per spatial direction (in accordance with IEC 60068-2-27) | Vibration (operation) | 0,7g |
EN 61010-1 | II (≤ 4000 m) | EN 61010-2-201 | II (≤ 4000 m) |
UL 60950-1 | II (≤ 4000 m) | Standard designation | Protective extra-low voltage |
Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Identification | UL 61010-1 |
Identification | UL 61010-2-201 | Identification | UL 121201 |
Identification | CAN/CSA-C22.2 No. 61010-1-12 | Identification | CAN/CSA C22.2 No. 61010-2-201:14 |
Identification | CSA C22.2 No. 213-17 Class I, Devsion 2, Groups A, B, C, D (Hazardous Location) | Identification | IEC 61010-1
IEC 61010-2-201
EN 61010-1
EN 61010-2-201 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Interference emission | Noise emission in accordance with EN 61000-6-3 and EN 61000-6-4 |
Noise immunity | Device immunity in accordance with EN 61000-6-2 | Standards/regulations | EN 61000-4-2 |
Contact discharge | 4 kV (Test Level 2) | Discharge in air | 8 kV (Test Level 3) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 10 V/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 2 kV (Test Level 3 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Signal | 2 kV (Test Level 3 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-5 | Signal | 1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Input/Output | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
