Product Model

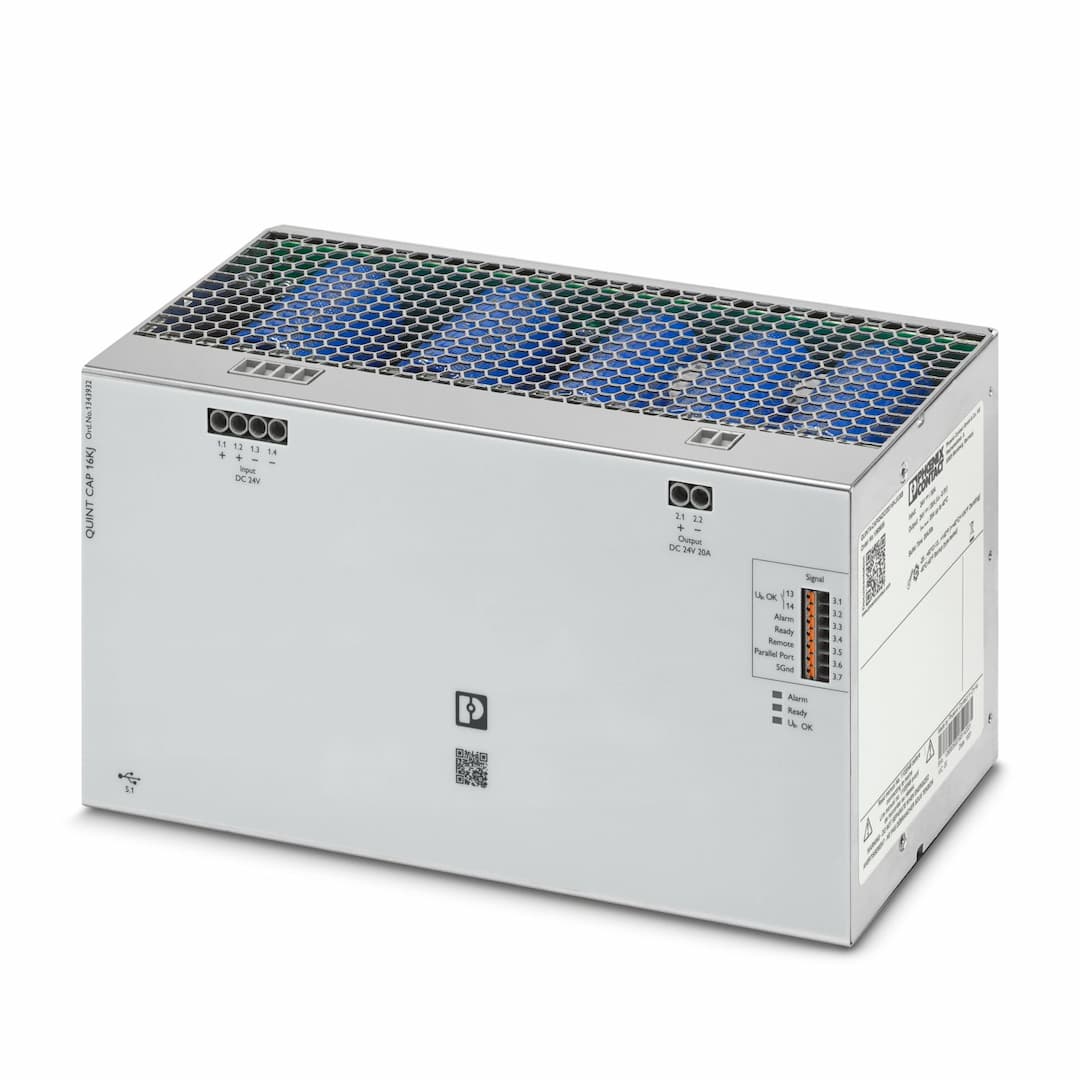

QUINT4-CAP/24DC/20/16KJ/USB/C1
Selling Points
- 1High-Efficiency Energy Storage: The QUINT4-CAP/24DC/20/16KJ/USB module stores energy in maintenance-free double-layer capacitors, ensuring high efficiency and reliability.
- 2DIN Rail Mounting: Designed for easy installation on DIN rails, this module fits seamlessly into industrial control systems.
- 3Robust Communication Interfaces: Compatible with various protocols like Modbus/RTU, PROFINET, and EtherNet/IP, it facilitates smooth communication with industrial PCs and controllers.
- 4Static Boost Capability: Provides a static boost of up to 25 A for starting difficult loads, ensuring reliable operation under varying conditions.
- 5Long Buffer Time: Offers a buffer time of 4 minutes at 2.5 A and 30 seconds at 20 A, providing extended power supply during mains failures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 24 V DC (SELV) | Input voltage range | 22.5 V DC ... 30 V DC |
Fixed backup threshold | < 22 V DC
> 30 V DC | Current consumption I | 20 A |
Current consumption I | 30 A | Current consumption I | 0.1 A (No-load) |
Current consumption I | 10 A (charging process) | Power consumption P | 599 W |
Power consumption P | 488 W | Power consumption P | 244 W |
Buffer time | 4 min (2.5 A)
30 s (20 A) | Charging time | approx. 6.3 min (2.5 A)
approx. 2.1 min (10 A) |
Recharging time | approx. 5.4 min (2.5 A)
approx. 1.4 min (10 A) | Inrush current | ≤ 7 A (≤ 4 ms) |
Switch-on time | 1 ms (buffer mode) | Internal input fuse | no |
Dielectric strength | max. 35 V DC (Reverse polarity protection) | Voltage drop, input/output | 0.5 V DC |
Efficiency | > 98 % (with charged energy storage device) | Connection in parallel | yes
max. 4 |
Connection in series | no | Output voltage | 24 V DC |
Output current I | 20 A | Static Boost (I | 25 A |
Output power P | 480 W | Output power P | 600 W |
Power dissipation No load (U | 3 W | Power dissipation Nominal load (U | 10 W |
Short-circuit-proof | yes (with input fuse) | Idling-proof | yes |
Output voltage | 24 V DC | Output current I | 20 A |
Static Boost (I | 25 A | Output power P | 480 W |
Output power P | 600 W | Power dissipation No load (U | 5 W |
Short-circuit-proof | yes | Idling-proof | yes |
Capacity | 16 kJ | Buffer time | 4 min (2.5 A)
30 s (20 A) |
Position | 1.x | Connection method | Screw connection |
rigid | 0.2 mm² ... 6 mm² | flexible | 0.2 mm² ... 4 mm² |
flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² |
rigid (AWG) | 24 ... 10 | Stripping length | 8 mm |
Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
rigid | 0.2 mm² ... 1.5 mm² | flexible | 0.2 mm² ... 1.5 mm² |
flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² | Position | 2.x |
Connection method | Screw connection | rigid | 0.2 mm² ... 6 mm² |
flexible | 0.2 mm² ... 4 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
Stripping length | 8 mm | Tightening torque | 0.5 Nm ... 0.6 Nm |
Drive form screw head | Slotted L | rigid | 0.2 mm² ... 1.5 mm² |
flexible | 0.2 mm² ... 1.5 mm² | flexible with TWIN ferrule with plastic sleeve | 0.5 mm² ... 2.5 mm² |
Position | 3.x | Connection method | Push-in connection |
rigid | 0.2 mm² ... 1 mm² | flexible | 0.2 mm² ... 1.5 mm² |
flexible with ferrule without plastic sleeve | 0.2 mm² ... 1 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² |
rigid (AWG) | 24 ... 18 | Stripping length | 8 mm |
Interface | USB (Modbus/RTU) | Number of interfaces | 1 |
Connection method | MINI-USB Type B | Connection marking | 5.1 |
Locking | Screw | Transmission physics | USB 2.0 |
Topology | Point-to-point | Transmission speed | 9600 baud ... 115200 baud (Default: 115200 baud) |
Transmission length | max. 5 m | Access time | ≤ 2 s |
Chipset | Silicon Labs CP2104-F03-GM | Electrical isolation | Yes, UL approved |
Insulation voltage input, output / housing | 500 V | Product type | DC UPS with integrated capacitor |
Product family | QUINT capacity module | MTBF (IEC 61709, SN 29500) | 1839057 h (25 °C)
1191809 h (40 °C)
597144 h (60 °C) |
Protection class | III (Special application (SELV)) | Overvoltage category | II |
Degree of pollution | 2 | Width | 244 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C (> 40 °C Derating: 1 %/K) | Ambient temperature (storage/transport) | -40 °C ... 60 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % |
Shock | 30g, 18 ms per spatial direction (in accordance with IEC 60068-2-27) | Vibration (operation) | 0,7g |
Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Specifications may be subject to change without notice
