Product Model

QUINT4-INV/24DC/1AC/600VA/USB

In Stock
Last updated: 2025/4/17

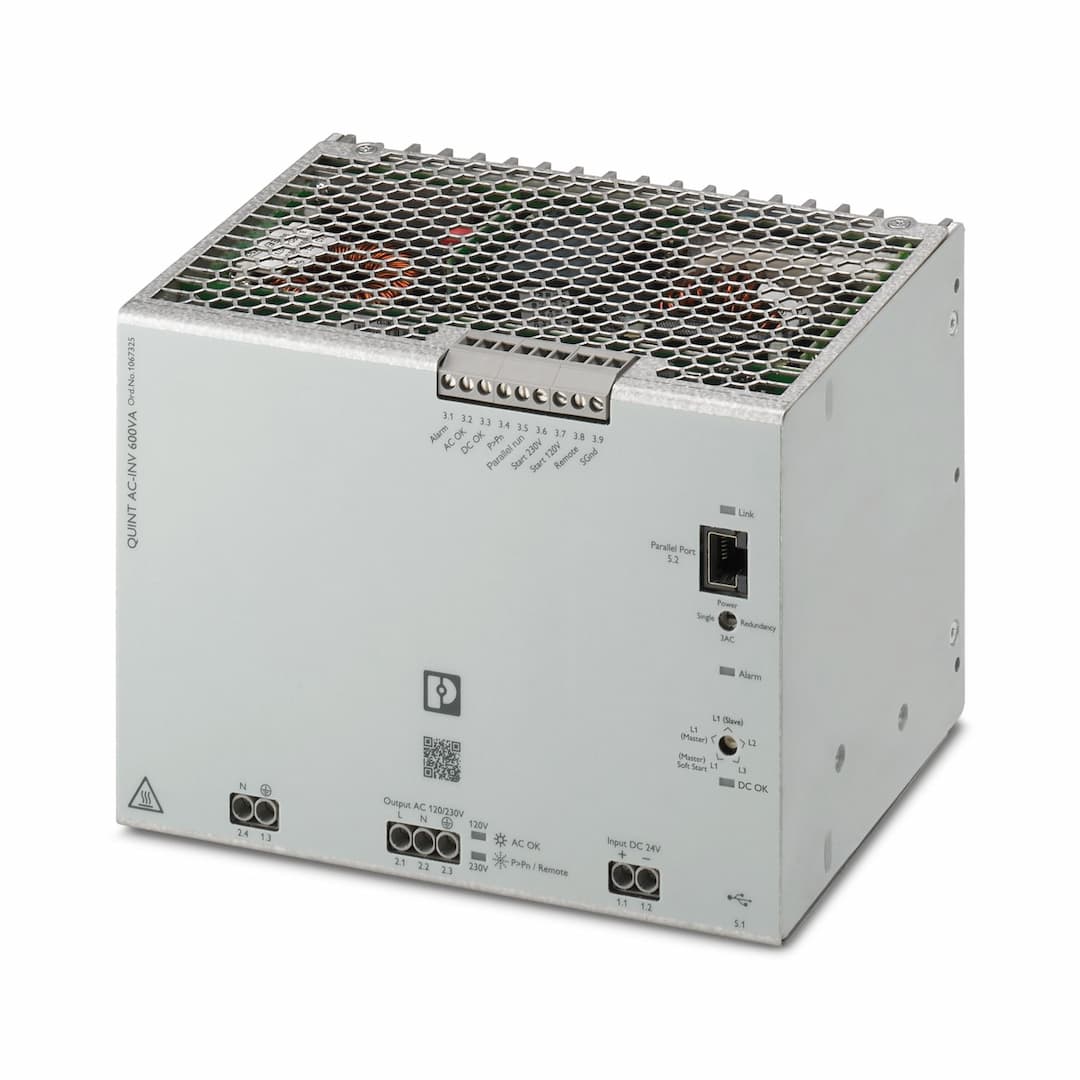

Phoenix Contact QUINT4-INV/24DC/1AC/600VA/USB

Selling Points

  • 1Generates clean AC power with a pure sine curve.
  • 2Allows worldwide use with manual selection of AC output voltage via signal terminal.
  • 3Integrates seamlessly with industrial PCs via USB interface for easy communication.
  • 4Can be connected in parallel to increase power or generate a 3-phase grid.
  • 5Achieves high efficiency with over 86% efficiency at nominal load for 120V AC and over 87% for 230V AC.
Product Details
QUINT4-INV/24DC/1AC/600VA/USB
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Input voltage
24 V DC
Input voltage range DC
20 V DC ... 30 V DC
Current consumption
typ. 23 A max. 28 A
Efficiency
> 86 % (120 V AC) > 87 % (230 V AC)
Output voltage
120 V AC ±2 % (100 V AC / 6 A...130 V AC / 4,6 A) 230 V AC ±2 % (200 V AC / 3 A...240 V / 2,5 A)
Form of output voltage
Pure sine
Nominal output current (I
5 A (120 V AC) 2.6 A (230 V AC)
Maximum no-load power dissipation
typ. 21 W (120 V AC) typ. 21 W (230 V AC)
Power loss nominal load max.
typ. 72 W (120 V AC) typ. 66 W (230 V AC)
Nominal output frequency
60 Hz 50 Hz ±0.5 %
Derating
50 °C ... 60 °C (2.5 %/K)
Apparent power
600 VA
Real power
480 W
Power factor (cos phi)
0.8
Crest factor
2.8
Total harmonic distortion factor (THD)
< 3 % (linear load) < 8 % (non-linear load)
Connection in parallel
yes max. 3
Connection in series
no
Overload capacity Mains operation
105 % (Permanent) 120 % ... 150 % (20 s / 5 s, then shutdown)
Electronic current limitation
> 2,5 x I
Position
1.x
Connection method
Screw connection
rigid
0.2 mm² ... 6 mm²
flexible
0.2 mm² ... 4 mm²
flexible with ferrule without plastic sleeve
0.2 mm² ... 4 mm²
flexible with ferrule with plastic sleeve
0.2 mm² ... 4 mm²
rigid (AWG)
30 ... 10
Stripping length
8 mm
Tightening torque
0.5 Nm ... 0.6 Nm
Drive form screw head
Slotted L
Position
2.x
Connection method
Screw connection
rigid
0.2 mm² ... 6 mm²
flexible
0.2 mm² ... 4 mm²
flexible with ferrule without plastic sleeve
0.2 mm² ... 4 mm²
flexible with ferrule with plastic sleeve
0.2 mm² ... 4 mm²
rigid (AWG)
30 ... 10
Stripping length
8 mm
Tightening torque
0.5 Nm ... 0.6 Nm
Drive form screw head
Slotted L
Position
3.x
Connection method
Screw connection
rigid
0.2 mm² ... 1.5 mm²
flexible
0.2 mm² ... 1.5 mm²
flexible with ferrule without plastic sleeve
0.2 mm² ... 1.5 mm²
flexible with ferrule with plastic sleeve
0.2 mm² ... 1.5 mm²
rigid (AWG)
30 ... 12
Stripping length
8 mm
Tightening torque
0.5 Nm ... 0.6 Nm
Drive form screw head
Slotted L
Interface
USB (Modbus/RTU)
Number of interfaces
1
Connection method
MINI-USB Type B
Connection marking
5.1
Locking
Screw
Transmission physics
USB 2.0
Features
lockable
Maximum cable length
3 m
Electrical isolation
yes
Interface
Parallel Port
Number of interfaces
1
Connection method
RJ45
Connection marking
5.2
Locking
Locking clip
Electrical isolation
yes
Connection labeling
3.6
Low signal
Connection to SGnd with < 2.7 kΩ
High signal
Open (> 200 kΩ between Start and SGnd)
Connection labeling
3.7
Low signal
Connection to SGnd with < 2.7 kΩ
High signal
Open (> 200 kΩ between Start and SGnd)
Connection labeling
3.8
Low signal
Connection to SGnd with < 2.7 kΩ
High signal
Open (> 35 kΩ between Remote and SGnd)
Connection labeling
3.2
Signalization designation
AC OK
Type of signaling
LED (green)
Switching output
Transistor output, active
Output voltage
24 V
Continuous load current
≤ 20 mA
LED status indicator
green
Connection labeling
3.3
Signalization designation
DC OK
Switching output
Transistor output, active
Output voltage
24 V
Continuous load current
≤ 20 mA
LED status indicator
green
Connection labeling
3.1
Signalization designation
Alarm
Type of signaling
LED red
Switching output
Transistor output, active
Output voltage
24 V
Continuous load current
≤ 20 mA
LED status indicator
red
Connection labeling
3.4
Signalization designation
P>P
Switching output
Transistor output, active
Continuous load current
≤ 20 mA
LED status indicator
green
Connection labeling
3.5
Signalization designation
Parallel run
Switching output
Transistor output, active
Continuous load current
≤ 20 mA
Connection labeling
3.9
Function
Signal ground
Reference potential
For signal inputs and signal outputs
Number of phases
1.00
Product type
DC/AC inverters
Product family
QUINT INVERTER
MTBF (IEC 61709, SN 29500)
532525 h (40 °C)
Article revision
02
Protection class
I
Degree of pollution
2
Width
180 mm
Height
130 mm
Depth
125 mm
Installation distance right/left
0 mm / 0 mm
Installation distance top/bottom
50 mm / 50 mm
Mounting type
DIN rail mounting
Housing material
Metal
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 60 °C (> 50 °C: 2,5 % / K)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Maximum altitude
≤ 3000 m (> 2000 m: 0,6 % / 100 m)
Max. permissible relative humidity (operation)
≤ 95 %
Shock
20g in all directions (EN 60068-2-27)
Vibration (operation)
5 Hz ... 100 Hz, 0.7g (EN 60068-2-6)
EN 61010-2-201
II
Identification
UL/C-UL Recognized UL 1778
Identification
UL/C-UL Listed UL 61010-1
Identification
UL/C-UL Listed UL 61010-2-201
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
Low Voltage Directive
Conformance with Low Voltage Directive 2014/35/EC
Interference emission
Noise emission in accordance with EN 61000-6-4
Noise immunity
Immunity in accordance with EN 61000-6-2
Conducted noise emission
EN 61000-6-4
Standards/regulations
EN 61000-4-2
Contact discharge
± 6 kV
Discharge in air
± 8 kV
Comments
Criterion A
Standards/regulations
EN 61000-4-3
Frequency range
80 MHz ... 6 GHz
Test field strength
10 V/m
Comments
Criterion A
Standards/regulations
EN 61000-4-4
Input
± 2 kV
Output
± 2 kV
Signal
± 2 kV ± 2 kV (USB)
Comments
Criterion A (B for USB)
Standards/regulations
EN 61000-4-5
Input
± 1 kV (symmetrical) ± 2 kV (asymmetrical)
Output
± 1 kV (symmetrical) ± 2 kV (asymmetrical)
Signal
1 kV (asymmetrical)
Comments
Criterion B
Standards/regulations
EN 61000-4-6
Frequency range
0.15 MHz ... 80 MHz
Signal
10 V
Comments
Criterion A
Standards/regulations
EN 61000-4-8
Frequency
50 Hz 60 Hz
Signal
30 A/m
Comments
Criterion A
Criterion A
Normal operating behavior within the specified limits.
Criterion B
Temporary impairment to operational behavior that is corrected by the device itself.

Specifications may be subject to change without notice
