Product Model

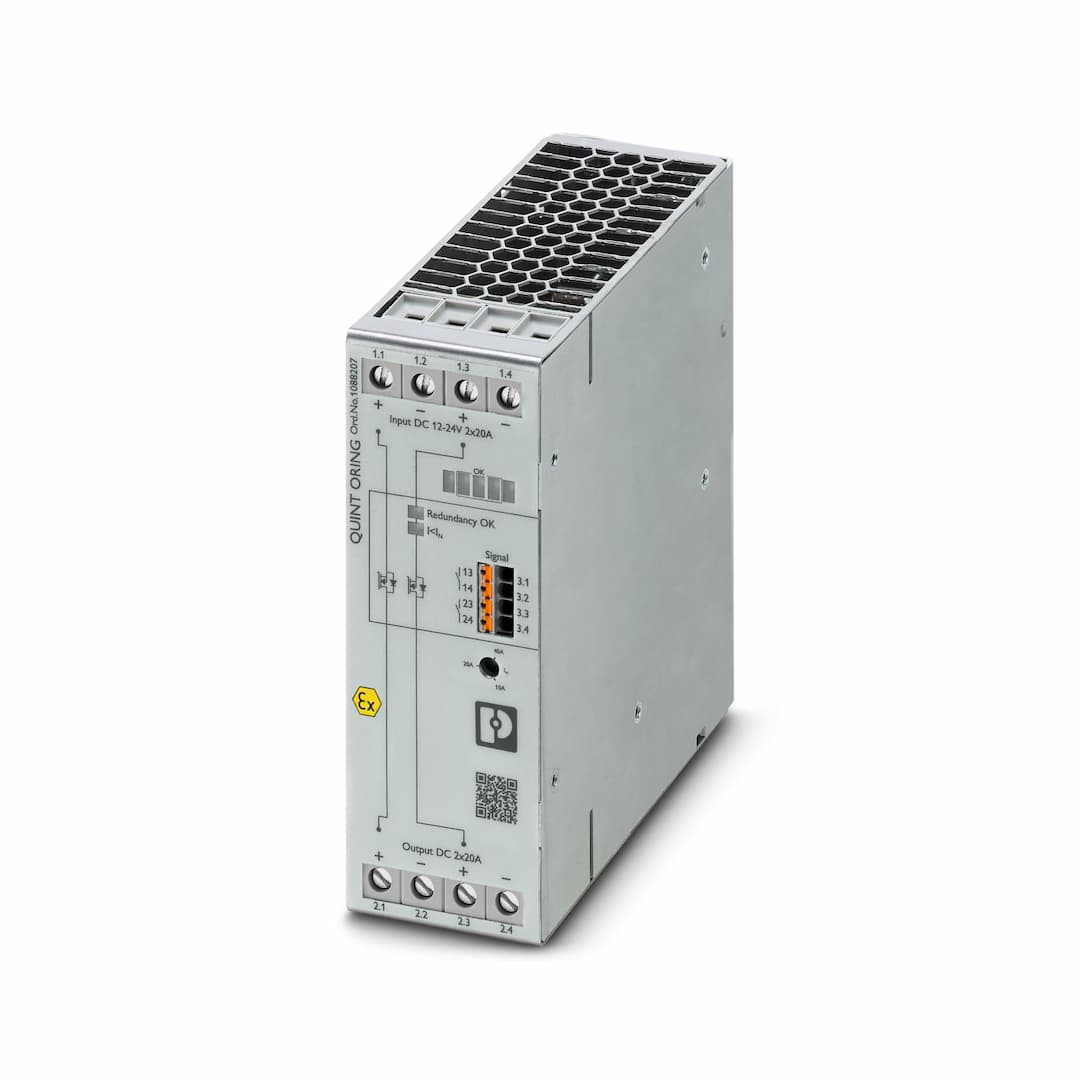

QUINT4-ORING/12-24DC/2X20/2X20
Selling Points
- 1Provides consistent redundancy up to the load.
- 2Operates on 12 V DC to 24 V DC.
- 3Saves energy with MOSFET decoupling.
- 4Continuously monitors input voltage and decoupling section.
- 5Built with aluminum housing and galvanized steel hood for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 8 V DC ... 29.5 V DC |
Voltage type of supply voltage | DC | Nominal input current (I | 2x 20 A |
Static Boost (I | 2x 25 A | Dynamic Boost (I | 2x 30 A (5 s) |
Selective Fuse Breaking (I | 2x 120 A (15 ms) | Reverse polarity protection | < yes60 V DC |
Intended listed circuit breaker for input protection | 60 V DC
16 A (Characteristic B, C) | Voltage drop, input/output | typ. 0.1 V (I |
Efficiency | typ. 98.5 % (12 V DC)
typ. 99 % (24 V DC) | Nominal output voltage | U |
Nominal output current (I | 2x 20 A
1x 40 A | Static Boost (I | 2x 25 A
1x 50 A |
Dynamic Boost (I | 2x 30 A (5 s)
1x 60 A (5 s) | Selective Fuse Breaking (I | 2x 120 A (15 ms)
1x 240 A (15 ms) |
Connection in series | no | Feedback voltage resistance | ≤ 32 V DC |
Protection against overvoltage at the output (OVP) | ≤ 32 V DC | Power loss nominal load max. | 11.7 W (I
12.7 W (I |
Position | 1.x | Connection method | Screw connection |
rigid | 0.5 mm² ... 16 mm² | flexible | 0.5 mm² ... 16 mm² |
flexible with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² | flexible with ferrule with plastic sleeve | 0.5 mm² ... 16 mm² |
rigid (AWG) | 20 ... 16 | Stripping length | 10 mm |
Tightening torque | 1.2 Nm ... 1.6 Nm | Drive form screw head | Slotted L |
Position | 2.x | Connection method | Screw connection |
rigid | 0.5 mm² ... 16 mm² | flexible | 0.5 mm² ... 16 mm² |
flexible with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² | flexible with ferrule with plastic sleeve | 0.5 mm² ... 16 mm² |
rigid (AWG) | 20 ... 6 | Stripping length | 10 mm |
Tightening torque | 1.2 Nm ... 1.6 Nm | Drive form screw head | Slotted L |
Position | 3.x | Connection method | Push-in connection |
rigid | 0.2 mm² ... 1.5 mm² | flexible | 0.2 mm² ... 1.5 mm² |
flexible with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² |
rigid (AWG) | 24 ... 16 | Stripping length | 8 mm |
Types of signaling | DC OK (green) | Signal threshold | Redundancy OK (LED lights up green)
I n (LED lights up green)
ACB OK (LED lights up green)
ACB OK (sources are slightly asymmetrical) (LED lights up green and yellow)
Sources are asymmetrical (LED flashing red) |
Connection labeling | 3.1, 3.2 | Switch contact (floating) | floating |
Digital | 30 V DC
100 mA | Signal option | Redundancy OK |
Connection labeling | 3.3, 3.4 | Switch contact (floating) | floating |
Digital | 30 V DC
100 mA | Signal option | ACB OK |
Insulation voltage input, output / housing | 600 V AC
850 V DC | Product type | Redundancy module |
Product family | QUINT ORING | MTBF (IEC 61709, SN 29500) | > 1792000 h (25 °C)
> 1007000 h (40 °C)
> 460000 h (60 °C) |
Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | LED | yes |
Article revision | 00 | Protection class | III |
Degree of pollution | 2 | Current | 40 A |
Temperature | 40 °C | Time | 224000 h |
Additional text | 12 V DC | Current | 40 A |
Temperature | 40 °C | Time | 182000 h |
Additional text | 24 V DC | Width | 46 mm |
Height | 130 mm | Depth | 132 mm
125 mm (Device depth (DIN rail mounting)) |
Width | 122 mm | Height | 130 mm |
Depth | 49 mm | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
Type of housing | Aluminum (AlMg3) | Hood version | Galvanized sheet steel, free from chrome (VI) |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Maximum altitude | 5000 m | Max. permissible relative humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) |
Shock (operation) | 18 ms, 30g, per spatial direction (IEC 60068-2-27) | Vibration (operation) |
15 Hz ... 150 Hz, 2.3g, 90 min. |
Standard designation | Electrical safety (of control and regulation devices) | Standards/specifications | IEC 61010-1 |
Standard designation | Protective extra-low voltage | Standards/specifications | EN 61010-1 (SELV) |
Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-2-201 (PELV) |
Identification | DNV | Identification | UL Listed UL 61010-1 |
Identification | UL Listed UL 61010-2-201 | Identification | UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Identification | CAN/CSA-C22.2 No. 61010-1-12 | Identification | CAN/CSA C22.2 No. 61010-2-201:18 |
Identification | II 3 G Ex ec nC IIC T4 Gc
DEKRA 22ATEX0104 X | Identification | Ex ec nC IIC T4 Gc
IECEx DEK 22.0089X |
Identification | II 3 G Ex ec nC IIC T4 Gc
DEKRA 22UKEX6029X | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
DNV GL conducted interference | Class B | Additional text | Bridge and deck area |
DNV GL noise radiation | Class B | Additional text | Bridge and deck area |
Standards/regulations | EN 61000-4-2 | Contact discharge | 6 kV (Test Level 3) |
Discharge in air | 8 kV (Test Level 3) | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 2 kV (Test Level 3 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 0.5 kV (Test Level 2 - symmetrical)
1 kV (Test Level 2 - asymmetrical) | Output | 0.5 kV (Test Level 2 - symmetrical)
1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
