Product Model

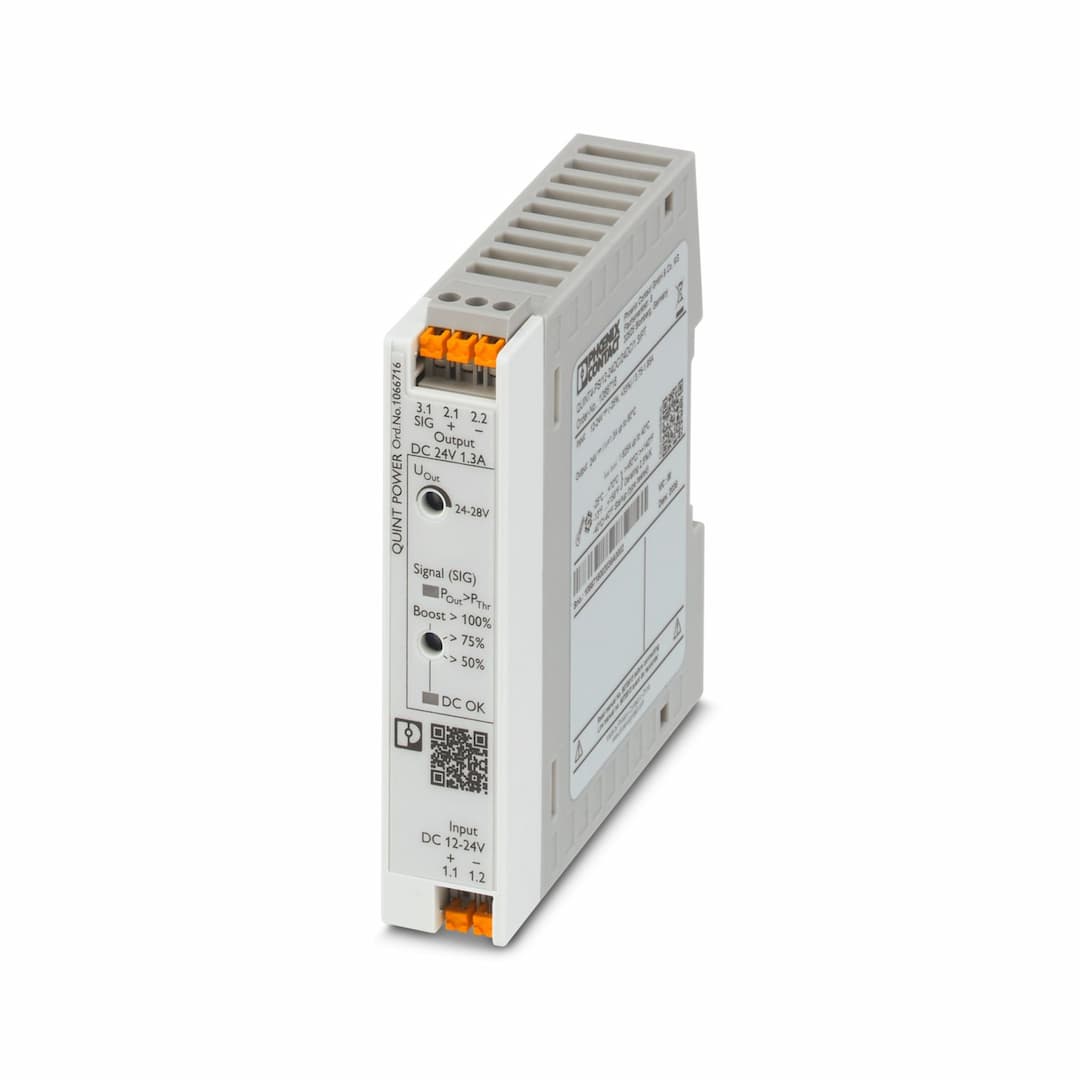

QUINT4-PS/12-24DC/24DC/1.3/PT
Selling Points
- 1Advanced preventative function monitoring ensures critical operating states are signaled before errors occur.
- 2Easily adjust the output voltage to meet specific needs of sensitive electronics.
- 3Operates with high efficiency, reducing both energy consumption and heat generation.
- 4Slim and compact design for efficient use of control cabinet space.
- 5Equipped with PUSH-IN technology for easy and secure tool-free installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 12 V DC ... 24 V DC | Input voltage range | 12 V DC ... 24 V DC -25 % ... +33 % (SELV) |
Wide-range input | yes | Electric strength, max. | 35 V DC (60 s) |
Inrush current | typ. 1.6 A | Inrush current integral (I | typ. 0.1 A |
Inrush current limitation | typ. 1.6 A | Mains buffering time | typ. 19 ms (24 V DC) |
Current consumption | typ. 3.75 A (12 V DC)
typ. 1.85 A (24 V DC) | Typical response time | 700 ms (from SLEEP MODE) |
Switch-on time | < 1 s | Input fuse | 15 A (fast blow, internal) |
Recommended breaker for input protection | 10 A ... 16 A (Characteristic B, C, D, K or comparable) | Efficiency | typ. 91.7 % (24 V DC) |
Output characteristic | U/I Advanced | Nominal output voltage | 24 V DC |
Setting range of the output voltage (U | 24 V DC ... 28 V DC (> 24 V DC, constant capacity) | Nominal output current (I | 1.3 A |
Static Boost (I | 1.625 A (≤ 40 °C) | Dynamic Boost (I | 2.6 A (≤ 60 °C (4.9 s)) |
Short-circuit-proof | yes | No-load proof | yes |
Derating | > 60 °C (2.5%/K of P | Output power (P | 30 W |
Output power (P | 38 W | Output power (P | 60 W |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | < 32 V DC |
Residual ripple | < 20 mV | Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
Control deviation | < 1 % (change in load, static 10 % ... 90 %) | Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
Rise time | < 1 s (U | Connection in series | yes |
Maximum no-load power dissipation | < 1.3 W | Power loss nominal load max. | < 8 W |
Connection in parallel | yes, for redundancy and increased capacity | Position | 1.x |
Connection method | Push-in connection | rigid | 0.5 mm² ... 2.5 mm² |
flexible | 0.5 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.5 mm² ... 2.5 mm² |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² | rigid (AWG) | 22 ... 14 |
Stripping length | 10 mm | Position | 2.x |
Connection method | Push-in connection | rigid | 0.2 mm² ... 2.5 mm² |
flexible | 0.25 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² | rigid (AWG) | 24 ... 14 |
Stripping length | 10 mm | Position | 3.x |
Connection method | Push-in connection | rigid | 0.2 mm² ... 2.5 mm² |
flexible | 0.2 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² |
flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² | rigid (AWG) | 24 ... 14 |
Stripping length | 10 mm | Signal threshold | > P
> 0.9 x U
< 0.9 x U |
Digital | 0 V DC
24 V DC
22 mA | Default | 24 V DC
22 mA
24 V DC for U |
Number of phases | 1.00 | Insulation voltage input/output | 2.6 kV DC (type test)
1.2 kV DC (routine test) |
Switching frequency | 130.00 kHz ... 130.00 kHz (Auxiliary converter stage)
70.00 kHz ... 250.00 kHz (Main converter stage) | Product type | DC/DC converters |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1999348 h (25 °C)
> 1120490 h (40 °C)
> 471066 h (60 °C) |
Article revision | 02 | Protection class | II |
Degree of pollution | 2 | Current | 0.65 A |
Temperature | 40 °C | Time | 242000 h |
Additional text | 24 V DC | Current | 1.3 A |
Temperature | 40 °C | Time | 160000 h |
Additional text | 24 V DC | Current | 1.3 A |
Temperature | 30 °C | Time | 320000 h |
Additional text | 24 V DC | Width | 22.5 mm |
Height | 106 mm | Depth | 90 mm |
Installation distance right/left (active) | 15 mm / 15 mm (P | Installation distance right/left (passive) | 5 mm / 5 mm (P |
Installation distance right/left (active, passive) | 0 mm / 0 mm (P | Installation distance top/bottom (active) | 30 mm / 30 mm (P |
Installation distance top/bottom (passive) | 30 mm / 30 mm (P | Installation distance top/bottom (active, passive) | 30 mm / 30 mm (P |
Mounting type | DIN rail mounting | Assembly note | alignable: P |
With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Plastic | Type of housing | Polycarbonate (PC), UL 94 V0 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
EN 61010-1 | II (≤ 5000 m) | Standard designation | Fire protection in rail vehicles |
Standards/specifications | EN 45545-2 (HL3) | Standard designation | Electrical safety (of control and regulation devices) |
Standards/specifications | IEC 61010-1 | Standard designation | Protective extra-low voltage |
Standards/specifications | IEC 61010-1 (SELV) | Standard designation | Mains variation/undervoltage |
Standards/specifications | EN 61000-4-29 | Identification | UL Listed UL 61010-1 |
Identification | UL Listed UL 61010-2-201 | Identification | UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Identification | CAN/CSA C22.2 No. 61010-1-12 | Identification | CAN/CSA C22.2 No. 61010-2-201:18 |
Identification | CB scheme (IEC 61010-1, IEC 61010-2-201) | Identification | DNV GL |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | EMC requirements, power plant | EN 61850-3
EN 61000-6-5 |
Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) | Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) |
Noise emission | EN 55016
EN 61000-6-3 (Class B) | DNV GL conducted interference | Class B |
Additional text | Bridge and deck area | DNV GL noise radiation | Class B |
Additional text | Bridge and deck area | Standards/regulations | EN 61000-4-2 |
Contact discharge | 6 kV (Test Level 4) | Discharge in air | 8 kV (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 2 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 4 - asymmetrical) |
Signal | 2 kV (Test Level 4 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-5 | Input | 0.5 kV (Test Level 3 - symmetrical)
1 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 2 - symmetrical)
1 kV (Test Level 1 - asymmetrical) | Signal | 0.5 kV (Test Level 2 - symmetrical)
1 kV (Test Level 1 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-8 | Frequency | 16.67 Hz
50 Hz
60 Hz |
Test field strength | 100 A/m | Additional text | 60 s |
Comments | Criterion A | Frequency | 50 Hz
60 Hz |
Frequency range | 50 Hz ... 60 Hz | Test field strength | 1 kA/m |
Additional text | 3 s | Frequency | 0 Hz |
Test field strength | 300 A/m | Additional text | DC, 60 s |
Standards/regulations | EN 61000-4-29 | Voltage | 24 V DC |
Voltage dip | 70 % | Number of periods | 0.5 / 1 / 25 periods |
Time | 100 ms | Additional text | Test Level 2 |
Comments | Criterion A | Voltage dip | 40 % |
Number of periods | 5 / 10 / 50 periods | Time | 100 ms |
Additional text | Test Level 2 | Comments | Criterion A |
Voltage dip | 0 % | Number of periods | 0.5 / 1 / 5 / 50 periods |
Time | 50 ms | Additional text | Test Level 2 |
Comments | Criterion B | Standards/regulations | EN 61000-4-9 |
Test field strength | 1000 A/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-16 | Test level 1 | 15 Hz 150 Hz (Test Level 3) |
Voltage | 10 V 1 V (Permanent) | Test level 2 | 150 Hz 1.5 kHz (Test Level 3) |
Voltage | 1 V | Test level 3 | 1.5 kHz 15 kHz (Test Level 3) |
Voltage | 1 V 10 V | Test level 4 | 15 kHz 150 kHz (Test Level 3) |
Voltage | 10 V | Test level 5 | 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) |
Voltage | 10 V (Permanent) | Test level 6 | 0 Hz 16.7 Hz 50 Hz 60 Hz (Test Level 3) |
Voltage | 100 V (1 s) | Comments | Criterion A |
Standards/regulations | EN 61000-4-17 | Alternating component | 10 % (U |
Frequency | 50 Hz
100 Hz
150 Hz
300 Hz | Comments | Criterion A |
Standards/regulations | EN 61000-4-18 | Input, output (test level 1) | 1 MHz (Test Level 2 - symmetrical) |
Voltage | 0.5 kV | Input, output (test level 2) | 1 MHz (Test Level 2 - asymmetrical) |
Voltage | 1 kV | Signals (test level 1) | 1 MHz (Test Level 2 - symmetrical) |
Voltage | 0.5 kV | Signals (test level 2) | 1 MHz (Test Level 2 - asymmetrical) |
Voltage | 1 kV | Comments | Criterion A |
Standards/regulations | EN 61000-4-10 | Test field strength | 100 A/m |
Test level 1 | 100 kHz | Test field strength | 100 A/m |
Test level 2 | 1 MHz | Comments | Criterion A |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
