Product Model

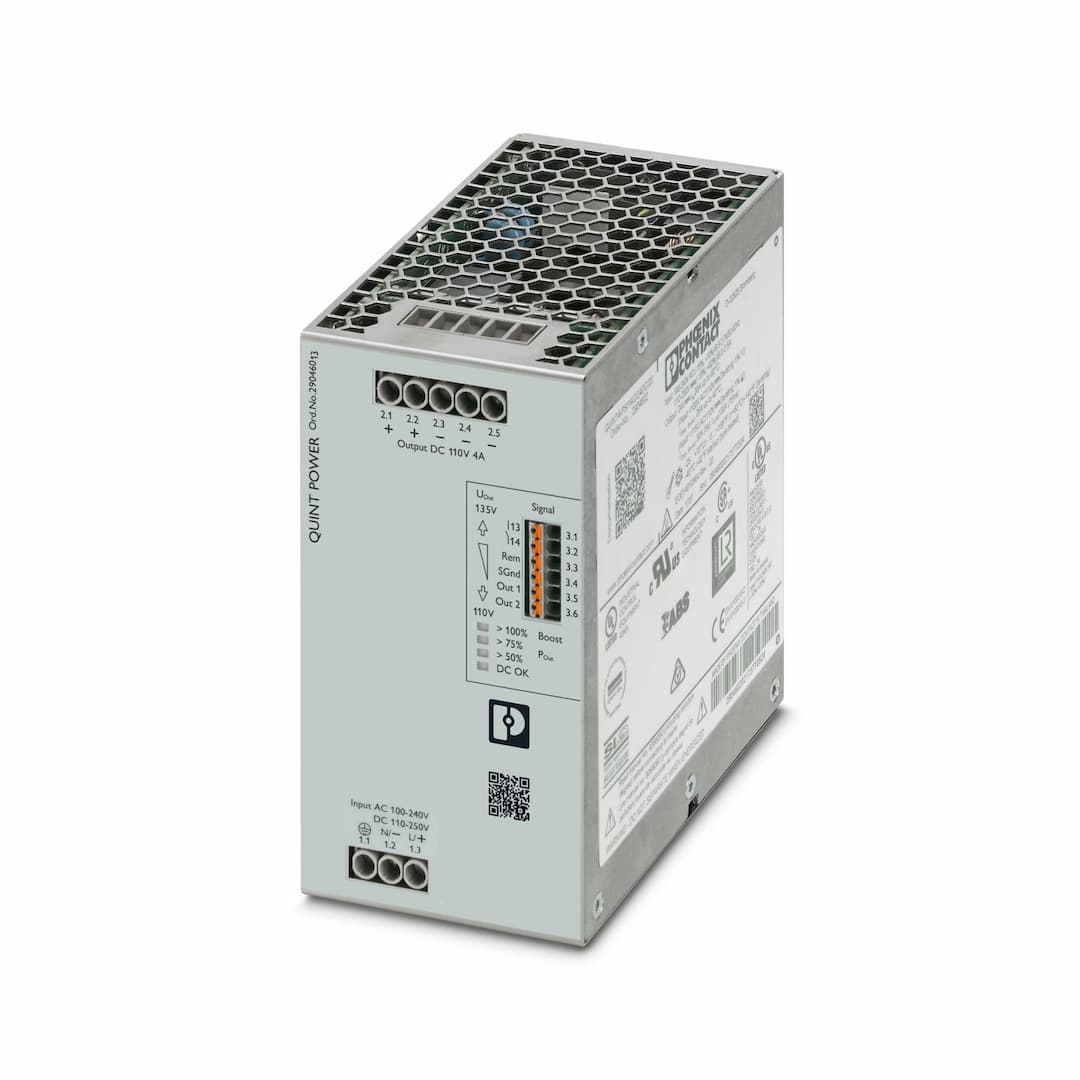

QUINT4-PS/1AC/110DC/4
Selling Points
- 1Built with SFB Technology for superior system availability and power reserves.
- 2High efficiency of up to 94.7% with low residual ripple (<600 mVPP).
- 3Comprehensive protection against overvoltage, surge voltage, and conducted interference.
- 4Can be configured online and ordered pre-configured for easy integration.
- 5Designed for well over 15 years of reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Control input (configurable) Rem | Output power ON/OFF (SLEEP MODE) | Default | Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd) |
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 100 V AC ... 240 V AC -10 % ... +10 % |
Derating | < 100 V AC (1 %/V) | Electric strength, max. | 300 V AC 60 s |
Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC |
Inrush current | typ. 11 A (at 25 °C) | Inrush current integral (I | < 0.3 A |
Inrush current limitation | 11 A | AC frequency range | 50 Hz ... 60 Hz -10 % ... +10 % |
Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 % | Mains buffering time | typ. 37 ms (120 V AC)
typ. 38 ms (230 V AC) |
Current consumption | 6.3 A (100 V AC)
5 A (120 V AC)
2.6 A (230 V AC)
2.5 A (240 V AC) | Nominal power consumption | 474 VA |
Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester | Power factor (cos phi) | 0.94 |
Switch-on time | < 1 s | Typical response time | 300 ms (from SLEEP MODE) |
Input fuse | 12 A (slow-blow, internal) | Recommended breaker for input protection | 10 A ... 16 A (Characteristic B, C or comparable) |
Discharge current to PE | < 3.5 mA
0.7 mA (264 V AC, 60 Hz) | Nominal input voltage range | 110 V DC ... 250 V DC |
Input voltage range | 110 V DC ... 250 V DC -18 % ... +40 % | Derating | < 110 V DC (1 %/V) |
Voltage type of supply voltage | DC | Current consumption | 5.6 A (110 V DC)
2.3 A (250 V DC) |
Efficiency | typ. 93.5 % (120 V AC)
typ. 94.7 % (230 V AC) | Output characteristic | U/I Advanced
Smart HICCUP
FUSE MODE |
Nominal output voltage | 110 V DC | Setting range of the output voltage (U | 110 V DC ... 135 V DC (constant capacity) |
Nominal output current (I | 4 A | Static Boost (I | 5 A |
Dynamic Boost (I | 6 A (5 s) | Selective Fuse Breaking (I | 24 A (15 ms) |
Magnetic circuit breaker tripping | A1 ... A4 / B2 ... B4 / C1 ... C2 / Z1 ... Z4 | Derating | > 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | ≤ 160 V DC | Protection against overvoltage at the output (OVP) | < 150 V DC |
Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 4 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %) | Residual ripple | < 600 mV |
Short-circuit-proof | yes | No-load proof | yes |
Output power | 440 W
550 W
660 W | Apparent power | 336 VA (120 V, U
345 VA (230 V, U |
Maximum no-load power dissipation | < 7 W (120 V AC)
< 7 W (230 V AC) | Power loss nominal load max. | < 31 W (120 V AC)
< 25 W (230 V AC) |
Power dissipation SLEEP MODE | < 7 W (120 V AC)
< 7 W (230 V AC) | Crest factor | typ. 1.54 (120 V AC)
typ. 1.57 (230 V AC) |
Rise time | < 1 s (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Signal ground SGnd | Reference potential for Out1, Out2, and Rem |
Digital | 24 V DC 20 mA | Default | 24 V DC 20 mA 24 V DC for U |
Digital | 24 V DC 20 mA | Analog | 4 mA ... 20 mA ±5 % (Load ≤400 Ω) |
Default | 24 V DC 20 mA 24 V DC for P | Default | closed (U |
Digital | 24 V DC 1 A
30 V AC/DC 0.5 A | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 0.75 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
Stripping length | 8 mm | Types of signaling | LED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd |
P | > 100 % (LED lights up yellow, output power > 440 W)
> 75 % (LED lights up green, output power > 330 W)
> 50 % (LED lights up green, output power > 220 W) | U | > 0.9 x U
< 0.9 x U |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) |
Insulation voltage output / PE | 0.5 kV DC (type test)
0.5 kV DC (routine test) | Insulation voltage input / PE | 3.5 kV AC (type test)
2.4 kV AC (routine test) |
Switching frequency | 90.00 kHz ... 110.00 kHz (Auxiliary converter stage)
80.00 kHz ... 340.00 kHz (Main converter stage)
50.00 kHz ... 70.00 kHz (PFC stage) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1169000 h (25 °C)
> 688000 h (40 °C)
> 308000 h (60 °C) |
Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | Article revision | 02 |
Protection class | I | Degree of pollution | 2 |
Current | 2 A | Temperature | 40 °C |
Time | 218000 h | Additional text | 120 V AC |
Current | 2 A | Temperature | 40 °C |
Time | 322000 h | Additional text | 230 V AC |
Current | 4 A | Temperature | 25 °C |
Time | 528000 h | Additional text | 120 V AC |
Current | 4 A | Temperature | 25 °C |
Time | 817000 h | Additional text | 230 V AC |
Current | 4 A | Temperature | 40 °C |
Time | 176000 h | Additional text | 120 V AC |
Current | 4 A | Temperature | 40 °C |
Time | 272000 h | Additional text | 230 V AC |
Width | 70 mm | Height | 130 mm |
Depth | 125 mm | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m (> 2000 m, observe derating) |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) |
Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) | Rail applications | EN 50121-3-2
EN 50121-5
EN 50163
IEC 62236-3-2
IEC 62236-5 |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 |
Standard - Safe isolation | IEC 61010-2-201 | Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 |
Battery charging | DIN 41773-1 | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706, EN 61000-4-11 |
EN 61010-1 | II (≤ 4000 m) | EN 62477-1 | III (≤ 2000 m) |
CSA | CAN/CSA-C22.2 No. 61010-1-1
CAN/CSA-C22.2 No. 61010-1-12 | Shipbuilding approval | DNV GL applied for |
SIQ | BG (type approved)
CB-Scheme (IEC 61010-1, IEC 61010-2-201, IEC 60950-1) | UL approvals | UL Listed UL 61010-1
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (power supply) | EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) |
Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) | Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) |
Noise emission | EN 55016
EN 61000-6-3 (Class B) | DNV GL conducted interference | Class A |
Additional text | Area power distribution | DNV GL noise radiation | Class B |
Additional text | Bridge and deck area | Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-3-3
EN 61000-3-3 |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 4 - asymmetrical) | Output | 4 kV (Test Level 4 - asymmetrical) |
Signal | 4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | typ. 3 kV (Test Level 4 - symmetrical)
typ. 6 kV (Test Level 4 - asymmetrical) |
Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 10 kHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-8 | Frequency | 16.7 Hz
50 Hz
60 Hz |
Test field strength | 100 A/m | Additional text | 60 s |
Comments | Criterion A | Frequency | 50 Hz
60 Hz |
Frequency range | 50 Hz ... 60 Hz | Test field strength | 1 kA/m |
Additional text | 3 s | Frequency | 0 Hz |
Test field strength | 300 A/m | Additional text | DC, 60 s |
Standards/regulations | EN 61000-4-11 | Voltage | 230 V AC |
Frequency | 50 Hz | Voltage dip | 70 % |
Number of periods | 0.5 / 1 / 25 / 30 periods | Additional text | Test Level 2 |
Comments | Criterion A: 0.5 / 1 / 25 / 30 periods | Voltage dip | 40 % |
Number of periods | 5 / 10 / 50 periods | Additional text | Test Level 2 |
Comments | Criterion A | Voltage dip | 0 % |
Number of periods | 0,5 / 1 / 5 / 50 / 250 periods | Additional text | Test Level 2 |
Comments | Criterion A: 0.5 / 1 period | Standards/regulations | EN 61000-4-9 |
Test field strength | 1000 A/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-12 | Input | 2 kV (Test Level 4 - symmetrical)
4 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-16 |
Test level 1 | 15 Hz 150 Hz (Test Level 4) | Voltage | 30 V 3 V |
Test level 2 | 150 Hz 1.5 kHz (Test Level 4) | Voltage | 3 V |
Test level 3 | 1.5 kHz 15 kHz (Test Level 4) | Voltage | 3 V 30 V |
Test level 4 | 15 kHz 150 kHz (Test Level 4) | Voltage | 30 V |
Test level 5 | 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 4) | Voltage | 30 V (10 s) |
Test level 6 | 16.7 Hz 50 Hz 60 Hz (Test Level 4) | Voltage | 300 V (1 s) |
Comments | Criterion A | Standards/regulations | EN 61000-4-18 |
Input, output (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) | Voltage | 1 kV |
Input, output (test level 2) | 10 MHz | Voltage | 2 kV |
Input, output (test level 3) | 100 kHz 1 MHz (Test Level 3 - asymmetrical) | Voltage | 2.5 kV |
Signals (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) | Voltage | 1 kV |
Signals (test level 2) | 100 kHz 1 MHz (Test Level 3 - asymmetrical) | Voltage | 2.5 kV |
Comments | Criterion A | Standards/regulations | EN 61000-4-10 |
Test field strength | 100 A/m | Test level 1 | 100 kHz |
Test field strength | 100 A/m | Test level 2 | 1 MHz |
Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
