Product Model

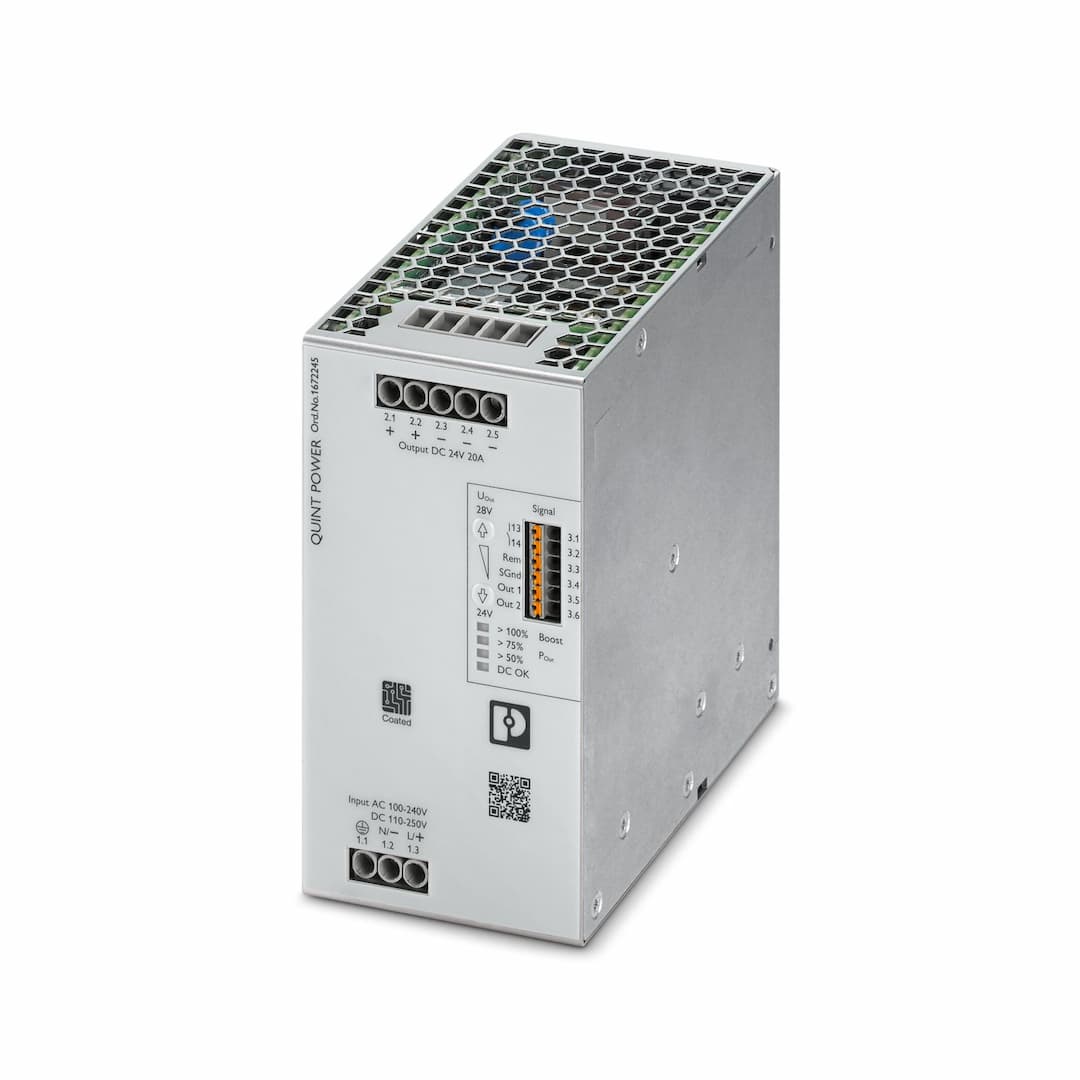

QUINT4-PS/1AC/24DC/20/+/F
Selling Points
- 1High System Availability: Preventive function monitoring indicates critical states before errors occur.
- 2Selective Fuse Breaking (SFB) Technology: Trips standard circuit breakers selectively, ensuring parallel loads continue working.
- 3NFC Interface: Adjustable signaling thresholds and characteristic curves maximize system availability.
- 4Robust Design: Metal housing with a wide temperature range from -40°C to +70°C.
- 5Global Compatibility: Wide input range and international approval package for worldwide use.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Control input (configurable) Rem | Output power ON/OFF (SLEEP MODE) | Default | Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd) |
Network type | Star network | Nominal input voltage range | 100 V AC ... 240 V AC |
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Electric strength, max. | 300 V AC 60 s |
Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC |
Inrush current | typ. 10 A (at 25 °C) | Inrush current integral (I | < 0.3 A |
Inrush current limitation | 10 A (after 1 ms) | AC frequency range | 50 Hz ... 60 Hz -10 % ... +10 % |
Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 %
16.7 Hz (acc. to EN 50163) | Mains buffering time | typ. 36 ms (120 V AC)
typ. 36 ms (230 V AC) |
Current consumption | 6.8 A (100 V AC)
5.5 A (120 V AC)
2.8 A (230 V AC)
2.7 A (240 V AC) | Nominal power consumption | 520 VA |
Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester | Switch-on time | < 1 s |
Typical response time | 300 ms (from SLEEP MODE) | Input fuse | 12 A (slow-blow, internal) |
Recommended breaker for input protection | 10 A ... 16 A (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 3.5 mA
1.7 mA (264 V AC, 60 Hz) |
Nominal input voltage range | 110 V DC ... 250 V DC | Input voltage range | 110 V DC ... 250 V DC -18 % ... +40 % |
Voltage type of supply voltage | DC | Current consumption | 6 A (110 V DC)
2.5 A (250 V DC) |
Efficiency | typ. 92.7 % (120 V AC)
typ. 94.2 % (230 V AC) | Nominal output voltage | 24 V DC |
Setting range of the output voltage (U | 24 V DC ... 28 V DC (constant capacity) | Nominal output current (I | 20 A |
Static Boost (I | 25 A | Dynamic Boost (I | 30 A (5 s) |
Selective Fuse Breaking (I | 120 A (15 ms) | Magnetic circuit breaker tripping | A1...A16 / B2...B13 / C1...C6 / Z1...Z16 |
Derating | > 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | ≤ 35 V DC |
Protection against overvoltage at the output (OVP) | < 30 V DC (double protection with shut off within 20 ms) | Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %) |
Residual ripple | < 30 mV | Short-circuit-proof | yes |
No-load proof | yes | Output power | 480 W
600 W
720 W |
Maximum no-load power dissipation | < 5 W (120 V AC)
< 5 W (230 V AC) | Power loss nominal load max. | < 38 W (120 V AC)
< 30 W (230 V AC) |
Power dissipation SLEEP MODE | < 3 W (120 V AC)
< 3 W (230 V AC) | Crest factor | typ. 1.54 (120 V AC)
typ. 1.6 (230 V AC) |
Rise time | < 1 s (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Signal ground SGnd | Reference potential for Out1, Out2, and Rem |
Digital | 24 V DC 20 mA | Default | 24 V DC 20 mA 24 V DC for U |
Digital | 24 V DC 20 mA | Analog | 4 mA ... 20 mA ±5 % (Load ≤400 Ω) |
Default | 24 V DC 20 mA 24 V DC for P | Default | closed (U |
Digital | 24 V DC 1 A
30 V AC/DC 0.5 A | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² |
Conductor cross section AWG min. | 30 | Conductor cross section AWG max. | 10 |
Stripping length | 8 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² |
Conductor cross section AWG min. | 30 | Conductor cross section AWG max. | 10 |
Stripping length | 8 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 0.75 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
Stripping length | 8 mm | Types of signaling | LED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd |
P | > 100 % (LED lights up yellow, output power > 480 W)
> 75 % (LED lights up green, output power > 360 W)
> 50 % (LED lights up green, output power > 240 W) | U | > 0.9 x U
< 0.9 x U |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) |
Switching frequency | 90.00 kHz ... 110.00 kHz (Auxiliary converter stage)
70.00 kHz ... 330.00 kHz (Main converter stage)
50.00 kHz ... 70.00 kHz (PFC stage) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 868000 h (25 °C)
> 524000 h (40 °C)
> 239000 h (60 °C) |
Protection class | I | Degree of pollution | 2 |
Current | 10 A | Temperature | 40 °C |
Time | 392000 h | Additional text | 120 V AC |
Current | 10 A | Temperature | 40 °C |
Time | 447000 h | Additional text | 230 V AC |
Current | 20 A | Temperature | 25 °C |
Time | 378000 h | Additional text | 120 V AC |
Current | 20 A | Temperature | 25 °C |
Time | 499000 h | Additional text | 230 V AC |
Current | 20 A | Temperature | 40 °C |
Time | 133000 h | Additional text | 120 V AC |
Current | 20 A | Temperature | 40 °C |
Time | 176000 h | Additional text | 230 V AC |
Width | 70 mm | Height | 130 mm |
Depth | 125 mm | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Width | 122 mm |
Height | 130 mm | Depth | 73 mm |
Mounting type | DIN rail mounting | Assembly note | Alignable: horizontally 0 mm at P |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | yes |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Hood version | Stainless steel X6Cr17 |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -40 °C ... 75 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K22 (in accordance with EN 60721-3-3) |
Max. permissible relative humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) | Temp code | T4 (-40 ... +75 °C; > 60 °C, Derating: 2,5 %/K) |
Rail applications | EN 50121-3-2
EN 50121-4
EN 50121-5
EN 50163
IEC 62236-3-2
IEC 62236-4
IEC 62236-5
EN 50155
EN 45545-2 (HL3)
EN 61373 (Class 1B) | HART FSK Physical Layer Test Specification Compliance | Output voltage U |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - Safety of transformers | EN 61558-2-16 |
Battery charging | DIN 41773-1 | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706, EN 61000-4-11 |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
EN 61558-2-16 | II (≤ 2000 m) | CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 |
SIQ | CB-Scheme (IEC 61010-1, IEC 61010-2-201) | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) | Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (power supply) |
EMC requirements, power plant | IEC 61850-3
EN 61000-6-5 | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
DNV GL conducted interference | Class A | Additional text | Area power distribution |
DNV GL noise radiation | Class B | Additional text | Bridge and deck area |
Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-3-3
EN 61000-3-3 | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | typ. 3 kV (Test Level 4 - symmetrical)
typ. 6 kV (Test Level 4 - asymmetrical) | Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Signal | 4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
Frequency | 16.7 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
Additional text | 60 s | Comments | Criterion A |
Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
Test field strength | 1 kA/m | Additional text | 3 s |
Frequency | 0 Hz | Test field strength | 300 A/m |
Additional text | DC, 60 s | Standards/regulations | EN 61000-4-11 |
Voltage | 230 V AC | Frequency | 50 Hz |
Voltage dip | 70 % | Number of periods | 0.5 / 1 / 25 / 30 periods |
Additional text | Test Level 2 | Comments | Criterion A: 0.5 / 1 / 25 / 30 periods |
Voltage dip | 40 % | Number of periods | 5 / 10 / 50 periods |
Additional text | Test Level 2 | Comments | Criterion A |
Voltage dip | 0 % | Number of periods | 0,5 / 1 / 5 / 50 / 250 periods |
Additional text | Test Level 2 | Comments | Criterion A: 0.5 / 1 period |
Standards/regulations | EN 61000-4-9 | Test field strength | 1000 A/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-12 |
Input | 2 kV (Test Level 4 - symmetrical)
4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-16 | Test level 1 | 15 Hz 150 Hz (Test Level 4) |
Voltage | 30 V 3 V | Test level 2 | 150 Hz 1.5 kHz (Test Level 4) |
Voltage | 3 V | Test level 3 | 1.5 kHz 15 kHz (Test Level 4) |
Voltage | 3 V 30 V | Test level 4 | 15 kHz 150 kHz (Test Level 4) |
Voltage | 30 V | Test level 5 | 16.7 Hz 50 Hz 60 Hz (Test Level 4) |
Voltage | 30 V (Permanent) | Test level 6 | 150 Hz 180 Hz (Test Level 4) |
Voltage | 30 V (Permanent) | Test level 7 | 16.7 Hz 50 Hz 60 Hz (Test Level 4) |
Voltage | 300 V (1 s) | Comments | Criterion A |
Standards/regulations | EN 61000-4-18 | Input, output (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) |
Voltage | 1 kV | Input, output (test level 2) | 10 MHz |
Voltage | 1 kV | Input, output (test level 3) | 100 kHz 1 MHz (Test Level 3 - asymmetrical) |
Voltage | 2.5 kV | Signals (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) |
Voltage | 1 kV | Signals (test level 2) | 100 kHz 1 MHz (Test Level 3 - asymmetrical) |
Voltage | 2.5 kV | Comments | Criterion A |
Standards/regulations | EN 61000-4-10 | Test field strength | 100 A/m |
Test level 1 | 100 kHz | Test field strength | 100 A/m |
Test level 2 | 1 MHz | Comments | Criterion A |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
