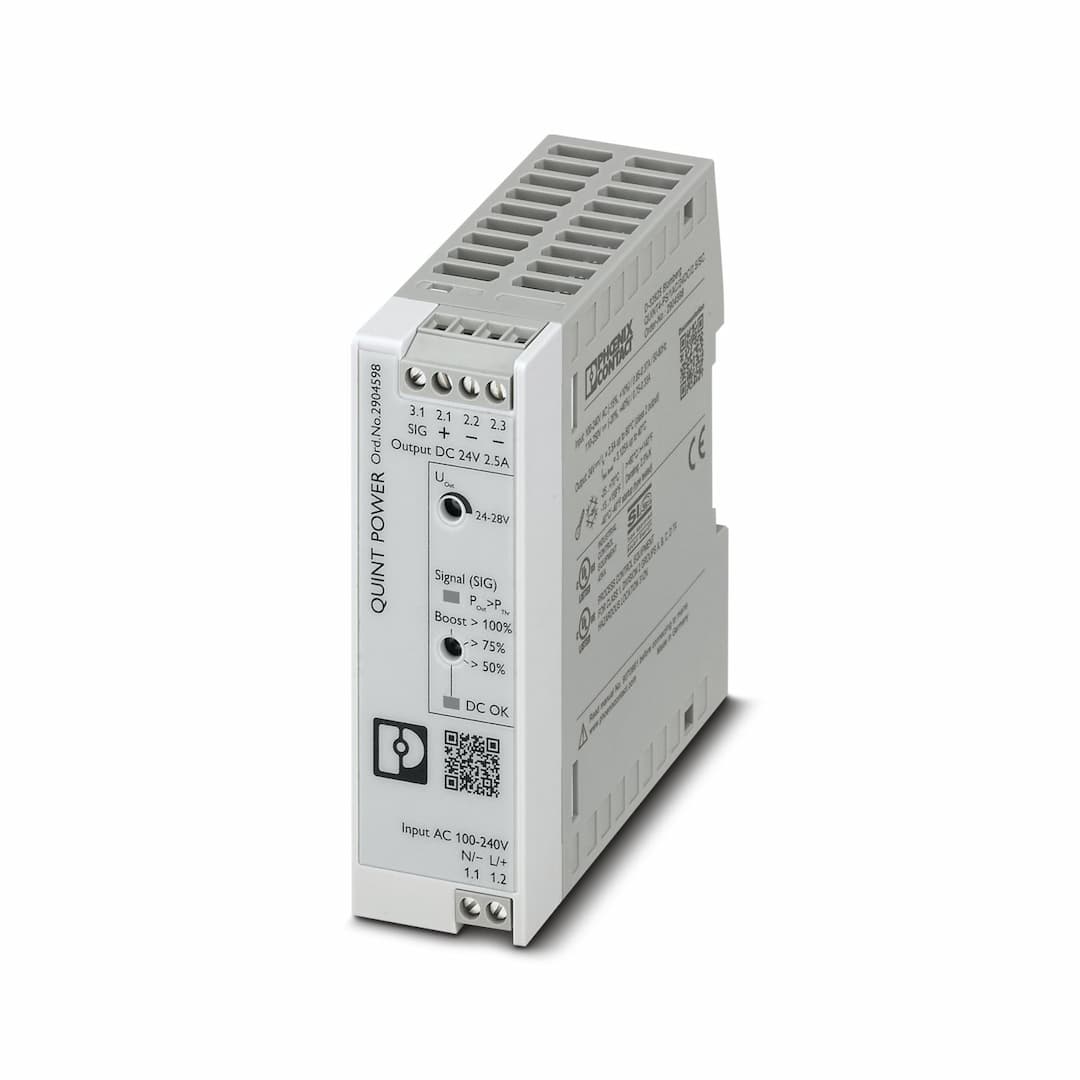

Product Model
QUINT4-PS/1AC/24DC/2.5/SC
Selling Points
- 1Ensures regulated output voltage even in voltage fluctuations.
- 2Supplies up to 50% additional current without voltage drop, ideal for unpredictable loads.
- 3Visualizes critical operating states locally and remotely via LED, relay contact, or active switching output.
- 4Slim-line design saves space in control boxes while maintaining robust input side with high noise immunity.
- 5Meets ITE requirements with UL 1310 NEC Class 2 and shipbuilding approvals for reliable operation in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Electric strength, max. | 300 V AC 30 s |
Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC/DC |
Inrush current | typ. 10 A (at 25 °C) | Inrush current integral (I | < 0.1 A |
Inrush current limitation | 4.3 A (after 1 ms)
< 10 A | Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 % |
Mains buffering time | typ. 54 ms (120 V AC)
typ. 54 ms (230 V AC) | Current consumption | 0.85 A (100 V AC)
0.7 A (120 V AC)
0.39 A (230 V AC)
0.37 A (240 V AC) |
Nominal power consumption | 71 VA | Protective circuit | Transient surge protection; Varistor |
Typical response time | 500 ms | Input fuse | 3.15 A (slow-blow, internal) |
Recommended breaker for input protection | 6 A ... 16 A (Characteristic B, C or comparable) | Discharge current to PE | < 0.25 mA (264 V AC, 60 Hz)
0.22 mA (264 V AC, 60 Hz) |
Input voltage range | 110 V DC ... 250 V DC -20 % ... +40 % | Voltage type of supply voltage | AC/DC |
Current consumption | 0.75 A (110 V DC)
0.33 A (250 V DC) | Efficiency | typ. 91.9 % (120 V AC)
typ. 92.6 % (230 V AC) |
Output characteristic | U/I Advanced | Nominal output voltage | 24 V DC |
Setting range of the output voltage (U | 24 V DC ... 28 V DC (constant capacity) | Nominal output current (I | 2.5 A |
Static Boost (I | 3.125 A (≤ 40 °C) | Dynamic Boost (I | 5 A (≤60 °C (5 s), Input <150 V AC Derating 0.5 %/V) |
Derating | > 60 °C (2.5 %/K) | Feedback voltage resistance | ≤ 35 V DC |
Protection against overvoltage at the output (OVP) | ≤ 32 V DC | Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.1 % (change in input voltage ±10 %) |
Residual ripple | < 40 mV | Short-circuit-proof | yes |
No-load proof | yes | Output power | 60 W
75 W
120 W |
Maximum no-load power dissipation | < 1 W (230 V AC)
< 1 W (120 V AC) | Power loss nominal load max. | < 5 W (230 V AC)
< 5 W (120 V AC) |
Crest factor | typ. 1.69 (120 V AC)
typ. 1,82 (230 V AC) | Rise time | 50 ms (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Digital | 0 V DC 24 V DC 30 mA | Default | 24 V DC 30 mA 24 V DC for U |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED | P | > P |
U | > 0.9 x U
< 0.9 x U | Number of phases | 1.00 |
Insulation voltage input/output | 4 kV AC (type test)
3 kV AC (routine test) | Switching frequency | 4.00 kHz ... 70.00 kHz (Auxiliary converter stage)
30.00 kHz ... 150.00 kHz (PFC stage)
70.00 kHz ... 150.00 kHz (Main converter stage) |
Product type | Power supply | Product family | QUINT POWER |
MTBF (IEC 61709, SN 29500) | > 1347000 h (25 °C)
> 734000 h (40 °C)
> 295000 h (60 °C) | Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach |
Article revision | 03 | Protection class | II |
Degree of pollution | 2 | Current | 2.5 A |
Temperature | 40 °C | Time | 148000 h |
Additional text | 120 V AC | Current | 2.5 A |
Temperature | 40 °C | Time | 153000 h |
Additional text | 230 V AC | Current | 2.5 A |
Temperature | 25 °C | Time | 419000 h |
Additional text | 120 V AC | Current | 2.5 A |
Temperature | 25 °C | Time | 432000 h |
Additional text | 230 V AC | Width | 32 mm |
Height | 99 mm | Depth | 90 mm |
Installation distance right/left (active) | 15 mm / 15 mm (P | Installation distance right/left (passive) | 5 mm / 5 mm (P |
Installation distance top/bottom (active) | 30 mm / 30 mm (P | Installation distance top/bottom (passive) | 30 mm / 30 mm (P |
Installation distance top/bottom (active, passive) | 30 mm / 30 mm (P | Mounting type | DIN rail mounting |
Assembly note | DIN rail mounting | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Plastic |
Type of housing | Polycarbonate | Hood version | Polycarbonate |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - Safety of transformers | EN 61558-2-16 |
Standard - power supply devices for low voltage with DC output | EN 61204-3 | EN 61010-1 | II (≤ 5000 m) |
EN 62477-1 | III (≤ 2000 m) | SIQ | CB-Scheme (IEC 61010-1, IEC 61010-2-201) |
UL approvals | UL Listed UL 61010-1
UL Listed UL 61010-2-201
UL 1310 Class 2 Power Units
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
Frequency range | 0 kHz ... 2 kHz | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 8 kV (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Signal | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
Frequency | 16.67 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
Additional text | 60 s | Comments | Criterion A |
Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
Test field strength | 1 kA/m | Additional text | 3 s |
Frequency | 0 Hz | Test field strength | 300 A/m |
Additional text | DC, 60 s | Standards/regulations | EN 61000-4-11 |
Voltage | 100 V AC | Frequency | 60 Hz |
Voltage dip | 70 % | Number of periods | 0.5 / 1 / 25 periods |
Additional text | Test Level 2 | Comments | Criterion B |
Voltage dip | 40 % | Number of periods | 5 / 10 / 50 periods |
Additional text | Test Level 2 | Comments | Criterion B |
Voltage dip | 0 % | Number of periods | 0.5 / 1 / 5 / 50 periods |
Additional text | Test Level 2 | Comments | Criterion B |
Standards/regulations | EN 61000-4-9 | Test field strength | 1000 A/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-12 |
Input | 2 kV (symmetrical)
4 kV (asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-16 | Test level 1 | 16.67 Hz 50 Hz 60 Hz (Test Level 3) |
Voltage | 30 V (Permanent) | Test level 2 | 16.67 Hz 50 Hz 60 Hz (Test Level 4) |
Voltage | 300 V (1 s) | Comments | Criterion A |
Standards/regulations | EN 61000-4-18 | Input/Output/Signal | 1 kV (symmetrical)
2.5 kV (asymmetrical) |
Comments | Criterion B | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
