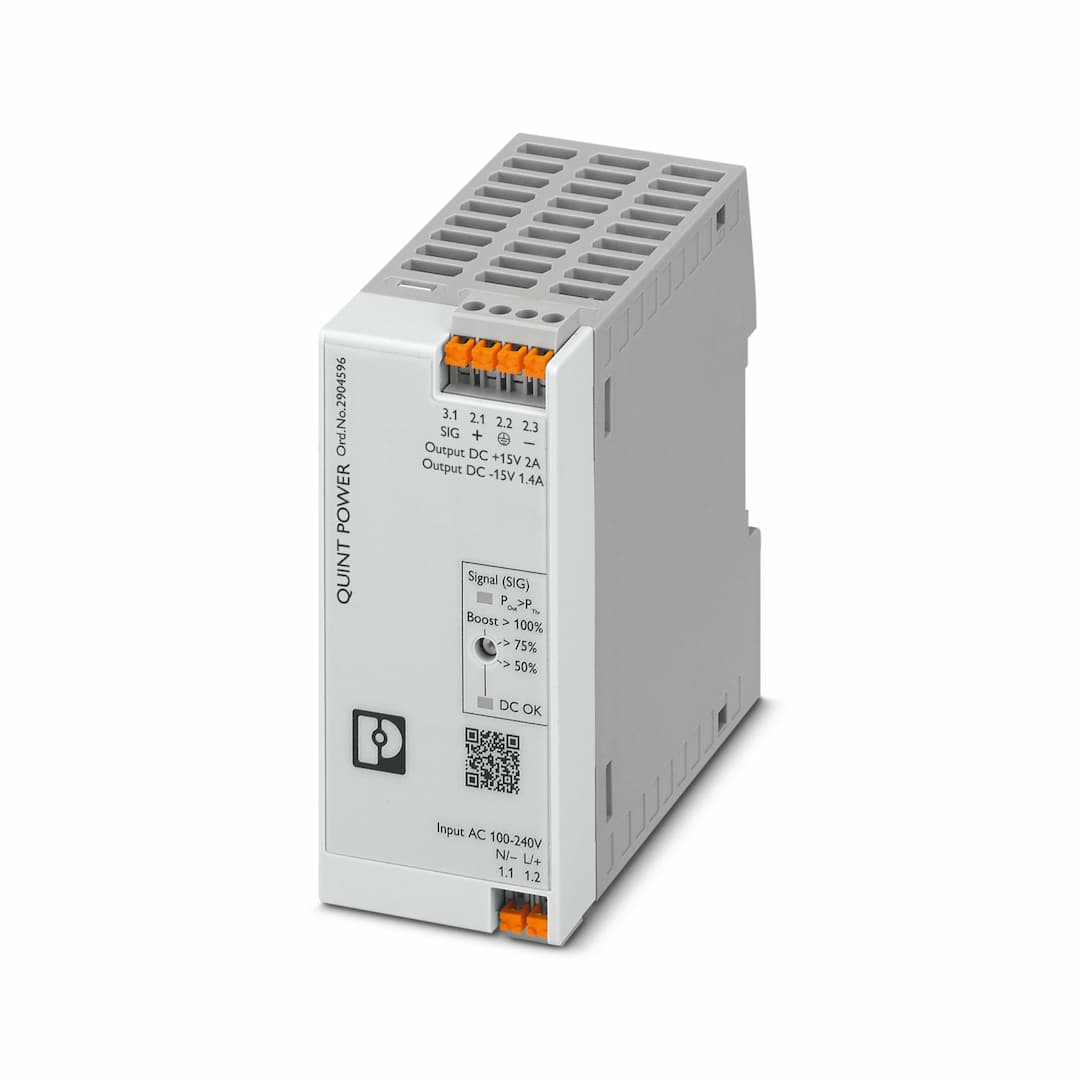

Product Model
QUINT4-PS/1AC/2X15DC/2/PT
Selling Points
- 1Primary-switched power supply unit for reliable operation.
- 2Push-in connection for easy and secure installation.
- 3DIN rail mounting for compact and space-efficient design.
- 4Input: 1-phase, output: 15 V DC / 2 A for precise voltage regulation.
- 5Preventive function monitoring to detect critical operating states before errors occur.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % | Electric strength, max. | 300 V AC 30 s |
Typical national grid voltage | 120 V AC
230 V AC | Voltage type of supply voltage | AC/DC |
Inrush current | < 15 A (at 25 °C) | Inrush current integral (I | < 0.03 A |
Inrush current limitation | < 5 A | Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 % |
Mains buffering time | typ. 32 ms (120 V AC)
typ. 32 ms (230 V AC) | Current consumption | 0.69 A (100 V AC)
0.59 A (120 V AC)
0.31 A (230 V AC)
0.31 A (240 V AC) |
Nominal power consumption | 96.3 VA | Protective circuit | Transient surge protection; Varistor |
Typical response time | 300 ms | Input fuse | 3.15 A (slow-blow, internal) |
Recommended breaker for input protection | 6 A ... 16 A (Characteristic B, C or comparable) | Discharge current to PE | < 0.25 mA (264 V AC, 60 Hz)
< 0.17 mA |
Input voltage range | 110 V DC ... 250 V DC -20 % ... +10 % | Voltage type of supply voltage | AC/DC |
Inrush current integral (I | < 0.03 A | Inrush current limitation | < 5 A |
Current consumption | 0.61 A (110 V DC)
0.27 A (250 V DC) | Efficiency | typ. 88.8 % (120 V AC)
typ. 89.4 % (230 V AC) |
Nominal output voltage | ± 15 V DC | Nominal output current (I | 2 A (+)
1.4 A (-) |
Static Boost (I | 2.5 A ((+) ≤ 40 °C) | Dynamic Boost (I | 4 A ((+) ≤ 60 °C, 5 s) |
Feedback voltage resistance | ≤ 25 V DC | Protection against overvoltage at the output (OVP) | ≤ 18 V DC |
Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 60 mV |
Short-circuit-proof | yes | No-load proof | yes |
Output power | 51 W
58.5 W
81 W | Maximum no-load power dissipation | < 1.4 W (120 V AC)
< 2 W (230 V AC) |
Power loss nominal load max. | < 6.6 W (120 V AC)
< 6.1 W (230 V AC) | Crest factor | typ. 1.8 (120 V AC)
typ. 2.2 (230 V AC) |
Rise time | 50 ms (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Digital | 0 V DC 15 V DC 24 mA |
Default | 15 V DC 24 mA 15 V DC for U | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 10 mm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 10 mm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² | Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 14 |
Stripping length | 10 mm | Types of signaling | LED |
P | > P | U | > 0.9 x U
< 0.9 x U |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (type test)
3 kV AC (routine test) |
Switching frequency | 4.00 kHz ... 70.00 kHz (Auxiliary converter stage)
80.00 kHz ... 190.00 kHz (Main converter stage)
30.00 kHz ... 150.00 kHz (PFC stage) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1284000 h (25 °C)
> 644000 h (40 °C)
> 231000 h (60 °C) |
Article revision | 00 | Protection class | II |
Degree of pollution | 2 | Current | 2 A |
Temperature | 40 °C | Time | 56000 h |
Additional text | 120 V AC | Current | 2 A |
Temperature | 40 °C | Time | 65000 h |
Additional text | 230 V AC | Current | 2 A |
Temperature | 25 °C | Time | 168000 h |
Additional text | 120 V AC | Current | 2 A |
Temperature | 25 °C | Time | 195000 h |
Additional text | 230 V AC | Width | 45 mm |
Height | 106 mm | Depth | 90 mm |
Installation distance right/left (active) | 15 mm / 15 mm (P | Installation distance right/left (passive) | 5 mm / 5 mm (P |
Installation distance right/left (active, passive) | 0 mm / 0 mm (P | Installation distance top/bottom (active) | 30 mm / 30 mm (P |
Installation distance top/bottom (passive) | 30 mm / 30 mm (P | Installation distance top/bottom (active, passive) | 30 mm / 30 mm (P |
Mounting type | DIN rail mounting | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Plastic |
Type of housing | Polycarbonate | Hood version | Polycarbonate |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K22 (in accordance with EN 60721-3-3) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
Rail applications | EN 50121-3-2
EN 50121-4
EN 50121-5
IEC 62236-3-2
IEC 62236-4
IEC 62236-5 | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1
IEC 61010-2-201 (SELV) | Standard - Safety of transformers | EN 61558-2-16 |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
SIQ | CB-Scheme (IEC 61010-1, IEC 61010-2-201) | UL approvals | UL Listed UL 61010-1
UL Listed UL 61010-2-201
UL 1310 Class 2 Power Units
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (power supply) | EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) |
Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) | Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) |
Noise emission | EN 55016
EN 61000-6-3 (Class B) | Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-3-3 |
Frequency range | 0 kHz ... 2 kHz | Standards/regulations | EN 61000-4-2 |
Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 4 - asymmetrical) | Output | 4 kV (Test Level 4 - asymmetrical) |
Signal | 4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-8 | Frequency | 16.67 Hz
50 Hz
60 Hz |
Test field strength | 100 A/m | Additional text | 60 s |
Comments | Criterion A | Frequency | 50 Hz
60 Hz |
Frequency range | 50 Hz ... 60 Hz | Test field strength | 1 kA/m |
Additional text | 3 s | Frequency | 0 Hz |
Test field strength | 300 A/m | Additional text | DC, 60 s |
Standards/regulations | EN 61000-4-11 | Voltage | 100 V AC |
Frequency | 60 Hz | Voltage dip | 70 % |
Number of periods | 0.5 / 1 / 30 periods | Additional text | Test Level 2 |
Comments | Criterion A | Voltage dip | 40 % |
Number of periods | 5 / 10 / 50 periods | Additional text | Test Level 2 |
Comments | Criterion B | Voltage dip | 0 % |
Number of periods | 0.5 / 1 / 5 / 50 periods | Additional text | Test Level 2 |
Comments | Criterion B | Standards/regulations | EN 61000-4-9 |
Test field strength | 1000 A/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-12 | Input | 2 kV (symmetrical)
4 kV (asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-16 |
Test level 1 | 16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) | Voltage | 30 V (10 s) |
Test level 2 | 16.67 Hz 50 Hz 60 Hz (Test Level 2) | Voltage | 300 V (1 s) |
Comments | Criterion A | Standards/regulations | EN 61000-4-18 |
Voltage | 1 kV (symmetrical)
2.5 kV (asymmetrical)
1 kV (symmetrical) | Comments | Criterion A |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
