Product Model

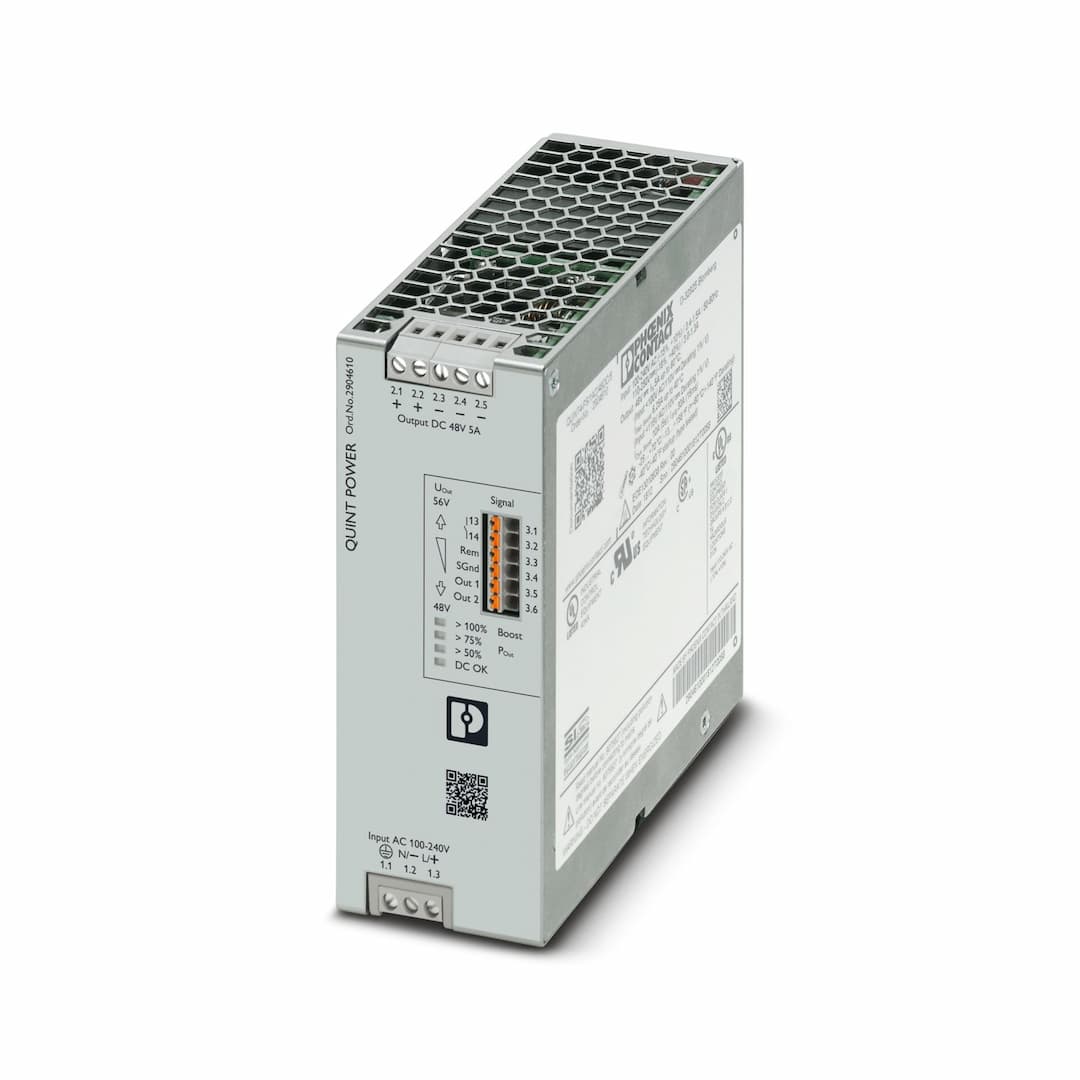

QUINT4-PS/1AC/48DC/5/...
Selling Points
- 1Ensures high system availability with 6 times the nominal current for 15 ms.
- 2Provides static boost of up to 125% and dynamic boost of up to 200% for 5 seconds.
- 3Built with a metal housing and operates in a wide temperature range from -40°C to +70°C.
- 4Equipped with an integrated gas-filled surge arrester for high electrical immunity.
- 5Can be ordered pre-configured and configured online for customized output characteristics.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % |
Electric strength, max. | 300 V AC 60 s | Typical national grid voltage | 120 V AC
230 V AC |
Voltage type of supply voltage | AC | Inrush current | typ. (at 25 °C) |
Inrush current integral (I | < 0.5 A | Inrush current limitation | 16.1 A (after 1 ms) |
AC frequency range | 50 Hz ... 60 Hz -10 % ... +10 % | Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 % |
Mains buffering time | ≥ 20 ms (120 V AC)
≥ 20 ms (230 V AC) | Current consumption | 3.4 A (100 V AC)
2.8 A (120 V AC)
1.5 A (230 V AC)
1.5 A (240 V AC) |
Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester | Switch-on time | < 1 s |
Typical response time | 300 ms (from SLEEP MODE) | Input fuse | 8 A (slow-blow, internal) |
Recommended breaker for input protection | 10 A ... 16 A (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 3.5 mA
264 V AC, 60 Hz |
Nominal input voltage range | 110 V DC ... 250 V DC | Input voltage range | 110 V DC ... 250 V DC -18 % ... +40 % |
Voltage type of supply voltage | DC | Current consumption | 3 A (110 V DC)
1.3 A (250 V DC) |
Efficiency | typ. (120 V AC)
typ. (230 V AC) | Nominal output voltage | 48 V DC |
Setting range of the output voltage (U | 48 V DC ... 56 V DC (constant capacity) | Nominal output current (I | 5 A |
Static Boost (I | 6.25 A | Dynamic Boost (I | 10 A (5 s) |
Selective Fuse Breaking (I | 30 A (15 ms) | Magnetic circuit breaker tripping | A1...A6 / B2...B6 / C1...C3 / Z1...Z6 |
Derating | > 60 °C (2.5 %/K) | Feedback voltage resistance | ≤ 60 V DC |
Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 4 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %) | Residual ripple | < 80 mV |
Short-circuit-proof | yes | No-load proof | yes |
Output power | 240 W
300 W
480 W | Apparent power | 120 V, U |
Maximum no-load power dissipation | < (120 V AC)
< (230 V AC) | Power loss nominal load max. | < (120 V AC)
< (230 V AC) |
Power dissipation SLEEP MODE | < (120 V AC)
< (230 V AC) | Crest factor | typ. (120 V AC)
typ. (230 V AC) |
Rise time | < 1 s (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 30 | Conductor cross section AWG max. | 12 |
Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 30 | Conductor cross section AWG max. | 12 |
Stripping length | 6.5 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 0.75 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
Stripping length | 8 mm | Types of signaling | LED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd |
P | > 100 % (LED lights up yellow, output power > 120 W)
> 75 % (LED lights up green, output power > 90 W)
> 50 % (LED lights up green, output power > 60 W) | U | > 0.9 x U
< 0.9 x U |
Number of phases | 1.00 | Product type | Power supply |
MTBF (IEC 61709, SN 29500) | > (25 °C)
> (40 °C)
> (60 °C) | Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach |
Article revision | 00 | Degree of pollution | 2 |
Current | 2.5 A | Temperature | 40 °C |
Additional text | 120 V AC | Current | 2.5 A |
Temperature | 40 °C | Additional text | 230 V AC |
Temperature | 25 °C | Additional text | 120 V AC |
Temperature | 25 °C | Additional text | 230 V AC |
Current | 5 A | Temperature | 40 °C |
Additional text | 120 V AC | Current | 5 A |
Temperature | 40 °C | Additional text | 230 V AC |
Height | 130 mm | Depth | 125 mm |
Width | 122 mm | Height | 130 mm |
Mounting type | DIN rail: 35 mm | Assembly note | alignable: P |
Mounting position | horizontal DIN rail NS 35, EN 60715 | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
Hood version | Stainless steel X6Cr17 | Side element version | Aluminum |
Degree of protection | IP20 | Rail applications | EN 50121-3-2
EN 50121-4
EN 50121-5
IEC 62236-3-2
IEC 62236-4
IEC 62236-5 |
HART FSK Physical Layer Test Specification Compliance | Output voltage U | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 60950-1/VDE 0805 (SELV) |
Standard – Safety extra-low voltage | IEC 60950-1 (SELV)
EN 60204-1 (PELV) | Standard - Safe isolation | DIN VDE 0100-410 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - Safety of power supply units up to 1100 V (insulation distances) | DIN EN 61558-2-16 |
Standard - Safety of transformers | EN 61558-2-16 (air clearances and creepage distances only) | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706, EN 61000-4-11 |
EN 60950-1 | II | EN 61010-1 | II |
EN 62477-1 | III | CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 |
Shipbuilding approval | DNV GL, PRS, BV, LR, ABS | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
Specifications may be subject to change without notice
