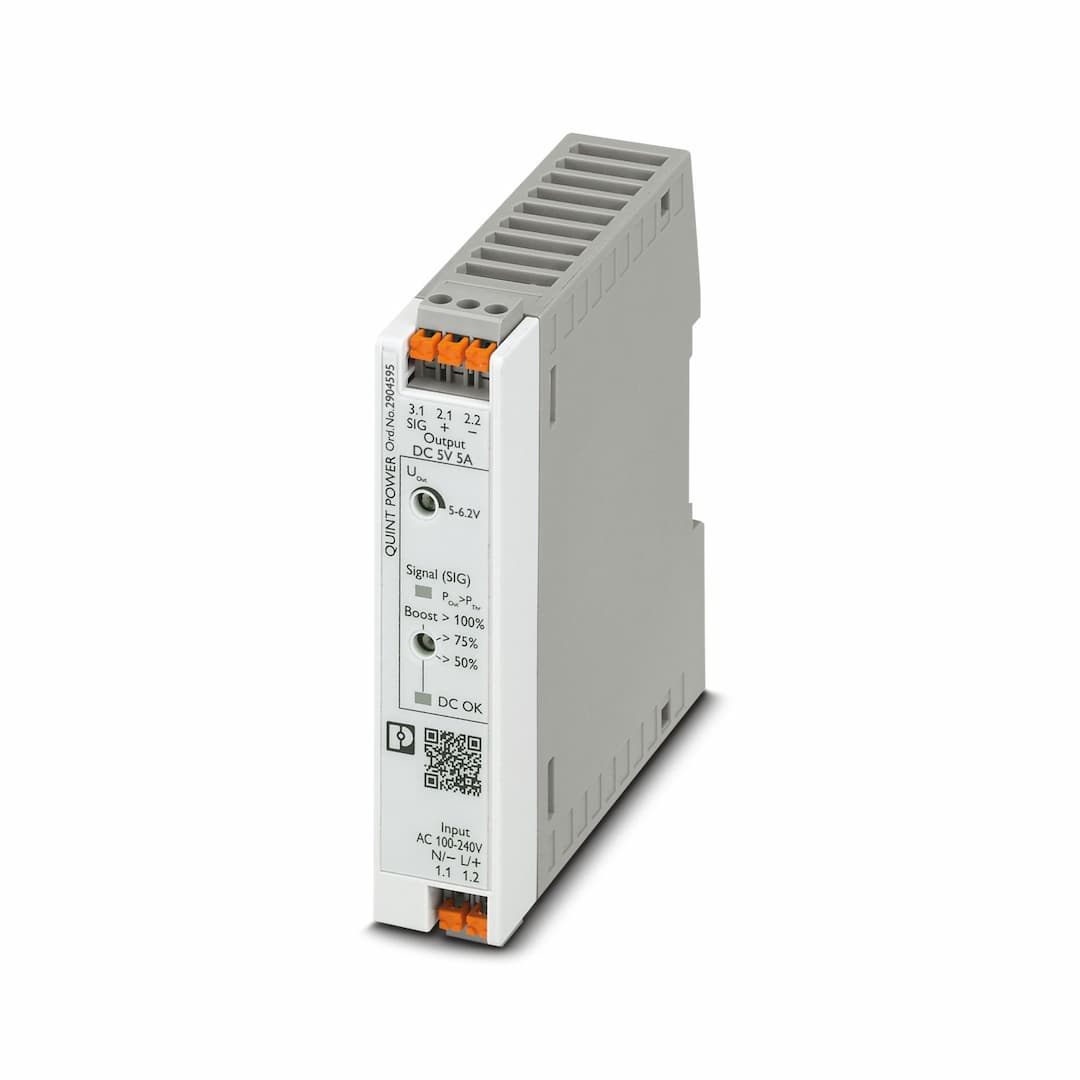

Phoenix Contact QUINT4-PS/1AC/5DC/5/PT

Selling Points

  • 1The QUINT4-PS/1AC/5DC/5/PT power supply unit offers a slim-line design, saving space in control cabinets.
  • 2This unit includes preventative function monitoring to indicate critical operating states before errors occur.
  • 3With low power dissipation and heating, it ensures high efficiency and a long service life.
  • 4It provides dynamic boost power reserve up to 8 A for starting heavy loads.
  • 5The Push-in connection technology allows for fast and easy startup without tools.
Product Details
QUINT4-PS/1AC/5DC/5/PT
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Input voltage range
100 V AC ... 240 V AC -15 % ... +10 %
Electric strength, max.
300 V AC (60 s)
Typical national grid voltage
120 V AC 230 V AC
Voltage type of supply voltage
AC/DC
Inrush current
typ. 9.1 A (at 25 °C)
Inrush current integral (I
< 0.1 A
Inrush current limitation
< 9.1 A
Frequency range (f
50 Hz ... 60 Hz -10 % ... +10 %
Mains buffering time
typ. 52 ms (120 V AC) typ. 52 ms (230 V AC)
Current consumption
0.37 A (100 V AC) 0.3 A (120 V AC) 0.17 A (230 V AC) 0.16 A (240 V AC)
Nominal power consumption
32.8 VA
Protective circuit
Transient surge protection; Varistor
Typical response time
350 ms
Input fuse
3.15 A (slow-blow, internal)
Recommended breaker for input protection
6 A ... 16 A (Characteristic B, C or comparable)
Discharge current to PE
< 0.25 mA (264 V AC, 60 Hz) typ. 0.08 mA
Input voltage range
110 V DC ... 250 V DC -20 % ... +40 %
Voltage type of supply voltage
AC/DC
Current consumption
0.32 A (110 V DC) 0.14 A (250 V DC)
Efficiency
typ. 87.4 % (120 V AC) typ. 88.4 % (230 V AC)
Nominal output voltage
5 V DC
Setting range of the output voltage (U
5 V DC ... 6.2 V DC (constant capacity)
Nominal output current (I
5 A
Static Boost (I
6.25 A (≤ 40 °C)
Dynamic Boost (I
8 A (≤ 60 °C (5 s))
Feedback voltage resistance
≤ 16 V DC (16 V e-caps in output circuit)
Protection against overvoltage at the output (OVP)
< 8 V DC
Control deviation
< 0.3 % (change in load, static 10 % ... 90 %) < 3 % (Dynamic load change 10% ... 90%, 10 Hz  < 0.1 % (change in input voltage ±10 %)
Residual ripple
< 50 mV
Short-circuit-proof
yes
No-load proof
yes
Output power
25 W 31 W 40 W
Maximum no-load power dissipation
< 0.37 W (120 V AC) < 0.41 W (230 V AC)
Power loss nominal load max.
< 3.7 W (120 V AC) < 3.3 W (230 V AC)
Crest factor
typ. 1.88 (120 V AC) typ. 2.09 (230 V AC)
Rise time
50 ms (U
Connection in parallel
yes, for redundancy and increased capacity
Connection in series
yes
Digital
0 V DC 10 V DC 24 mA
Default
10 V DC 24 mA 10 V DC for U
Connection method
Push-in connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.
0.25 mm²
Single conductor/terminal point, stranded, with ferrule, max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
10 mm
Connection method
Push-in connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.
0.25 mm²
Single conductor/terminal point, stranded, with ferrule, max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
10 mm
Connection method
Push-in connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Single conductor/terminal point, stranded, with ferrule, min.
0.25 mm²
Single conductor/terminal point, stranded, with ferrule, max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
10 mm
Types of signaling
LED
P
> P
U
> 0.9 x U < 0.9 x U
Number of phases
1.00
Insulation voltage input/output
4 kV AC (type test) 3 kV AC (routine test)
Switching frequency
75.00 kHz ... 220.00 kHz (Auxiliary converter stage) 4.00 kHz ... 70.00 kHz (Main converter stage) 30.00 kHz ... 135.00 kHz (PFC stage)
Product type
Power supply
Product family
QUINT POWER
MTBF (IEC 61709, SN 29500)
> 1890000 h (25 °C) > 1080700 h (40 °C) > 473300 h (60 °C)
Article revision
03
Protection class
II
Degree of pollution
2
Current
2.5 A
Temperature
40 °C
Time
91800 h
Additional text
120 V AC
Current
2.5 A
Temperature
40 °C
Time
98400 h
Additional text
230 V AC
Current
2.5 A
Temperature
25 °C
Time
183400 h
Additional text
120 V AC
Current
2.5 A
Temperature
25 °C
Time
186600 h
Additional text
230 V AC
Width
22.5 mm
Height
106 mm
Depth
90 mm
Installation distance right/left (active)
15 mm / 15 mm (P
Installation distance right/left (passive)
5 mm / 5 mm (P
Installation distance right/left (active, passive)
0 mm / 0 mm (P
Installation distance top/bottom (active)
30 mm / 30 mm (P
Installation distance top/bottom (passive)
30 mm / 30 mm (P
Installation distance top/bottom (active, passive)
30 mm / 30 mm (P
Mounting type
DIN rail mounting
With protective coating
no
Flammability rating according to UL 94 (housing / terminal blocks)
V0
Housing material
Plastic
Type of housing
Polycarbonate
Hood version
Polycarbonate
Degree of protection
IP20
Ambient temperature (operation)
-25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K)
Ambient temperature (storage/transport)
-40 °C ... 85 °C
Ambient temperature (start-up type tested)
-40 °C
Maximum altitude
≤ 5000 m (> 2000 m, observe derating)
Climatic class
3K3 (in acc. with EN 60721)
Max. permissible relative humidity (operation)
≤ 95 % (at 25 °C, non-condensing)
Shock
18 ms, 30g, in each space direction (according to IEC 60068-2-27)
Vibration (operation)
< 15 Hz, ±2.5 mm amplitude; 15 Hz ... 100 Hz: 2.3 g 90 Min. (in accordance with IEC 60068-2-6)
Temp code
T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K)
Rail applications
EN 50121-3-2 EN 50121-5 IEC 62236-3-2 IEC 62236-5
Standard – Limitation of mains harmonic currents
EN 61000-3-2
Standard - Electrical safety
IEC 61010-1 (SELV)
Standard – Safety extra-low voltage
IEC 61010-1 (SELV) IEC 61010-2-201 (PELV)
Standard - Safe isolation
IEC 61558-2-16
Standard - safety for equipment for measurement, control, and laboratory use
IEC 61010-1
Standard - Safety of power supply units up to 1100 V (insulation distances)
DIN EN 61558-2-16
Standard - Safety of transformers
EN 61558-2-16
Standard - power supply devices for low voltage with DC output
EN 61204-3
EN 61010-1
II (≤ 5000 m)
EN 62477-1
III (≤ 2000 m)
SIQ
CB-Scheme (IEC 61010-1, IEC 61010-2-201)
UL approvals
UL Listed UL 61010-1 UL Listed UL 61010-2-201 UL 1310 Class 2 Power Units UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location)
SIL in accordance with IEC 61508
0
Electromagnetic compatibility
Conformance with EMC Directive 2014/30/EU
EMC requirements for noise emission
EN 61000-6-3 EN 61000-6-4
EMC requirements for noise immunity
EN 61000-6-1 EN 61000-6-2
EMC requirements for power supply
IEC 61850-3 (G,H) EN 61000-6-5 (switching devices)
Conducted noise emission
EN 55016 EN 61000-6-3 (Class B)
Noise emission
Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply)
Noise emission
EN 55016 EN 61000-6-3 (Class B)
Standards/regulations
EN 61000-3-2 EN 61000-3-2 (Class A)
Frequency range
0 kHz ... 2 kHz
Standards/regulations
EN 61000-3-3
Frequency range
0 kHz ... 2 kHz
Standards/regulations
EN 61000-4-2
Contact discharge
8 kV (Test Level 4)
Discharge in air
15 kV (Test Level 4)
Comments
Criterion A
Standards/regulations
EN 61000-4-3
Frequency range
80 MHz ... 1 GHz
Test field strength
20 V/m (Test Level X)
Frequency range
1 GHz ... 6 GHz
Test field strength
10 V/m (Test Level 3)
Comments
Criterion A
Standards/regulations
EN 61000-4-4
Input
4 kV (Test Level 4 - asymmetrical)
Output
4 kV (Test Level X - asymmetrical)
Signal
4 kV (Test Level X - asymmetrical)
Comments
Criterion A
Standards/regulations
EN 61000-4-5
Input
1 kV (Test Level 3 - symmetrical) 2 kV (Test Level 3 - asymmetrical)
Output
0.5 kV (Test Level 2 - symmetrical) 0.5 kV (Test Level 1 - asymmetrical)
Signal
0.5 kV (Test Level 1 - asymmetrical) 0.5 kV (Test Level 2 - symmetrical)
Comments
Criterion B
Standards/regulations
EN 61000-4-6
I/O/S
asymmetrical
Frequency range
0.15 MHz ... 80 MHz
Comments
Criterion A
Voltage
10 V (Test Level 3)
Standards/regulations
EN 61000-4-8
Frequency
16.67 Hz 50 Hz 60 Hz
Test field strength
100 A/m
Additional text
60 s
Comments
Criterion A
Frequency
50 Hz 60 Hz
Frequency range
50 Hz ... 60 Hz
Test field strength
1 kA/m
Additional text
3 s
Frequency
0 Hz
Test field strength
300 A/m
Additional text
DC, 60 s
Standards/regulations
EN 61000-4-11
Voltage
100 V AC
Frequency
60 Hz
Voltage dip
70 %
Number of periods
1 / 25 / 30 periods
Additional text
Test Level 2
Comments
Criterion A
Voltage dip
40 %
Number of periods
10 / 50 periods
Additional text
Test Level 2
Comments
Criterion A
Voltage dip
0 %
Number of periods
0.5 / 1 / 5 / 50 periods
Additional text
Test Level 2
Comments
Criterion B
Standards/regulations
EN 61000-4-9
Test field strength
1000 A/m
Comments
Criterion A
Standards/regulations
EN 61000-4-12
Input
2 kV (symmetrical) 4 kV (asymmetrical)
Comments
Criterion A
Standards/regulations
EN 61000-4-16
Test level 1
16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3)
Voltage
30 V (10 s)
Test level 2
16.67 Hz 50 Hz 60 Hz (Test Level 2)
Voltage
300 V (1 s)
Comments
Criterion A
Standards/regulations
EN 61000-4-18
Voltage
1 kV (symmetrical) 2.5 kV (asymmetrical) 1 kV (symmetrical)
Comments
Criterion A
Criterion A
Normal operating behavior within the specified limits.
Criterion B
Temporary impairment to operational behavior that is corrected by the device itself.
Criterion C
Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements.

Specifications may be subject to change without notice
