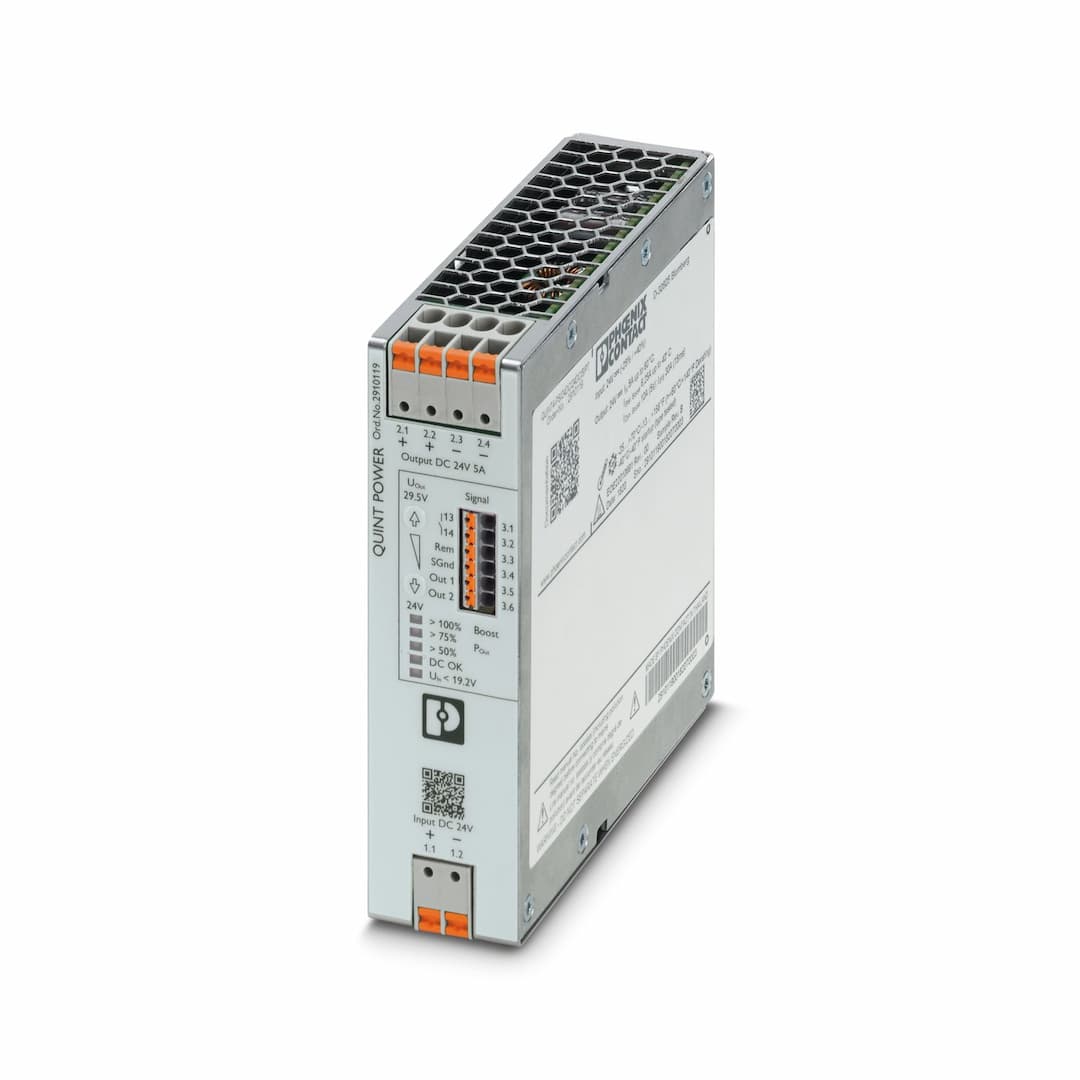

Product Model
QUINT4-PS/24DC/24DC/5/PT

Selling Points
- 1High System Availability: Ensured by SFB Technology and preventive function monitoring.
- 2Robust Design: ATEX/IECEx approval with protective coating for harsh environments.
- 3Flexible Connection Options: Push-in connections and screw connections for easy installation.
- 4Powerful Output: Static boost of up to 125% and dynamic boost of up to 200% for reliable heavy load startup.
- 5Comprehensive Signaling: Analog signal, digital signal, relay contact, and LED bar graph for real-time monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
Parameter | Value | Parameter | Value |
---|---|---|---|
Nominal input voltage range | 24 V DC | Input voltage range | 24 V DC -25 % ... +40 % |
Wide-range input | no | Electric strength, max. | 35 V DC (60 s) |
Inrush current | typ. 1 A | Inrush current integral (I | < 0.05 A |
Inrush current limitation | 1 A | Mains buffering time | typ. 14 ms (24 V DC) |
Current consumption | 6.9 A (24 V DC) | Typical response time | 300 ms (from SLEEP MODE) |
Switch-on time | < 1 s | Input fuse | 15 A (slow-blow, internal) |
Recommended breaker for input protection | 10 A ... 16 A (Characteristic B, C, D, K or comparable) | Efficiency | typ. 92.2 % (24 V DC) |
Output characteristic | U/I Advanced
Smart HICCUP
FUSE MODE | Nominal output voltage | 24 V DC |
Setting range of the output voltage (U | 24 V DC ... 29.5 V DC (> 24 V DC, constant capacity) | Nominal output current (I | 5 A |
Static Boost (I | 6.25 A | Dynamic Boost (I | 10 A (5 s) |
Selective Fuse Breaking (I | 30 A (15 ms) | Magnetic circuit breaker tripping | A1 ... A4 / B2 / C1 ... C2 / Z1 ... Z4 |
Short-circuit-proof | yes | No-load proof | yes |
Output power (P | 120 W | Output power (P | 150 W |
Output power (P | 240 W (5 s) | Feedback voltage resistance | ≤ 35 V DC |
Protection against overvoltage at the output (OVP) | ≤ 32 V DC | Residual ripple | < 10 mV |
Control deviation | < 1 % (change in load, static 10 % ... 90 %) | Control deviation | < 1 % (change in load, static 10 % ... 90 %) |
Control deviation | < 1 % (change in load, static 10 % ... 90 %) | Rise time | < 100 ms (U |
Connection in series | yes | Maximum no-load power dissipation | < 2 W |
Power loss nominal load max. | < 10 W | Power dissipation SLEEP MODE | < 1 W |
Connection in parallel | yes, for redundancy and increased capacity | Position | 1.x |
Connection method | Push-in connection | rigid | 0.2 mm² ... 6 mm² |
flexible | 0.2 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
Stripping length | 10 mm | Position | 2.x |
Connection method | Push-in connection | rigid | 0.2 mm² ... 6 mm² |
flexible | 0.2 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 4 mm² | rigid (AWG) | 24 ... 10 |
Stripping length | 10 mm | Position | 3.x |
Connection method | Push-in connection | rigid | 0.2 mm² ... 1 mm² |
flexible | 0.2 mm² ... 1.5 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 1.5 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² | rigid (AWG) | 24 ... 16 |
Stripping length | 8 mm | Types of signaling | LED
Floating signal contact
Active signal output Out1 (digital, configurable)
Active signal output Out2 (analog, configurable)
Remote contact
Signal ground SGnd |
Signal threshold | > 100 % (LED lights up yellow, output power > 120 W)
> 75 % (LED lights up green, output power > 90 W)
> 50 % (LED lights up green, output power > 60 W)
> 0.9 x U
< 0.9 x U
> 0.8 x U
< 0.8 x U | Connection labeling | 3.3 + |
Function | Output power ON/OFF (remote) | Default | Output power ON (>40 kΩ/24 V DC/open bridge between REM and SGnd) |
Connection labeling | 3.5 + | Digital | 0 V DC
24 V DC
20 mA |
Default | U | Signal option | Output voltage
Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active |
Connection labeling | 3.6 + | Digital | 0 V DC
24 V DC
20 mA |
Default | Output power | Signal option | Output voltage
Output current
Operating hours
Early warning of high temperatures
OVP voltage limitation active |
Analog | 4 mA ... 20 mA ±5 % (Load ≤400 Ω) | Signal option | Output voltage
Output current
Output power |
Connection labeling | 3.1, 3.2 | Switch contact (floating) | floating |
Digital | 24 V DC
1 A
30 V AC
0.5 A | Default | Output voltage |
Signal option | Output current
Output power
Operating hours
Early warning of high temperatures
OVP voltage limitation active
U | Connection labeling | 3.4 + |
Function | Signal ground | Reference potential | to OUT1, OUT2, REM |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV DC (type test)
2 kV DC (routine test) |
Switching frequency | 190.00 kHz ... 220.00 kHz (Auxiliary converter stage)
50.00 kHz ... 420.00 kHz (Main converter stage) | Product type | DC/DC converters |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1600000 h (25 °C)
> 930000 h (40 °C)
> 380000 h (60 °C) |
Article revision | 04 | Protection class | Special with SELV input and output |
Degree of pollution | 2 | Current | 2.5 A |
Temperature | 40 °C | Time | 422000 h |
Additional text | 24 V DC | Current | 5 A |
Temperature | 40 °C | Time | 260000 h |
Additional text | 24 V DC | Current | 5 A |
Temperature | 30 °C | Time | 520000 h |
Additional text | 24 V DC | Width | 36 mm |
Height | 130 mm | Depth | 125 mm |
Width | 122 mm | Height | 130 mm |
Depth | 39 mm | Installation distance right/left (active) | 15 mm / 15 mm (≤ 70 °C) |
Installation distance right/left (passive) | 0 mm / 0 mm (≤ 70 °C) | Installation distance top/bottom (active) | 50 mm / 50 mm (≤ 70 °C) |
Installation distance top/bottom (passive) | 50 mm / 50 mm (≤ 70 °C) | Mounting type | DIN rail mounting |
Assembly note | alignable: P | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
Hood version | Stainless steel X6Cr17 | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K22 (in accordance with EN 60721-3-3) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 5000 m) |
Standard designation | Electrical safety (of control and regulation devices) | Standards/specifications | IEC 61010-1 |
Standard designation | Protective extra-low voltage | Standards/specifications | EN 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Standard designation | Mains variation/undervoltage | Standards/specifications | EN 61000-4-29 |
Standard designation | Railway applications | Standards/specifications | EN 50121-3-2
IEC 62236-3-2 |
Identification | UL Listed UL 61010-1 | Identification | UL Listed UL 61010-2-201 |
Identification | UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | Identification | CAN/CSA-C22.2 No. 61010-1-12 |
Identification | CAN/CSA C22.2 No. 61010-2-201:18 | Identification | Type tested (type approved) |
Identification | CB scheme (IEC 61010-1, IEC 61010-2-201) | Identification | DNV |
Identification | ABS | Identification | BV |
Identification | NK | Identification | LR |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
EMC requirements, power plant | IEC 61850-3
EN 61000-6-5 | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
DNV GL conducted interference | Class B | Additional text | Bridge and deck area |
DNV GL noise radiation | Class B | Additional text | Bridge and deck area |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 2 kV (Test Level 3 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Signal | 2 kV (Test Level 3 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
Frequency | 16.7 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
Additional text | 60 s | Comments | Criterion A |
Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
Test field strength | 1 kA/m | Additional text | 3 s |
Comments | Criterion A | Frequency | 0 Hz |
Test field strength | 300 A/m | Additional text | DC, 60 s |
Comments | Criterion A | Standards/regulations | EN 61000-4-29 |
Voltage | 24 V DC | Voltage dip | 70 % |
Time | 100 ms | Additional text | Test Level 2 |
Comments | Criterion A | Voltage dip | 40 % |
Time | 100 ms | Additional text | Test Level 2 |
Comments | Criterion A | Voltage dip | 0 % |
Time | 50 ms | Additional text | Test Level 2 |
Comments | Criterion B | Standards/regulations | EN 61000-4-9 |
Test field strength | 1000 A/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-16 | Test level 1 | 15 Hz 150 Hz (Test Level 3) |
Voltage | 10 V 1 V | Test level 2 | 150 Hz 1.5 kHz (Test Level 3) |
Voltage | 1 V | Test level 3 | 1.5 kHz 15 kHz (Test Level 3) |
Voltage | 1 V 10 V | Test level 4 | 15 kHz 150 kHz (Test Level 3) |
Voltage | 10 V | Test level 5 | 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) |
Voltage | 10 V (Permanent) | Test level 6 | 0 Hz 16.7 Hz 50 Hz 60 Hz (Test Level 3) |
Voltage | 100 V (1 s) | Comments | Criterion A |
Standards/regulations | EN 61000-4-17 | Alternating component | 15 % (U |
Frequency | 50 Hz
100 Hz
150 Hz | Comments | Criterion A |
Alternating component | 14 % (U | Frequency | 300 Hz |
Comments | Criterion A | Standards/regulations | EN 61000-4-18 |
Input, output (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) | Voltage | 1 kV |
Input, output (test level 2) | 100 kHz 1 MHz (Test Level 2 - asymmetrical) | Voltage | 1 kV |
Input, output (test level 3) | 10 MHz (Test Level 2 - asymmetrical) | Voltage | 0.5 kV |
Signals (test level 1) | 100 kHz 1 MHz (Test Level 2 - symmetrical) | Voltage | 0.5 kV |
Signals (test level 2) | 100 kHz 1 MHz (Test Level 2 - asymmetrical) | Voltage | 1 kV |
Comments | Criterion A | Standards/regulations | EN 61000-4-10 |
Test field strength | 100 A/m | Test level 1 | 100 kHz |
Test field strength | 100 A/m | Test level 2 | 1 MHz |
Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. | Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
