Product Model

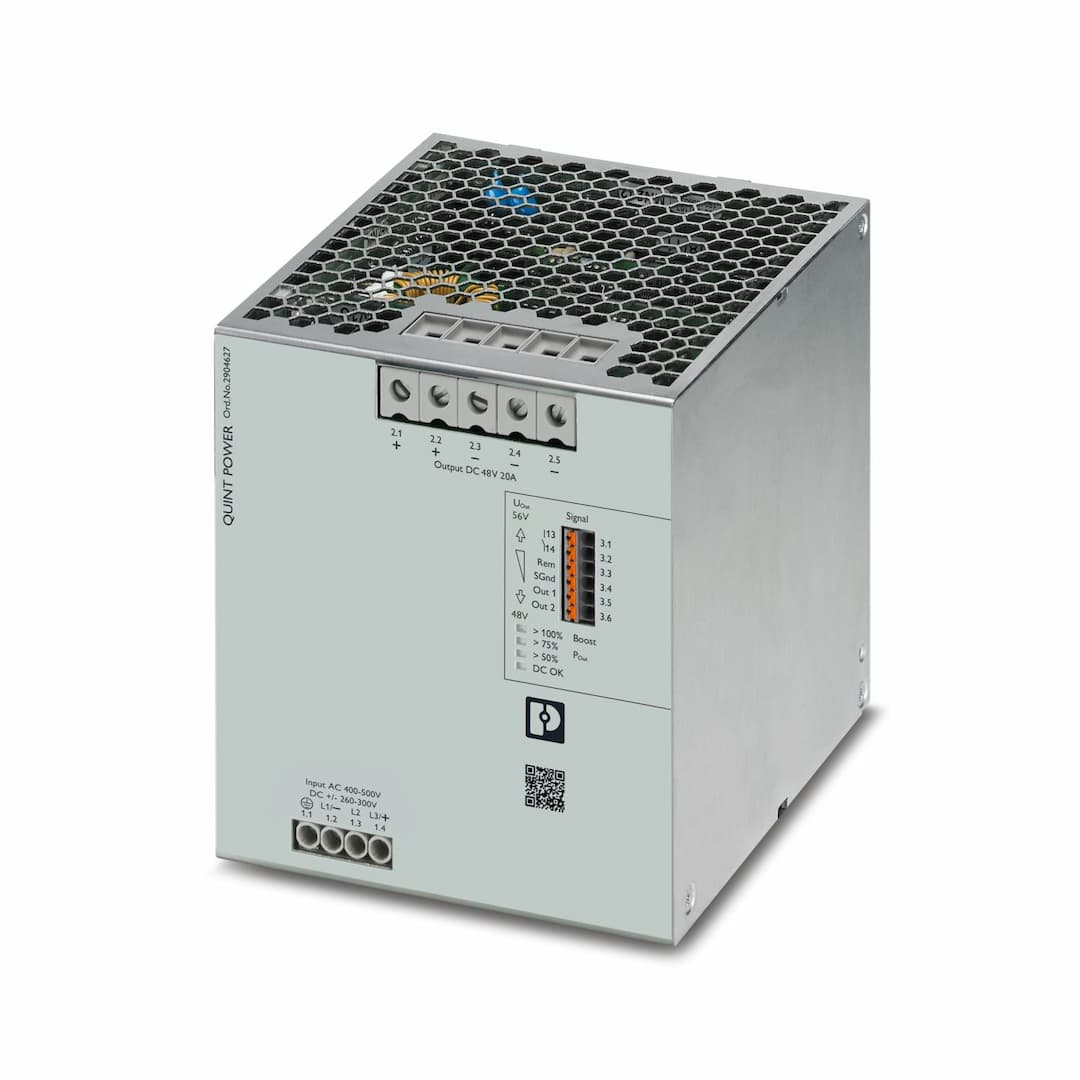

QUINT4-PS/3AC/48DC/20
Selling Points
- 1Built with a robust short-circuit proof mechanism ensuring reliable operation.
- 2Achieves an impressive efficiency of approximately 95.9% (400 V AC) for energy-efficient operation.
- 3Operates within an input voltage range of ±260 V DC to 300 V DC, ensuring versatile power compatibility.
- 4Delivers a nominal output current of 20 A, making it suitable for demanding industrial applications.
- 5Features insulation voltage input/output of 4 kV AC and residual ripple under 50 mVPP for enhanced protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Control input (configurable) Rem | Output power ON/OFF (SLEEP MODE) | Default | Output power ON (>40 kΩ/24 V DC/open bridge between Rem and SGnd) |
Network type | Star network | Nominal input voltage range | 3x 400 V AC ... 500 V AC
2x 400 V AC ... 500 V AC |
Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +10 %
2x 400 V AC ... 500 V AC -10 % ... +10 % | Typical national grid voltage | 400 V AC
480 V AC |
Voltage type of supply voltage | AC/DC | Inrush current | typ. 1.5 A (at 25 °C) |
Inrush current integral (I | < 0.06 A | Inrush current limitation | 2 A (after 1 ms) |
AC frequency range | 50 Hz ... 60 Hz -10 % ... +10 % | Frequency range (f | 50 Hz ... 60 Hz -10 % ... +10 % |
Mains buffering time | typ. 26 ms (3x 400 V AC)
typ. 26 ms (3x 480 V AC) | Current consumption | 3x 1.8 A (400 V AC)
3x 1.5 A (480 V AC)
2x 3 A (400 V AC)
2x 2.5 A (480 V AC)
3x 1.5 A (500 V AC)
2x 2.4 A (500 V AC) |
Nominal power consumption | 1217 VA | Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester |
Power factor (cos phi) | 0.95 | Switch-on time | < 1 s |
Typical response time | 300 ms (from SLEEP MODE) | Recommended breaker for input protection | 3x 4 A ... 20 A (Characteristic B, C, D, K or comparable) |
Recommended fuse for input protection | ≥ 300 V AC | Discharge current to PE | < 3.5 mA
1 mA (550 V AC, 60 Hz) |
Nominal input voltage range | ± 260 V DC ... 300 V DC | Input voltage range | ± 260 V DC ... 300 V DC -13 % ... +30 % |
Current consumption | 2.2 A (±260 V DC)
1.9 A (±300 V DC) | Nominal power consumption | 1217 VA |
Recommended breaker for input protection | 1x 6 A (10 x 38 mm, 30 kA L/R = 2 ms) | Recommended fuse for input protection | ≥ 1000 V DC |
Efficiency | typ. 95.9 % (400 V AC)
typ. 96.2 % (480 V AC) | Nominal output voltage | 48 V DC |
Setting range of the output voltage (U | 48 V DC ... 56 V DC (constant capacity) | Nominal output current (I | 20 A |
Static Boost (I | 22.5 A | Dynamic Boost (I | 30 A (5 s) |
Selective Fuse Breaking (I | 105 A (15 ms) | Magnetic circuit breaker tripping | A1...A20 / B2...B10 / C1...C6 / Z1...Z16 |
Derating | > 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | ≤ 60 V DC |
Protection against overvoltage at the output (OVP) | ≤ 60 V DC | Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %) |
Residual ripple | < 50 mV | Short-circuit-proof | yes |
No-load proof | yes | Output power | 960 W
1080 W
1440 W |
Maximum no-load power dissipation | < 6 W (400 V AC)
< 6 W (480 V AC) | Power loss nominal load max. | < 41 W (400 V AC)
< 41 W (480 V AC) |
Power dissipation SLEEP MODE | < 1 W (400 V AC)
< 1 W (480 V AC) | Crest factor | typ. 1.67 (400 V AC)
typ. 1.63 (480 V AC) |
Rise time | < 1 s (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Signal ground SGnd | Reference potential for Out1, Out2, and Rem |
Digital | 0 V DC 24 V DC 20 mA | Default | 24 V DC 20 mA 24 V DC for U |
Digital | 0 V DC 24 V DC 20 mA | Analog | 4 mA ... 20 mA ±5 % (Load ≤400 Ω) |
Default | 24 V DC 20 mA 24 V DC for P | Default | closed (U |
Digital | 24 V DC 1 A
30 V AC 0.5 A | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 10 |
Stripping length | 8 mm | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 16 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.5 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 16 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.5 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 16 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Tightening torque, min | 1.2 Nm |
Tightening torque max | 1.5 Nm | Connection method | Push-in connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 1 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 1.5 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 0.75 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 1.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 16 |
Stripping length | 8 mm | P | > 100 % (LED lights up yellow, output power > 960 W)
> 75 % (LED lights up green, output power > 720 W)
> 50 % (LED lights up green, output power > 480 W) |
U | > 0.9 x U
< 0.9 x U | Number of phases | 3.00 |
Insulation voltage input/output | 4 kV AC (type test)
2.4 kV AC (routine test) | Insulation voltage output / PE | 0.5 kV DC (type test)
0.5 kV DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2.4 kV AC (routine test) | Switching frequency | 32.00 kHz ... 100.00 kHz (Auxiliary converter stage)
55.00 kHz ... 300.00 kHz (Main converter stage)
25.00 kHz ... 500.00 kHz (PFC stage) |
Product type | Power supply | Product family | QUINT POWER |
MTBF (IEC 61709, SN 29500) | > 851000 h (25 °C)
> 519000 h (40 °C)
> 237000 h (60 °C) | Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach |
Article revision | 02 | Protection class | I |
Degree of pollution | 2 | Current | 10 A |
Temperature | 40 °C | Time | 378000 h |
Additional text | 400 V AC | Current | 10 A |
Temperature | 40 °C | Time | 370000 h |
Additional text | 480 V AC | Current | 20 A |
Temperature | 25 °C | Time | 635000 h |
Additional text | 400 V AC | Current | 20 A |
Temperature | 25 °C | Time | 618000 h |
Additional text | 480 V AC | Current | 20 A |
Temperature | 40 °C | Time | 224000 h |
Additional text | 400 V AC | Current | 20 A |
Temperature | 40 °C | Time | 218000 h |
Additional text | 480 V AC | Width | 120 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Hood version | Stainless steel X6Cr17 |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 11 ms, 15 g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | 5 Hz ... 100 Hz resonance search 0.7g, 90 min., resonance frequency 0.7g, 90 min. (in accordance with DNV GL Class A) |
Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) | Rail applications | EN 50121-3-2
EN 50121-5
IEC 62236-3-2
IEC 62236-5 |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - Safety of transformers | EN 61558-2-16 |
Battery charging | DIN 41773-1 | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706, EN 61000-4-11 |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
EN 61558-2-16 | II (≤ 4000 m) | CSA | CAN/CSA-C22.2 No. 61010-1-12
CAN/CSA-C22.2 No. 61010-2-201 |
SIQ | CB-Scheme (IEC 61010-1, IEC 61010-2-201) | UL approvals | UL Listed UL 61010-1
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
DNV GL conducted interference | Class A | Additional text | Area power distribution |
DNV GL noise radiation | Class B | Additional text | Bridge and deck area |
Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-3-3
EN 61000-3-3 | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 2 kV (Test Level 3 - symmetrical)
6 kV (Test Level 4 - asymmetrical) | Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Signal | 4 kV (Test Level 2 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
Frequency | 16.7 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
Additional text | 60 s | Comments | Criterion A |
Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
Test field strength | 1 kA/m | Additional text | 3 s |
Frequency | 0 Hz | Test field strength | 300 A/m |
Additional text | DC, 60 s | Standards/regulations | EN 61000-4-11 |
Voltage | 400 V AC | Frequency | 50 Hz |
Voltage dip | 70 % | Number of periods | 0.5 / 1 / 25 periods |
Additional text | Test Level 2 | Comments | Criterion A: 0.5 / 1 period |
Voltage dip | 40 % | Number of periods | 5 / 10 / 50 periods |
Additional text | Test Level 2 | Comments | Criterion B |
Voltage dip | 0 % | Number of periods | 0,5 / 1 / 5 / 50 / 250 periods |
Additional text | Test Level 2 | Comments | Criterion A: 0.5 / 1 period |
Standards/regulations | EN 61000-4-9 | Test field strength | 1000 A/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-12 |
Input | 2 kV (Test Level 4 - symmetrical)
4 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-16 | Test level 1 | 15 Hz 150 Hz (Test Level 4) |
Voltage | 30 V 3 V | Test level 2 | 150 Hz 1.5 kHz (Test Level 4) |
Voltage | 3 V | Test level 3 | 1.5 kHz 15 kHz (Test Level 4) |
Voltage | 3 V 30 V | Test level 4 | 15 kHz 150 kHz (Test Level 4) |
Voltage | 30 V | Test level 5 | 16.7 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 4) |
Voltage | 30 V (10 s) | Test level 6 | 16.7 Hz 50 Hz 60 Hz (Test Level 4) |
Voltage | 300 V (1 s) | Comments | Criterion A |
Standards/regulations | EN 61000-4-18 | Input, output (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) |
Voltage | 1 kV | Input, output (test level 2) | 10 MHz (Test Level 3 - asymmetrical) |
Voltage | 1 kV | Input, output (test level 3) | 100 kHz 1 MHz (Test Level 3 - asymmetrical) |
Voltage | 2.5 kV | Signals (test level 1) | 100 kHz 1 MHz (Test Level 3 - symmetrical) |
Voltage | 1 kV | Signals (test level 2) | 100 kHz 1 MHz (Test Level 3 - asymmetrical) |
Voltage | 2.5 kV | Comments | Criterion A |
Standards/regulations | EN 61000-4-10 | Test field strength | 100 A/m |
Test level 1 | 100 kHz | Test field strength | 100 A/m |
Test level 2 | 1 MHz | Comments | Criterion A |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
