Product Model

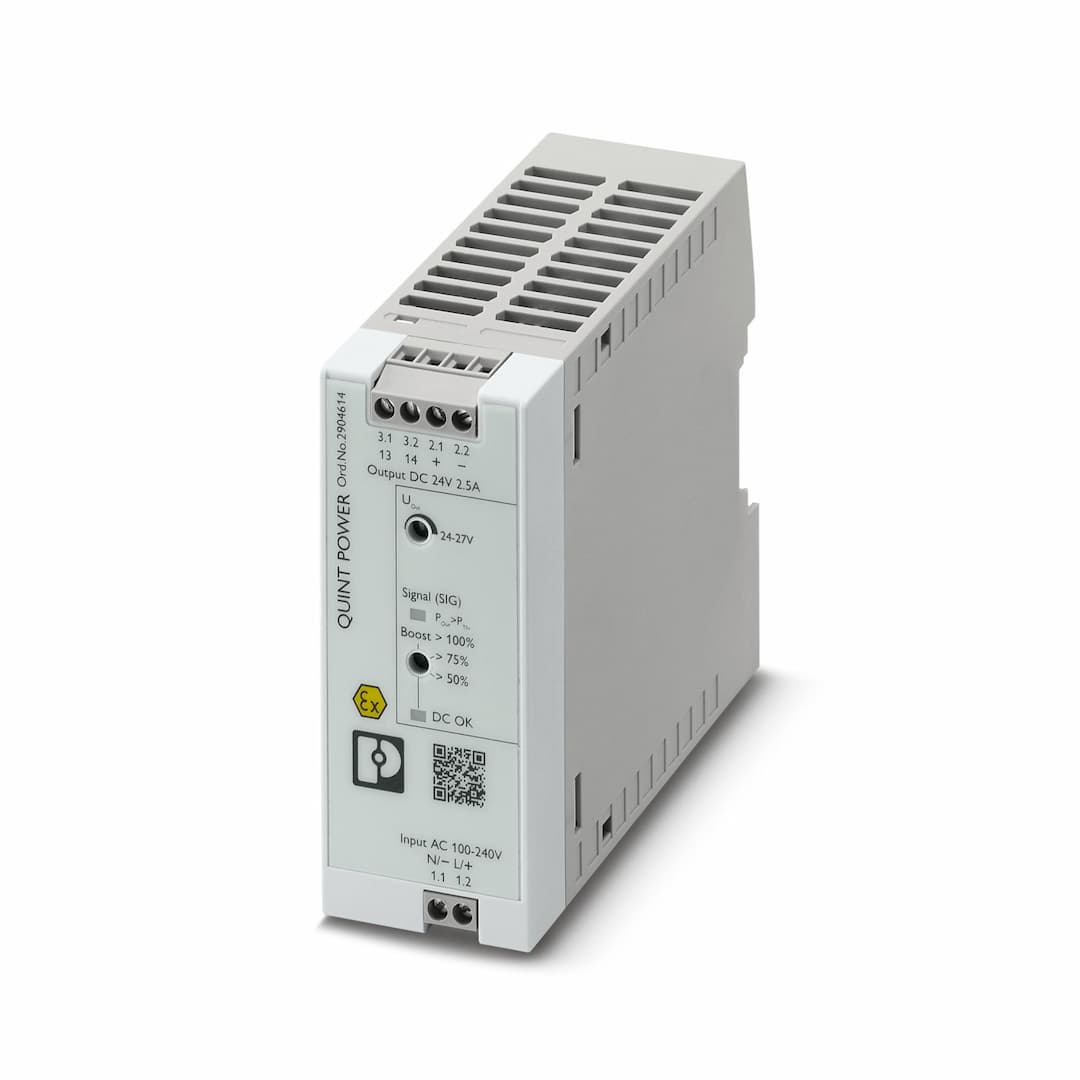

QUINT4-SYS-PS/1AC/24DC/2.5/SC
Selling Points
- 1Achieves 94% efficiency, ensuring minimal power loss and optimal performance.
- 2Provides up to 50% additional current without voltage drop, ideal for unpredictable load conditions.
- 3Built with a robust input side featuring high noise immunity and a gas-filled surge arrester up to 6 kV.
- 4Includes preventive function monitoring with adjustable signaling of power thresholds or output voltage.
- 5Designed for space savings in control boxes with a slim-line design, perfect for DIN rail mounting.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 100 V AC ... 240 V AC -15 % ... +10 % |
Electric strength, max. | 300 V AC 30 s | Typical national grid voltage | 120 V AC
230 V AC |
Voltage type of supply voltage | AC/DC | Inrush current | typ. 10 A (at 25 °C) |
Inrush current integral (I | typ. 0.1 A | Inrush current limitation | 10 A |
Frequency range (f | 50 Hz ... 60 Hz ±10 %
16.7 Hz (acc. to EN 50163) | Mains buffering time | typ. 31 ms (120 V AC)
typ. 31 ms (230 V AC) |
Current consumption | 0.85 A (100 V AC)
0.7 A (120 V AC)
0.39 A (230 V AC)
0.37 A (240 V AC) | Protective circuit | Transient surge protection; Varistor |
Typical response time | 500 ms | Input fuse | 4 A (slow-blow, internal) |
Recommended breaker for input protection | 6 A ... 16 A (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 0.25 mA (264 V AC, 60 Hz)
< 0.22 mA |
Input voltage range | 110 V DC ... 250 V DC -20 % ... +40 % | Voltage type of supply voltage | AC/DC |
Current consumption | 0.75 A (110 V DC)
0.33 A (250 V DC) | Efficiency | typ. 93 % (120 V AC)
typ. 94 % (230 V AC) |
Nominal output voltage | 24 V DC | Setting range of the output voltage (U | 24 V DC ... 27 V DC (constant capacity) |
Nominal output current (I | 2.5 A | Static Boost (I | 3.125 A (≤ 40°C) |
Dynamic Boost (I | 4 A (≤ 60 °C (on ≤ 5 s/off ≥ 5 s)) | Feedback voltage resistance | ≤ 32 V DC |
Protection against overvoltage at the output (OVP) | ≤ 30 V DC ±2 % | Control deviation | < 0.5 % (Static load change 10 % ... 90 %)
< 2 % (Dynamic load change 10 % ... 90 %, (10 Hz))
< 0.25 % (change in input voltage ±10 %) |
Residual ripple | < 40 mV | Short-circuit-proof | yes |
No-load proof | yes | Output power | 60 W
75 W
96 W |
Maximum no-load power dissipation | < 1 W (120 V AC)
< 1 W (230 V AC) | Power loss nominal load max. | < 5 W (120 V AC)
< 4 W (230 V AC) |
Crest factor | typ. 1.8 (120 V AC)
typ. 1.84 (230 V AC) | Rise time | 50 ms (U |
Digital | 0 V DC 24 V DC 30 mA | Default | 24 V DC 30 mA 24 V DC for U |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.14 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.14 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/terminal point, stranded, with ferrule, min. | 0.25 mm² |
Single conductor/terminal point, stranded, with ferrule, max. | 2.5 mm² | Conductor cross section AWG min. | 26 |
Conductor cross section AWG max. | 14 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED | P | > P |
U | > 0.9 x U
< 0.9 x U | Number of phases | 1.00 |
Insulation voltage input/output | 4 kV AC (type test)
3 kV AC (routine test) | Switching frequency | 90.00 kHz ... 110.00 kHz (Auxiliary converter stage)
50.00 kHz ... 195.00 kHz (Main converter stage)
60.00 kHz ... 360.00 kHz (PFC stage) |
Product type | Power supply | Product family | QUINT POWER |
MTBF (IEC 61709, SN 29500) | > 2000000 h (25 °C)
> 1161000 h (40 °C)
> 514000 h (60 °C) | Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach |
Article revision | 00 | Protection class | II |
Degree of pollution | 2 | Current | 2.5 A |
Temperature | 40 °C | Time | 323000 h |
Additional text | 120 V AC | Current | 2.5 A |
Temperature | 40 °C | Time | 346000 h |
Additional text | 230 V AC | Current | 2.5 A |
Temperature | 25 °C | Time | 915000 h |
Additional text | 120 V AC | Current | 2.5 A |
Temperature | 25 °C | Time | 980000 h |
Additional text | 230 V AC | Width | 40 mm |
Height | 99 mm | Depth | 114 mm |
Installation distance right/left (active) | 15 mm / 15 mm (P | Installation distance right/left (passive) | 5 mm / 5 mm (P |
Installation distance right/left (active, passive) | 0 mm / 0 mm (P | Installation distance top/bottom (active) | 30 mm / 30 mm (P |
Installation distance top/bottom (passive) | 30 mm / 30 mm (P | Installation distance top/bottom (active, passive) | 30 mm / 30 mm (P |
Mounting type | DIN rail mounting | With protective coating | no |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Plastic |
Type of housing | Polycarbonate | Hood version | Polycarbonate |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | 5 Hz ... 100 Hz resonance search 2.3g, 90 min., resonance frequency 2.3g, 90 min. (according to DNV GL Class C) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
Rail applications | EN 50121-3-2
EN 50121-4
EN 50121-5
IEC 62236-3-2
IEC 62236-4
IEC 62236-5 | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61558-2-16
IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1
IEC 61010-2-201 (SELV) | Standard - Safety of transformers | EN 61558-2-16 |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
UL approvals | UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | Identification | UL 21 ATEX 2597 X
II 3 G Ex ec nC IIC T4 Gc |
Identification | IECEx ULD 21.0023X
Ex ec nC IIC T4 Gc | Identification | UL21UKEX2208X |
Identification | UL Listed UL 61010-1 | Identification | UL Listed UL 61010-2-201 |
Identification | UL 1310 Class 2 Power Units | Identification | ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
Identification | CB scheme (IEC 61010-1, IEC 61010-2-201) | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Interference emission | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) | Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (power supply) |
EMC requirements for power supply | IEC 61850-3 (G,H)
EN 61000-6-5 (switching devices) | Conducted noise emission | EN 55016
EN 61000-6-3 (Class B) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Noise emission | EN 55016
EN 61000-6-3 (Class B) |
Standards/regulations | EN 61000-3-2
EN 61000-3-2 (Class A) | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-3-3 | Frequency range | 0 kHz ... 2 kHz |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level X) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 4 kV (Test Level X - asymmetrical) | Signal | 4 kV (Test Level X - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 2 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-8 | Frequency | 16.67 Hz
50 Hz
60 Hz |
Test field strength | 100 A/m | Additional text | 60 s |
Comments | Criterion A | Frequency | 50 Hz
60 Hz |
Frequency range | 50 Hz ... 60 Hz | Test field strength | 1 kA/m |
Additional text | 3 s | Frequency | 0 Hz |
Test field strength | 300 A/m | Additional text | DC, 60 s |
Standards/regulations | EN 61000-4-11 | Voltage | 100 V AC |
Frequency | 60 Hz | Voltage dip | 70 % |
Number of periods | 0.5 / 1 / 30 periods | Additional text | Test Level 2 |
Comments | Criterion A | Voltage dip | 40 % |
Number of periods | 5 / 10 / 50 periods | Additional text | Test Level 2 |
Comments | Criterion B | Voltage dip | 0 % |
Number of periods | 0.5 / 1 / 5 / 50 periods | Additional text | Test Level 2 |
Comments | Criterion B | Standards/regulations | EN 61000-4-9 |
Test field strength | 1000 A/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-12 | Input | 2 kV (symmetrical)
4 kV (asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-16 |
Test level 1 | 16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) | Voltage | 30 V (10 s) |
Test level 2 | 16.67 Hz 50 Hz 60 Hz (Test Level 2) | Voltage | 300 V (1 s) |
Comments | Criterion A | Standards/regulations | EN 61000-4-18 |
Voltage | 1 kV (symmetrical)
2.5 kV (asymmetrical)
1 kV (symmetrical) | Comments | Criterion A |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Criterion C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
Specifications may be subject to change without notice
