Product Model

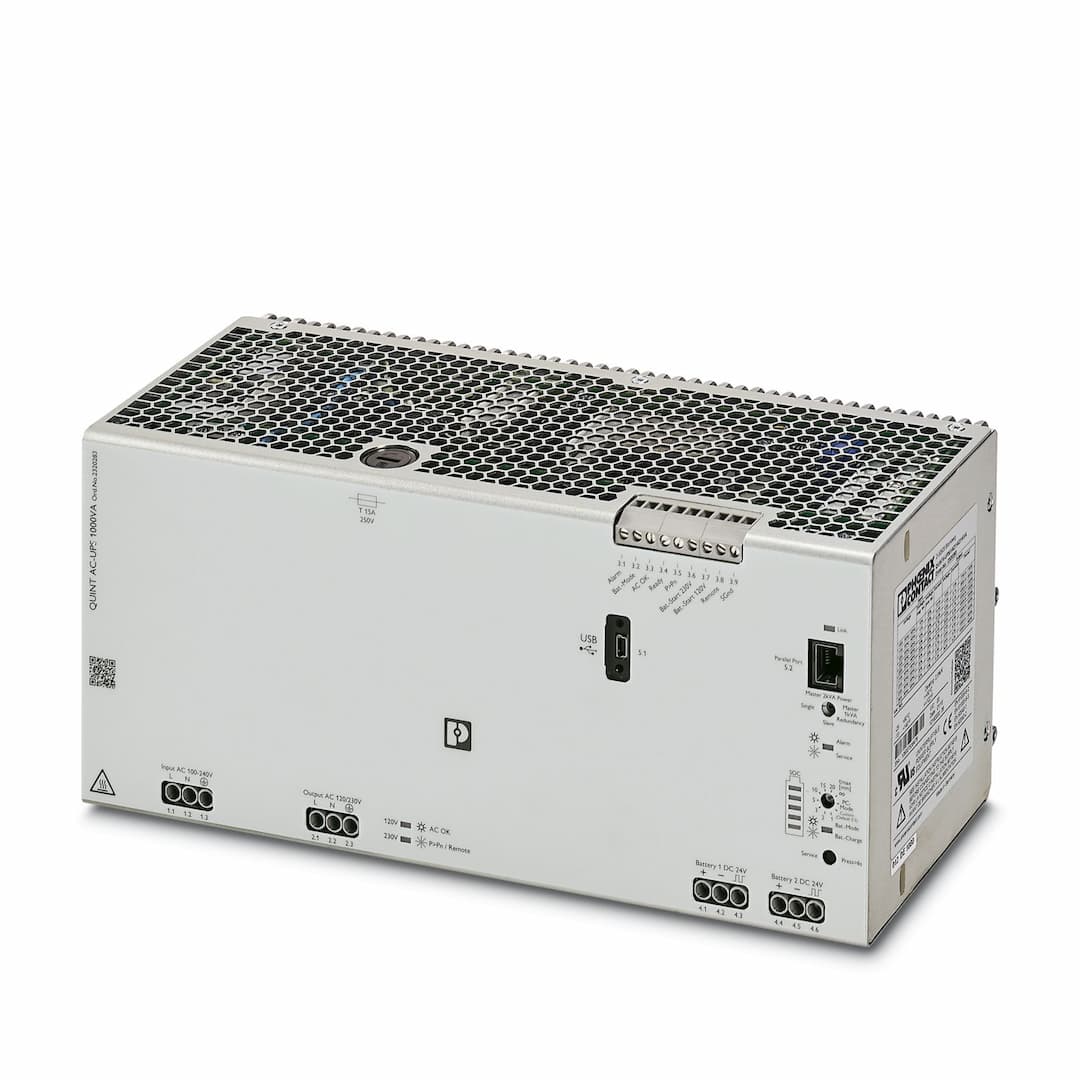

QUINT4-UPS/1AC/1AC/1KVA
Selling Points
- 1Reliable Power Supply: Ensures continuous power supply for critical loads during mains disturbances.
- 2Online Topology: Delivers a pure sine curve in both mains and battery operation.
- 3Parallel Connection: Allows for connection in parallel for increased performance and redundancy.
- 4Advanced Monitoring: Provides real-time information on state of charge, remaining runtime, and service life of the rechargeable battery module.
- 5Efficient Design: Offers high efficiency (>92% at 120V AC, >94% at 230V AC) and long MTBF (217546 hours at 230V AC, 40°C).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 100 V AC -10 % / +20 %
110 V AC -10 % / +20 %
120 V AC -10 % / +20 %
130 V AC -10 % / +20 %
200 V AC -20 % / +20 %
210 V AC -20 % / +20 %
220 V AC -20 % / +20 %
230 V AC -20 % / +15 %
240 V AC -20 % / +10 % | Input voltage range | 90 V AC ... 264 V AC |
Input voltage range AC | 184 V AC ... 264 V AC
96 V AC ... 144 V AC | Typical national grid voltage | 120 V AC
230 V AC |
Voltage type of supply voltage | AC | AC frequency range | 45 Hz ... 65 Hz |
Buffer period | 1 h (38 AH) | Current consumption | 10.4 A (100 V AC)
10.5 A (110 V AC)
10.5 A (120 V AC)
9.7 A (130 V AC)
6.4 A (200 V AC)
6 A (210 V AC)
5.7 A (220 V AC)
5.5 A (230 V AC)
5.3 A (240 V AC) |
Variable connect threshold | Can be configured using UPS-CONF software | Power factor (cos phi) | 0.9 |
Bypass fuse | T 15 A / 250 V (MDA -15-R) | Permissible backup fuse | B16 230 V AC
20 A (120 V AC, Listed breaker) |
Designation | Remote | Low signal | Connection to SGnd with < 2.7 kΩ |
High signal | Open (> 35 kΩ between Remote and SGnd) | Battery-operated start 120 V AC low signal | Connection to SGnd with < 2.7 kΩ |
Battery-operated start 120 V AC high signal | Open (> 200 kΩ between Bat.-Start and SGnd) | Classification according to IEC 62040-3 | VFI-SS-111 |
Efficiency | > 92 % (120 V AC)
> 94 % (230 V AC) | Nominal output voltage | 100 V AC
110 V AC
120 V AC
130 V AC
200 V AC
210 V AC
220 V AC
230 V AC
240 V AC |
Form of output voltage | Pure sine | Nominal output current (I | 7.8 A (100 V AC)
8.1 A (110 V AC)
8.3 A (120 V AC)
7.7 A (130 V AC)
5 A (200 V AC)
4.8 A (210 V AC)
4.5 A (220 V AC)
4.3 A (230 V AC)
4.2 A (240 V AC) |
POWER BOOST (I | 13 A (120 V AC)
7 A (230 V AC) | Output power | 778 VA (700 W)
889 VA (800 W)
1000 VA (900 W)
1000 VA (900 W)
1000 VA (900 W)
1000 VA (900 W)
1000 VA (900 W)
1000 VA (900 W)
1000 VA (900 W) |
Apparent power | 1 kVA (U | Nominal power | 900 W (U |
Maximum no-load power dissipation | typ. 17 W (120 V AC)
typ. 25 W (230 V AC) | Power loss nominal load max. | typ. 79 W (120 V AC)
typ. 55 W (230 V AC) |
Crest factor | 2.8 | Switch-over time | 0 ms |
Connection in parallel | yes, 2 | Connection in series | no |
Nominal output voltage | 120 V AC ±2 %
230 V AC ±2 % | Nominal output current (I | 8.3 A
4.3 A (230 V AC) |
POWER BOOST (I | 13 A
7 A | Nominal output voltage | 120 V AC ±2 %
230 V AC ±2 % |
Nominal output current (I | 4.3 A (230 V AC)
8.3 A (120 V AC) | POWER BOOST (I | 7 A (230 V AC)
13 A (120 V AC) |
Nominal output frequency | ± 60 Hz ±0.5 % (At an input frequency of 55 Hz to
± 50 Hz ±0.5 % (At an input frequency of 45 Hz to | Output voltage | 24 V |
Continuous load current | ≤ 20 mA | Output voltage | 24 V |
Continuous load current | ≤ 20 mA | Output voltage | 24 V |
Continuous load current | ≤ 20 mA | Output voltage | 24 V |
Continuous load current | ≤ 20 mA | Output voltage | 24 V (SELV) |
Continuous load current | ≤ 20 mA | Nominal voltage U | 2x 24 V DC |
End-of-charge voltage | 58 V (temperature compensated) | Charging current | 5 A |
Nominal capacity range | 3.4 Ah ... 190 Ah (5x 38 Ah) | Battery technology | VRLA, VRLA-WTR |
Charge characteristic curve | IU | Permissible backup fuse | 50 A / 58 V |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² | Conductor cross section AWG min. | 30 |
Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.25 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 4 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.25 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 4 mm² | Conductor cross section AWG min. | 30 |
Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Single conductor/flexible terminal point with ferrule with plastic sleeve, min. | 0.2 mm² |
Single conductor/flexible terminal point with ferrule with plastic sleeve, max. | 2.5 mm² | Single conductor/flexible terminal point with ferrule without plastic sleeve, min. | 0.2 mm² |
Single conductor/flexible terminal point with ferrule without plastic sleeve, max. | 2.5 mm² | Conductor cross section AWG min. | 30 |
Conductor cross section AWG max. | 12 | Stripping length | 8 mm |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Interface | MINI-USB type B | Features | lockable |
Maximum cable length | 3 m | Types of signaling | LED
Active switching output |
Signalization designation | AC OK | Status display | LED |
Color | green | Signalization designation | Alarm |
Status display | LED | Color | red |
Signalization designation | Battery mode | Status display | LED |
Color | yellow | Signalization designation | Ready |
Signalization designation | P>P | Status display | LED |
Color | green | Signalization designation | Reference potential for the signal inputs and outputs |
Number of phases | 1.00 | Product type | AC UPS |
Product family | QUINT AC UPS | MTBF (IEC 61709, SN 29500) | 217546 h (230 V AC, at 40 °C) |
Article revision | 04 | Protection class | I |
Overvoltage category | II | Pollution degree | 3 (≤ 130 V AC)
2 (> 200 V AC) |
Time | 68970 h | Width | 290 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | DIN rail mounting | Housing material | Metal |
Hood version | Sheet steel, DIN EN ISO2081 coat - Fe/Zn 18/B/TopCoat transparent blue | Side element version | Aluminum plate, DIN EN 573-3 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C: 2,5 % / K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 3000 m (> 2000 m: 0,6 % / 100 m) |
Climatic class | 3K3 (EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % |
Shock | 15g in all directions (EN 60068-2-27) | Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) |
Standard designation | Uninterruptible power supply systems | Standards/specifications | EN 62040-1 |
Identification | UL/C-UL Recognized UL 1778 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Noise emission in accordance with EN 62040-2 |
Noise immunity | Immunity in accordance with EN 62040-2
Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial) | Conducted noise emission | EN 62040-02 (Class C2) |
Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
Discharge in air | ± 8 kV | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 6 GHz |
Test field strength | 10 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | ± 2 kV
± 2 kV |
Output | ± 2 kV | Signal | ± 2 kV
± 2 kV (USB) |
Comments | Criterion A (B for USB) | Standards/regulations | EN 61000-4-5 |
Signal | 1 kV (asymmetrical) | Comments | Criterion B |
Input/Output | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V | Standards/regulations | EN 61000-4-8 |
Frequency | 50 Hz
60 Hz | Test field strength | 100 A/m |
Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
