Product Model

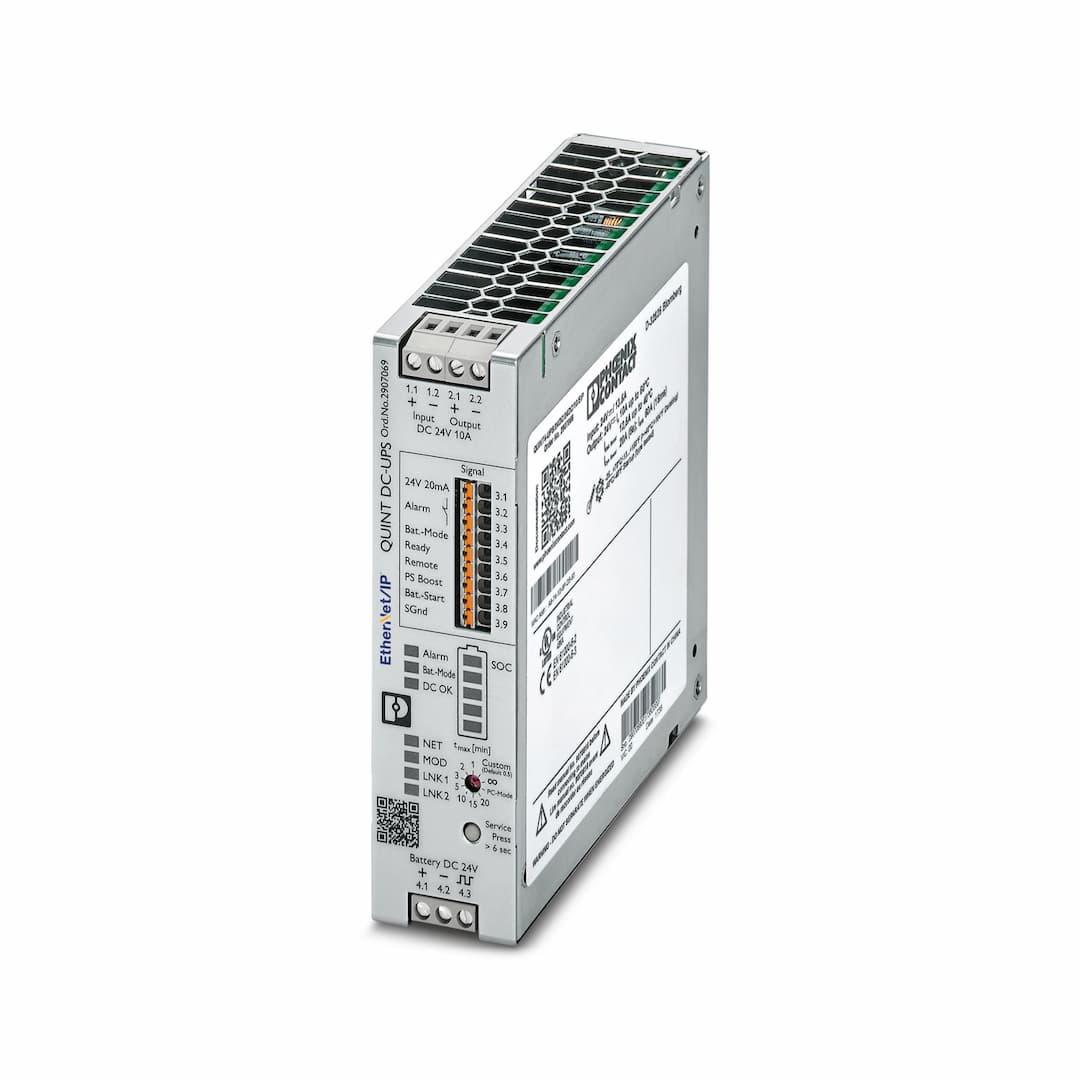

QUINT4-UPS/24DC/24DC/10/EIP
Selling Points
- 1Intelligent battery management with IQ Technology for superior system availability.
- 2Supports RJ45 communication interfaces (EtherNet/IP™) for seamless integration into industrial networks.
- 3Robust design with a maximum output current of 10 A and a charging current of 3 A.
- 4High efficiency with a typical efficiency of 97% and a maximum output power of 480 W (5 s).
- 5Compact design for DIN rail mounting with dimensions 35 mm x 130 mm x 125 mm.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 24 V DC | Input voltage range | 18 V DC ... 30 V DC
18 V DC ... 32 V DC |
Electric strength, max. | 35 V DC | Internal input fuse | no |
Voltage type of supply voltage | DC | Inrush current | ≤ 7 A (≤ 4 ms) |
Reverse polarity protection | yes | Fixed backup threshold | 22 V DC
30 V DC |
Dynamic activation threshold | > 1 V / 100 ms | Switch-on time | max. 3 s |
Switch-on time during battery operation (Bat.-Start) | 8 s | Voltage drop, input/output | 0.4 V DC |
Current consumption I | 10.1 A | Current consumption I | 16.3 A |
Current consumption I | 105 mA | Current consumption I | 3.7 A |
Power consumption P | 245 W | Power consumption P | 386 W |
Power consumption P | 2.6 W | Power consumption P | 92 W |
Efficiency | typ. 97 % | Number of outputs | 1 |
Short-circuit-proof | yes | No-load proof | yes |
Switch-over time | 0 ms | UPS connection in parallel | no |
UPS connection in series | no | Energy storage device connection in parallel | Yes, 5 (observe line protection) |
Energy storage device connection in series | no | Output voltage | 24 V DC (U |
Output voltage range | 18 V DC ... 30 V DC
18 V DC ... 32 V DC | Output current I | 10 A |
Static Boost (I | 12.5 A | Dynamic Boost (I | 20 A (5 s) |
Selective Fuse Breaking (I | 60 A (15 ms) | Output power P | 240 W |
Output power P | 300 W | Output power P | 480 W (5 s) |
Power dissipation No load (U | 1 W | Power dissipation Nominal load (U | 6 W |
Output voltage | 24 V DC (U | Output voltage range | 19 V DC ... 32 V DC |
Output current I | 10 A | Static Boost (I | 12.5 A |
Selective Fuse Breaking (I | 60 A (15 ms) | Output power P | 240 W |
Output power P | 300 W | Output power P | 480 W (5 s) |
End-of-charge voltage | 32 V DC | End-of-charge voltage (temperature-compensated) | 25 V DC ... 32 V DC |
Charging current (configurable) | 3 A | Nominal capacity (without additional charger) | 1.2 Ah ... 60 Ah |
Max. capacity | 80 Ah | Charging time | 120 h |
Buffer time | 25 min (7.2 Ah) | Deep discharge protection | 19.2 V DC |
Battery technology | VRLA, VRLA-WTR, LI-ION | Charge characteristic curve | IU |
IQ-Technology | yes | Temperature sensor | yes |
Temperature compensation (configurable) | 42 mV/K | Position | 1.x |
Connection method | Screw connection | rigid | 0.2 mm² ... 2.5 mm²
recommended |
flexible | 0.2 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 2.5 mm² | rigid (AWG) | 30 ... 12 (Cu) |
Stripping length | 6.5 mm (rigid/flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Drive form screw head | Slotted L | Position | 2.x |
Connection method | Screw connection | rigid | 0.2 mm² ... 2.5 mm² |
flexible | 0.2 mm² ... 2.5 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 2.5 mm² | rigid (AWG) | 30 ... 12 (Cu) |
Stripping length | 6.5 mm (rigid/flexible) | Tightening torque | 0.5 Nm ... 0.6 Nm |
Drive form screw head | Slotted L | Position | 3.x |
Connection method | Push-in connection | rigid | 0.2 mm² ... 1 mm² |
flexible | 0.2 mm² ... 1 mm² | flexible with ferrule without plastic sleeve | 0.2 mm² ... 0.75 mm² (Cu)
0.5 mm² (recommended) |
flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² | rigid (AWG) | 24 ... 16 (Cu) |
Stripping length | 8 mm (rigid/flexible) | Position | 4.x |
Position marking | 4.1 (+), 4.2 (-), 4.3 () | Connection method | Screw connection |
rigid | 0.2 mm² ... 2.5 mm² | flexible | 0.2 mm² ... 2.5 mm² |
flexible with ferrule without plastic sleeve | 0.25 mm² ... 2.5 mm² | flexible with ferrule with plastic sleeve | 0.25 mm² ... 2.5 mm² |
rigid (AWG) | 30 ... 12 (Cu) | Stripping length | 6.5 mm (rigid/flexible) |
Tightening torque | 0.5 Nm ... 0.6 Nm | Drive form screw head | Slotted L |
Interface | EtherNet/IP (Modbus/TCP) | Number of interfaces | 2 |
Connection method | RJ45 | Supported protocols | EtherNet/IP™
BootP
DHCP
DLR
Modbus/TCP
HTTPS (Webserver) |
Locking | Locking clip | Transmission physics | Twisted-Pair |
Features | Autonegotiation
Autocrossing
Half- or full-duplex
automatic recognition
Optional: manually adjustable | Topology | Star
Line |
Transmission speed | 10 Mbps ... 100 Mbps | Transmission length | max. 100 m |
Cycle time | 30 ms (Default) | Access time | ≤ 2 s |
Chipset | Renesas R-IN32M3 | Electrical isolation | yes |
Device ID | 1FF6 | Vendor ID | 232 |
IP address | 192.168.019.023 (configurable) | Types of signaling | DC OK (green)
Alarm (red)
Bat.-Mode (yellow)
SOC (red, green)
Data (red, green) |
Product type | DC UPS | Product family | QUINT USV |
MTBF (IEC 61709, SN 29500) | > 1189000 h (25 °C)
> 736900 h (40 °C)
> 372700 h (60 °C) | Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach |
Article revision | 05 | Protection class | III (without PE) |
Degree of pollution | 2 | Time | 137895 h |
Width | 35 mm | Height | 130 mm |
Depth | 125 mm
125 mm (Device depth (DIN rail mounting)) | Width | 123 mm |
Height | 130 mm | Depth | 37 mm |
Installation distance right/left (active) | 5 mm / 5 mm (P | Installation distance right/left (passive) | 0 mm / 0 mm (P |
Installation distance right/left (active, passive) | 0 mm / 0 mm (P | Installation distance top/bottom (active) | 50 mm / 50 mm (P |
Installation distance top/bottom (passive) | 40 mm / 20 mm (P | Installation distance top/bottom (active, passive) | 40 mm / 20 mm (P |
Mounting type | DIN rail mounting | Mounting position | On horizontal DIN rail NS 35/7.5 and NS 35/15 acc. to EN 60715 |
Flammability rating according to UL 94 (housing / terminal blocks) | V0 | Housing material | Metal |
Hood version | Stainless steel X6Cr17 | Side element version | Aluminum AlMg3 |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 4000 m | Climatic class | 3K3 (EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | 2.3g | EN 61010-1 | II (≤ 4000 m) |
EN 61010-2-201 | II (≤ 4000 m) | Standard designation | Protective extra-low voltage |
Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Identification | UL/C-UL Listed UL 61010-1 |
Identification | UL/C-UL Listed UL 61010-2-201 | Identification | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Identification | CAN/CSA-C22.2 No. 61010-1-12 | Identification | CAN/CSA-IEC 61010-2-201 |
Identification | CAN/CSA-C22.2 No. 213 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | Identification | IEC 61010-1
IEC 61010-2-201 |
Identification | Class Guideline DNVGL-CG-0339 | Note | Location classes: Temperature D (see Application/Limitation), Humidity B, Vibration A/C, EMC B |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (power supply) | Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 1 GHz ... 6 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 4 kV (Test Level 4 - asymmetrical) | Signal | 4 kV (Test Level 4 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-4-8 |
Frequency | 16.67 Hz
50 Hz
60 Hz | Test field strength | 100 A/m |
Additional text | 60 s | Comments | Criterion A |
Frequency | 50 Hz
60 Hz | Frequency range | 50 Hz ... 60 Hz |
Test field strength | 1 kA/m | Additional text | 3 s |
Frequency | 0 Hz | Test field strength | 300 A/m |
Additional text | DC, 60 s | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
