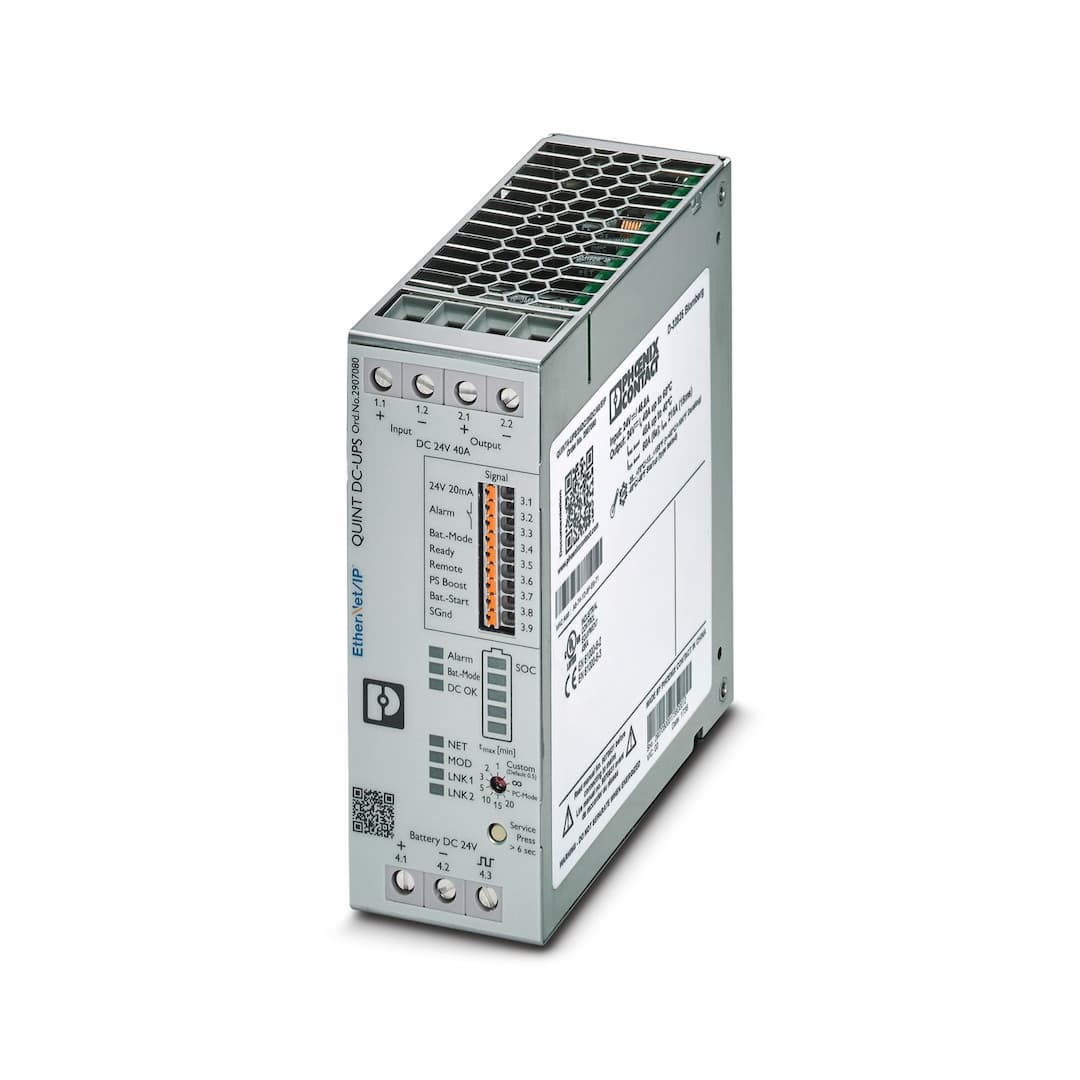

Product Model
QUINT4-UPS/24DC/24DC/40/EIP
Selling Points
- 1Reliable Power Supply: Continues to supply systems with uninterrupted power even in the event of a mains failure.
- 2Advanced Battery Management: Equipped with IQ Technology for reliable determination of remaining service life and buffer time.
- 3Flexible Communication: Supports EtherNet/IP, Modbus/TCP, and other industrial protocols for seamless integration.
- 4Durable Design: Designed for DIN rail mounting with a robust construction suitable for industrial environments.
- 5Efficient Charging: Features a powerful battery charger with up to 5 A charging current for optimal performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 24 V DC | Input voltage range | 18 V DC ... 30 V DC
18 V DC ... 32 V DC |
Electric strength, max. | 35 V DC | Internal input fuse | no |
Voltage type of supply voltage | DC | Inrush current | ≤ 9 A (≤ 4 ms) |
Reverse polarity protection | yes | Fixed backup threshold | 22 V DC |
Dynamic activation threshold | > 1 V / 100 ms | Switch-on time | max. 3 s |
Switch-on time during battery operation (Bat.-Start) | 8 s | Voltage drop, input/output | 0.5 V DC |
Current consumption I | 40.1 A | Current consumption I | 51.2 A |
Current consumption I | 105 mA | Current consumption I | 6.1 A |
Power consumption P | 967 W | Power consumption P | 1122 W |
Power consumption P | 2.6 W | Power consumption P | 148 W |
Efficiency | typ. 97 % | Number of outputs | 1 |
Nominal output current (I | 40 A (-25 °C ... 50 °C) | Short-circuit-proof | yes |
No-load proof | yes | Switch-over time | 0 ms |
Output current limit | In mains mode according to connected upstream current limiting device
> 45 A (Battery operation) | Power dissipation | 2.8 W (Mains operation)
13 W (Mains operation)
3.51 W (Battery operation)
16.4 W (Battery operation) |
UPS connection in parallel | no | UPS connection in series | no |
Energy storage device connection in parallel | Yes, 5 (observe line protection) | Energy storage device connection in series | no |
Output voltage | 24 V DC (U | Output voltage range | 18 V DC ... 30 V DC
18 V DC ... 32 V DC |
Output current I | 40 A | Static Boost (I | 45 A |
Dynamic Boost (I | 60 A (5 s) | Selective Fuse Breaking (I | 215 A (15 ms) |
Output power P | 960 W | Output power P | 1080 W |
Output voltage | 24 V DC (U | Output voltage range | 19 V DC ... 32 V DC |
Output current I | 40 A | Static Boost (I | 45 A |
Selective Fuse Breaking (I | 215 A (15 ms) | Output power P | 960 W |
Output power P | 1080 W | End-of-charge voltage | 32 V DC |
End-of-charge voltage (temperature-compensated) | 25 V DC ... 32 V DC | Charging current (configurable) | 5 A |
Nominal capacity (without additional charger) | 7 Ah ... 100 Ah | Max. capacity | 135 Ah |
Charging time | 202.5 h | Buffer time | 45 min (38 Ah) |
Deep discharge protection | 19.2 V DC | Battery technology | VRLA, VRLA-WTR, LI-ION |
Charge characteristic curve | IU | IQ-Technology | yes |
Temperature sensor | yes | Temperature compensation (configurable) | 42 mV/K |
Position | 1.x | Connection method | Screw connection |
rigid | 0.5 mm² ... 16 mm² | flexible | 0.5 mm² ... 16 mm² |
flexible with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² | flexible with ferrule with plastic sleeve | 0.5 mm² ... 16 mm² |
rigid (AWG) | 8 ... 6 (Cu) | Stripping length | 10 mm (rigid/flexible) |
Tightening torque | 1.2 Nm ... 1.5 Nm | Drive form screw head | Slotted L |
Position | 2.x | Connection method | Screw connection |
rigid | 0.5 mm² ... 16 mm² | flexible | 0.5 mm² ... 16 mm² |
flexible with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² | flexible with ferrule with plastic sleeve | 0.5 mm² ... 16 mm² |
rigid (AWG) | 8 ... 6 (Cu) | Stripping length | 10 mm (rigid/flexible)
8 mm (Ferrule) |
Tightening torque | 1.2 Nm ... 1.5 Nm | Drive form screw head | Slotted L |
Position | 3.x | Connection method | Push-in connection |
rigid | 0.2 mm² ... 1 mm² | flexible | 0.2 mm² ... 1 mm² |
flexible with ferrule without plastic sleeve | 0.2 mm² ... 0.75 mm²
0.5 mm² (recommended) | flexible with ferrule with plastic sleeve | 0.2 mm² ... 0.75 mm² |
rigid (AWG) | 24 ... 16 (Cu) | Stripping length | 8 mm (rigid/flexible) |
Position | 4.x | Position marking | 4.1 (+), 4.2 (-), 4.3 () |
Connection method | Screw connection | rigid | 0.5 mm² ... 16 mm² |
flexible | 0.5 mm² ... 16 mm² | flexible with ferrule without plastic sleeve | 0.5 mm² ... 16 mm² |
flexible with ferrule with plastic sleeve | 0.5 mm² ... 16 mm² | rigid (AWG) | 20 ... 6 (Cu) |
Stripping length | 10 mm (rigid/flexible) | Tightening torque | 1.2 Nm ... 1.5 Nm |
Drive form screw head | Slotted L | Interface | EtherNet/IP (Modbus/TCP) |
Number of interfaces | 2 | Connection method | RJ45 socket |
Supported protocols | EtherNet/IP™
BootP
DHCP
DLR
Modbus/TCP
HTTPS (Webserver) | Locking | Locking clip |
Transmission physics | Twisted-Pair | Features | Autonegotiation
Autocrossing
Half- or full-duplex
automatic recognition
Optional: manually adjustable |
Topology | Star
Line | Transmission speed | 10 Mbps ... 100 Mbps |
Transmission length | max. 100 m | Cycle time | 30 ms (Default) |
Access time | ≤ 2 s | Chipset | Renesas R-IN32M3 |
Electrical isolation | yes | Device ID | 1FF8 |
Vendor ID | 232 | IP address | 192.168.019.023 (configurable) |
Types of signaling | DC OK (green)
Alarm (red)
Bat.-Mode (yellow)
SOC (red, green)
Data (red, green) | Product type | DC UPS |
Product family | QUINT USV | MTBF (IEC 61709, SN 29500) | > 1151000 h (25 °C)
> 718500 h (40 °C)
> 365200 h (60 °C) |
Environmental protection directive | RoHS Directive 2011/65/EU
WEEE
Reach | Article revision | 05 |
Protection class | III (without PE) | Degree of pollution | 2 |
Time | 126720 h | Width | 47 mm |
Height | 130 mm | Depth | 125 mm
125 mm (Device depth (DIN rail mounting)) |
Width | 123 mm | Height | 130 mm |
Depth | 49 mm | Installation distance right/left (active) | 5 mm / 5 mm (P |
Installation distance right/left (passive) | 0 mm / 0 mm (P | Installation distance right/left (active, passive) | 0 mm / 0 mm (P |
Installation distance top/bottom (active) | 50 mm / 50 mm (P | Installation distance top/bottom (passive) | 40 mm / 20 mm (P |
Installation distance top/bottom (active, passive) | 40 mm / 20 mm (P | Mounting type | DIN rail mounting |
Mounting position | On horizontal DIN rail NS 35/7.5 and NS 35/15 acc. to EN 60715 | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Hood version | Stainless steel X6Cr17 |
Side element version | Aluminum AlMg3 | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Maximum altitude | ≤ 4000 m |
Climatic class | 3K3 (EN 60721) | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | 2.3g |
Standard designation | Protective extra-low voltage | Standards/specifications | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Identification | UL/C-UL Listed UL 61010-1 | Identification | UL/C-UL Listed UL 61010-2-201 |
Identification | UL/C-UL Listed ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) | Identification | CAN/CSA-C22.2 No. 61010-1-12 |
Identification | CAN/CSA-IEC 61010-2-201 | Identification | CAN/CSA-C22.2 No. 213 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Identification | IEC 61010-1
IEC 61010-2-201 | Identification | Class Guideline DNVGL-CG-0339 |
Note | Location classes: Temperature D (see Application/Limitation), Humidity B, Vibration A/C, EMC B | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise immunity | Immunity in accordance with EN 61000-6-1 (residential), EN 61000-6-2 (industrial), and EN 61000-6-5 (power station equipment zone), IEC/EN 61850-3 (power supply) |
Noise emission | Additional basic standard EN 61000-6-5 (immunity in power station), IEC/EN 61850-3 (energy supply) | Standards/regulations | EN 61000-4-2 |
Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 4 - asymmetrical) | Output | 4 kV (Test Level 4 - asymmetrical) |
Signal | 4 kV (Test Level 4 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Output | 1 kV (Test Level 3 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-4-8 | Frequency | 16.67 Hz
50 Hz
60 Hz |
Test field strength | 100 A/m | Additional text | 60 s |
Comments | Criterion A | Frequency | 50 Hz
60 Hz |
Frequency range | 50 Hz ... 60 Hz | Test field strength | 1 kA/m |
Additional text | 3 s | Frequency | 0 Hz |
Test field strength | 300 A/m | Additional text | DC, 60 s |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
