Product Model

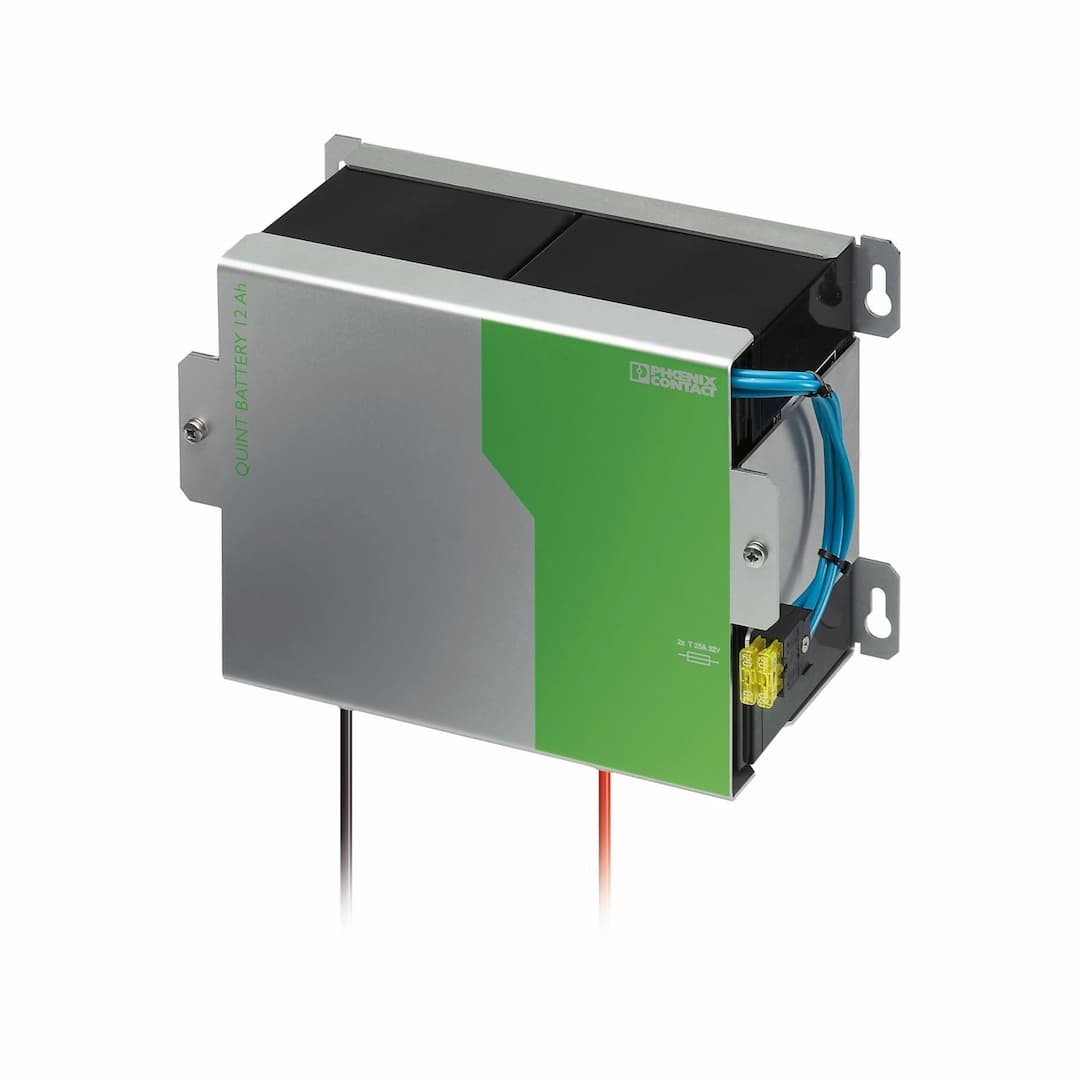

QUINT-BAT/24DC/12AH
Selling Points
- 1Lead AGM Technology: Maximizes buffer times with reliable energy storage.
- 224V DC, 12Ah Capacity: Ideal for various industrial applications requiring stable power.
- 3IP20 Degree of Protection: Ensures safe operation in harsh environments.
- 4Ambient Temperature Range: Operates between 0°C to 40°C, suitable for most industrial settings.
- 5Parallel Connection Capability: Increase buffer period by connecting multiple units in parallel.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”. | Input voltage | 24 V DC |
Nominal output voltage | 24 V DC | Output current I | 50 A |
Output fuse | 2x 25 A | Connection in parallel | yes, for increasing the buffer period |
Connection in series | no | Nominal output voltage | 24 V DC |
Nominal output current (I | 50 A | Nominal capacity | 12 Ah |
Battery module service life | 6 Years ... 9 Years (20 °C) | Latest startup date (battery only) | 9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C) |
Battery technology | VRLA-AGM | Memory medium | Battery 12 Ah |
Number of cells | 2 | Size designation | Block |
Battery pack | yes | IQ technology | no |
Suitable for fast charging | yes | Product type | Battery module |
Product family | Battery module | Application | for QUINT DC-UPS 20A/40A |
Disposal | Used batteries must not be thrown away with household waste, they should instead be disposed of in accordance with applicable national regulations. | IQ technology | no |
Protection class | III | Width | 231 mm |
Height | 156 mm | Depth | 110 mm |
Housing material | Metal | Type of housing | Steel sheet, zinc-plated |
Degree of protection | IP20 | Ambient temperature (operation) | 0 °C ... 40 °C |
Ambient temperature (storage/transport) | 0 °C ... 40 °C | Shipbuilding approval | DNV GL (EMC A) |
Suited for EX-applications | no |
Specifications may be subject to change without notice
