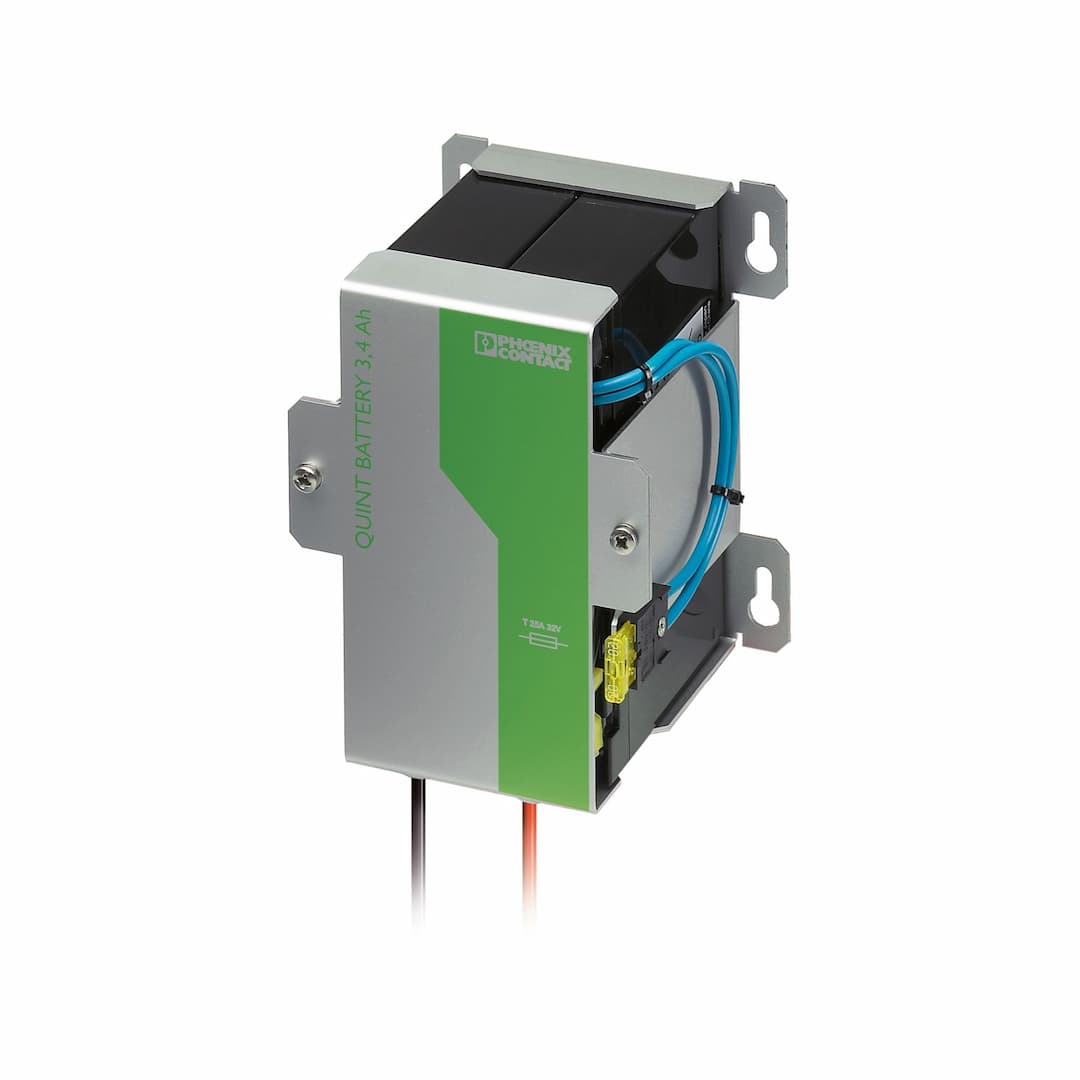

Phoenix Contact QUINT-BAT/24DC/3.4AH Energy Storage Battery Module

Selling Points

1Lead AGM Technology: High-performance energy storage with lead AGM technology for maximum buffer times.
224V DC, 3.4Ah Capacity: Reliable power storage with a nominal capacity of 3.4Ah at 24V DC.
3IP20 Protection: Rugged design with IP20 protection for safe operation in various environments.
4Easy Connection: Simple connection via pin cable lug, 14 mm, for easy integration into systems.
5Comprehensive Approvals: Meets stringent standards including DNV GL (EMC A) and ABS approvals for reliable performance in critical applications.

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Note on the battery	This product contains a battery with a limited shelf life that must be charged every few months. The product packaging indicates when the battery must be started up or recharged. The general shelf life can be found in the energy storage devices area under “Latest startup”.	Input voltage	24 V DC
Nominal output voltage	24 V DC	Output current I	25 A
Output fuse	1x 25 A	Connection in parallel	yes, for increasing the buffer period
Connection in series	no	Nominal output voltage	24 V DC
Nominal output current (I	24 A	Nominal capacity	4 Ah
Battery module service life	6 Years ... 9 Years (20 °C)	Latest startup date (battery only)	9 Months (20 °C ... 30 °C) 6 Months (30 °C ... 40 °C)
Battery technology	VRLA-AGM	Memory medium	4 Ah battery
Number of cells	2	Size designation	Block
Battery pack	yes	IQ technology	no
Suitable for fast charging	yes	Product type	Battery module
Product family	Battery module	Application	for QUINT DC-UPS 20A/40A
IQ technology	no	Width	112 mm
Height	145 mm	Depth	123 mm
Housing material	Metal	Degree of protection	IP20
Ambient temperature (operation)	0 °C ... 40 °C	Shipbuilding approval	DNV GL (EMC A)
Suited for EX-applications	no

Specifications may be subject to change without notice
