Product Model

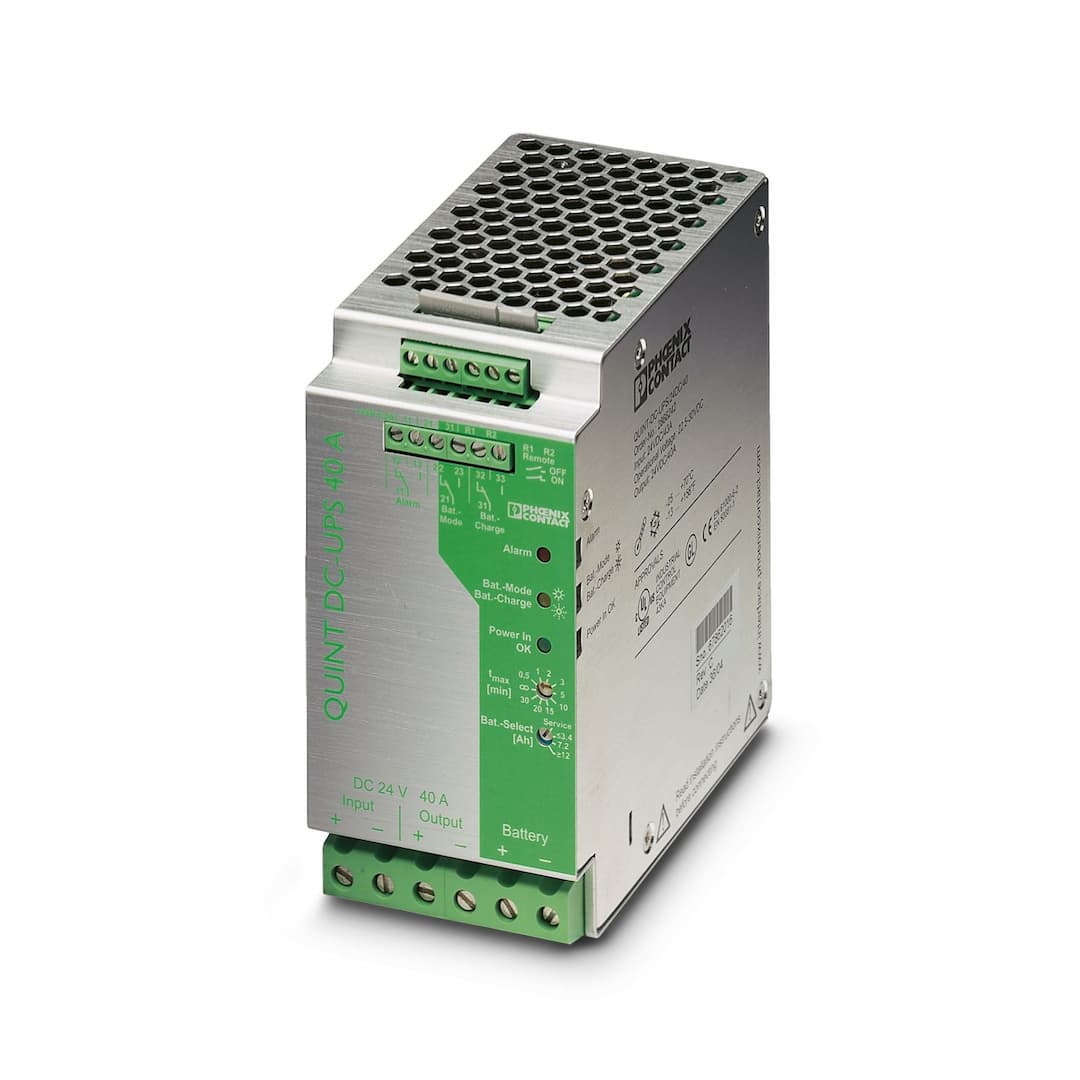

QUINT-DC-UPS/24DC/40
Selling Points
- 1Operates with an efficiency of up to 98%, minimizing energy loss and maximizing system availability.
- 2Equipped with IQ Technology for intelligent battery management, ensuring superior system availability and easy integration into industrial networks.
- 3Compatible with input voltage ranges from 22.5 V DC to 30 V DC, providing flexibility in various industrial settings.
- 4Built with a robust design, suitable for ambient temperatures from -25°C to 70°C, ensuring reliable operation in diverse environments.
- 5Supports PROFINET, EtherNet/IP, EtherCAT, and USB interfaces for seamless integration into established industrial networks.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 24 V DC | Input voltage range | 22.5 V DC ... 30 V DC |
Wide-range input | no | Input voltage range DC | 22.5 V DC ... 30 V DC |
Voltage type of supply voltage | DC | Buffer period | 5 min (40 A)
9 min (40 A) |
Current consumption | approx. 0.1 A
2.5 A (charging process)
42.5 A (max.) | Fixed backup threshold | < 22 V DC |
Variable connect threshold | (U | Input fuse | 50 A (slow-blow, internal) |
Efficiency | > 98 % | Nominal output voltage | 24 V DC (Normal operation: U |
Nominal output current (I | 40 A | Bridging time | 9 min |
Output power | 960 W | Power dissipation | 20 W
30 W |
Connection in parallel | yes, for increasing the buffer period | Connection in series | yes |
Nominal output voltage | 24 V DC | Nominal output current (I | 40 A |
Nominal output voltage | 24 V DC | Nominal output current (I | 40 A |
Output description | Power OK | Output description | Alarm |
Maximum switching voltage | ≤ 30 V AC/DC | Continuous load current | ≤ 1 A |
Output description | Battery Charge | Maximum switching voltage | ≤ 30 V AC/DC |
Continuous load current | ≤ 1 A | Output description | Battery Mode |
Maximum switching voltage | ≤ 30 V AC/DC | Continuous load current | ≤ 1 A |
Nominal capacity range | 3.4 Ah ... 12 Ah | Battery module service life | 6 Years (20 °C) |
Latest startup date (battery only) | 9 Months (20 °C ... 30 °C)
6 Months (30 °C ... 40 °C) | Memory medium | external, battery 3.4 Ah / 7.2 Ah / 12 Ah |
Network management | Yes | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 10 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Screw thread | M4 |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.5 mm² |
Conductor cross section, rigid max. | 16 mm² | Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 10 mm² | Conductor cross section AWG min. | 20 |
Conductor cross section AWG max. | 6 | Stripping length | 10 mm |
Screw thread | M4 | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 4 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED | Operating voltage display | Green LED |
Status display | LED "Power OK" green | Note on status display | Power OK: LED permanently lit |
Status display | LED (red) | Note on status display | Alarm: LED permanently lit |
Status display | LED flashing yellow | Note on status display | Battery charge: LED flashing |
Status display | LED (yellow) | Note on status display | Battery mode: LED permanently lit |
Insulation voltage input/output | 2 kV (routine test)
4 kV (type test) | Product type | DC UPS |
MTBF (IEC 61709, SN 29500) | > 500000 h | Protection class | II (in closed control cabinet) |
Width | 66 mm | Height | 130 mm |
Depth | 125 mm | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Width | 122 mm |
Height | 130 mm | Depth | 69 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Housing material | Metal |
Type of housing | AluNox (AlMg1) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 | Standard - Safe isolation | DIN VDE 0100-410 |
Standard - Safety of transformers | EN 61558-2-17 | Shipbuilding approval | DNV GL (EMC A), ABS |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Noise immunity | EN 61000-6-2:2005 |
Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
