Product Model

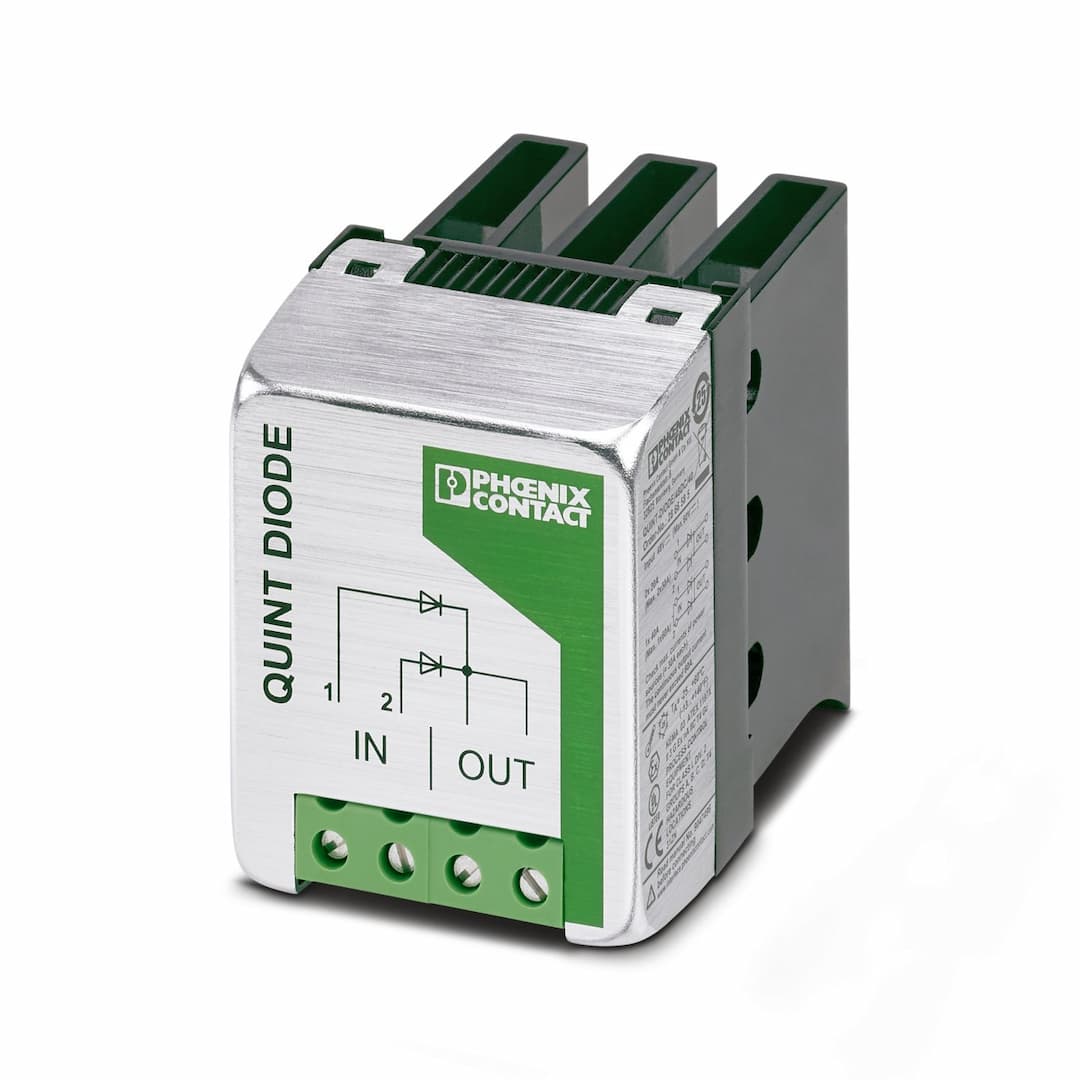

QUINT-DIODE/48DC/40
Selling Points
- 1Supports 2x 20 A and 1x 40 A nominal input currents.
- 2Equipped with a protective coating for enhanced durability.
- 3Easy installation on DIN rail NS 35, EN 60715.
- 4Operates between -25 °C to 70 °C with IP20 protection.
- 5Over 97% efficiency with minimal power loss (28 W).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 48 V DC (U
< 60 V DC (U | Input voltage range | 10 V DC ... 60 V DC |
Input voltage range DC | 10 V DC ... 60 V DC | Voltage type of supply voltage | DC |
Reverse polarity protection | < yes120 V | Nominal input current (I | 2x 20 A
1x 40 A |
Maximum current I | 2x 19 A (6 mm² at 40°C)
1x 39 A (6 mm² at 40°C)
2x 16 A (6 mm² at 60°C)
1x 32 A (6 mm² at 60°C)
2x 27 A (10 mm² at 40°C)
1x 54 A (10 mm² at 40°C)
2x 21 A (10 mm² at 60°C)
1x 43 A (10 mm² at 60°C)
2x 30 A (16 mm² at 40 °C)
1x 60 A (16 mm² at 40 °C)
2x 24 A (16 mm² at 60°C)
1x 48 A (16 mm² at 60°C) | Nominal input current (I | 2x 20 A
1x 40 A |
Maximum current I | 2x 17 A (6 mm² at 40°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
1x 35 A (6 mm² at 40°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
2x 14 A (6 mm² at 60°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
1x 28 A (6 mm² at 60°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
2x 24 A (10 mm² at 40°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
1x 49 A (10 mm² at 40°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
2x 19 A (10 mm² at 60°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
1x 39 A (10 mm² at 60°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
2x 27 A (16 mm² at 40°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
1x 54 A (16 mm² at 40°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
2x 22 A (16 mm² at 60°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4)
1x 44 A (16 mm² at 60°C for potentially explosive areas: Class I, Div. 2, Groups A, B, C, D; T4) | Transient surge protection | Transil diode |
Voltage drop, input/output | approx. 0.7 V | Efficiency | > 97 % |
Nominal output voltage | 47.3 V DC (Input/output voltage drop of 48 V ... 0.7 V ) | Nominal output current (I | 40 A |
Power loss nominal load max. | 28 W | Connection in series | no |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.5 mm² |
Conductor cross section, rigid max. | 16 mm² | Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 10 mm² | Conductor cross section AWG min. | 20 |
Conductor cross section AWG max. | 6 | Stripping length | 10 mm |
Screw thread | M4 | Tightening torque, min | 1.2 Nm |
Tightening torque max | 1.5 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 10 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Screw thread | M4 |
Tightening torque, min | 1.2 Nm | Tightening torque max | 1.5 Nm |
Insulation voltage output / PE | 1 kV | Insulation voltage input / PE | 1 kV |
Product type | Redundancy module | Product family | QUINT DIODE |
LED | no | Protection class | II |
Degree of pollution | 2 | Width | 62 mm |
Height | 84 mm | Depth | 102 mm |
Horizontal pitch | 3.4 Div. | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: horizontal 20 mm, vertical 50 mm | Mounting position | horizontal and vertical DIN rail NS 35, EN 60715 |
Housing material | Metal | Type of housing | AIMg (hood), GD-ZnAICu (cooling unit) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C derating, -25 ... 60°C) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) |
Shock | 30g, 18 ms in accordance with IEC 60068-2-27 | Vibration (operation) | 3 Hz ... 15 Hz, amplitude ±2.5 mm; 15 Hz ... 100 Hz, 2.3g according to IEC 60068-2-6 |
Temp code | T4 (70 °C) | Declaration of conformity in acc. with EN 60079-15 | II 3 G Ex nA II T4 X |
Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV) |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL/C-UL Listed UL 1604 Class I, Division 2, Groups A, B, C, D | ATEX | II 3 G Ex nA II T4 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise emission | EN 55011 |
