Product Model

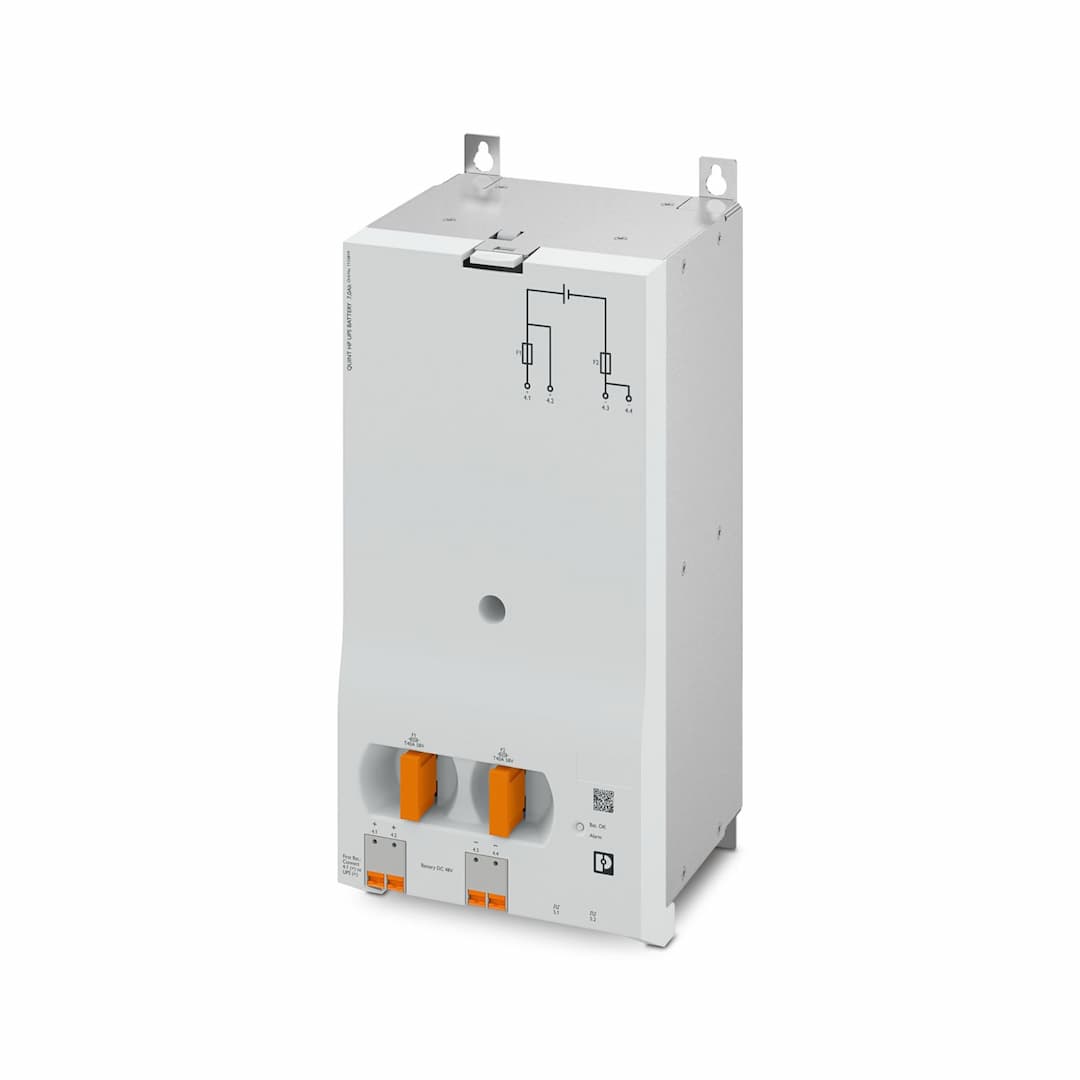

QUINT-HP-BAT/PB/48DC/7.0AH/PT
Selling Points
- 17.0Ah battery module for efficient energy storage.
- 2End-of-charge voltage at 56 V DC (20 °C) ensures consistent operation.
- 340A output current and max. 40A output fuse for robust performance.
- 4Designed for long-lasting use in various industrial applications.
- 5Compatible with a wide range of systems and configurations.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Note on the battery | For proper operation of the QUINT-HP-UPS/120AC/2.5KVA/PT (1136813) and QUINT-HP-UPS/230AC/2.5KVA/PT (1136815) uninterruptible power supplies, at least 2 QUINT-HP-BAT/PB/48DC/7.0AH/PT (1133819) battery modules are required. | Input voltage | 48 V DC (SELV) |
Nominal capacity | 7 Ah | Charging current | 2.1 A |
End-of-charge voltage | 56 V DC (20 °C) | Output current | 40 A |
Output fuse | max. 40 A | Connection in parallel | yes
max. 5 |
Battery type | BB Battery | Battery technology | VRLA-AGM |
IQ-Technology | yes | Latest startup date (battery only) | 12 Months (0 °C ... 20 °C) |
Latest startup (battery only) - range | 9 Months ... 12 Months (20 °C ... 30 °C)
6 Months ... 9 Months (30 °C ... 40 °C) | Accumulator module service life (according to Eurobat) | 6 (20 °C) |
Size designation | Block | Suitable for fast charging | yes |
Temperature sensor | yes | Product type | Battery module |
Product family | Battery module | Article revision | 02 |
Protection class | III | Degree of pollution | 2 |
Width | 156.5 mm | Height | 354 mm |
Depth | 143 mm | Diameter | 5.5 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 20 mm / 20 mm |
Degree of protection | IP20 | Ambient temperature (storage/transport) | -20 °C ... 40 °C |
Ambient temperature (charge) | 0 °C ... 40 °C | Ambient temperature (discharge) | -20 °C ... 50 °C |
Max. permissible relative humidity (operation) | ≤ 95 % | Suited for EX-applications | no |
Specifications may be subject to change without notice
