Product Model

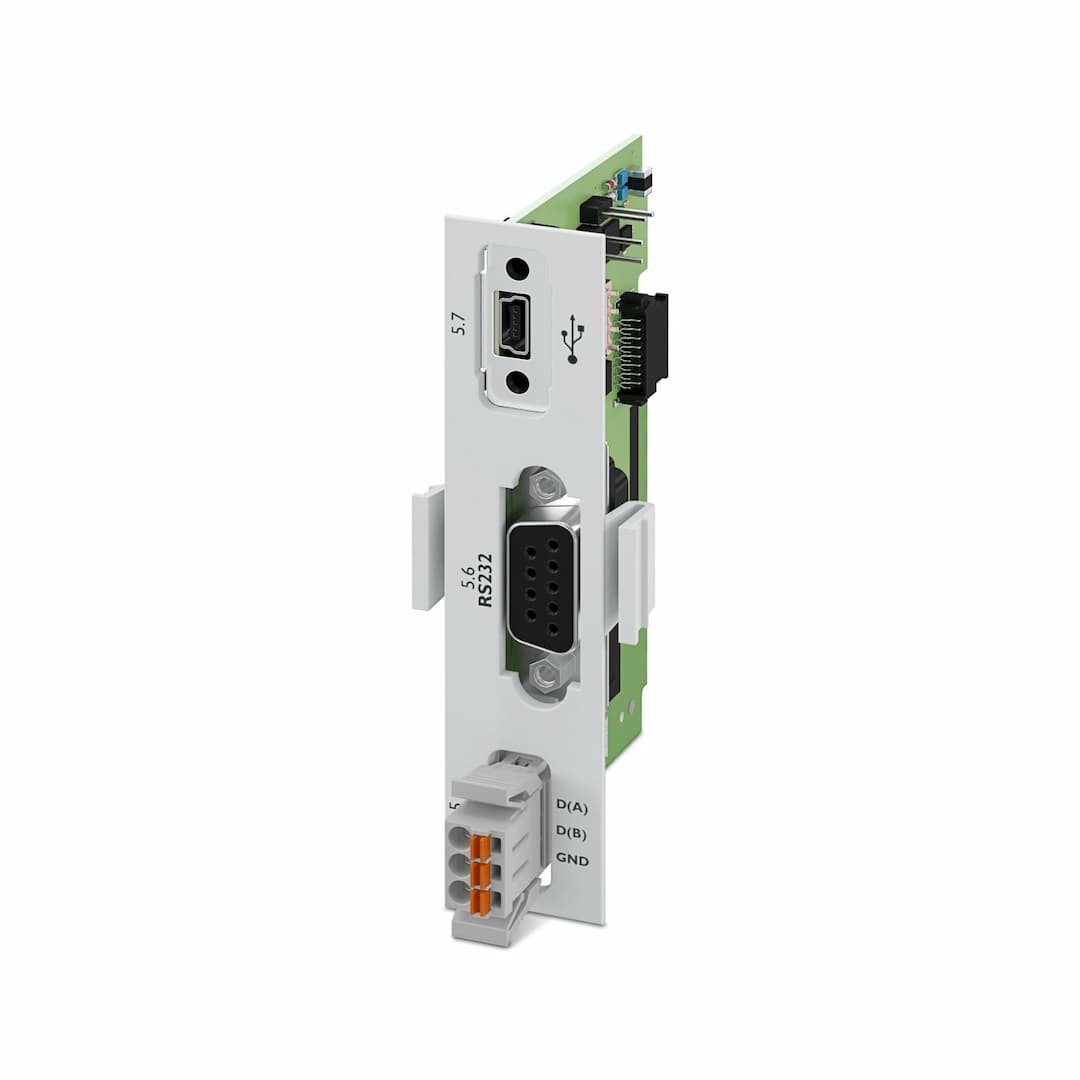

QUINT-HP-COM/USB-SER
Selling Points
- 1Universal Connectivity: Supports USB, RS-232, and RS-485 interfaces for versatile data transfer.
- 2Compact Design: Ideal for space-constrained applications with a compact form factor.
- 3High Reliability: Ensures stable and continuous operation in various industrial environments.
- 4Easy Integration: Simple installation with minimal setup required, enhancing system efficiency.
- 5Comprehensive Signaling: Features comprehensive signaling via LEDs for real-time system status monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Product type | Interface card | Input voltage range | 18 V ... 32 V |
Nominal power consumption | ≤ 1.5 W | Interface | USB |
Number of interfaces | 1 | Connection method | MINI-USB Type B |
Position | 5.x | Locking | Screw |
Interface | RS-232 | Number of interfaces | 1 |
Position | 5.x | Locking | Screw |
Interface | RS-485 | Number of interfaces | 1 |
Position | 5.x | Locking | Locking clip |
Width | 29 mm | Height | 91 mm |
Depth | 71 mm | Ambient temperature (operation) | -25 °C ... 70 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | ≤ 95 % |
Specifications may be subject to change without notice
