Product Model

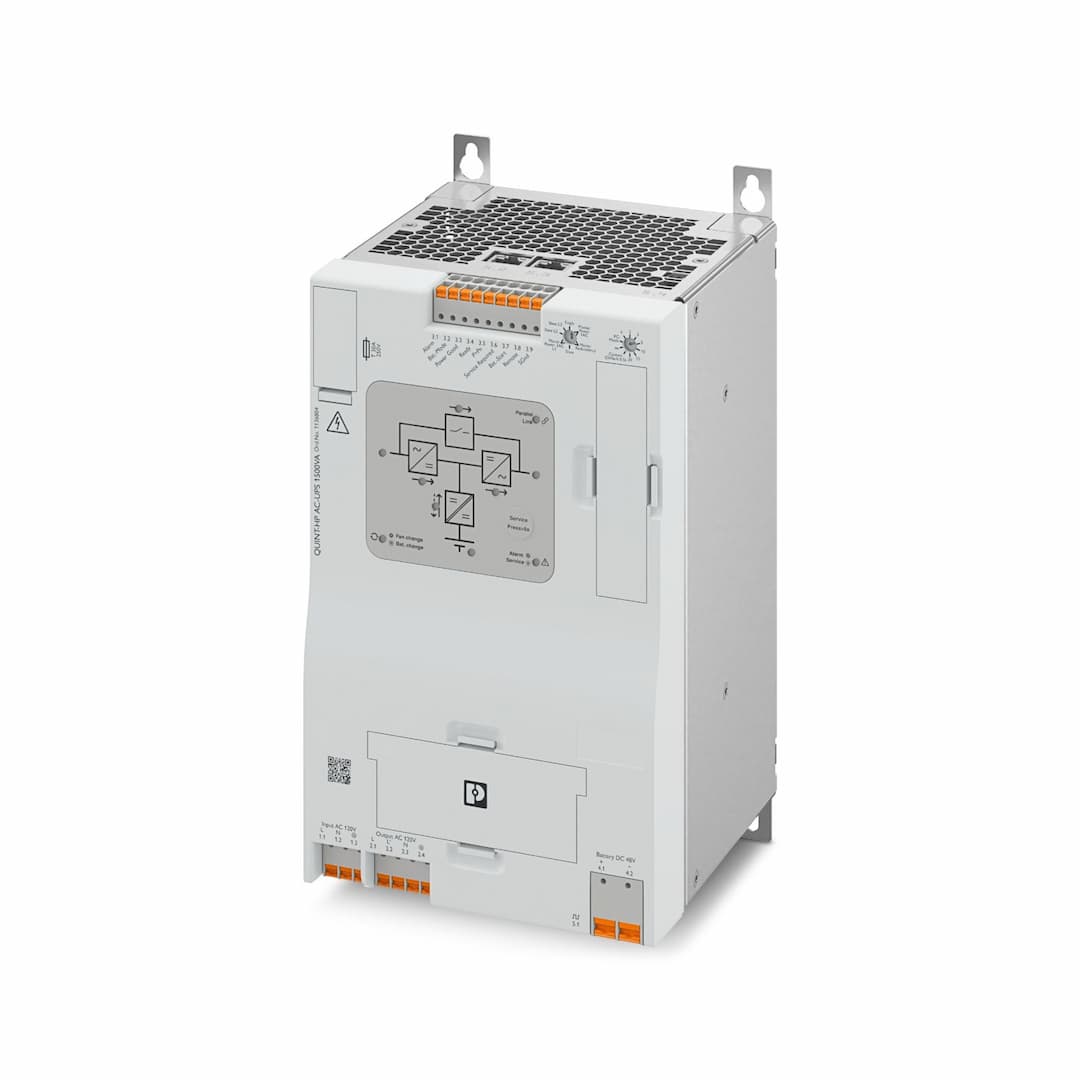

QUINT-HP-UPS/120AC/1.5KVA/PT
Selling Points
- 1Ensures stable and clean power supply for critical AC loads.
- 2Efficient cooling system for optimal performance in various environments.
- 3Enhance performance and redundancy by switching in parallel with other units.
- 4Real-time monitoring and control through intuitive LED indicators and digital inputs.
- 5Complete peace of mind with a dedicated warranty program from Phoenix Contact.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 100 V AC -10 % / +20 %
110 V AC -10 % / +20 %
120 V AC -10 % / +15 %
130 V AC -15 % / +10 % | Voltage type of supply voltage | AC |
Frequency range (f | 47.5 Hz ... 52.5 Hz
57 Hz ... 63 Hz | Bypass fuse | 30 A T 250 V |
Permissible backup fuse | 32 A (Listed breaker) | Current consumption | nom. 19 A (100 V AC)
nom. 17.3 A (110 V AC)
nom. 15.9 A (120 V AC)
nom. 14.6 A (130 V AC)
max. 25.8 A (100 V AC)
max. 23.4 A (110 V AC)
max. 21.5 A (120 V AC)
max. 21 A (130 V AC) |
Rated short-time current carrying capacity Icw | 6 kA | Classification according to IEC 62040-3 | VFI-SS-111 |
Efficiency | > 94 % (100% load, battery charged)
> 90 % (100% load, battery charged) | Apparent power | 1500 VA |
Real power | 1350 W | Power factor (cos phi) | 0.9 |
Crest factor | 2.8 | Switch-over time | 0 ms |
Connection in parallel | yes
max. 3 | Connection in series | no |
Overload capability Mains operation | 120 % ... 150 % (20 s / 5 s, then switch to bypass operation) | Overload capability Battery operation | 120 % ... 150 % (20 s / 5 s, then shutdown) |
Overload capability Bypass mode | 120 % ... 150 % (for a sustained period / 20 s, then shutdown) | Rated short-time current carrying capacity Icw | 6 kA |
Output voltage | 100 V AC ±2 %
110 V AC ±2 %
120 V AC ±2 %
130 V AC ±2 % | Form of output voltage | Pure sine |
Output current | nom. 15 A (100 V AC)
nom. 13.6 A (110 V AC)
nom. 12.5 A (120 V AC)
nom. 11.5 A (130 V AC) | Maximum no-load power dissipation | 28 W |
Power loss nominal load max. | 75 W (100% load, battery charged) | Nominal output frequency | 50 Hz
60 Hz
±0.5 % (Output frequency tolerance) |
Electronic current limitation | > 2,5 x Output: Current nom. (> 200 ms) | Maximum no-load power dissipation | 25 W |
Power loss nominal load max. | 140 W (100% load, battery charged) | Nominal output frequency | 50 Hz
60 Hz
±0.5 % (Output frequency tolerance) |
Total harmonic distortion factor (THD) | < 3 % (linear load)
< 8 % (non-linear load) | Electronic current limitation | > 2,5 x Output: Current nom. (> 200 ms) |
Input voltage | 48 V DC
max. 60 V DC | Input current | max. 40 A |
Nominal capacity range | 7 Ah ... 200 Ah | Charging current | max. 7 A |
Short-circuit current | 650 A ( | Connection in parallel | yes
max. 5 |
Connection in series | no | IQ-Technology | yes |
Permissible backup fuse | 40 A | Temperature sensor | yes |
Permissible backup fuse | 40 A | Position | 1.x |
Identification | 1.1 (L), 1.2 (N), 1.3 () | Position marking | 1.1 (L), 1.2 (N), 1.3 () |
Connection method | Push-in connection | rigid | 2.5 mm² ... 6 mm² |
flexible | 2.5 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² | rigid (AWG) | 14 ... 10 |
Stripping length | 10 mm | Position | 2.x |
Identification | 2.1 (L), 2.2 (L'), 2.3 (N), 2.4 () | Position marking | 2.1 (L), 2.2 (L'), 2.3 (N), 2.4 () |
Connection method | Push-in connection | rigid | 2.5 mm² ... 6 mm² |
flexible | 2.5 mm² ... 6 mm² | flexible with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² |
flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² | rigid (AWG) | 14 ... 10 |
Stripping length | 10 mm | Position | 4.x |
Identification | 4.1, 4.2 | Position marking | 4.1 (+), 4.2 (-) |
Connection method | Push-in connection | rigid | 6 mm² ... 16 mm² |
flexible | 6 mm² ... 16 mm² | flexible with ferrule without plastic sleeve | 6 mm² ... 16 mm² |
flexible with ferrule with plastic sleeve | 6 mm² ... 16 mm² | rigid (AWG) | 8 ... 6 |
Stripping length | 18 mm | Position | 3.x |
Identification | 3.1 ... 3.9 | Position marking | 3.1 (Alarm), 3.2 (Bat.-Mode), 3.3 (Power Good), 3.4 (Ready), 3.5 (P>Pn), 3.6 (Service Required), 3.7 (Bat.-Start), 3.8 (Remote), 3.9 (SGnd) |
rigid | 0.2 mm² ... 4 mm² | flexible | 0.2 mm² ... 4 mm² |
flexible with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 2.5 mm² |
rigid (AWG) | 24 ... 12 | Stripping length | 10 mm |
Interface | Battery module communication interface | Number of interfaces | 1 |
Connection method | RJ45 | Position | 5.x |
Locking | Locking clip | Transmission physics | Twisted-Pair 4x2 |
Interface | Parallel operation communication interface | Number of interfaces | 2 |
Connection method | RJ45 | Position | 5.x |
Locking | Locking clip | Transmission physics | Twisted-Pair 4x2 |
Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 200 kΩ between Bat.-Start and SGnd) |
Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 35 kΩ between Remote and SGnd) |
Position | 3.x | Signalization designation | Alarm |
Position marking | 3.1 (Alarm) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Bat.-Mode |
Position marking | 3.2 (Bat.-Mode) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Power Good |
Position marking | 3.3 (Power Good) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Ready |
Position marking | 3.4 (Ready) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | P>P |
Position marking | 3.5 (P>Pn) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Service Required |
Position marking | 3.6 (Service Required) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Function | Signal ground | Reference potential | For signal inputs and signal outputs |
Product type | AC UPS | Product family | QUINT AC UPS |
Article revision | 00 | Protection class | I |
Overvoltage category | II | Pollution degree | 3 |
Width | 150 mm | Height | 240 mm |
Depth | 143 mm | Diameter | 5.5 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | Wall mounting | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C: 2,5 % / K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Maximum altitude | ≤ 4000 m (> 1000 m: 3 % / 1000 m) | Max. permissible relative humidity (operation) | ≤ 95 % |
Shock | 30g in each direction, according to IEC 60068-2-27 | Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) |
Identification | UL/C-UL Recognized UL 1778 | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | Interference emission | Noise emission |
Noise immunity | Immunity | Conducted noise emission | EN 62040-02 (Class C2) |
Standards/regulations | EN 61000-4-2 | Contact discharge | ± 6 kV |
Discharge in air | ± 8 kV | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 6 GHz |
Test field strength | 10 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | ± 2 kV
± 2 kV |
Output | ± 2 kV | Signal | ± 2 kV
± 2 kV (Communication parallel operation, battery module) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Signal | 1 kV (asymmetrical) | Comments | Criterion B |
Input/Output | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) | Standards/regulations | EN 61000-4-6 |
Frequency range | 0.15 MHz ... 80 MHz | Signal | 10 V (asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-8 |
Frequency | 60 Hz | Signal | 30 A/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-13 |
Comments | Criterion A | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
