Product Model

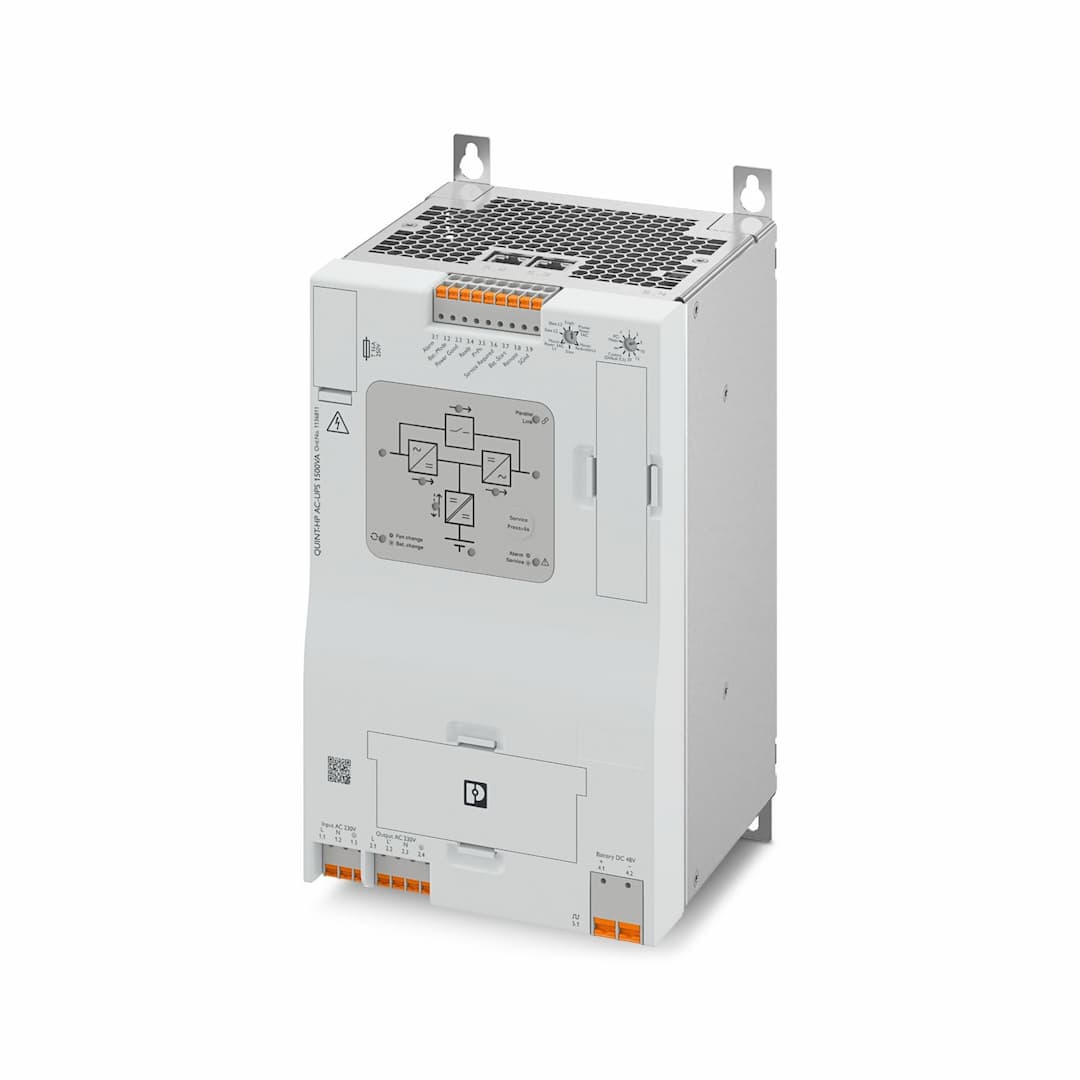

QUINT-HP-UPS/230AC/1.5KVA/PT
Selling Points
- 1Robust Power Backup: Provides 1500 VA output voltage for reliable power protection.
- 2IQ Technology: Utilizes advanced technology for efficient operation and high performance.
- 3Wall Mounting: Designed for easy installation on walls, saving space in your setup.
- 4Wide Input Range: Compatible with 230 V AC input voltage, ensuring broad applicability.
- 5RoHS Compliant: Meets environmental standards, ensuring eco-friendly operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 200 V AC -10 % / +20 %
210 V AC -15 % / +20 %
220 V AC -15 % / +20 %
230 V AC -20 % / +15 %
240 V AC -20 % / +10 % | Voltage type of supply voltage | AC |
Frequency range (f | 47.5 Hz ... 52.5 Hz
57 Hz ... 63 Hz | Bypass fuse | 16 A T 250 V |
Permissible backup fuse | B16 B25 C16 C25 | Current consumption | nom. 9.5 A (200 V AC)
nom. 9.1 A (210 V AC)
nom. 8.6 A (220 V AC)
nom. 8.3 A (230 V AC)
nom. 7.9 A (240 V AC)
max. 12.9 A (200 V AC)
max. 13 A (210 V AC)
max. 12.4 A (220 V AC)
max. 12.6 A (230 V AC)
max. 12.1 A (240 V AC) |
Rated short-time current carrying capacity Icw | 6 kA | Classification according to IEC 62040-3 | VFI-SS-111 |
Efficiency | > 95 % (100% load, battery charged)
> 91 % (100% load, battery charged) | Apparent power | 1500 VA |
Real power | 1350 W | Power factor (cos phi) | 0.9 |
Crest factor | 2.8 | Switch-over time | 0 ms |
Connection in parallel | yes
max. 3 | Connection in series | no |
Overload capability Mains operation | 120 % ... 150 % (20 s / 5 s, then switch to bypass operation) | Overload capability Battery operation | 120 % ... 150 % (20 s / 5 s, then shutdown) |
Overload capability Bypass mode | 120 % ... 150 % (for a sustained period / 20 s, then shutdown) | Rated short-time current carrying capacity Icw | 6 kA |
Output voltage | 200 V AC ±2 %
210 V AC ±2 %
220 V AC ±2 %
230 V AC ±2 %
240 V AC ±2 % | Form of output voltage | Pure sine |
Output current | nom. 7.5 A (200 V AC)
nom. 7.1 A (210 V AC)
nom. 6.8 A (220 V AC)
nom. 6.5 A (230 V AC) | Static Boost (I | nom. 6.3 A (240 V AC) |
Maximum no-load power dissipation | 35 W | Power loss nominal load max. | < 60 W (100% load, battery charged) |
Nominal output frequency | 50 Hz
60 Hz
±0.5 % (Output frequency tolerance) | Electronic current limitation | > 2,5 x Output: Current nom. (> 200 ms) |
Maximum no-load power dissipation | 32 W | Power loss nominal load max. | 130 W (100% load, battery charged) |
Nominal output frequency | 50 Hz
60 Hz
±0.5 % (Output frequency tolerance) | Total harmonic distortion factor (THD) | < 3 % (linear load)
< 8 % (non-linear load) |
Electronic current limitation | > 2,5 x Output: Current nom. (> 200 ms) | Input voltage | 48 V DC
max. 60 V DC |
Input current | max. 40 A | Nominal capacity range | 7 Ah ... 200 Ah |
Charging current | max. 7 A | Short-circuit current | 650 A ( |
Connection in parallel | yes
max. 5 | Connection in series | no |
IQ-Technology | yes | Permissible backup fuse | 40 A |
Temperature sensor | yes | Permissible backup fuse | 40 A |
Position | 1.x | Identification | 1.1 (L), 1.2 (N) |
Position marking | 1.1 (L), 1.2 (N) | Connection method | Push-in connection |
rigid | 1.5 mm² ... 6 mm² | flexible | 1.5 mm² ... 6 mm² |
flexible with ferrule without plastic sleeve | 1.5 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 1.5 mm² ... 4 mm² |
rigid (AWG) | 16 ... 10 | Stripping length | 10 mm |
Position | 1.x | Identification | 1.3 () |
Position marking | 1.3 () | Connection method | Push-in connection |
rigid | 2.5 mm² ... 6 mm² | flexible | 2.5 mm² ... 6 mm² |
flexible with ferrule without plastic sleeve | 2.5 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 2.5 mm² ... 4 mm² |
rigid (AWG) | 14 ... 10 | Stripping length | 10 mm |
Position | 2.x | Identification | 2.1 (L), 2.2 (L'), 2.3 (N), 2.4 () |
Position marking | 2.1 (L), 2.2 (L'), 2.3 (N), 2.4 () | Connection method | Push-in connection |
rigid | 1.5 mm² ... 6 mm² | flexible | 1.5 mm² ... 6 mm² |
flexible with ferrule without plastic sleeve | 1.5 mm² ... 4 mm² | flexible with ferrule with plastic sleeve | 1.5 mm² ... 4 mm² |
rigid (AWG) | 16 ... 10 | Stripping length | 10 mm |
Position | 4.x | Identification | 4.1, 4.2 |
Position marking | 4.1 (+), 4.2 (-) | Connection method | Push-in connection |
rigid | 6 mm² ... 16 mm² | flexible | 6 mm² ... 16 mm² |
flexible with ferrule without plastic sleeve | 6 mm² ... 16 mm² | flexible with ferrule with plastic sleeve | 6 mm² ... 16 mm² |
rigid (AWG) | 8 ... 6 | Stripping length | 18 mm |
Position | 3.x | Identification | 3.1 ... 3.9 |
Position marking | 3.1 (Alarm), 3.2 (Bat.-Mode), 3.3 (Power Good), 3.4 (Ready), 3.5 (P>Pn), 3.6 (Service Required), 3.7 (Bat.-Start), 3.8 (Remote), 3.9 (SGnd) | Connection method | Push-in connection |
rigid | 0.2 mm² ... 4 mm² | flexible | 0.2 mm² ... 4 mm² |
flexible with ferrule without plastic sleeve | 0.2 mm² ... 2.5 mm² | flexible with ferrule with plastic sleeve | 0.2 mm² ... 2.5 mm² |
rigid (AWG) | 24 ... 12 | Stripping length | 10 mm |
Interface | Battery module communication interface | Number of interfaces | 1 |
Connection method | RJ45 | Position | 5.x |
Locking | Locking clip | Transmission physics | Twisted-Pair 4x2 |
Interface | Parallel operation communication interface | Number of interfaces | 2 |
Connection method | RJ45 | Position | 5.x |
Locking | Locking clip | Transmission physics | Twisted-Pair 4x2 |
Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 200 kΩ between Bat.-Start and SGnd) |
Low signal | Connection to SGnd with < 2.7 kΩ | High signal | Open (> 35 kΩ between Remote and SGnd) |
Position | 3.x | Signalization designation | Alarm |
Position marking | 3.1 (Alarm) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Bat.-Mode |
Position marking | 3.2 (Bat.-Mode) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Power Good |
Position marking | 3.3 (Power Good) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Ready |
Position marking | 3.4 (Ready) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | P>P |
Position marking | 3.5 (P>Pn) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Position | 3.x | Signalization designation | Service Required |
Position marking | 3.6 (Service Required) | Switching output | Transistor output, active |
Output voltage | 24 V | Continuous load current | ≤ 20 mA |
Function | Signal ground | Reference potential | For signal inputs and signal outputs |
Product type | AC UPS | Product family | QUINT AC UPS |
Article revision | 00 | Protection class | I |
Overvoltage category | II | Pollution degree | 2 |
Width | 150 mm | Height | 240 mm |
Depth | 143 mm | Diameter | 5.5 mm |
Installation distance right/left | 0 mm / 0 mm | Installation distance top/bottom | 50 mm / 50 mm |
Mounting type | Wall mounting | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 60 °C (> 50 °C: 2,5 % / K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Maximum altitude | ≤ 4000 m (> 1000 m: 3 % / 1000 m) | Max. permissible relative humidity (operation) | ≤ 95 % |
Shock | 30g in each direction, according to IEC 60068-2-27 | Vibration (operation) | 5 Hz ... 100 Hz, 0.7g (EN 60068-2-6) |
Standard designation | Uninterruptible power supply systems | Standards/specifications | EN 62040-1 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
Interference emission | Noise emission | Noise immunity | Immunity |
Conducted noise emission | EN 62040-02 (Class C2) | Standards/regulations | EN 61000-4-2 |
Contact discharge | ± 6 kV | Discharge in air | ± 8 kV |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 6 GHz | Test field strength | 10 V/m |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | ± 2 kV
± 2 kV | Output | ± 2 kV |
Signal | ± 2 kV
± 2 kV (Communication parallel operation, battery module) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Signal | 1 kV (asymmetrical) |
Comments | Criterion B | Input/Output | ± 1 kV (symmetrical)
± 2 kV (asymmetrical) |
Standards/regulations | EN 61000-4-6 | Frequency range | 0.15 MHz ... 80 MHz |
Signal | 10 V (asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-8 | Frequency | 50 Hz |
Signal | 30 A/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-13 | Comments | Criterion A |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
