Product Model

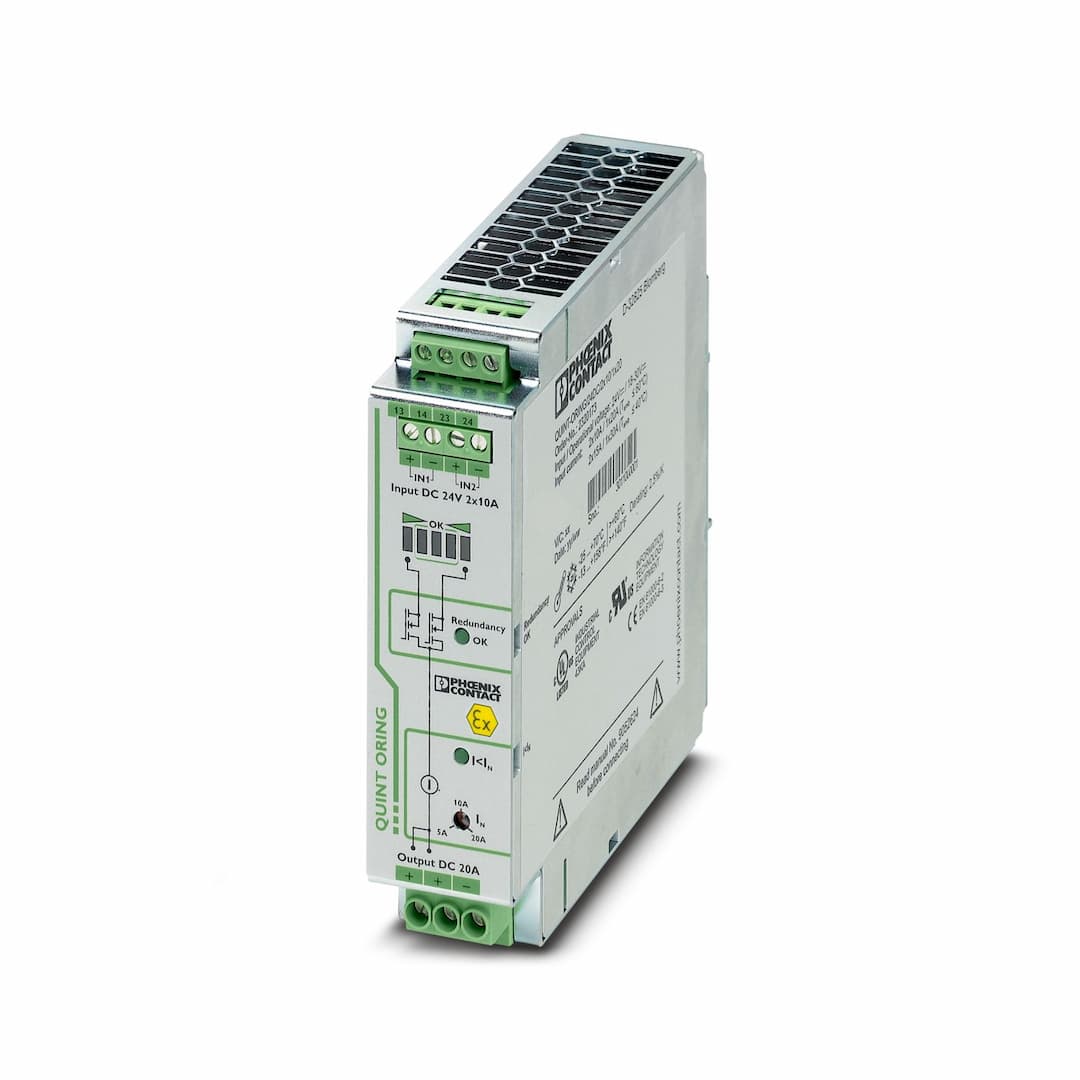

QUINT-ORING/24DC/2X10/1X20
Selling Points
- 1Dual input channels for increased redundancy.
- 2High output current: 2 x 10 A or 1 x 20 A.
- 3Robust construction for harsh industrial conditions.
- 4Compact design for easy DIN rail mounting.
- 5LED indicators for immediate status recognition.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 24 V DC | Input voltage range | 18 V DC ... 28 V DC (SELV) |
Input voltage range DC | 18 V DC ... 28 V DC (SELV) | Voltage type of supply voltage | DC |
Reverse polarity protection | < yes60 V | Nominal input current (I | 2x 10 A (-25 °C ... 60 °C)
1x 20 A (-25 °C ... 60 °C) |
Maximum current I | 2x 15 A (-25 °C ... 40 °C)
1x 30 A (-25 °C ... 40 °C)
1x 120 A (12 ms, SFB Technology) | Transient surge protection | Varistor |
Voltage drop, input/output | 0.1 V (I | Efficiency | > 98 % |
Nominal output voltage | U | Nominal output current (I | 20 A (Increasing power)
10 A (Redundancy) |
Static Boost (I | 1x 30 A | Dynamic Boost (I | 1x 40 A (5 s) |
Selective Fuse Breaking (I | 1x 120 A (12 ms) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Protection against overvoltage at the output (OVP) | < 32 V DC | Power loss nominal load max. | 2 W (I |
Connection in series | no | Output description | Group contact |
Maximum switching voltage | max. 30 V AC/DC | Maximum inrush current | ≤ 100 mA (short-circuit-proof) |
Output description | Contact closed: Δ U | Maximum switching voltage | max. 30 V AC/DC |
Maximum inrush current | ≤ 100 mA (short-circuit-proof) | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 8 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 10 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 4 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 8 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | Relay contact, floating, current limited | Status display | LED redundancy OK |
Note on status display | green | Color | green |
Status display | ACB OK LED | Note on status display | LED bar graph green |
Color | green | Note on status display | LED bar graph green |
Insulation voltage input, output / housing | 500 V AC (710 V DC) | Product type | Redundancy module |
Product family | QUINT ORING | MTBF (IEC 61709, SN 29500) | > 1000000 h (40 °C) |
LED | yes | Article revision | 12 |
Protection class | III | Degree of pollution | 2 |
Width | 32 mm | Height | 130 mm |
Depth | 125 mm | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Width | 122 mm |
Height | 130 mm | Depth | 35 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: P |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Flammability rating according to UL 94 (housing / terminal blocks) | V0 |
Housing material | Metal | Housing material | Steel sheet, zinc-plated |
Type of housing | Aluminum (AlMg3) | Hood version | Galvanized sheet steel, free from chrome (VI) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | 2000 m | Climatic class | 3K22 (in accordance with EN 60721-3-3) |
Max. permissible relative humidity (operation) | ≤ 100 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g t | Standard - Electrical safety | IEC 62368-1 (SELV) |
Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A | Shipbuilding approval | DNV |
UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) | ATEX | II 3 G Ex ec nC IIC T4 Gc
DEKRA 20ATEX0136 X |
IECEx | Ex ec nC IIC T4 Gc
DEK 20.0082X | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Standards/regulations | EN 61000-4-2 |
Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
Comments | Criterion B | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 6 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 2 kV (Test Level 3 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Signal | 1 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
