Product Model

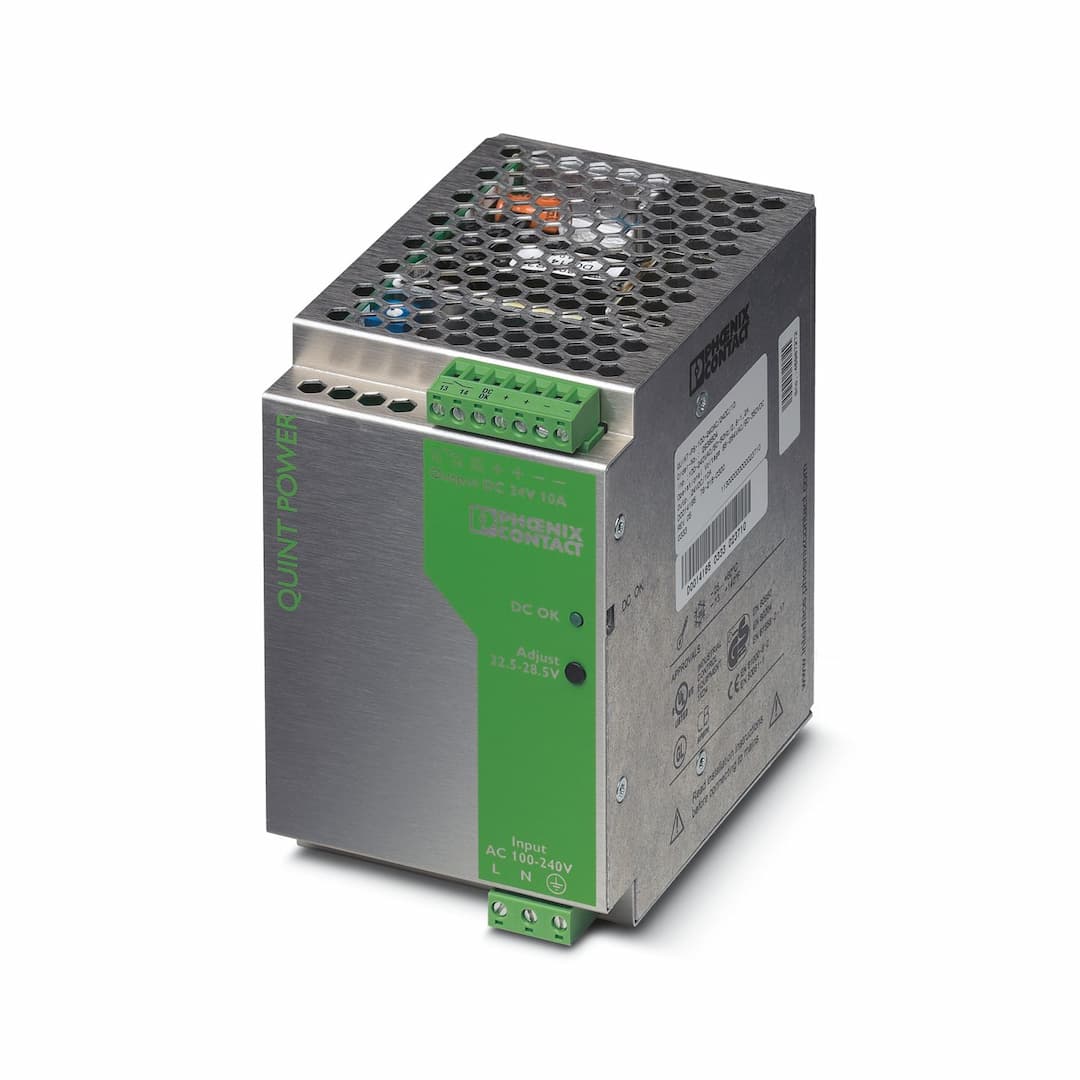

QUINT-PS-100-240AC/24DC/10
Selling Points
- 1Supports 85-264V AC and 90-350V DC for universal compatibility.
- 2Achieves over 91% efficiency, minimizing energy loss.
- 3Built with generously dimensioned capacitors for over 20 ms mains buffering at full load.
- 4Easily starts heavy loads with high inrush currents, ensuring reliable operation.
- 5DIN rail mounting with a width of 85mm, perfect for industrial settings.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
Inrush current integral (I | < 1.5 A | AC frequency range | 45 Hz ... 65 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 50 ms (120 V AC)
> 50 ms (230 V AC) |
Current consumption | approx. 2.34 A (120 V AC)
approx. 1.2 A (230 V AC) | Nominal power consumption | 264 W |
Protective circuit | Transient surge protection; Varistor | Typical response time | < 1 s |
Input fuse | 6.3 A (slow-blow, internal) | Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA |
Efficiency | > 91 % | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC | Nominal output current (I | 10 A (up to 60 °C) |
POWER BOOST (I | 15 A | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
Max. capacitive load | unlimited | Active current limitation | ca. I |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 60 mV |
Output power | 240 W | Peak switching voltages nominal load | < 60 mV |
Maximum no-load power dissipation | < 2 W | Power loss nominal load max. | < 24 W |
Rise time | < 2 ms (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Output description | U |
Maximum switching voltage | ≤ 24 V | Output voltage | + 24 V DC (Signal) |
Maximum inrush current | ≤ 40 mA | Continuous load current | ≤ 40 mA |
Output description | Relay contact, U | Maximum switching voltage | ≤ 30 V AC/DC |
Maximum inrush current | ≤ 1 A | Continuous load current | ≤ 1 A |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output
Relay contact |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Note on status display | U | Status display | "DC OK" LED green |
Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 500000 h |
Protection class | I (with PE connection) | Degree of pollution | 2 |
Width | 85 mm | Height | 130 mm |
Depth | 125 mm | Width | 122 mm |
Height | 130 mm | Depth | 88 mm |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Housing material | Metal |
Type of housing | AluNox (AlMg1) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | EN 62368-1 | Standard - Equipment safety | GS (tested safety) |
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 62368-1 | Standard – Safety extra-low voltage | EN 62368-1 (SELV)
EN 60204 (PELV) |
Standard - Safe isolation | DIN VDE 0100-410 | EN 62477-1 | III |
Shipbuilding approval | DNV GL (EMC A) | UL approvals | UL/C-UL Recognized UL 60950-1
UL/C-UL listed UL 508
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
Housing | Level 4 | Contact discharge | 8 kV |
Discharge in air | 15 kV | Comments | Criterion B |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 2 GHz |
Test field strength | 10 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (level 4 - asymmetrical) |
Output | 2 kV (Level 3 - asymmetrical) | Signal | 1 kV (Level 2 - asymmetrical) |
Standards/regulations | EN 61000-4-5 | Input | 4 kV (inst. class 4 - asymmetrical: conductor to ground)
2 kV (inst. class 4 -symmetrical: conductor to conductor) |
Output | 0.5 kV (level 1 - asymmetrical: conductor to ground)
0.5 kV (level 1 - symmetrical: conductor to conductor) | Signal | 1 kV (level 2 - asymmetrical: conductor to ground) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | Level 3 - asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V |
Standards/regulations | EN 61000-4-11 | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Specifications may be subject to change without notice
