Product Model

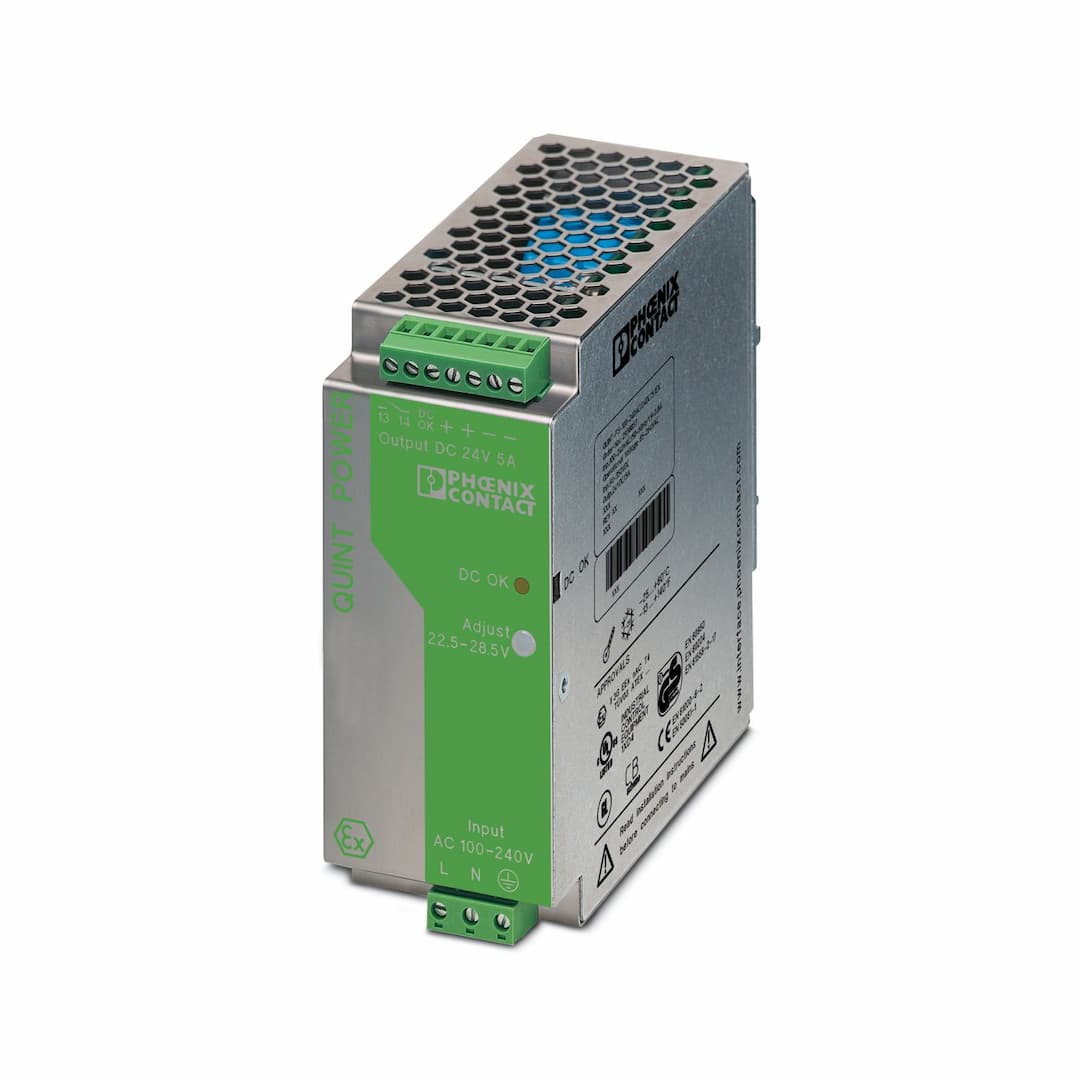

QUINT-PS-100-240AC/24DC/ 5/EX
Selling Points
- 1Universal Input Range: Operates on 85 V AC to 264 V AC and 90 V DC to 250 V DC.
- 2High Efficiency: Achieves efficiency of over 87% with a nominal power consumption of 120 W.
- 3Power Boost Capability: Handles high inrush currents with a POWER BOOST feature, ensuring reliable start-up of heavy loads.
- 4Robust Noise Immunity: Conforms to EN 61000-6-2:2005 for enhanced noise immunity in industrial environments.
- 5Compact Design: Measuring 55 mm wide, 130 mm high, and 125 mm deep, ideal for DIN rail mounting in tight spaces.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 250 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 250 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 20 A (typical) |
Inrush current integral (I | 2.5 A | AC frequency range | 45 Hz ... 65 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 20 ms (120 V AC)
> 120 ms (230 V AC) |
Current consumption | approx. 1.6 A (120 V AC)
0.8 A (230 V AC) | Nominal power consumption | 134 W |
Typical response time | < 1 s | Input fuse | 5 A (slow-blow, internal) |
Permissible DC backup fuse | DC: Connect a suitable fuse upstream | Recommended breaker for input protection | 6 A ... 16 A (Characteristics B, C, D, K) |
Efficiency | > 87 % | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 22.5 V DC ... 28.5 V DC | Nominal output current (I | 5 A (up to 60 °C) |
POWER BOOST (I | 7.5 A | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
Residual ripple | < 100 mV | Output power | 120 W |
Peak switching voltages nominal load | < 50 mV | Maximum no-load power dissipation | 2.7 W |
Power loss nominal load max. | 18 W | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Output description | U |
Maximum switching voltage | ≤ 24 V | Output voltage | + 24 V DC (Signal) |
Maximum inrush current | max. 44 mA | Continuous load current | ≤ 40 mA |
Output description | Relay contact, U | Maximum switching voltage | ≤ 30 V AC/DC |
Maximum inrush current | max. 1 A | Continuous load current | ≤ 1 A |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output
Relay contact |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Note on status display | U | Status display | "DC OK" LED green |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV AC (routine test)
2 kV AC (type test) |
Product type | Power supply | Product family | QUINT POWER |
MTBF (IEC 61709, SN 29500) | > 500000 h | Protection class | I |
Width | 55 mm | Height | 130 mm |
Depth | 125 mm | Width | 122 mm |
Height | 130 mm | Depth | 58 mm |
Assembly note | alignable: horizontally 0 mm, vertically 50 mm | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Housing material | Metal | Type of housing | AluNox (AlMg1) |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 60 °C |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Max. permissible relative humidity (operation) | 100 % (condensation permitted) |
Declaration of conformity in acc. with EN 60079-15 | II 3 G Ex nAC IIC T4 X | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 |
Standard - Equipment safety | GS (tested safety) | Standard - Safe isolation | DIN VDE 0100-410 |
Standard - Safety of transformers | EN 61558-2-17 | Standards/specifications | EN 60079-0 |
Shipbuilding approval | DNV GL (EMC A) | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL/C-UL Listed UL 1604 Class I, Division 2, Groups A, B, C, D |
ATEX | II 3 G Ex nA nC IIC T4 Gc X | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
EMC requirements for noise immunity | EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
