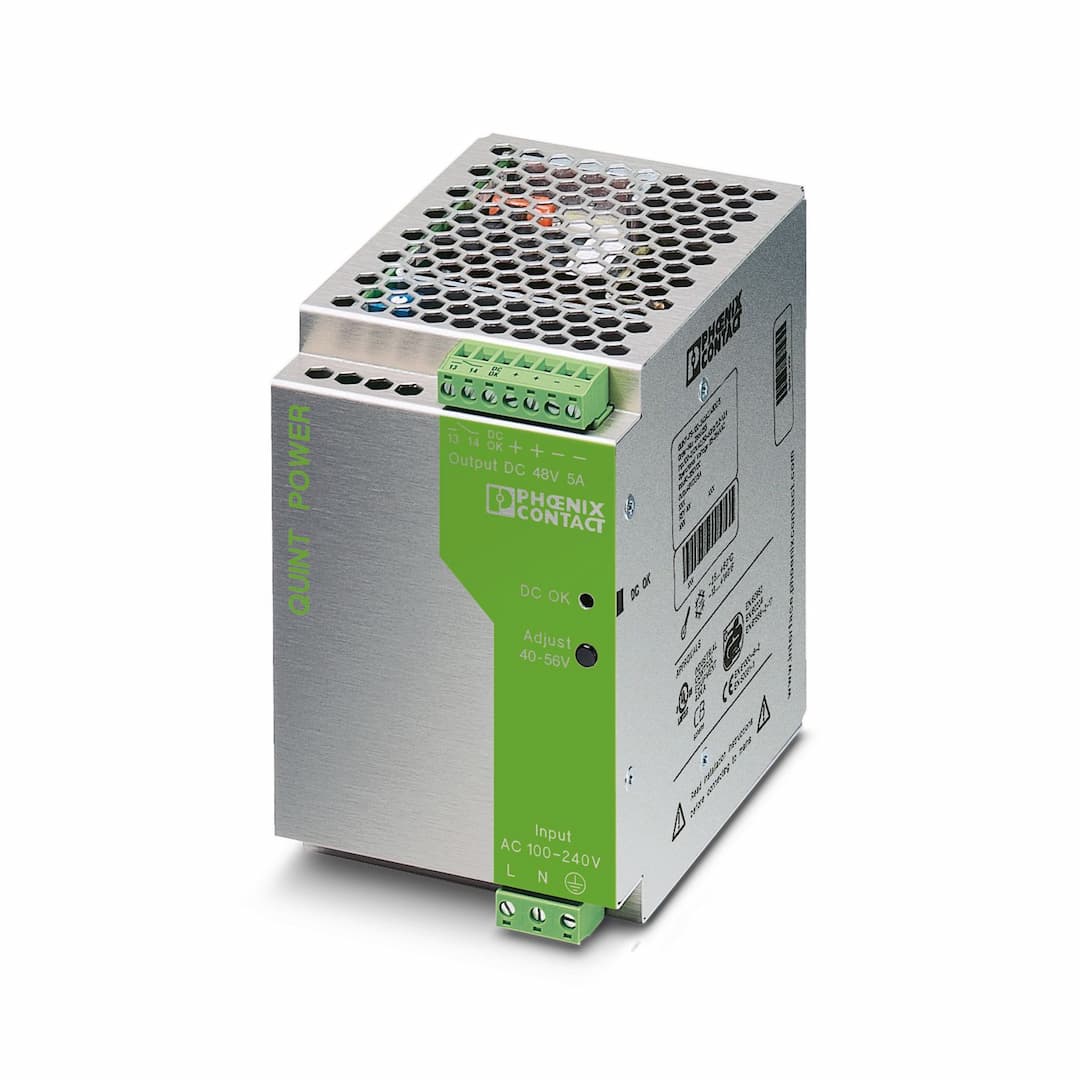

Product Model
QUINT-PS-100-240AC/48DC/ 5
Selling Points
- 1Operates on 85-264V AC or 90-350V DC for flexibility in different environments.
- 2Achieves efficiency of over 91%, minimizing energy loss and maximizing output.
- 3Allows for parallel connection to enhance reliability and increase capacity.
- 4Built with robust components, ensuring long-term performance and reliability.
- 5Meets EMC Directive 2014/30/EU for electromagnetic compatibility and safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 350 V DC |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 350 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
Inrush current integral (I | 1.5 A | AC frequency range | 45 Hz ... 65 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 50 ms (120 V AC)
> 50 ms (230 V AC) |
Current consumption | approx. 2.2 A (120 V AC)
1.2 A (230 V AC) | Nominal power consumption | 263 W |
Protective circuit | Transient surge protection; Varistor | Typical response time | < 1 s |
Input fuse | 6.3 A (slow-blow, internal) | Permissible backup fuse | B10 B16 |
Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) | Efficiency | > 91 % |
Nominal output voltage | 48 V DC ±1 % | Setting range of the output voltage (U | 40 V DC ... 56 V DC |
Nominal output current (I | 5 A (up to 60 °C) | POWER BOOST (I | 7.5 A |
Max. capacitive load | unlimited | Residual ripple | < 30 mV |
Output power | 240 W | Peak switching voltages nominal load | < 50 mV |
Maximum no-load power dissipation | 2 W | Power loss nominal load max. | 24 W |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Maximum switching voltage | ≤ 24 V |
Output voltage | + 24 V DC | Maximum inrush current | ≤ 20 mA |
Continuous load current | ≤ 40 mA | Output description | Relay contact, U |
Maximum switching voltage | ≤ 30 V AC/DC | Maximum inrush current | ≤ 1 A |
Continuous load current | ≤ 1 A | Connection method | Pluggable screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Connection method | Pluggable screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 12 | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED
Active switching output
Relay contact | Operating voltage display | Green LED |
Status display | "DC OK" LED green | Note on status display | U |
Status display | "DC OK" LED green | Note on status display | U |
Number of phases | 1.00 | Insulation voltage input/output | 4 kV (type test)
2 kV (routine test) |
Product type | Power supply | Product family | QUINT POWER |
MTBF (IEC 61709, SN 29500) | > 500000 h | Protection class | I (with PE connection) |
Width | 85 mm | Height | 130 mm |
Depth | 125 mm | Width | 122 mm |
Height | 130 mm | Depth | 88 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Housing material | Metal |
Type of housing | AluNox (AlMg1) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 |
Standard - Equipment safety | GS (tested safety) | Standard - Safe isolation | DIN VDE 0100-410 |
Standard - Safety of transformers | EN 61558-2-17 | UL approvals | UL/C-UL Recognized UL 60950-1
UL/C-UL listed UL 508 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise emission | EN 55011 (EN 55022) |
