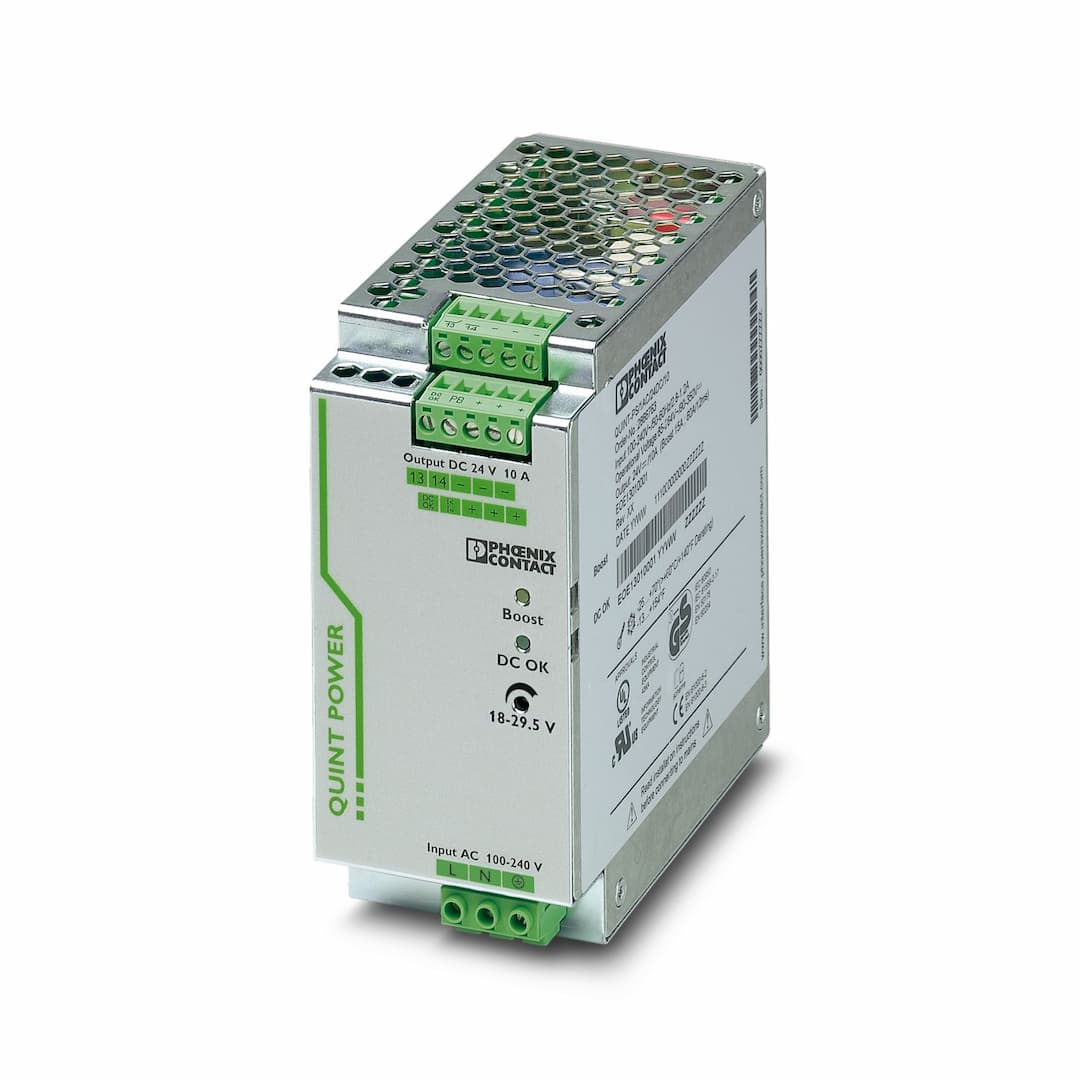

Product Model
QUINT-PS/1AC/24DC/10
Selling Points
- 1Selective fuse breaking ensures quick and reliable protection against overloads.
- 2Adjust signaling thresholds and characteristic curves individually via NFC for precise control.
- 3Typical efficiency of 92.5% (120 V AC) and 93.4% (230 V AC) for optimal performance.
- 4Connect in parallel for redundancy and increased capacity.
- 5IP20 degree of protection and operating temperature range of -25 °C to 70 °C for reliable operation in various environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC -15 % / +10 % | Input voltage range | 85 V AC ... 264 V AC |
Derating I | < 100 V AC (1 %/V) | Input voltage range DC | 110 V DC ... 350 V DC (typ. 90 V DC (UL 508: ≤ 300 V DC)) |
Electric strength, max. | 300 V AC | Typical national grid voltage | 120 V AC
230 V AC |
Voltage type of supply voltage | AC | Inrush current | < 15 A |
Inrush current integral (I | < 1.5 A | Inrush current limitation | 15 A |
AC frequency range | 45 Hz ... 65 Hz | Frequency range DC | 0 Hz |
Mains buffering time | > 36 ms (120 V AC)
> 36 ms (230 V AC) | Current consumption | 4 A (100 V AC)
1.7 A (240 V AC) |
Nominal power consumption | 302 VA | Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester |
Power factor (cos phi) | 0.85 | Typical response time | < 0.15 s |
Input fuse | 10 A (slow-blow, internal) | Permissible backup fuse | B10 B16 AC: |
Permissible DC backup fuse | DC: Connect a suitable fuse upstream | Recommended breaker for input protection | 10 A ... 20 A (Characteristics B, C, D, K) |
Discharge current to PE | < 3.5 mA | Nominal input voltage range | 110 V DC ... 250 V DC -10 % ... +40 % (UL 508: ≤ 300 V DC) |
Input voltage range | 110 V DC ... 350 V DC | Derating I | < 110 V DC (1 %/V) |
Current consumption | 3.4 A (110 V DC)
1.5 A (250 V DC) | Efficiency | typ. 92 % (120 V AC)
typ. 93.2 % (230 V AC) |
Output characteristic | U/I | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) | Nominal output current (I | 10 A |
POWER BOOST (I | 15 A (-25 °C ... 40 °C permanent, U | Static Boost (I | 15 A |
Selective Fuse Breaking (I | 60 A (12 ms) | Magnetic circuit breaker tripping | B2 / B4 / B6 / C2 / C4 |
Derating | 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | ≤ 35 V DC |
Protection against overvoltage at the output (OVP) | ≤ 35 V DC | Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) |
Residual ripple | < 50 mV | Short-circuit-proof | yes |
Output power | 240 W
360 W | Maximum no-load power dissipation | 9.1 W |
Power loss nominal load max. | 22 W | Rise time | < 0.05 s (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Switching voltage range | 18 V DC ... 24 V DC |
Maximum inrush current | ≤ 20 mA (short-circuit-proof) | Continuous load current | ≤ 20 mA |
Output description | Relay contact, U | Maximum switching voltage | 30 V AC
24 V DC |
Maximum inrush current | 0.5 A
1 A | Continuous load current | ≤ 1 A |
Output description | I | Switching voltage range | 18 V DC ... 24 V DC |
Output voltage | + 24 V DC | Maximum inrush current | 20 mA (short-circuit-proof) |
Continuous load current | ≤ 20 mA | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 16 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 16 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 16 | Conductor cross section AWG max. | 12 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output
Relay contact |
Status display | U | Note on status display | U
I |
Status display | U | Note on status display | U |
Status display | I | Number of phases | 1.00 |
Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 940000 h (25 °C)
> 530000 h (40 °C)
> 230000 h (60 °C) |
Article revision | 09 | Protection class | I |
Degree of pollution | 2 | Width | 60 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Width | 122 mm | Height | 130 mm |
Depth | 63 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Housing material | Metal |
Hood version | Galvanized sheet steel, free from chrome (VI) | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | ≤ 5000 m (> 2000 m, observe derating) | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. | Temp code | T4 (-25 ... +60 °C) |
Rail applications | EN 50121-4
EN 50121-3-2 | HART FSK Physical Layer Test Specification Compliance | Output voltage U |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
Standard - Equipment safety | BG (design tested) | Standard - Approval for medical use | IEC 60601-1, 2 x MOOP |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706 Compliance Certificate |
DeviceNet approval | DeviceNet™ Power Supply Conformance Tested | EN 61010-1 | II (≤ 5000 m) |
CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 | Shipbuilding approval | DNV GL (EMC B), ABS, LR, RINA, NK, BV |
SIQ | BG (type approved) | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
DeviceNet approval | DeviceNet™ Power Supply Conformance Tested | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Standards/regulations | EN 61000-4-2 |
Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Signal | 2 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
