Product Model

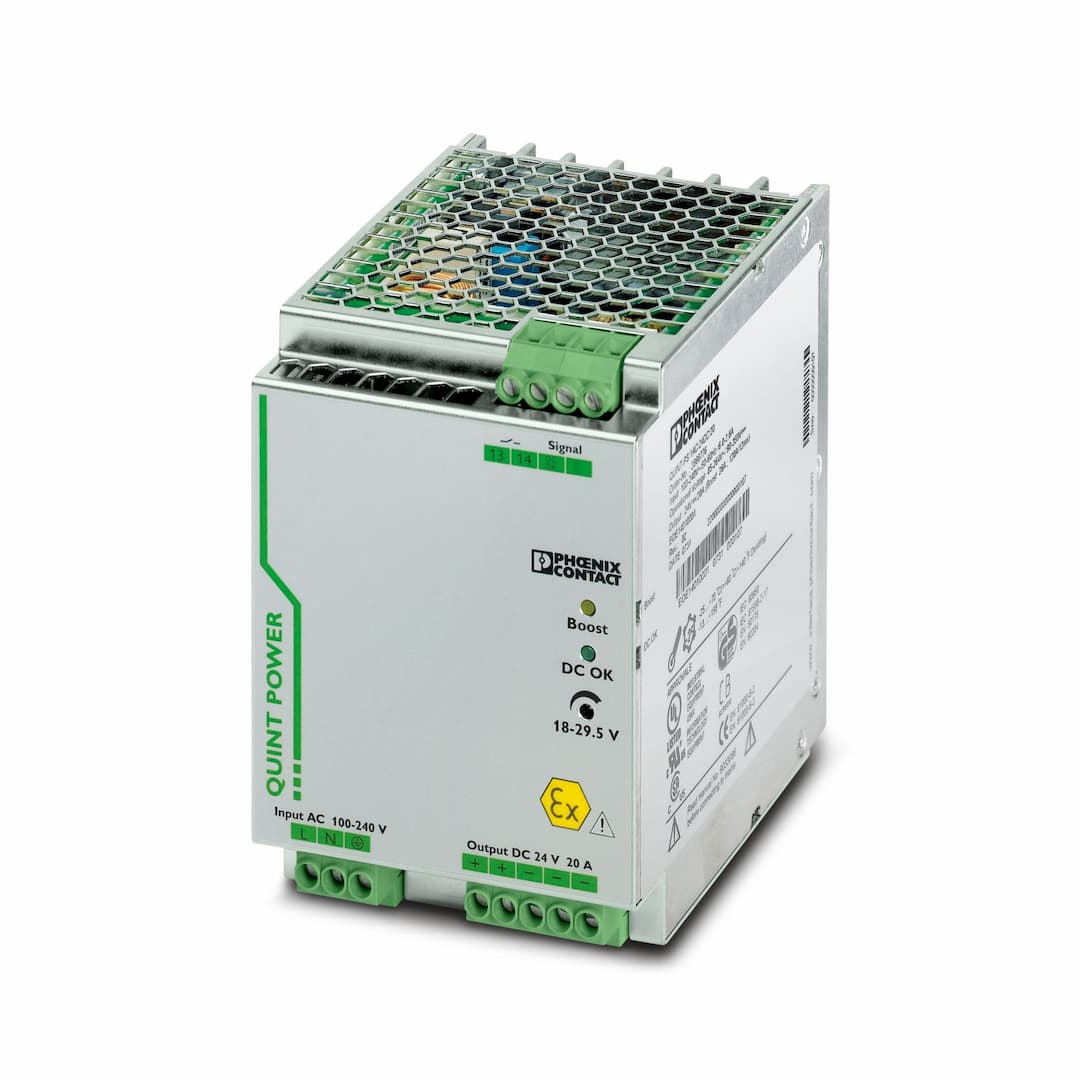

QUINT-PS/1AC/24DC/20/CO
Selling Points
- 1Operates in hazardous locations and extreme ambient conditions.
- 2Ensures safe operation in locations with flammable gases, liquids, or vapors.
- 3Provides fast tripping of standard circuit breakers with dynamic power reserve.
- 4Shields against dust, corrosive gases, and 100% humidity.
- 5Offers 4 kV AC voltage isolation for reliable operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC -15 % / +10 % | Input voltage range | 85 V AC ... 264 V AC |
Derating I | < 100 V AC (1 %/V) | Input voltage range AC | 85 V AC ... 264 V AC |
Input voltage range DC | 90 V DC ... 410 V DC +5 % (UL 508: ≤ 250 V DC) | Electric strength, max. | 300 V AC |
Voltage type of supply voltage | AC | Inrush current | < 20 A |
Inrush current integral (I | < 3.2 A | Inrush current limitation | 20 A |
AC frequency range | 45 Hz ... 65 Hz | Frequency range DC | 0 Hz |
Mains buffering time | typ. 32 ms (120 V AC)
typ. 32 ms (230 V AC) | Current consumption | 7 A (100 V AC)
3.1 A (240 V AC) |
Nominal power consumption | 569 VA | Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester |
Typical response time | < 0.6 s | Input fuse | 12 A (slow-blow, internal) |
Permissible backup fuse | B10 B16 AC: | Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
Recommended breaker for input protection | 10 A ... 16 A (Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA |
Nominal input voltage range | 110 V DC ... 250 V DC (UL 508: ≤ 250 V DC) | Derating I | < 110 V DC (1 %/V) |
Current consumption | 6.3 A (110 V DC)
2.7 A (250 V DC) | Efficiency | typ. 92 % (120 V AC)
typ. 92.7 % (230 V AC) |
Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 20 A | POWER BOOST (I | 26 A (-25 °C ... 40 °C permanent, U |
Static Boost (I | 26 A | Selective Fuse Breaking (I | 120 A (12 ms) |
Magnetic circuit breaker tripping | B2 / B4 / B6 / B10 / B16 / C2 / C4 / C6 | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | < 32 V DC |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 30 mV |
Output power | 480 W
624 W | Maximum no-load power dissipation | 8 W |
Power loss nominal load max. | 40 W | Rise time | < 0.1 s (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Switching voltage range | 18 V DC ... 24 V DC |
Maximum inrush current | 20 mA (short-circuit-proof) | Continuous load current | ≤ 20 mA |
Output description | Relay contact, U | Maximum switching voltage | 30 V AC
24 V DC |
Maximum inrush current | 0.5 A
1 A | Continuous load current | ≤ 1 A |
Output description | I | Switching voltage range | 18 V DC ... 24 V DC |
Output voltage | + 24 V DC | Maximum inrush current | 20 mA (short-circuit-proof) |
Continuous load current | ≤ 20 mA | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
Conductor cross section AWG min. | 18 | Conductor cross section AWG max. | 10 |
Stripping length | 7 mm | Screw thread | M4 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 12 |
Conductor cross section AWG max. | 10 | Stripping length | 7 mm |
Screw thread | M4 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 18 |
Conductor cross section AWG max. | 10 | Screw thread | M4 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED
Active switching output
Relay contact | Status display | U |
Note on status display | U
I | Color | green |
Note on status display | LED flashing | Status display | U |
Note on status display | U | Color | green |
Note on status display | LED flashing | Status display | I |
Color | yellow | Number of phases | 1.00 |
Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 900000 h (25 °C)
> 520000 h (40 °C) |
Article revision | 07 | Protection class | I |
Degree of pollution | 2 | Width | 90 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Width | 122 mm | Height | 130 mm |
Depth | 93 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | yes | Housing material | Metal |
Hood version | Galvanized sheet steel, free from chrome (VI) | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | 6000 m |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | 100 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
Temp code | T3C (-40 ... +60 °C) | Rail applications | EN 50121-4
EN 50121-3-2 |
HART FSK Physical Layer Test Specification Compliance | Output voltage U | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | IEC 61010-2-201 (SELV) | Explosive atmosphere | EN 60079-15 (Zone 2) |
Standard - Equipment safety | BG (design tested) | Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Standard - Safe isolation | IEC 61010-2-201 | Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 |
Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A | Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706 Compliance Certificate |
DeviceNet approval | DeviceNet™ Power Supply Conformance Tested | EN 61010-1 | II (≤ 5000 m) |
Standard designation | Fire protection in rail vehicles | Standards/specifications | EN 45545-2 (HL3) |
CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 | Shipbuilding approval | DNV GL (EMC B, only with upstream filter) |
SIQ | BG (type approved) | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T3C (Hazardous Location) |
DeviceNet approval | DeviceNet™ Power Supply Conformance Tested | ATEX | II 3 G Ex ec ic nC IIC T4 Gc
SIQ 14 ATEX 137 X |
IECEx | Ex ec ic nC IIC T4 Gc
IECEx SIQ 14.0001X | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 2 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 2 GHz ... 3 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
