Product Model

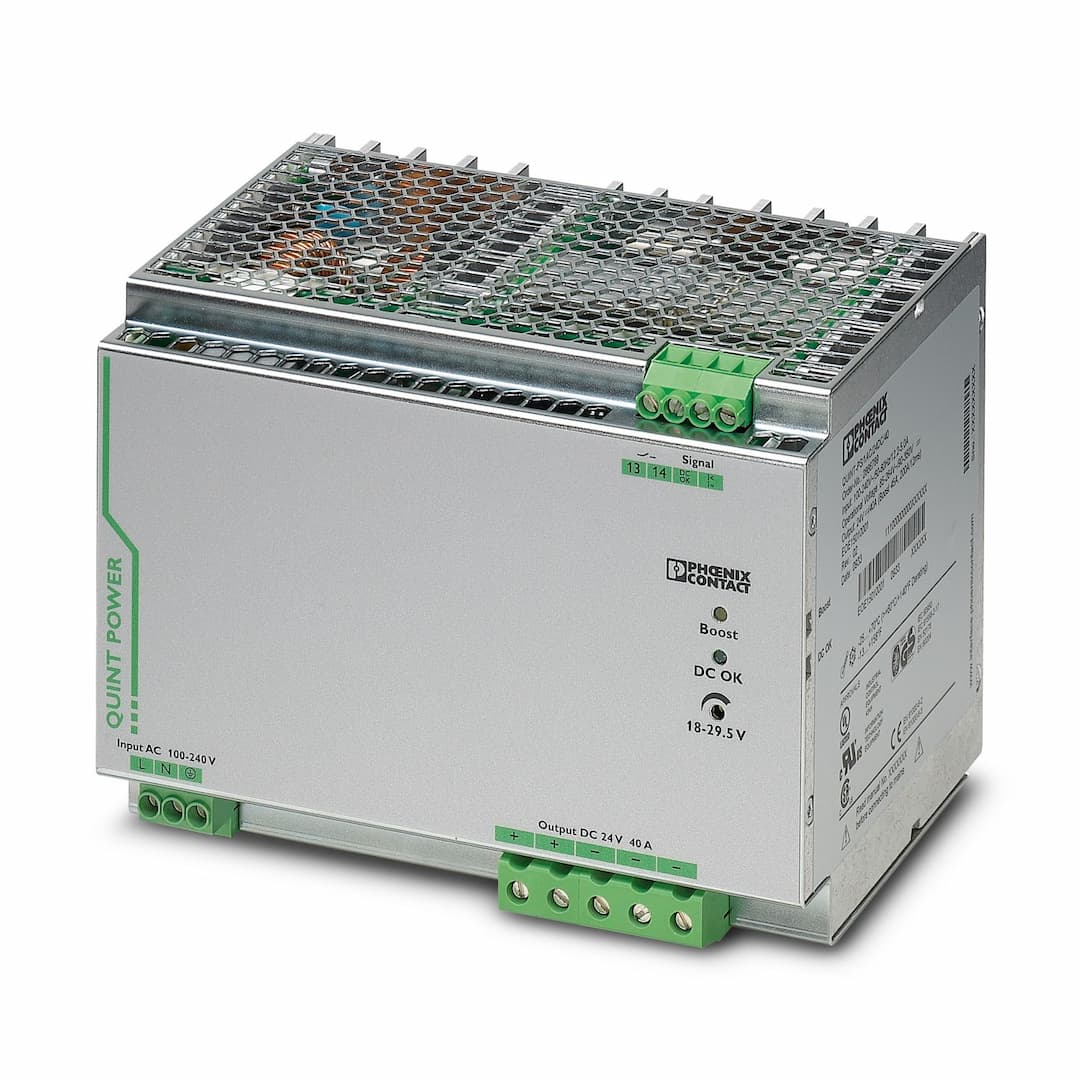

QUINT-PS/1AC/24DC/40
Selling Points
- 1Built with SFB technology for quick and selective fuse breaking, ensuring system protection and reliability.
- 2Designed for DIN rail mounting, making it easy to integrate into industrial control systems.
- 3Compatible with input voltages from 85 to 264 V AC, providing flexibility in various industrial environments.
- 4Achieves efficiency rates of over 92%, minimizing energy loss and maximizing output power.
- 5Operates within a wide temperature range (-25°C to +70°C) and features a compact design with high isolation voltages (4 kV AC).
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC | Input voltage range | 85 V AC ... 264 V AC |
Derating | < 100 V AC (1 %/V) | Input voltage range AC | 85 V AC ... 264 V AC |
Input voltage range DC | 90 V DC ... 300 V DC (UL 508: ≤ 250 V DC) | Electric strength, max. | 300 V AC |
Voltage type of supply voltage | AC | Inrush current | < 15 A (typical) |
Inrush current integral (I | < 1.7 A | AC frequency range | 45 Hz ... 65 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 35 ms (120 V AC)
> 35 ms (230 V AC) |
Current consumption | 8.8 A (120 V AC)
4.6 A (230 V AC)
9.5 A (110 V DC)
4.7 A (220 V DC) | Nominal power consumption | 1157 VA |
Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester | Power factor (cos phi) | 0.88 |
Typical response time | < 0.7 s | Input fuse | 20 A (slow-blow, internal) |
Permissible backup fuse | B16 B25 AC: | Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
Recommended breaker for input protection | 16 A ... 20 A (AC: Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA |
Nominal input voltage range | 120 V DC ... 300 V DC (UL 508: ≤ 250 V DC) | Input voltage range | 90 V DC ... 300 V DC (UL 508: ≤ 250 V DC) |
Derating | < 120 V DC (0.5 %/V) | Voltage type of supply voltage | DC |
Efficiency | > 92 % (for 230 V AC and nominal values) | Output characteristic | U/I |
Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 40 A (-25 °C ... 60 °C, U | POWER BOOST (I | 45 A (-25 °C ... 40 °C permanent, U |
Selective Fuse Breaking (I | 215 A (12 ms) | Magnetic circuit breaker tripping | B2 / B4 / B6 / B10 / B16 / B25 / C2 / C4 / C6 / C13 |
Derating | 60 °C ... 70 °C (2.5 %/K) | Feedback voltage resistance | ≤ 35 V DC |
Protection against overvoltage at the output (OVP) | ≤ 35 V DC | Residual ripple | < 30 mV |
Short-circuit-proof | yes | Output power | 960 W |
Maximum no-load power dissipation | 14 W | Power loss nominal load max. | 80 W |
Rise time | < 0.1 s (U | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Output description | U |
Switching voltage range | 18 V DC ... 24 V DC | Output voltage | + 24 V DC |
Maximum inrush current | ≤ 20 mA (short-circuit-proof) | Continuous load current | ≤ 20 mA |
Output description | Relay contact, U | Maximum switching voltage | 30 V AC
24 V DC |
Maximum inrush current | 0.5 A
1 A | Continuous load current | 1 A |
Output description | I | Switching voltage range | 18 V DC ... 24 V DC |
Output voltage | + 24 V DC | Maximum inrush current | ≤ 20 mA (short-circuit-proof) |
Continuous load current | ≤ 20 mA | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
Conductor cross section AWG min. | 14 | Conductor cross section AWG max. | 10 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.5 mm² |
Conductor cross section, rigid max. | 16 mm² | Conductor cross section flexible min. | 0.5 mm² |
Conductor cross section flexible max. | 16 mm² | Conductor cross section AWG min. | 8 |
Conductor cross section AWG max. | 6 | Stripping length | 10 mm |
Screw thread | M4 | Tightening torque, min | 1.2 Nm |
Tightening torque max | 1.5 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 4 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 10 |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Types of signaling | LED
Active switching output
Relay contact |
Status display | U | Note on status display | U
I |
Status display | U | Note on status display | U |
Status display | I | Number of phases | 1.00 |
Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 900000 h (25 °C)
> 530000 h (40 °C)
> 240000 h (60 °C) |
Article revision | 09 | Protection class | I |
Degree of pollution | 2 | Width | 180 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Width | 122 mm | Height | 130 mm |
Depth | 183 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Housing material | Metal |
Hood version | Galvanized sheet steel, free from chrome (VI) | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | 4000 m | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | 5 Hz ... 100 Hz resonance search 0.7g, 90 min., resonance frequency 0.7g, 90 min. (in accordance with DNV GL Class A) | Temp code | T4 (-25 ... +60 °C) |
Rail applications | EN 50121-4
EN 50121-3-2 | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | IEC 61010-2-201 (SELV) | Standard - Equipment safety | BG (design tested) |
Standard – Protection against shock currents, basic requirements for protective separation in electrical equipment | EN 50178 | Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) |
Standard - Safe isolation | IEC 61010-2-201 | Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 |
EN 62477-1 | III | CSA | CSA-C22.2 No. 107.1-01 |
Shipbuilding approval | DNV GL (EMC A), ABS, LR, RINA, NK, BV | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Performance level according to ISO 13849 | without | Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC | EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 |
EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 2 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 2 GHz ... 3 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | ENV 50204 |
Frequency | 900 MHz
1800 MHz | Field intensity | 20 V/m |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
