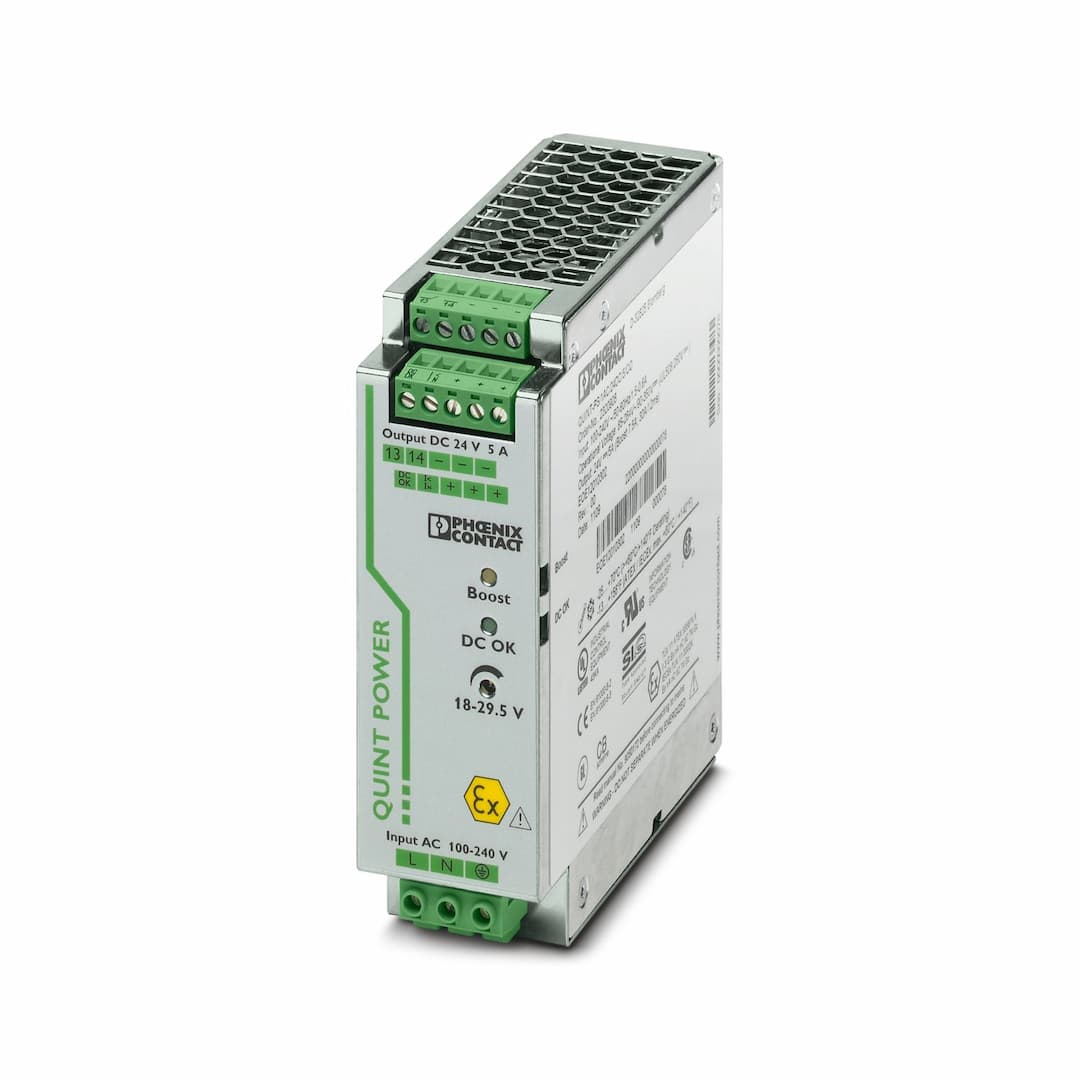

Product Model
QUINT-PS/1AC/24DC/ 5/CO
Selling Points
- 1Ensures reliable operation with SFB technology, providing up to 6 times the nominal current for 12 ms.
- 2Features Type 3 surge protection with a protective plug and base element, safeguarding against voltage fluctuations.
- 3Ideal for DIN rail mounting, offering a compact size that maximizes space efficiency in industrial settings.
- 4Allows for optimal voltage adjustment using the rotary potentiometer, ensuring precise voltage compensation.
- 5Operates at over 90% efficiency, minimizing power loss and ensuring high performance in various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 100 V AC ... 240 V AC
110 V DC ... 250 V DC | Input voltage range | 85 V AC ... 264 V AC
90 V DC ... 410 V DC +5 % (UL 508: ≤ 250 V DC) |
Input voltage range AC | 85 V AC ... 264 V AC | Input voltage range DC | 90 V DC ... 410 V DC +5 % (UL 508: ≤ 250 V DC) |
Electric strength, max. | 300 V AC | Voltage type of supply voltage | AC/DC |
Inrush current | < 15 A | Inrush current integral (I | < 1 A |
AC frequency range | 50 Hz ... 60 Hz | Mains buffering time | typ. 55 ms (120 V AC)
typ. 55 ms (230 V AC) |
Current consumption | 1.5 A (100 V AC)
0.6 A (240 V AC)
1.2 A (120 V AC)
0.6 A (230 V AC)
1.3 A (110 V DC)
0.6 A (220 V DC)
1.4 A (100 V DC)
0.6 A (250 V DC) | Nominal power consumption | 141 VA |
Protective circuit | Transient surge protection; Varistor | Typical response time | < 0.15 s |
Input fuse | 5 A (slow-blow, internal) | Permissible backup fuse | B6 B10 B16 AC: |
Recommended breaker for input protection | 6 A ... 16 A (AC: Characteristics B, C, D, K) | Discharge current to PE | < 3.5 mA |
Efficiency | typ. 90 % (230 V AC) | Nominal output voltage | 24 V DC ±1 % |
Setting range of the output voltage (U | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity) | Nominal output current (I | 5 A (-25 °C ... 60 °C, U |
POWER BOOST (I | 7.5 A (-25 °C ... 40 °C permanent, U | Selective Fuse Breaking (I | 30 A (12 ms) |
Magnetic circuit breaker tripping | B2 / B4 / C2 | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 32 V DC |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 2 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 40 mV |
Output power | 120 W | Maximum no-load power dissipation | 3 W |
Power loss nominal load max. | 15 W | Rise time | < 0.1 s (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Switching voltage range | 18 V DC ... 24 V DC |
Maximum inrush current | 20 mA (short-circuit-proof) | Continuous load current | ≤ 20 mA |
Output description | Relay contact, U | Maximum switching voltage | 30 V AC
24 V DC |
Maximum inrush current | 0.5 A (ATEX/IECEx: Ohmic loads only)
1 A (ATEX/IECEx: Ohmic loads only) | Continuous load current | 1 A |
Output description | I | Switching voltage range | 18 V DC ... 24 V DC |
Output voltage | + 24 V DC | Maximum inrush current | 20 mA (short-circuit-proof) |
Continuous load current | ≤ 20 mA | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 12 |
Stripping length | 7 mm | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 20 |
Conductor cross section AWG max. | 12 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 2.5 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 2.5 mm² | Conductor cross section AWG min. | 20 |
Conductor cross section AWG max. | 12 | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED
Active switching output
Relay contact | Status display | U |
Note on status display | U
I | Color | green |
Note on status display | LED flashing | Status display | U |
Note on status display | U | Color | green |
Note on status display | LED flashing | Status display | I |
Color | yellow | Number of phases | 1.00 |
Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 1134000 h (25 °C)
> 635000 h (40 °C) |
Article revision | 07 | Protection class | I |
Degree of pollution | 2 | Width | 40 mm |
Height | 130 mm | Depth | 125 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Width | 122 mm | Height | 130 mm |
Depth | 43 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | yes | Housing material | Metal |
Hood version | Galvanized sheet steel, free from chrome (VI) | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -40 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Maximum altitude | ≤ 5000 m |
Climatic class | 3K3 (in acc. with EN 60721) | Max. permissible relative humidity (operation) | 100 % (at 25 °C, non-condensing) |
Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) | Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g, 90 min. |
Rail applications | EN 50121-4
EN 50121-3-2 | HART FSK Physical Layer Test Specification Compliance | Output voltage U |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | IEC 61010-2-201 (SELV) |
Explosive atmosphere | EN 60079-15 (Zone 2) | Standard - Equipment safety | BG (design tested) |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Noxious gas test | ISA-S71.04-1985 G3 Harsh Group A |
Approval - requirement of the semiconductor industry with regard to mains voltage dips | SEMI F47-0706 Compliance Certificate | DeviceNet approval | DeviceNet™ Power Supply Conformance Tested |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
Standard designation | Fire protection in rail vehicles | Standards/specifications | EN 45545-2 (HL3) |
CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 | Shipbuilding approval | DNV GL (EMC A) |
SIQ | BG (type approved) | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1
UL ANSI/ISA-12.12.01 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
DeviceNet approval | DeviceNet™ Power Supply Conformance Tested | ATEX | II 3 G Ex ec nC IIC T4 Gc
TÜV 11 ATEX 555674 X |
INMETRO | DNV 19 0188 X | IECEx | Ex ec nC IIC T4 Gc
IECEx TUN 11.0002X |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise emission | EN 55011 (EN 55022) | Standards/regulations | EN 61000-4-2 |
Contact discharge | 8 kV (Test Level 4) | Discharge in air | 15 kV (Test Level 4) |
Comments | Criterion A | Standards/regulations | EN 61000-4-3 |
Frequency range | 80 MHz ... 1 GHz | Test field strength | 20 V/m (Test Level 3) |
Frequency range | 1 GHz ... 2 GHz | Test field strength | 10 V/m (Test Level 3) |
Frequency range | 2 GHz ... 3 GHz | Test field strength | 10 V/m (Test Level 3) |
Comments | Criterion A | Standards/regulations | EN 61000-4-4 |
Input | 4 kV (Test Level 4 - asymmetrical) | Output | 2 kV (Test Level 3 - asymmetrical) |
Signal | 2 kV (Test Level 4 - asymmetrical) | Comments | Criterion A |
Standards/regulations | EN 61000-4-5 | Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) |
Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) | Signal | 1 kV (Test Level 2 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Standards/regulations | EN 61000-6-3 | Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
