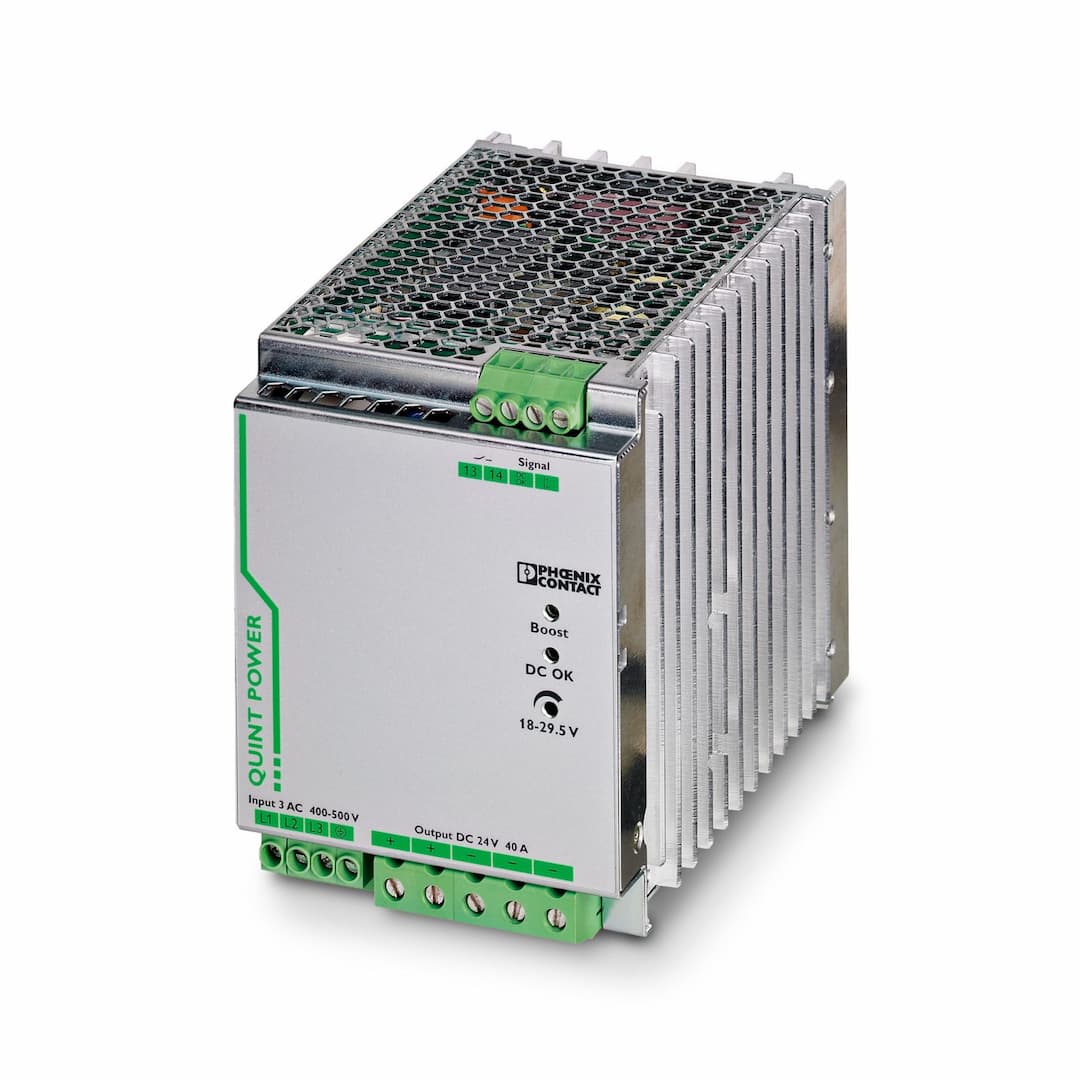

Product Model
QUINT-PS/3AC/24DC/40
Selling Points
- 1Ensures reliable operation even in permanent phase failure scenarios.
- 2Provides quick and selective tripping at six times the nominal current for cost-effective system protection.
- 3Reports critical operating states before errors occur, enhancing overall system reliability.
- 4Covers all ranges between 5 V DC and 56 V DC, ensuring flexibility in various applications.
- 5Operates at an efficiency of >94% (at 400 V AC), minimizing energy loss and maximizing performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 3x 400 V AC ... 500 V AC | Input voltage range | 3x 400 V AC ... 500 V AC -20 % ... +15 % |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (at 25 °C) |
Inrush current integral (I | < 1 A | Inrush current limitation | 15 A |
AC frequency range | 45 Hz ... 65 Hz | Frequency range DC | 0 Hz |
Mains buffering time | > 25 ms (400 V AC)
> 35 ms (500 V AC) | Current consumption | 3x 2.1 A (400 V AC)
3x 1.7 A (500 V AC) |
Nominal power consumption | 1342 VA | Protective circuit | Transient surge protection; Varistor, gas-filled surge arrester |
Power factor (cos phi) | 0.76 | Typical response time | < 0.5 s |
Permissible backup fuse | B6 B10 B16 AC: | Permissible DC backup fuse | DC: Connect a suitable fuse upstream |
Recommended breaker for input protection | 6 A ... 20 A (Characteristic B, C, D, K or comparable) | Discharge current to PE | < 3.5 mA |
Nominal input voltage range | 500 V DC ... 600 V DC | Input voltage range | 500 V DC ... 600 V DC -10 % ... +33 % (mid-point earthed) |
Current consumption | 2.2 A (500 V DC)
1.9 A (600 V DC) | Recommended breaker for input protection | 1x 6 A ≥ 1000 V DC (10 x 38 mm, 30 kA L/R = 2 ms) |
Efficiency | typ. 94 % (400 V AC) | Output characteristic | U/I |
Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 18 V DC ... 29.5 V DC (> 24 V DC, constant capacity restricted) |
Nominal output current (I | 40 A | POWER BOOST (I | 45 A (-25 °C ... 40 °C permanent, U |
Static Boost (I | 45 A | Selective Fuse Breaking (I | 215 A (12 ms) |
Magnetic circuit breaker tripping | B2 / B4 / B6 / B10 / B16 / B25 / C2 / C4 / C6 / C13 | Derating | 60 °C ... 70 °C (2.5 %/K) |
Feedback voltage resistance | ≤ 35 V DC | Protection against overvoltage at the output (OVP) | ≤ 35 V DC |
Control deviation | < 1 % (change in load, static 10 % ... 90 %)
< 3 % (change in load, dynamic 10 % ... 90 %)
< 0.1 % (change in input voltage ±10 %) | Residual ripple | < 40 mV |
Short-circuit-proof | yes | Output power | 960 W
1080 W |
Peak switching voltages nominal load | < 5 mV | Maximum no-load power dissipation | 18 W |
Power loss nominal load max. | 63 W | Rise time | < 0.15 s (U |
Connection in parallel | yes, for redundancy and increased capacity | Connection in series | yes |
Output description | U | Switching voltage range | 18 V DC ... 24 V DC |
Output voltage | + 24 V DC | Maximum inrush current | ≤ 20 mA (short-circuit-proof) |
Continuous load current | ≤ 20 mA | Output description | Relay contact, U |
Maximum switching voltage | 30 V AC/DC
24 V DC | Maximum inrush current | 0.5 A
1 A |
Continuous load current | ≤ 1 A | Output description | I |
Switching voltage range | 18 V DC ... 24 V DC | Output voltage | + 24 V DC |
Maximum inrush current | ≤ 20 mA (short-circuit-proof) | Continuous load current | ≤ 20 mA |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 18 |
Conductor cross section AWG max. | 10 | Stripping length | 7 mm |
Screw thread | M3 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 16 mm² |
Conductor cross section AWG min. | 8 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Screw thread | M4 |
Tightening torque, min | 1.2 Nm | Tightening torque max | 1.5 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 18 |
Conductor cross section AWG max. | 10 | Screw thread | M3 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Types of signaling | LED
Active switching output
Relay contact | Operating voltage display | Green LED |
Status display | U | Note on status display | U |
Status display | U | Note on status display | U |
Status display | I | Number of phases | 3.00 |
Insulation voltage input/output | 4 kV AC (type test)
2 kV AC (routine test) | Insulation voltage output / PE | 500 V DC (routine test) |
Insulation voltage input / PE | 3.5 kV AC (type test)
2 kV AC (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 880000 h (25 °C)
> 500000 h (40 °C)
> 216000 h (60 °C) |
Article revision | 08 | Protection class | I |
Degree of pollution | 2 | Width | 96 mm |
Height | 130 mm | Depth | 176 mm |
Installation distance right/left | 5 mm / 5 mm | Installation distance top/bottom | 50 mm / 50 mm |
Width | 176 mm | Height | 130 mm |
Depth | 99 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
With protective coating | no | Housing material | Metal |
Hood version | Galvanized sheet steel, free from chrome (VI) | Side element version | Aluminum |
Degree of protection | IP20 | Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) |
Ambient temperature (storage/transport) | -40 °C ... 85 °C | Ambient temperature (start-up type tested) | -40 °C |
Maximum altitude | 5000 m | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (at 25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | 5 Hz ... 100 Hz resonance search 0.7g, 90 min., resonance frequency 0.7g, 90 min. (in accordance with DNV GL Class A) | Temp code | T4 (-25 ... +70 °C; > 60 °C, Derating: 2,5 %/K) |
Rail applications | EN 50121-4
EN 50121-3-2 | Standard – Limitation of mains harmonic currents | EN 61000-3-2 |
Standard - Electrical safety | IEC 61010-2-201 (SELV) | Standard - Equipment safety | GS (tested safety) |
Standard – Safety extra-low voltage | IEC 61010-1 (SELV)
IEC 61010-2-201 (PELV) | Standard - Safe isolation | IEC 61010-2-201 |
Standard - safety for equipment for measurement, control, and laboratory use | IEC 61010-1 | Standard - surge resistance | VDE 0160 (curve W2) |
EN 61010-1 | II (≤ 5000 m) | EN 62477-1 | III (≤ 2000 m) |
EN 61558-2-16 | II (≤ 4000 m) | CSA | CAN/CSA-C22.2 No. 60950-1-07
CSA-C22.2 No. 107.1-01 |
Shipbuilding approval | DNV GL (EMC A), ABS, LR, RINA, NK, BV | UL approvals | UL Listed UL 508
UL/C-UL Recognized UL 60950-1 (3-wire + PE, star net)
UL 121201 & CSA C22.2 No. 213-17 Class I, Division 2, Groups A, B, C, D T4 (Hazardous Location) |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 1 GHz |
Test field strength | 20 V/m (Test Level 3) | Frequency range | 1 GHz ... 2 GHz |
Test field strength | 10 V/m (Test Level 3) | Frequency range | 2 GHz ... 3 GHz |
Test field strength | 10 V/m (Test Level 3) | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 4 kV (Test Level 4 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Signal | 1 kV (Test Level 2 - asymmetrical) | Comments | Criterion B |
Standards/regulations | EN 61000-4-6 | I/O/S | asymmetrical |
Frequency range | 0.15 MHz ... 80 MHz | Comments | Criterion A |
Voltage | 10 V (Test Level 3) | Standards/regulations | EN 61000-6-3 |
Radio interference voltage in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential | Emitted radio interference in acc. with EN 55011 | EN 55011 (EN 55022) Class B, area of application: Industry and residential |
Criterion A | Normal operating behavior within the specified limits. | Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
