Product Model

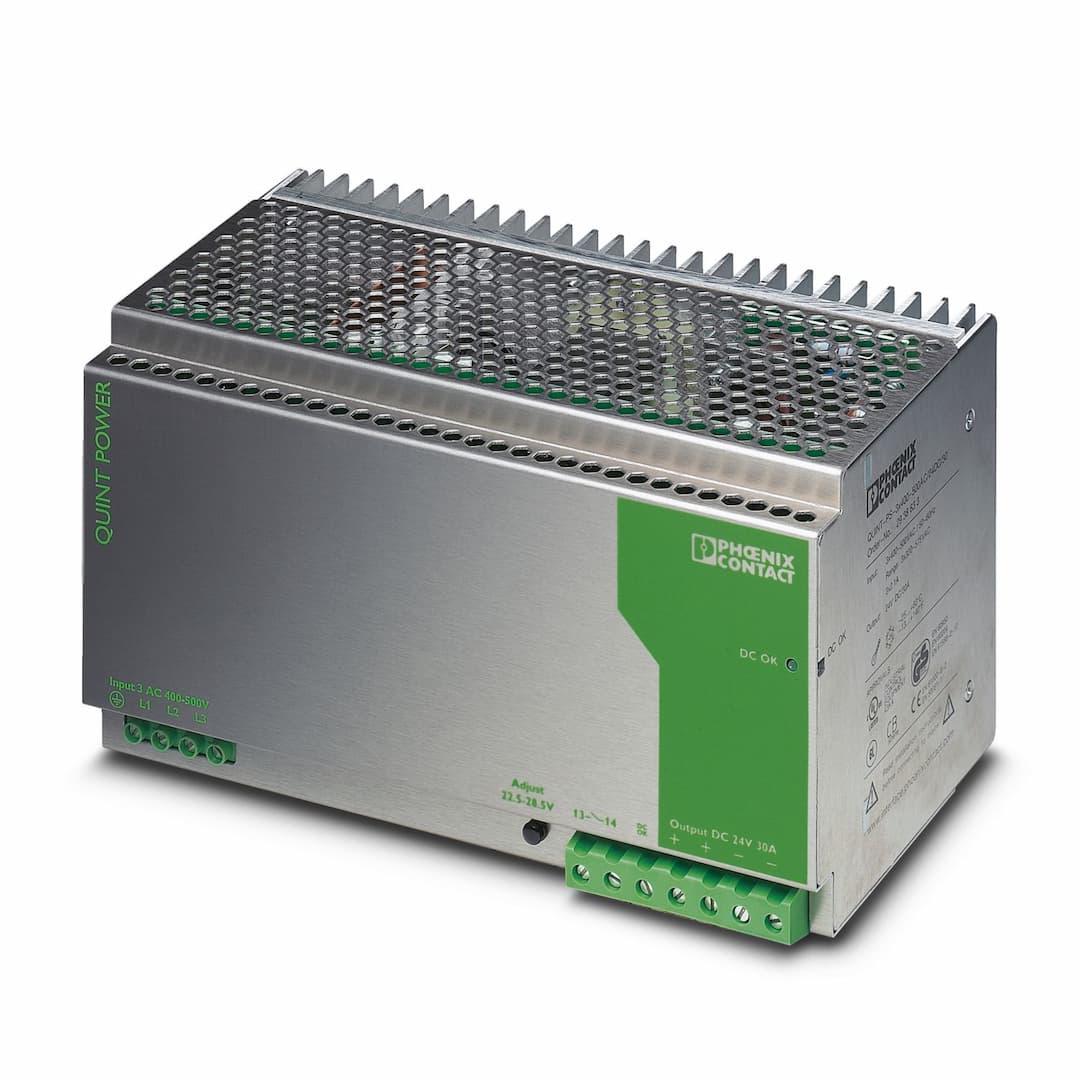

QUINT-PS-3X400-500AC/24DC/30
Selling Points
- 1Type 3 Surge Protection: Equipped with a protective plug and base element for enhanced safety.
- 2Wide Input Voltage Range: Compatible with 3x 400 V AC to 500 V AC and 450 V DC to 800 V DC.
- 3High Mains Buffering: Provides over 20 ms of mains buffering at full load for stable operation.
- 4Flexible Output Options: Offers adjustable output voltage with a setting range of ±1% and flexible conductor cross-sections.
- 5Comprehensive Safety Features: Meets international safety standards including EN 60950-1/VDE 0805 and EN 61000-6-2:2005.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 3x 400 V AC ... 500 V AC | Input voltage range | 3x 320 V AC ... 575 V AC (for all three phases)
450 V DC ... 800 V DC |
Input voltage range AC | 3x 320 V AC ... 575 V AC (for all three phases) | Input voltage range DC | 450 V DC ... 800 V DC |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A (typical) |
AC frequency range | 45 Hz ... 65 Hz | Frequency range DC | 0 Hz |
Mains buffering time | > 20 ms (at 3 x 400 V AC)
> 20 ms (at 3 x 480 V AC) | Current consumption | approx. 3x 2.1 A (400 V AC)
3x 1.7 A (480 V AC) |
Nominal power consumption | 720 W | Typical response time | < 1 s |
Input fuse | Externally via 3 circuit breakers 6 A, 10 A or 16 A, characteristic B | Efficiency | > 92 % |
Nominal output voltage | 24 V DC ±1 % | Setting range of the output voltage (U | 22.5 V ... 28.5 V |
Nominal output current (I | 30 A (up to 60 °C) | POWER BOOST (I | 35 A |
Residual ripple | < 100 mV | Output power | 720 W |
Peak switching voltages nominal load | < 100 mV | Maximum no-load power dissipation | < 14 W |
Power loss nominal load max. | < 62 W | Connection in parallel | yes, for assembling redundant systems and increasing efficiency |
Connection in series | yes | Output description | U |
Output voltage | + 24 V DC (Signal) | Continuous load current | max. 40 mA |
Output description | Relay contact, U | Maximum switching voltage | ≤ 30 V AC/DC |
Maximum inrush current | ≤ 1 A | Continuous load current | ≤ 1 A |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
Screw thread | M3 | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 10 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Operating voltage display | Green LED |
Status display | Green LED (U | Number of phases | 3.00 |
Insulation voltage input/output | 2 kV (routine test)
4 kV (type test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 500000 h |
Protection class | I (with PE connection) | Width | 240 mm |
Height | 130 mm | Depth | 130 mm |
Width | 122 mm | Height | 243 mm |
Depth | 243 mm | Assembly note | alignable: vertical with spacing = 5 cm |
Mounting position | On horizontal DIN rail NS 35 in acc. with EN 60715 | Housing material | Metal |
Type of housing | AluNox (AlMg1) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 |
Standard - Safe isolation | DIN VDE 0100-410 | Electromagnetic compatibility | Conformance with EMC directive 89/336/EC |
EMC requirements for noise immunity | EN 61000-6-2 | Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
