Product Model

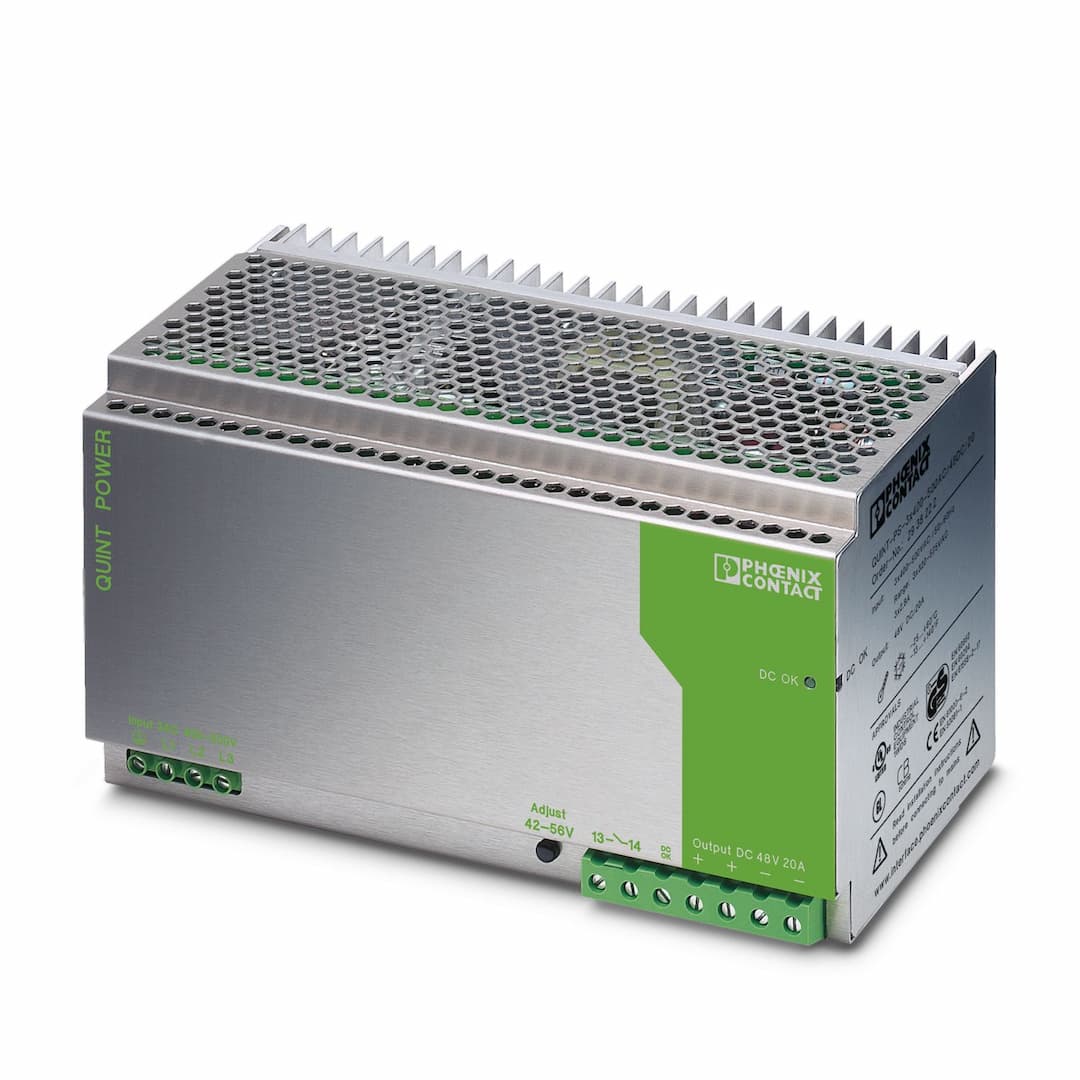

QUINT-PS-3X400-500AC/48DC/20
Selling Points
- 1Supports 3x 320 V AC to 575 V AC and 450 V DC to 800 V DC.
- 2Delivers 20 A of continuous output current at 48 V DC.
- 3Meets IP20 protection class with a high Mean Time Between Failures (MTBF) of over 500,000 hours.
- 4Compatible with horizontal DIN rail NS 35 and EN 60715 standards.
- 5Operates within an ambient temperature range of -25°C to 70°C with derating above 60°C.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Nominal input voltage range | 3x 400 V AC ... 500 V AC | Input voltage range | 3x 320 V AC ... 575 V AC (for all three phases)
450 V DC ... 800 V DC (for all three phases) |
Input voltage range AC | 3x 320 V AC ... 575 V AC (for all three phases) | Input voltage range DC | 450 V DC ... 800 V DC (for all three phases) |
Voltage type of supply voltage | AC/DC | Inrush current | < 15 A |
Inrush current integral (I | 2 A | AC frequency range | 45 Hz ... 65 Hz |
Frequency range DC | 0 Hz | Mains buffering time | > 20 ms (400 V AC)
> 30 ms (480 V AC) |
Current consumption | approx. 3x 2.3 A (400 V AC)
1.9 A (480 V AC) | Nominal power consumption | 1034 W |
Protective circuit | Transient surge protection; Varistor | Typical response time | < 1 s |
Permissible backup fuse | B6 B10 B16 | Recommended breaker for input protection | 3x 6 A ... 16 A (Characteristics B, C, D, K) |
Efficiency | > 90 % (for 230 V AC and nominal values) | Nominal output voltage | 48 V DC ±1 % |
Setting range of the output voltage (U | 30 V DC ... 56 V DC (> 48 V DC, constant capacity restricted) | Nominal output current (I | 20 A (-25 °C ... 60 °C) |
POWER BOOST (I | 22 A (-25 °C ... 40 °C permanent) | Derating | 60 °C ... 70 °C (2.5 %/K) |
Residual ripple | < 20 mV | Output power | 960 W |
Peak switching voltages nominal load | < 140 mV | Maximum no-load power dissipation | 20 W |
Power loss nominal load max. | 90 W | Connection in parallel | yes, for redundancy and increased capacity |
Connection in series | yes | Output description | U |
Maximum switching voltage | ≤ 24 V | Output voltage | + 24 V DC |
Maximum inrush current | ≤ 20 mA | Continuous load current | ≤ 20 mA |
Output description | Relay contact, U | Maximum switching voltage | ≤ 30 V AC/DC |
Maximum inrush current | max. 0.5 A | Continuous load current | ≤ 1 A |
Connection method | Screw connection | Conductor cross section, rigid min. | 0.2 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 0.2 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 24 |
Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
Screw thread | M3 | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 10 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
Stripping length | 10 mm | Screw thread | M4 |
Conductor cross section, rigid min. | 0.5 mm² | Conductor cross section, rigid max. | 16 mm² |
Conductor cross section flexible min. | 0.5 mm² | Conductor cross section flexible max. | 10 mm² |
Conductor cross section AWG min. | 20 | Conductor cross section AWG max. | 6 |
Screw thread | M4 | Types of signaling | LED
Active switching output
Relay contact |
Operating voltage display | Green LED | Status display | "DC OK" LED green |
Note on status display | U | Status display | "DC OK" LED green |
Note on status display | U | Number of phases | 3.00 |
Insulation voltage input/output | 3 kV (type test)
1.5 kV (routine test) | Product type | Power supply |
Product family | QUINT POWER | MTBF (IEC 61709, SN 29500) | > 500000 h |
Article revision | 07 | Protection class | I (with PE connection) |
Width | 240 mm | Height | 130 mm |
Depth | 125 mm | Width | 122 mm |
Height | 130 mm | Depth | 243 mm |
Mounting type | DIN rail mounting | Assembly note | alignable: horizontally 0 mm, vertically 50 mm |
Mounting position | horizontal DIN rail NS 35, EN 60715 | Housing material | Metal |
Type of housing | AluNox (AlMg1) | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 60 °C Derating: 2,5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Max. permissible relative humidity (operation) | 95 % (at 25 °C, non-condensing) | Standard – Electronic equipment for use in electrical power installations and their assembly into electrical power installations | EN 50178/VDE 0160 (PELV) |
Standard – Limitation of mains harmonic currents | EN 61000-3-2 | Standard - Electrical safety | EN 60950-1/VDE 0805 (SELV)
EN 61558-2-17 |
Standard - Equipment safety | GS (tested safety) | Standard - Safe isolation | DIN VDE 0100-410 |
Standard - Safety of transformers | EN 61558-2-17 | UL approvals | UL/C-UL listed UL 508
UL/C-UL Recognized UL 60950-1 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
EMC requirements for noise emission | EN 61000-6-3
EN 61000-6-4 | EMC requirements for noise immunity | EN 61000-6-1
EN 61000-6-2 |
Noise emission | EN 55011 (EN 55022) |
Specifications may be subject to change without notice
