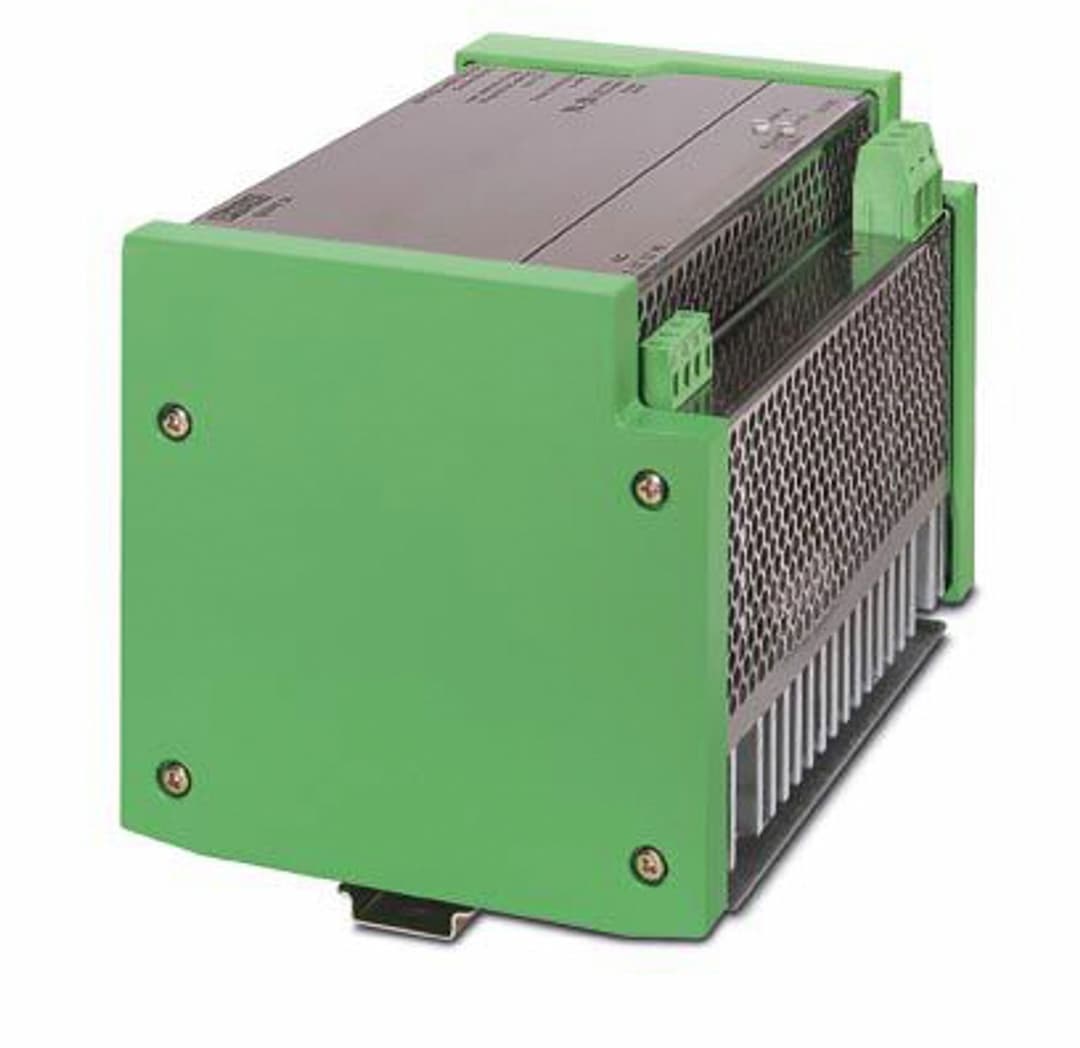

Phoenix Contact QUINT-PS-3X400AC/24DC/30

Selling Points

  • 1Primary Switched-Mode Design: Efficient and reliable power supply unit designed for industrial applications.
  • 2Surge Protection: Equipped with type 3 surge protection, including a protective plug and base element.
  • 3Remote Signaling: Integrated status indicator and remote signaling for single-phase power supply management.
  • 4High Power Output: Delivers 24 V DC at 30 A, suitable for demanding industrial loads.
  • 5Durable Construction: Built to withstand ambient temperatures from -25°C to 70°C and relative humidity up to 95%.
Product Details
QUINT-PS-3X400AC/24DC/30
Phoenix Contact

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Input voltage
3x 400 V AC
Input voltage range
325 V AC ... 460 V AC
Input voltage range AC
325 V AC ... 460 V AC
Inrush current
< 29 A (at 25 °C)
AC frequency range
47 Hz ... 63 Hz
Mains buffering time
> 20 ms
Current consumption
approx. 2.7 A
Input fuse
6 A (externally via circuit breaker, characteristic B)
Efficiency
> 88 %
Nominal output voltage
24 V DC ±1 %
Setting range of the output voltage (U
22.5 V DC ... 28.5 V DC (> 24 V DC, constant capacity restricted)
Nominal output current (I
30 A
Residual ripple
150 mV
Peak switching voltages idling
100 mV
Maximum no-load power dissipation
< 9 W
Power loss nominal load max.
< 98 W
Connection in parallel
yes, for assembling redundant systems and increasing efficiency
Connection method
Pluggable screw connection
Conductor cross section, rigid min.
0.2 mm²
Conductor cross section, rigid max.
2.5 mm²
Conductor cross section flexible min.
0.2 mm²
Conductor cross section flexible max.
2.5 mm²
Conductor cross section AWG min.
24
Conductor cross section AWG max.
14
Stripping length
8 mm
Screw thread
M2,5
Connection method
Pluggable screw connection
Conductor cross section, rigid min.
0.5 mm²
Conductor cross section, rigid max.
16 mm²
Conductor cross section flexible min.
0.5 mm²
Conductor cross section flexible max.
10 mm²
Conductor cross section AWG min.
20
Conductor cross section AWG max.
6
Stripping length
8 mm
Screw thread
M2,5
Operating voltage display
LED
Insulation voltage input/output
1.8 kV (routine test) 3 kV (type test)
Product type
Power supply
MTBF (IEC 61709, SN 29500)
> 500000 h
Width
230 mm
Height
156 mm
Depth
150 mm
Assembly note
alignable: vertical with spacing = 10 cm, horizontal with zero spacing
Mounting position
On horizontal DIN rail NS 35 in acc. with EN 60715
Housing material
Metal
Type of housing
High-grade steel plate, enclosed
Side element version
ABS V0, color: green
Degree of protection
IP20
Ambient temperature (operation)
0 °C ... 70 °C (UL up to 50°C)
Ambient temperature (storage/transport)
-25 °C ... 85 °C
Max. permissible relative humidity (operation)
95 % (at 25 °C, non-condensing)
Standard - Electrical safety
EN 60950/VDE 0805-1 DIN EN 50178/VDE 0160 UL 508C CSA C22.2-14 UL 1950 CSA C22.2-950 DIN VDE 0100-410 DIN VDE 0106-101
Electromagnetic compatibility
Conformance with EMC directive 89/336/EC

Specifications may be subject to change without notice
