Product Model

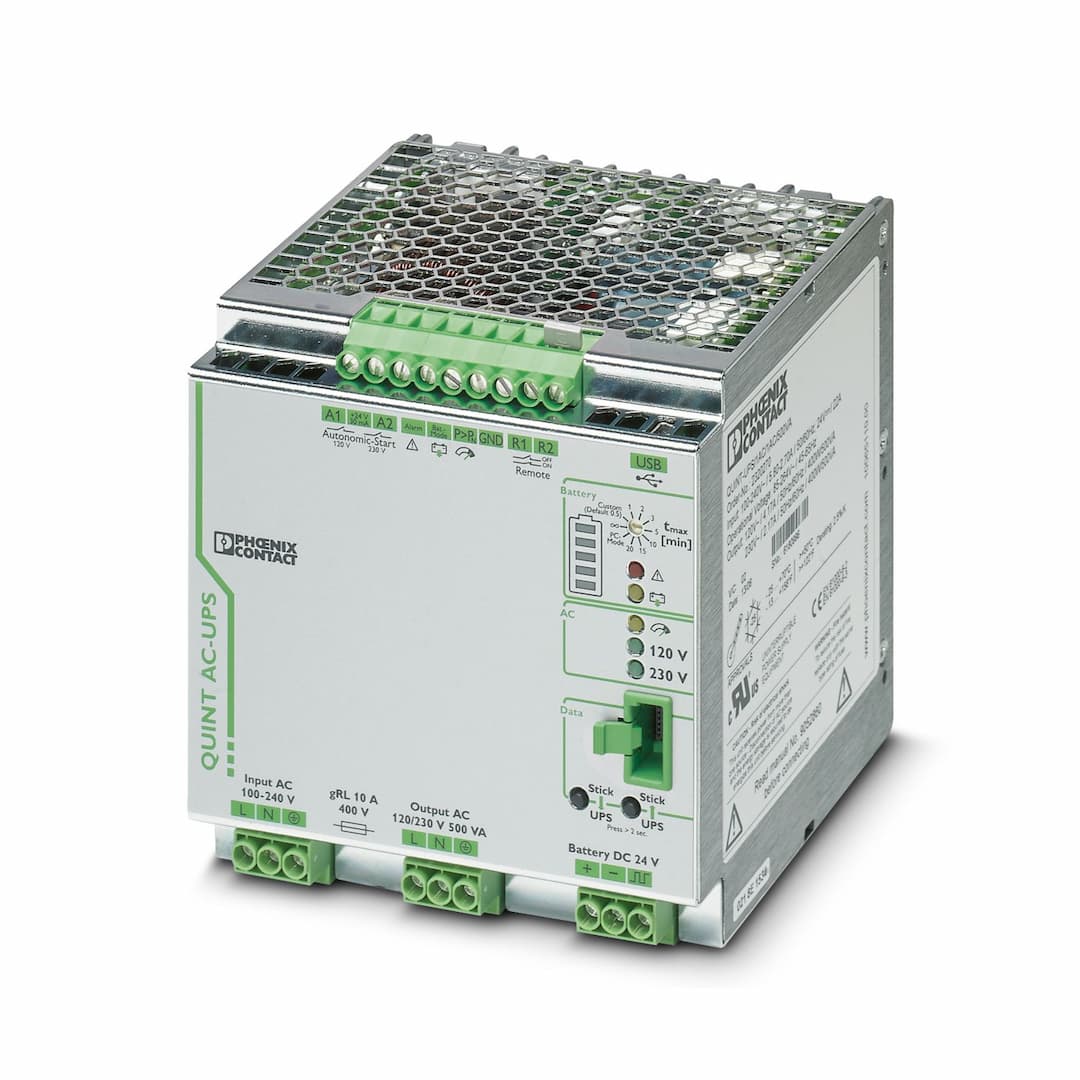

QUINT-UPS/ 1AC/ 1AC/500VA
Selling Points
- 1Continuously supplies power to critical electrical loads.
- 2Provides a clean and stable output waveform.
- 3Offers efficiency of over 98% in mains operation.
- 4Compatible with both 120 V AC and 230 V AC inputs.
- 5Switches over in less than 10 milliseconds for seamless operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Input voltage | 240 V AC
100 V AC
120 V AC -20 % / +15 %
230 V AC -20 % / +15 % | Nominal input voltage range | 100 V AC ... 240 V AC |
Input voltage range | 184 V AC ... 264 V AC
96 V AC ... 138 V AC
96 V AC ... 264 V AC | Input voltage range AC | 196 V AC ... 264 V AC
102 V AC ... 138 V AC
96 V AC ... 264 V AC |
Voltage type of supply voltage | AC | Nominal frequency | 50 Hz ... 60 Hz
50 Hz ... 60 Hz |
AC frequency range | 45 Hz ... 65 Hz | Buffer period | 1 h (38 AH) |
Current consumption | 2.2 A (230 V AC)
0.18 A (230 V AC)
0.8 A (230 V AC)
3.7 A (230 V AC)
4.3 A (120 V AC)
0.35 A (120 V AC)
1.3 A (120 V AC)
6.8 A (120 V AC) | Fixed backup threshold | Configurable, 10% deviation from nominal input voltage set by default |
Variable connect threshold | Can be configured using UPS-CONF software | Power factor (cos phi) | 0.8 |
Device mains fuse | 10 A | Permissible backup fuse | B16 230 V AC
20 A 120 V AC, Listed breaker |
Battery-operated start 120 V AC Default | Plug-in bridge (output +24 V DC, 30 mA to input A1) | Battery-operated start 230 V AC Default | Plug-in bridge (output +24 V DC, 30 mA to input A2) |
Classification according to IEC 62040-3 | VFD-SS-311 | Efficiency | > 98 % (Mains operation)
> 98 % (120 V AC)
> 86 % (Battery operation) |
Nominal output voltage | 120 V AC
230 V AC | Output voltage range | 96 V AC ... 144 V AC
184 V AC ... 264 V AC |
Form of output voltage | Pure sine | Nominal output current (I | 4.3 A (120 V AC, -25 °C ... 50 °C)
2.2 A (230 V AC, -25 °C ... 40 °C) |
Output current limit | 5.2 A (120 V AC)
2.7 A (230 V AC) | POWER BOOST (I | 5.2 A (120 V AC, -25 °C ... 40 °C)
2.7 A (230 V AC, -25 °C ... 40 °C) |
Bridging time | 3600 s | Derating | > 50 °C ... 70 °C (2.5 %/K) |
UPS connection in parallel | no | UPS connection in series | no |
Output power | 516 W | Apparent power | 500 VA |
Nominal power | 400 W | Crest factor | 2.8 |
Switch-over time | < 10 ms | Connection in parallel | no |
Connection in series | no | Nominal output voltage | 120 V AC
230 V AC |
Output voltage range | 102 V AC ... 138 V AC
196 V AC ... 264 V AC | Nominal output current (I | 4.3 A (120 V AC)
2.2 A (230 V AC) |
POWER BOOST (I | 5.2 A
2.7 A | Permissible backup fuse | AC: 1 x circuit breaker - recommended fuse |
Nominal output voltage | 120 V AC
230 V AC | Nominal output current (I | 2.2 A (230 V AC)
4.3 A (120 V AC) |
POWER BOOST (I | 2.7 A (230 V AC)
5.2 A (120 V AC) | Permissible backup fuse | 25 A in parallel operation of 3.5 AH and 60 WH
50 A in parallel operation of 7.2 AH, 12 AH, and 38 AH |
Buffer period | 10 min (400 W / 7,2 Ah) | Maximum switching voltage | ≤ 30 V DC |
Output voltage | 24 V (SELV) | Continuous load current | ≤ 30 mA |
Maximum switching voltage | ≤ 30 V DC | Output voltage | 24 V (SELV) |
Continuous load current | ≤ 30 mA | Maximum switching voltage | ≤ 30 V DC |
Output voltage | 24 V (SELV) | Continuous load current | ≤ 30 mA |
Nominal voltage U | 24 V DC | End-of-charge voltage | 25 V DC ... 30 V DC (temperature compensated) |
Charging current | 2 A | Nominal capacity range | 3.4 Ah ... 114 Ah (3x 38 Ah) |
Battery presence check/time interval | 1 min | Battery presence check (cyclic) | 60 s |
Energy storage device connection in parallel | yes, 3 (observe line protection) | Energy storage device connection in series | no |
IQ technology | Yes | Temperature compensation | 42 mV/K (preset) |
Temperature compensation (preset) | -42 mV/K | Permissible backup fuse | 50 A |
Network management | Yes | Connection method | Screw connection |
Conductor cross section, rigid min. | 1.5 mm² | Conductor cross section, rigid max. | 6 mm² |
Conductor cross section flexible min. | 1.5 mm² | Conductor cross section flexible max. | 4 mm² |
Conductor cross section AWG min. | 18 | Conductor cross section AWG max. | 10 |
Stripping length | 8 mm | Screw thread | M4 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Connection method | Screw connection | Conductor cross section, rigid min. | 1.5 mm² |
Conductor cross section, rigid max. | 6 mm² | Conductor cross section flexible min. | 1.5 mm² |
Conductor cross section flexible max. | 4 mm² | Conductor cross section AWG min. | 18 |
Conductor cross section AWG max. | 10 | Stripping length | 8 mm |
Screw thread | M4 | Tightening torque, min | 0.5 Nm |
Tightening torque max | 0.6 Nm | Connection method | Screw connection |
Conductor cross section, rigid min. | 0.2 mm² | Conductor cross section, rigid max. | 2.5 mm² |
Conductor cross section flexible min. | 0.2 mm² | Conductor cross section flexible max. | 2.5 mm² |
Conductor cross section AWG min. | 24 | Conductor cross section AWG max. | 10 |
Stripping length | 8 mm | Screw thread | M4 |
Tightening torque, min | 0.5 Nm | Tightening torque max | 0.6 Nm |
Interface | IFS (Interface system data port)
MINI-USB type B | Types of signaling | LED
Active switching outputs
Interface/software |
Signalization designation | AC mode of operation | Status display | LED |
Note on status display | static on | Signalization designation | AC mode of operation |
Status display | LED | Color | green |
Note on status display | static on | Signalization designation | Alarm |
Status display | LED | Color | red |
Note on status display | static on | Signalization designation | Battery mode |
Status display | LED | Color | yellow |
Note on status display | static on | Signalization designation | POWER BOOST |
Status display | LED | Color | yellow |
Note on status display | static on | Signalization designation | Battery charge |
Status display | Bar graph | Color | red/green |
Insulation voltage input, output / housing | 1.5 kV AC
2.1 kV DC | Product type | AC UPS |
Product family | QUINT AC UPS | IQ technology | Yes |
MTBF (IEC 61709, SN 29500) | > 240513 h (40 °C) | Article revision | 07 |
Protection class | I | Time | 184982 h |
Width | 125 mm | Height | 130 mm |
Depth | 125 mm | Installation distance right/left | 5 mm / 5 mm |
Installation distance top/bottom | 50 mm / 50 mm | Mounting type | DIN rail mounting |
Assembly note | alignable: P | Mounting position | horizontal DIN rail NS 35, EN 60715 |
Housing material | Metal | Housing material | Steel sheet, zinc-plated |
Type of housing | Aluminum (AlMg3) | Hood version | Galvanized sheet steel, free from chrome (VI) |
Side element version | Aluminum | Degree of protection | IP20 |
Ambient temperature (operation) | -25 °C ... 70 °C (> 50 °C Derating: 2.5 %/K) | Ambient temperature (storage/transport) | -40 °C ... 85 °C |
Ambient temperature (start-up type tested) | -40 °C | Climatic class | 3K3 (in acc. with EN 60721) |
Max. permissible relative humidity (operation) | ≤ 95 % (25 °C, non-condensing) | Shock | 18 ms, 30g, in each space direction (according to IEC 60068-2-27) |
Vibration (operation) | < 15 Hz, amplitude ±2.5 mm (according to IEC 60068-2-6)
15 Hz ... 150 Hz, 2.3g t | Rail applications | EN 50121-4 |
Standard uninterruptible power supply systems | EN 62040-1 | Standard designation | Uninterruptible power supply systems |
Standards/specifications | EN 62040-1 | Identification | UL/C-UL Recognized UL 1778 |
Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU | Low Voltage Directive | Conformance with Low Voltage Directive 2014/35/EC |
Interference emission | Noise emission in accordance with EN 62040-2 | Noise immunity | Immunity in accordance with EN 62040-2 |
Standards/regulations | EN 61000-4-2 | Contact discharge | 8 kV (Test Level 4) |
Discharge in air | 15 kV (Test Level 4) | Comments | Criterion A |
Standards/regulations | EN 61000-4-3 | Frequency range | 80 MHz ... 3 GHz |
Test field strength | 10 V/m | Frequency range | 1 GHz ... 3 GHz |
Test field strength | 10 V/m | Frequency range | 2 GHz ... 3 GHz |
Test field strength | 3 V/m | Comments | Criterion A |
Standards/regulations | EN 61000-4-4 | Input | 2 kV (Test Level 3 - asymmetrical) |
Output | 2 kV (Test Level 3 - asymmetrical) | Signal | 2 kV (Test Level 4 - asymmetrical) |
Comments | Criterion A | Standards/regulations | EN 61000-4-5 |
Input | 1 kV (Test Level 2 - symmetrical)
2 kV (Test Level 3 - asymmetrical) | Output | 0.5 kV (Test Level 1 - symmetrical)
0.5 kV (Test Level 1 - asymmetrical) |
Comments | Criterion B | Standards/regulations | EN 61000-4-6 |
I/O/S | asymmetrical | Frequency range | 0.15 MHz ... 80 MHz |
Comments | Criterion A | Voltage | 10 V (Test Level 3) |
Radio interference voltage | EN 62040-2 (Class C1) | Criterion A | Normal operating behavior within the specified limits. |
Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Specifications may be subject to change without notice
